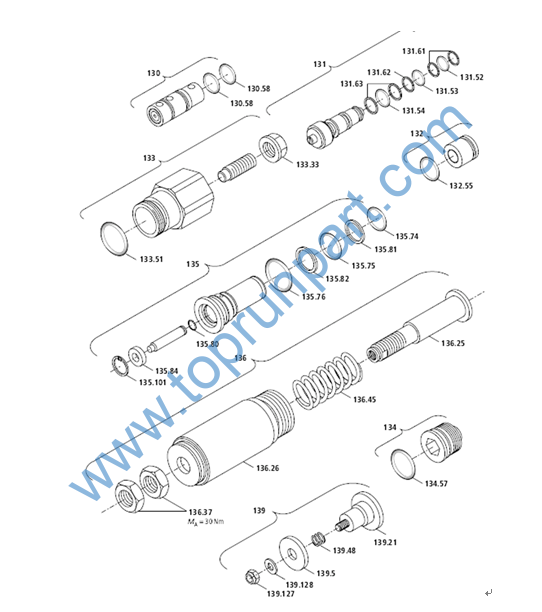

13058 B230101000642 O-ring
13152 B230101000677 O-ring
13153 24004993 O-ring
13154 B230101000093 O-ring
13161 60136536 Ring, thrust
13162 60136531 Ring, thrust
13163 60136532 Ring, thrust
13255 B230101000241 O-ring
13333 A210334000003 Nut
13351 60136713 O-ring
13457 B230101002239 O-ring
13574 24001012 O-ring
13575 B230101000583 O-ring
13576 B230101000584 O-ring
13580 60136734 Ring, stop
13581 60136533 Ring, thrust
13582 60136535 Ring, thrust
13584 60136736 Seal, shaft
135101 60136620 Ring, positioning

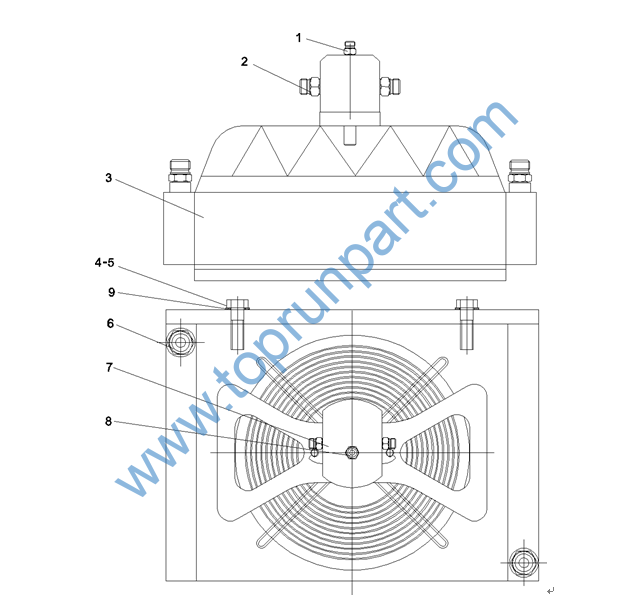

1 B210780000036 Connector, pipe
2 B210780000131 Connector, pipe
3 B229900001004 Radiator
4 A210111000012 Bolt
5 A210401000001 Washer
6 B210780001181 Connector, pipe
7 B220501000269 Motor, gear
8 A210111000092 Bolt
9 A210405000011 Washer

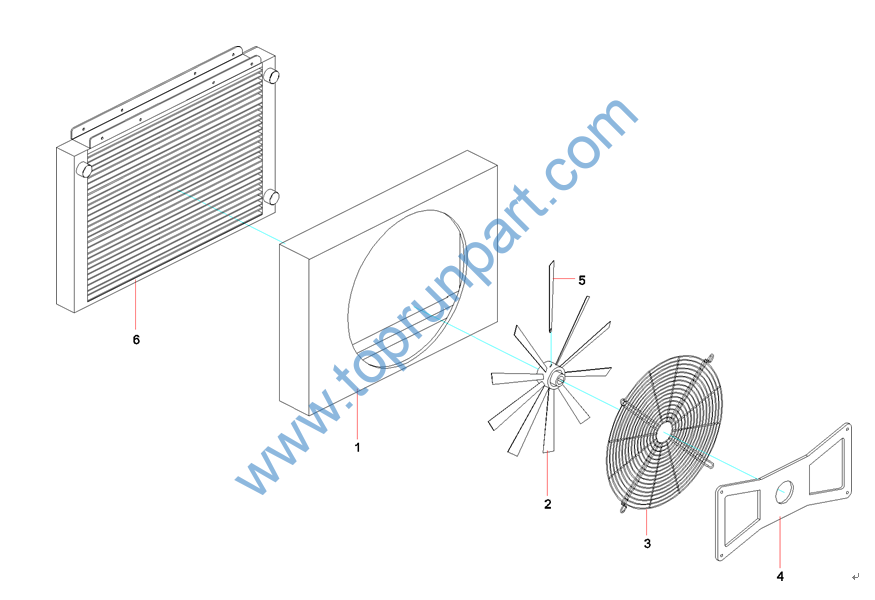

1 60004227 Housing, air cooler
2 B249900000947 Fan
3 60004228 cover,fan
4 60004226 Plate, mounting, motor
5 B229900002382 Vane,air Cooler
6 60136520 Plate, cooling

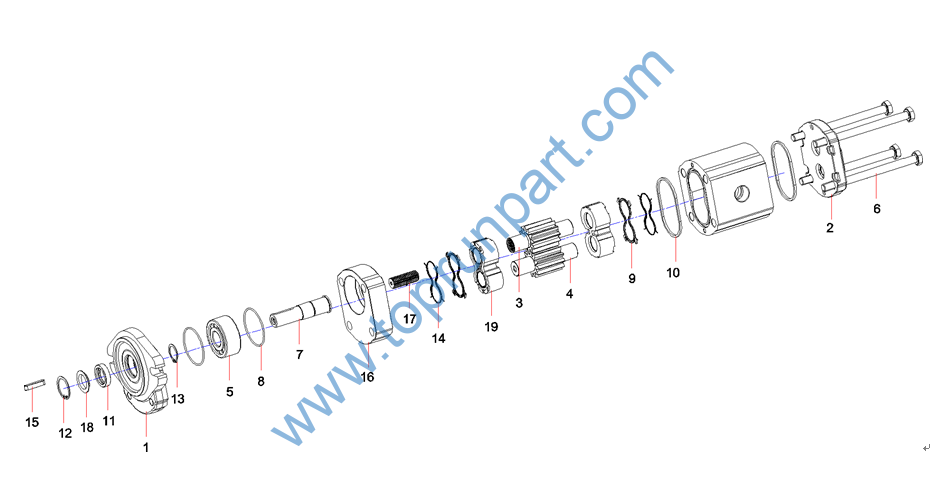

1 60107554 Cover, front
2 60107625 Cover, rear
3 60107578 Gear, driving
4 60107577 Gear, driving
5 60123686 Bearing, ball
6 21008534 Screw
7 60107662 Washer, backup
8 60107673 O-ring
9 60107645 Device, sealing
10 60107544 Sealing, square
11 60107677 Strip, seal, shaft
12 60107547 Ring
13 60107546 Ring
14 60107617 Flange
15 60107658 Pin
16 60107616 Flange
17 60107627 Shaft, connecting, spline
18 60107661 Washer,backup
19 60107663 Rod, supporting

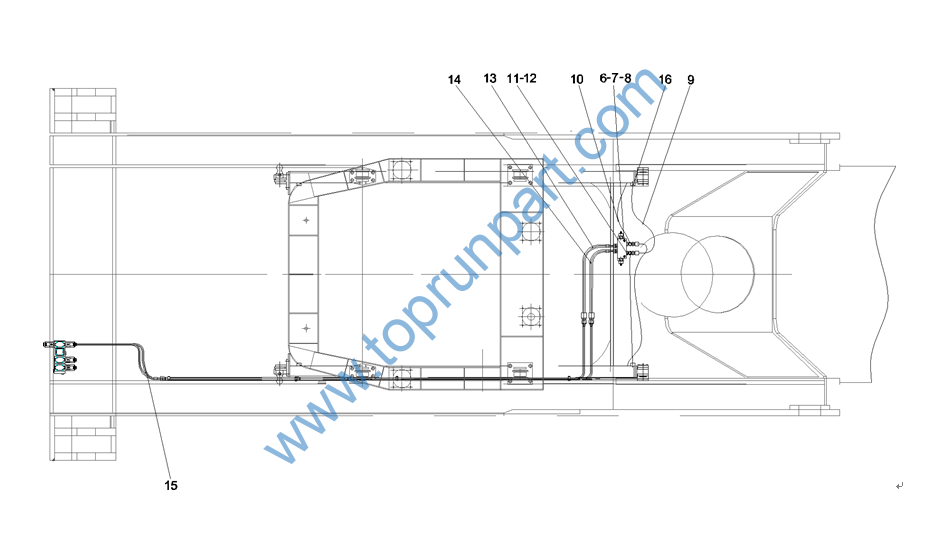

1 12105786 Group, movable valve
2 A210204000019 Screw
3 A210401000002 Washer
4 10213222 Pipe A,steel
5 B210780000847 Connector, pipe
6 B220401000028 Valve, balance, double-direction, pipe type
7 A210204000136 Screw
8 A210401000017 Washer
9 B230103002390 Hose, rubber
10 60004179 Hose, rubber
11 B210780000016 Connector, pipe
12 B210780000180 Connector, pipe
13 B230103005168 Hose, rubber
14 B230103000089 Hose, rubber
15 B230103006930 Hose
16 B210780000024 Connector

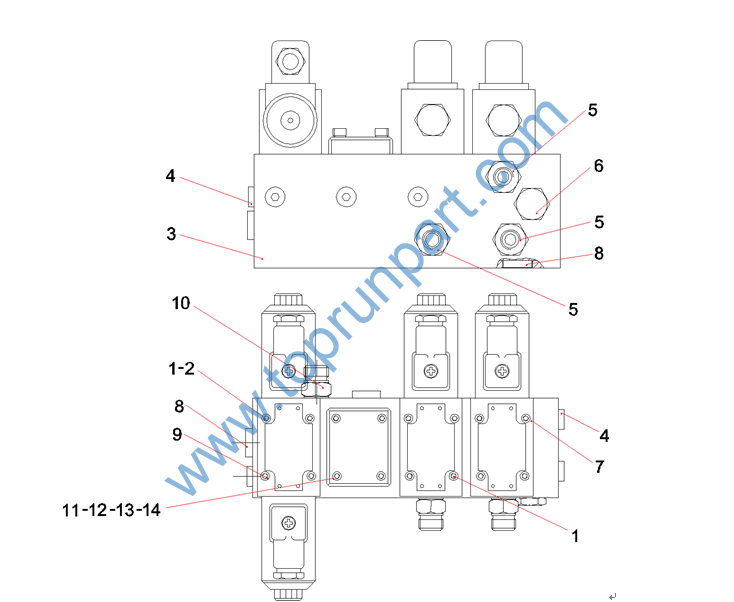

1 A210204000119 Screw
2 B220402000362 Valve, reversal, electromagnetic
3 A820199003193 Block, moveable valve
4 B210399000003 Plug, screw
5 B210780000036 Connector, pipe
6 B220401000046 Valve, shuttle
7 B220400000026 Valve, reversal, electromagnetic
8 B210780000201 Plug, screw
9 A820601020466 Cover, waterproof
10 B210780000232 Connector, pipe
11 12105680 Plate, cover
12 A210401000015 Washer
13 A210204000117 Screw
14 A210609000091 O-ring

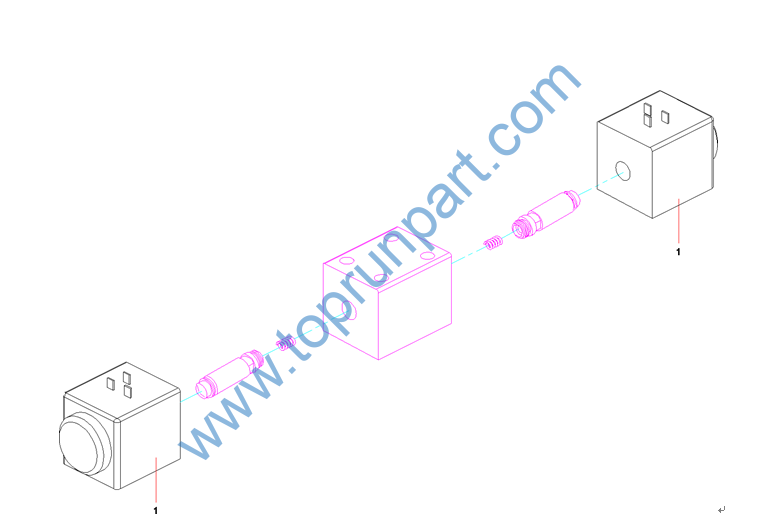

1 B249900000689 Coil
