1 B210780000191 2 螺母 Pipe joint
2 B229900001092 2 特型卡套 Special cutting sleeve
3 A820205002483 2 PT1/4-M14过渡接头 Fitting
4 A210434000007 2 垫圈 Washer
5 13302540 2 方接头 Square joint
6 A820102010428 2 密封垫 Seal Washer
7 B229900000686 3 黄油嘴 Grease nipple
8 24000246 40 螺栓M24×85GB5782 10.9级达克 Bolt
9 60238692 35 螺栓M24×145DIN931 10.9级 Bolt
10 A210491000122 75 垫圈 Washer
11 13587566 2 硬管 Pipe
12 13005406 2 管夹 Clamp
13 A210111000195 2 螺栓 Bolt
14 A210491000120 2 垫圈 Washer
15 A229900006985 2 管接头 Pipe connector
16 A820102010474 2 垫圈 WasherSY200A.1.7-1
17 A820301012418 2 销 pin SY200B.1.7-2
18 13484728 1 回转支承 Slewing ring SSf1405/50CWHⅡ
19 10668938 2 密封垫 Combined seal pad
1 12791140 1 外圈密封条 outer seals
2 12791139 1 圈密封条
3 13484726 1 内圈 Inner Ring SSf1405/50CWHⅡ-1
4 13484727 1 外圈 Outer ring SSf1405/50CWHⅡ-2
5 A210661000041 75 钢球 Ball
6 A229900010025 75 隔离块 尼龙 Spacers
7 60012591 1 销 Pin
8 11217895 1 堵塞 Plug
9 A210551000025 1 销 Pin
1 A810299000007 2 脚踏板 Pedal
2 A820606030112 2 橡胶套 SY200.1A.5-2
3 24000633 9 垫圈8GB97.1 达克锈 Washer
4 A210204000340 9 螺钉M8×16GB70.1 10.9级 Bolt, socket head
5 13284295 1 行走操纵机构 Running control mechanism
6 12051215 1 后视镜支架组件 bracket assemble-rear view mirror
7 60151838 1 驾驶室后视镜 rearview mirror
8 变更或见其他配置 1 驾驶室 CAB
9 13915201 1 驾驶室顶防护网总成 top guard mesh SY365CDI3K.1.5.2
10 14013130 1 座椅及桃色操纵箱 seat and control cabinet
11 24000511 5 垫圈8GB93 达克锈 Washer
12 60060564 3 垫圈6GB93 达克锈 Washer
13 24000632 3 垫圈6GB97.1 达克锈 Washer
14 60249819 3 螺钉M6×16GB70.1 10.9级 Screw
15 10244287 1 内气盖板 Inner air duct TJ06.2221.10
16 13572874 2 支撑杆 Supporting Lever
17 13298857 1 前支架总成 Front bracket of electrical
18 13300896 2 加厚垫片 Thickening Washer
19 A210111000101 2 螺栓M12×25GB5783 10.9级 Bolt
20 13444608 1 下立板总成 lower standing plate
21 A229900010630 1 吹脚风道 Duct, lower air
22 10567493 1 吹脚风道密封海绵 Sealing sponge of Foot-Blowing
23 10578270 1 吹背风道密封海绵 Sealing sponge
24 13346289 1 底板架 Bottom board rack of cab

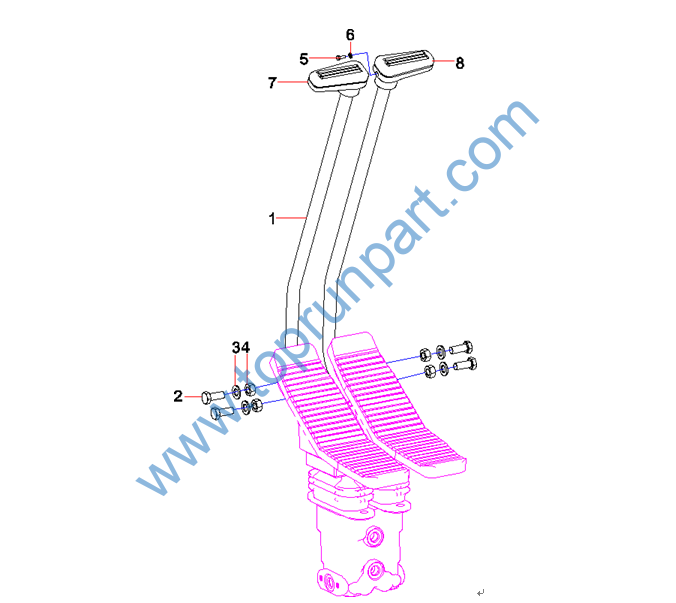

1 13280675 2 操纵杆 Control Lever
2 A210111000197 4 螺栓 Bolt
3 24000637 4 垫圈10GB97.1 达克锈 Washer
4 A210307000036 4 螺母 Nut
5 A210210000030 2 螺钉 Screw
6 60060562 2 垫圈4GB97.1 达克锈 Washer
7 12688927 1 左手柄 left Handle
8 12691132 1 右手柄 right handle
1 A210111000205 4 螺栓M14×30GB5783 10.9级 Bolt M14×30GB5783 Grade 10.9
2 A210444000001 4 垫圈 Washer
3 14011906 1 前支架 Front bracket Ⅱ
4 A210111000212 4 螺栓M16×35GB5783 10.9级 Bolt
5 A210491000118 4 垫圈 High-strength steel washer
6 13915035 1 顶防护网焊接主体 top guard mesh welding assembly
7 14011905 1 前支架 Front bracket Ⅰ
8 A210214000002 1 螺钉 Screw M16GB825
9 13915164 1 右后支架总成 Right rear bracket
10 13915166 1 左后支架 Left rear bracket
1 10241175 1 风道连接法兰 Air duct connection flange
2 A210111000079 6 螺栓 Bolt
3 60238783 2 垫圈6GB96.1 达克锈 Washer
4 60240844 1 控制面板 Cover, left
5 60204189 1 左扶手箱总成 Armrest AS, left
6 A210111000012 8 螺栓 M10×20GB5783 10.9级 Bolt
7 A210491000120 8 垫圈 Washer
8 24000632 4 垫圈6GB97.1 达克锈 Washer
9 13267722 1 座椅下底座架 Seat lower base frame
10 60060565 4 垫圈8GB96.1 达克锈 Washer
11 A210111000342 4 螺栓M8×16GB5783 10.9级 Bolt
12 24000633 4 垫圈8GB97.1 达克锈 Washer
13 A210204000347 4 螺钉M8×35GB70.1 10.9级 Screw
14 60313915 1 座椅左导轨 Rail guide, left
15 10140450 1 电装底座架前盖 Front cover of electric assembly
16 B229900000494 1 座椅拉杆 Seat, lock rod
17 60313916 1 座椅右导轨 Rail guide, right
18 A210204000340 4 螺钉M8×16GB70.1 10.9级 Bolt, socket head
19 10115283 1 支撑平板 Supporting flat plat
20 60204190 1 右扶手箱总成 Right armrest box assembly
21 60291705 1 空气悬浮式驾驶座椅 Pneumatic suspension driver seat
