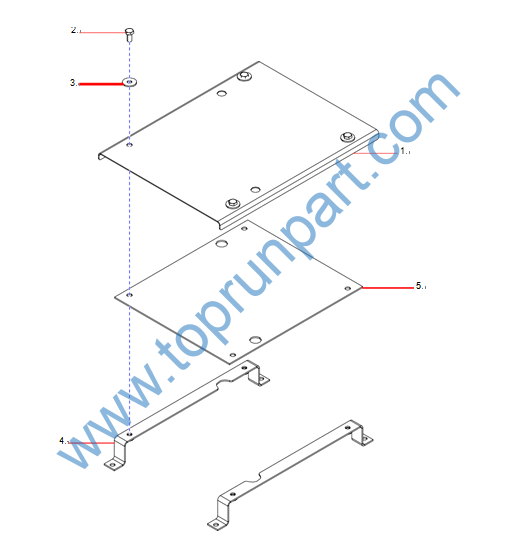

1 11991708 盖板 1
2 A210111000012 螺栓 4
3 60060546 垫圈 4
4 SSY005458296 盖板支撑 1
5 SSY005200009 橡胶垫片 1

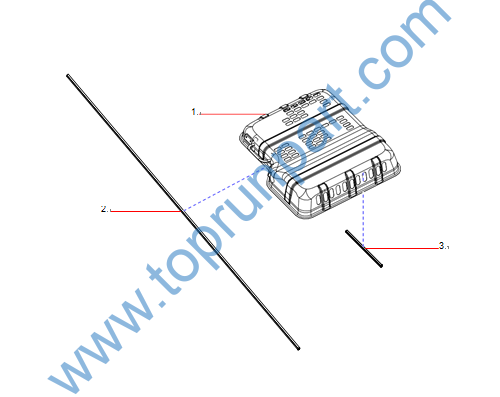

1 13881689 机顶罩总成 1
2 13439953 密封条A 1
3 13439958 密封条B 1

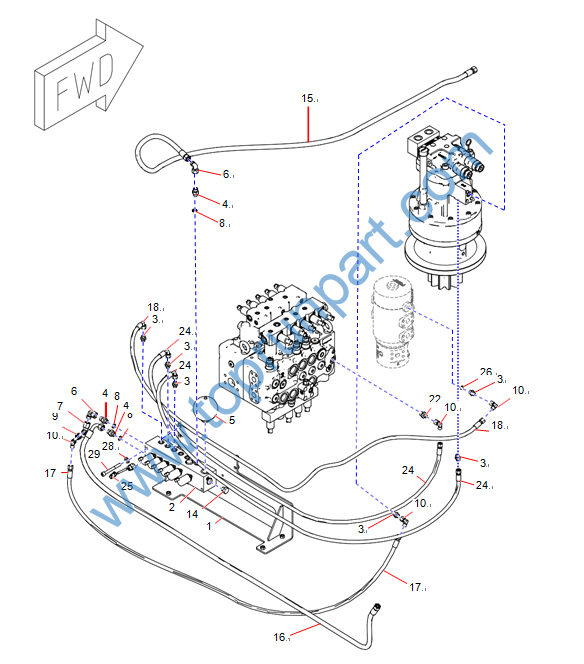

1 SSY005578587 先导阀架 1
2 152300000139B 六联电磁阀组 1 2-144

3 21002815 端直通接头 8
4 A820205000961 G3/8-M18接头 3
5 60265303 隔膜式蓄能器 1
6 B210780000024 直角组合接头 2
7 B210780000016 三通组合接头 1
8 B230101000049 O形圈 5
9 B210780000827 对接式变径接头 1
10 B210780000418 直角组合接头 5
14 A820205000947 G3/8堵头 1
15 B230103002291 胶管 1
16 23000905 胶管 1
17 B230103005403 胶管 1
18 21026928 胶管 1
22 21002816 端直通接头 2
24 60274650 胶管 2
25 14055455 托马斯电磁阀中转线束 6
26 B230101000047 O形圈 10
28 A210491000120 垫圈 2
29 A210204000017 螺钉 2

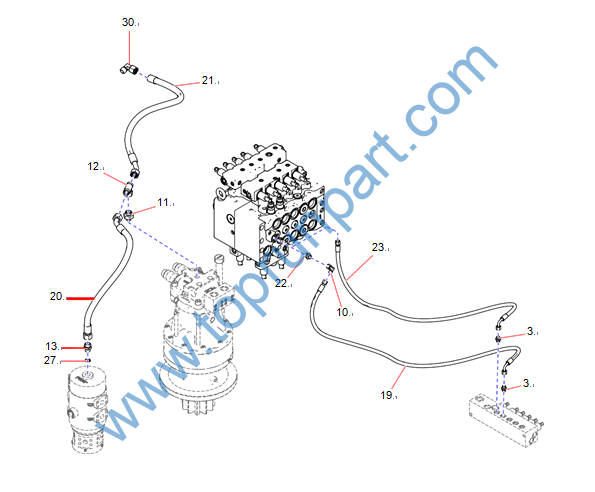

3 21002815 端直通接头 8
10 B210780000418 直角组合接头 5
11 A820205000948 G3/8-M26接头 1
12 B210780001363 三通组合接头 1
13 21002824 端直通接头 1
19 151002160061A 胶管总成 1
20 B230103004072 胶管 1
21 151006110051B 胶管总成 1
22 21002816 端直通接头 2
23 23000424 胶管总成 1
27 B230101000090 O形圈 1
30 B210780001310 直角组合接头 1

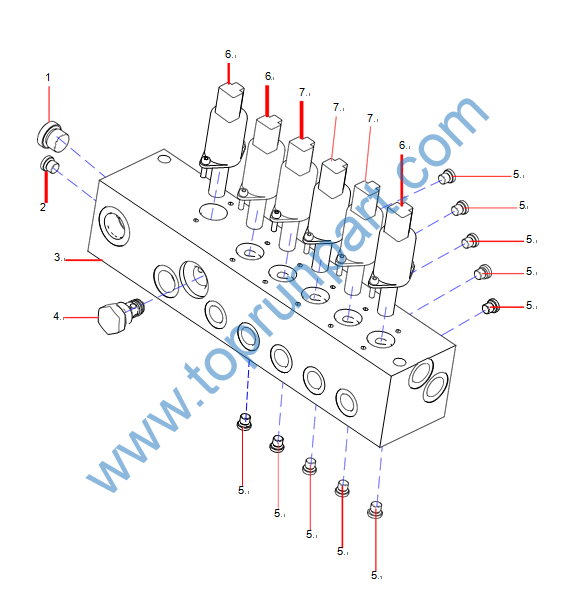

1 152300000098B005 堵头 1
2 152300000098B002 工艺堵 1
3 152300000139B001 阀块 1
4 152300000098B004 单向阀 1
5 60321080 工艺堵 10
6 152300000139B002 电磁阀 3
7 152300000139B003 电磁阀 3

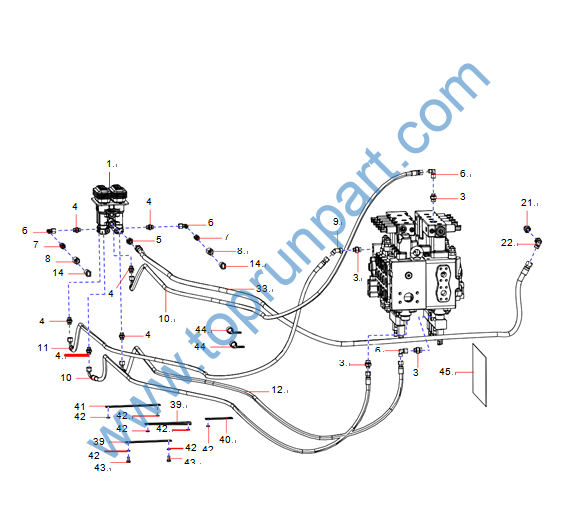

1     150505020015A         先导阀                                                              1             2-152

3     21002816              端直通接头                                                                                                                  18

4     21002815              端直通接头                                                                                                                  10

5     11679982              端直通接头GEOLG1/4-LM18                                                                                         2

6     B210780000418         直角组合接头                                                                                                              14

7     B210780001045         直通组合接头                                                                                                               2

8     A820205001061         负流量传感器接头                                                                                                       2

9     A229900010160         45度角组合接头                                                                                                           1

10    B230103000897         胶管                                                                                                                               2

11    B230103002001         胶管                                                                                                                               1

12    B230103002705         胶管                                                                                                                               1

14    60114798              压力传感器                                                                                                                   2

21    A229900003874         端直通接头                                                                                                                   2

22    B210780000024         直角组合接头                                                                                                               2

33    B230103007716         胶管总成                                                                                                                       1

39    11243372              压板                                                                                                                               2

40    11243374              压板                                                                                                                               1

41    11243400              压板                                                                                                                               1

42    24000511              弹簧垫圈                                                                                                                       8

43    A210111000342         螺栓                                                                                                                               8

44    60086354              线束固定夹                                                                                                                   2

45    13391350              胶管护套                                                                                                                       2

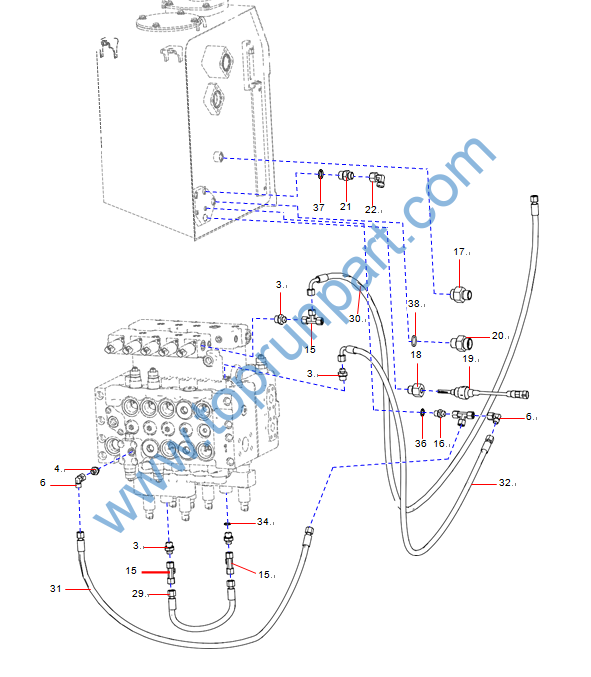

3 21002816 端直通接头 18
4 21002815 端直通接头 10
6 B210780000418 直角组合接头 14
15 B210780000170 三通组合接头 9
16 21002840 端直通接头 2
17 A820205000836 M24-M26接头 1
18 10077549 M20-内G1/4ED接头 1
19 60060301 温度传感器 1
20 A820205000837 M24-M30接头 1
21 A229900003874 端直通接头 2
22 B210780000024 直角组合接头 2
29 23000427 胶管总成 2
30 151002160062B 胶管总成 1
31 60183205 胶管 1
32 60274656 胶管 1
34 B230101000047 O形圈 10
36 A230101000247 O形圈 2
37 A230101000243 O形圈 2
38 A229900001581 O形圈 2

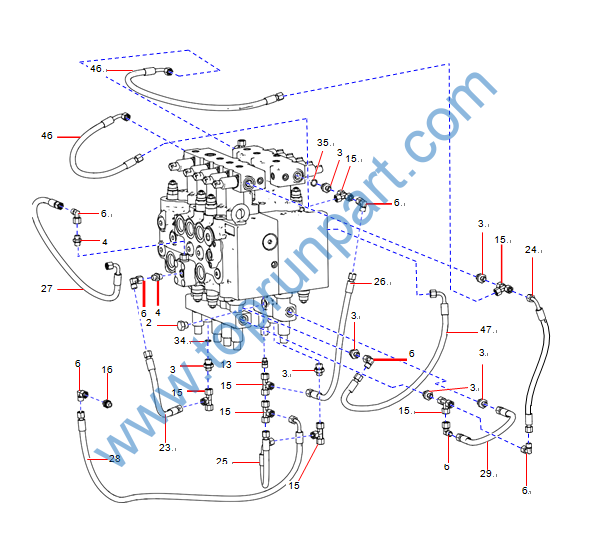

2 A820205000947 G3/8堵头 1
3 21002816 端直通接头 18
4 21002815 端直通接头 10
6 B210780000418 直角组合接头 14
13 60227028 端直通接头 1
15 B210780000170 三通组合接头 9
16 21002840 端直通接头 2
23 60005721 胶管总成 1
24 60210227 胶管 1
25 61029433 胶管 1
26 60264403 胶管 1
27 B230103005032 胶管总成 4
28 60208763 胶管总成 1
29 23000427 胶管总成 2
34 B230101000047 O形圈 10
35 B230101000049 O形圈 18
46 B230103004543 胶管 2
47 60208161 胶管 1
