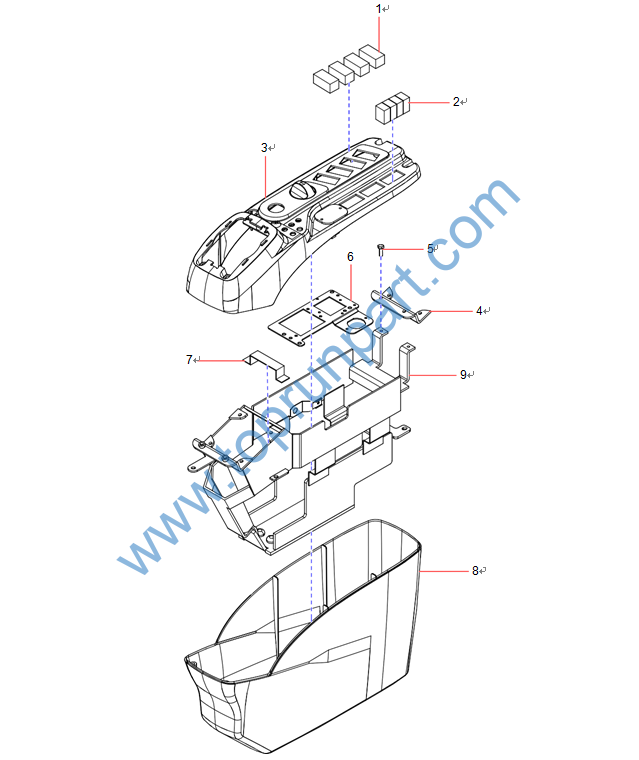

1 A241200000121 Overboard Switch 1
2 60309919 Four-unit Frame 1
3 60307220 Upper Cover Of Right Armrest Box 1
4 60309924 Harness Fixing Frame 1
5 A210210000006 Screw 9
6 60309925 Throttle Knob Bracket 1
7 60309915 Ignition Switch Bracket 1
8 60309922 Lower Housing 1
9 60309927 Right Steel Frame 1

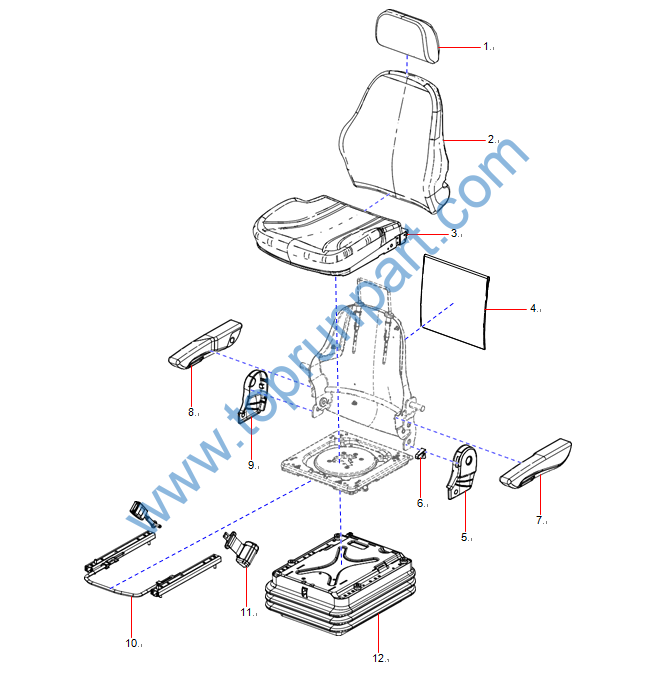

1 130903000050B002 Headrest local fabric black 1
2 130988000603A Backrest cushion logo 1
3 130903000050B001 Seat cushion local fabric black 1
4 130903000050B010 Document Bag Kit 1
5 130903000050B009 Cover Plastic LH CPL. 1
6 130903000050B004 Handle Grip for Back Angle Adjust 1
7 130903000050B006 Armrest-left Kit 1
8 130903000050B005 Armrest-right Kit 1
9 130903000050B008 Cover Plastic RH CPL. 1
10 130903000050B011 Slide rail KIT 1
11 130903000050B007 Seat Belt Kit 1
12 130903000050B012 Suspension MSG95G/722 1

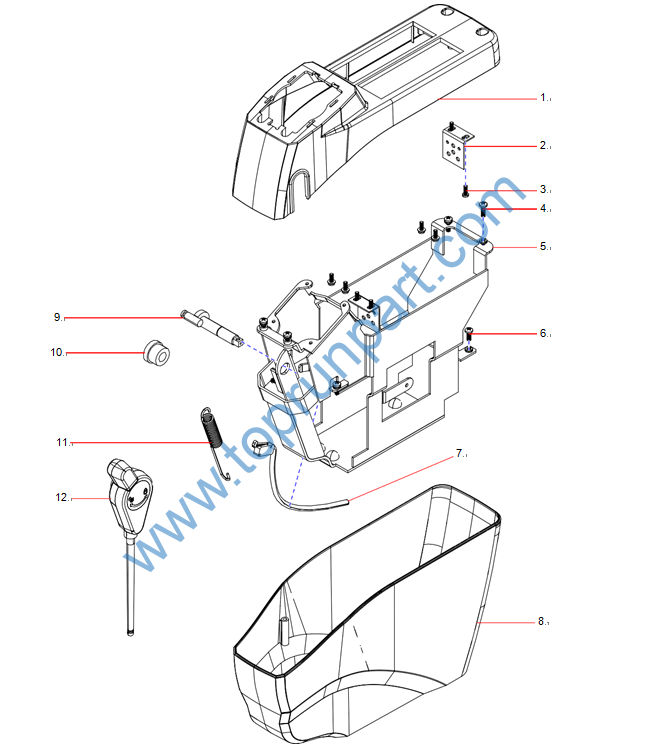

1 60307219 Left Handrail Box Top Cover 1
2 60309918 Radio Bracket 2
3 A210210000002 Screw 4
4 A210210000017 Screw 4
5 60309930 Left Steel Frame 1
6 A210210000008 Screw 4
7 60309921 Microswitch 1
8 60309922 Lower Housing 1
9 60309920 Camshaft 1
10 60309917 Retainer Ring 1
11 60309914 Spring 1
12 130904000066A008 Crane Operation Joystick 1

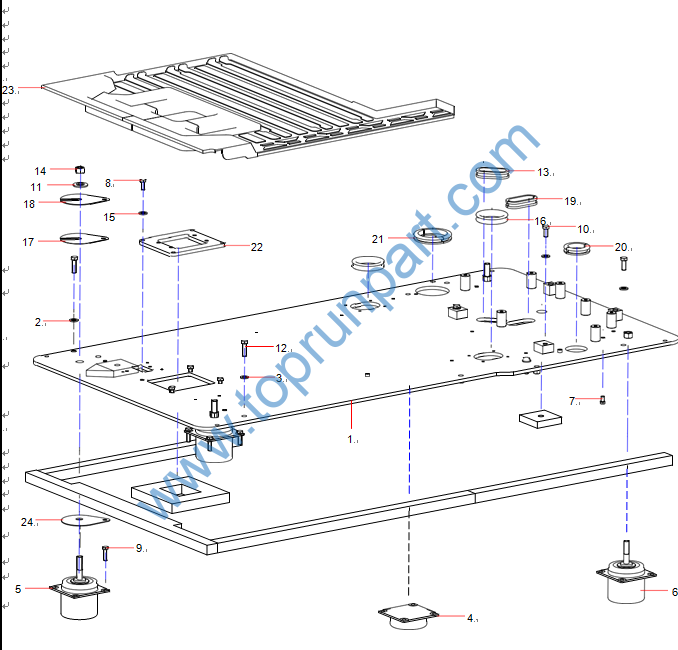

1 SSY004687366 Base Plate 1
2 13300896 Thickened Shim 6
3 24000639 Washer 2
4 12827984 Rubber Pad 2
5 B229900000244 Cab Bearing 2
6 B229900000245 Cab Bearing 2
7 A210111000195 Bolt 4
8 A210111000197 Bolt 4
9 A210111000026 Bolt 24
10 A210111000101 Bolt 2
11 A210491000118 Washer 4
12 A210111000204 Bolt 6
13 11963757 Airproof Rubber Sleeve Ⅰ 1
14 A210307000028 Nut 4
15 24000637 Washer 8
16 A820606030056 Grommet 2
17 A820101210709 Gasket 4
18 A820101210710 Gasket 4
19 11963758 Airproof Rubber Sleeve Ⅱ 1
20 12831476 Electric Wire Hole Sealing Rubber Sleeve I 1
21 13631506 Rubber Sleeve Ⅰ 1
22 A820101025902 Pedal Valve Mounting Plate 1
23 11670604 Floor Pad 1
24 11546613 Backer Plate 4

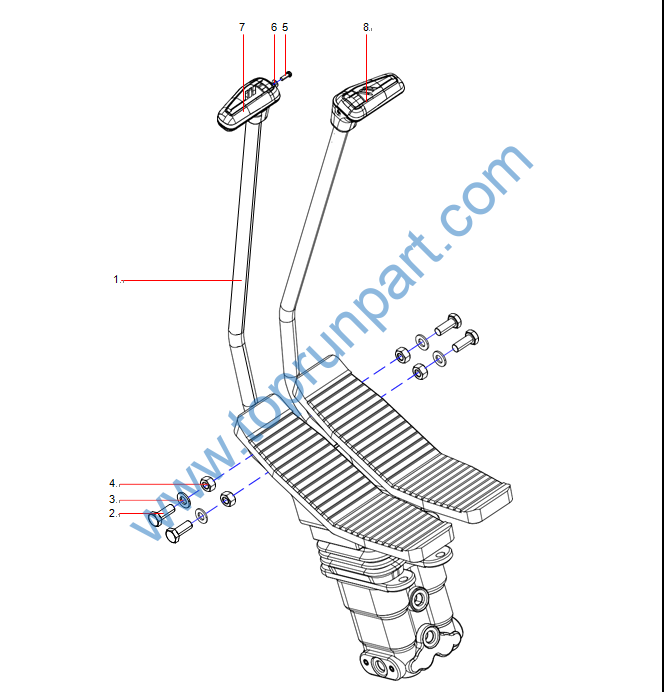

1 13280675 Control Lever 2
2 A210111000197 Bolt 4
3 24000637 Washer 4
4 A210307000036 Nut 4
5 A210210000030 Screw 2
6 60060562 Washer 2
7 12688927 Left Handle 1
8 12691132 Right Handle 1

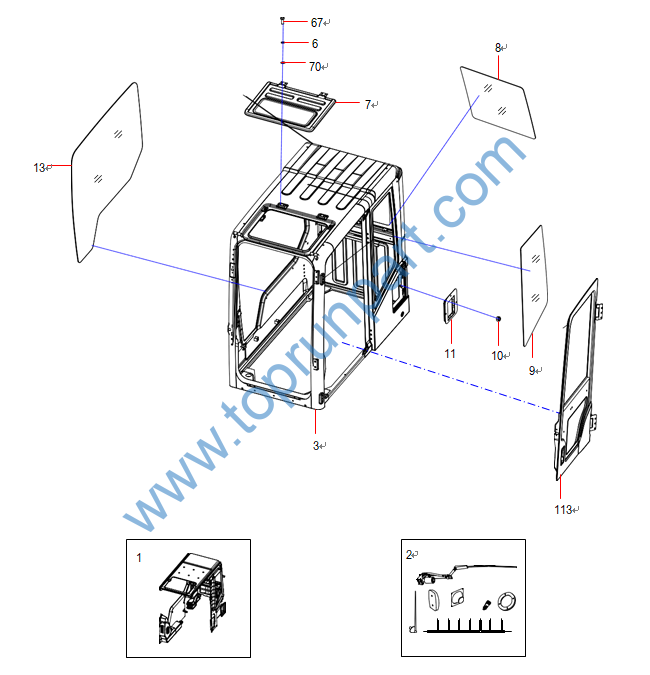

1 13069429 Interior Trim Installation 1 2-38

2 13471741 electric system 1 2-46

3 13067007 Driver’s Cab Sub-Assembly 1
6 A210401000017 Spring Washer 20
7 11162034 Skylight Assembly 1 2-60

8 11094594 Rear Wall Glass 1
9 10138049 Left-hand Glass 1
10 A210307000017 Nut 9
11 10137654 Waterproof Board Assembly of Windshield 1
13 11648012 Right Side Glass 1
67 A210111000089 Bolt 14
70 A210404000005 Washer 4
113 13826859 Door assembly 1 2-64

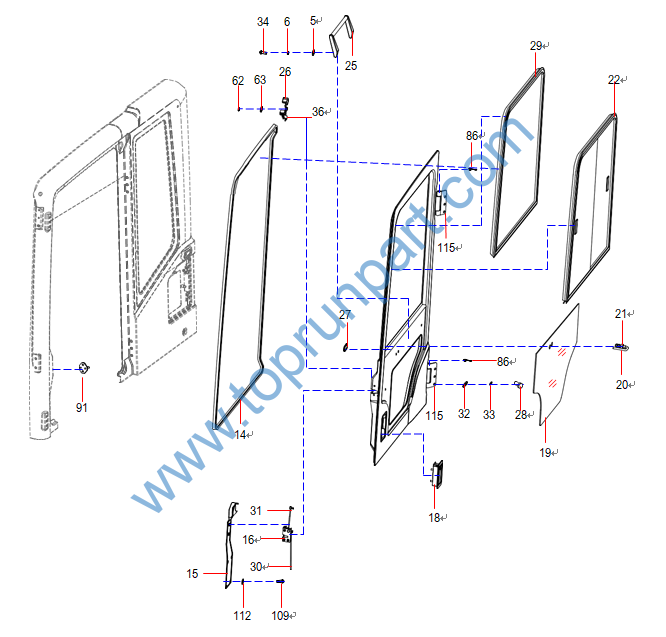

5 A210405000007 Washer 16
6 A210401000017 Spring Washer 20
14 10128925 Sealing Strip, Inside Door 1
15 10128962 Door Inner Cover Plate 1
16 A222200000147 Door Lock 1
18 A229900008575 Door Lock 1
19 10138052 Door Lower Glass 1
20 10138053 Door Outer Lock Buckle 1
21 10133023 Rubber Protective Cap 4
22 13174512 Sliding Window of Door 1
25 A229900002860 Handle 1
26 10166212 Door Lock Inner Handle 1
27 10128922 Rubber Cap 1
28 A210204000354 Screw 4
29 10473839 Door Window Frame Rubber Strip 1
30 60107456 Door Lock Push Rod 1
31 60107458 Door Lock Push Rod 1
32 A210405000001 Washer 3
33 A210401000002 Spring Washer 3
34 A210210000007 Screw 2
36 A210491000009 Pin 4
62 A210401000016 Spring Shim 27
63 A210405000006 Washer 27
86 A290000002660 Universal Grease Nozzle Protective Cap 2
91 60061548 Door Latch 1
109 A210210000002 Screw 4
112 A210405000005 Washer 4
115 130901001446A004 Cab Door Hinge 2

5 A210405000007 Washer 16
6 A210401000017 Spring Washer 20

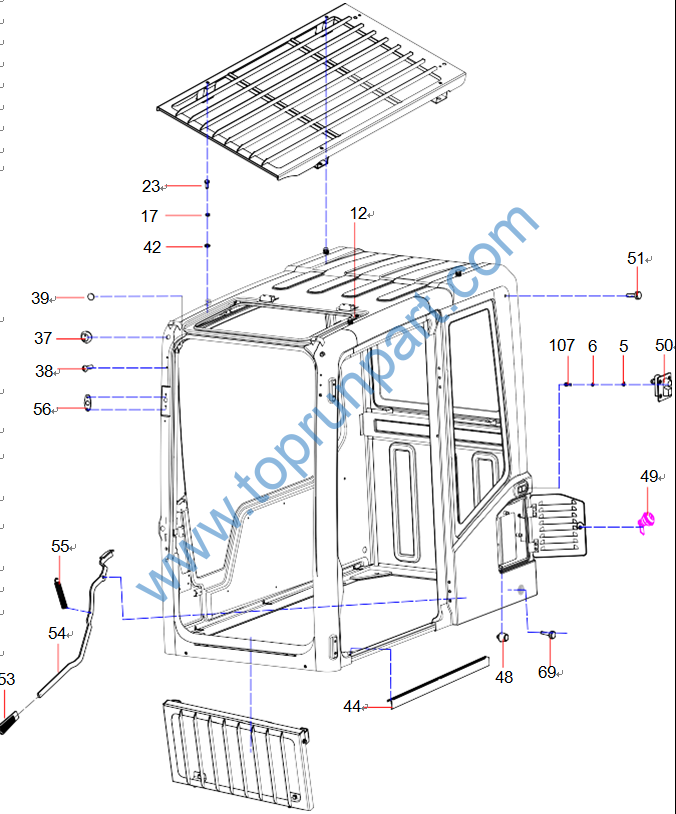

12 11943015 Plug, Plastic 4
17 A210401000004 Spring Washer 4
23 A210111000100 Bolt 4
37 10473271 Sealing Block, Cluster 3
38 10473291 Plastic Screw 4
39 11676657 Block, Anti-collision, Side Roller 2
42 A210405000003 Washer 4
44 10138044 Pedal 1
48 10128903 Rubber Block 2
49 A222200000148 Car Window Lock 1
50 A222200000149 Door Lock 1
51 10128902 Block, Rubber 1
53 10128920 Handle Sleeve 1
54 10137641 Rear Door Lock Handle Assembly 1
55 10125192 Spring 1
56 10684108 Washer, Wiper Motor 1
69 11910642 Short Anti-Collision Block 1
107 A210111000090 Bolt 4
