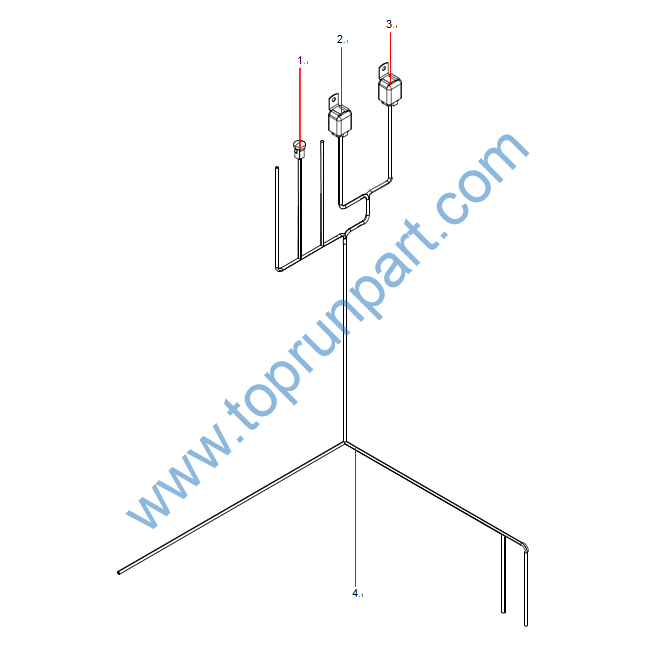

1 B240600000334 Solar Sensor 1
2 B240700000473 Middle Relay 1
3 B240700000472 Middle Relay 1
4 10448933 Connecting Harness of Air-conditioner 1

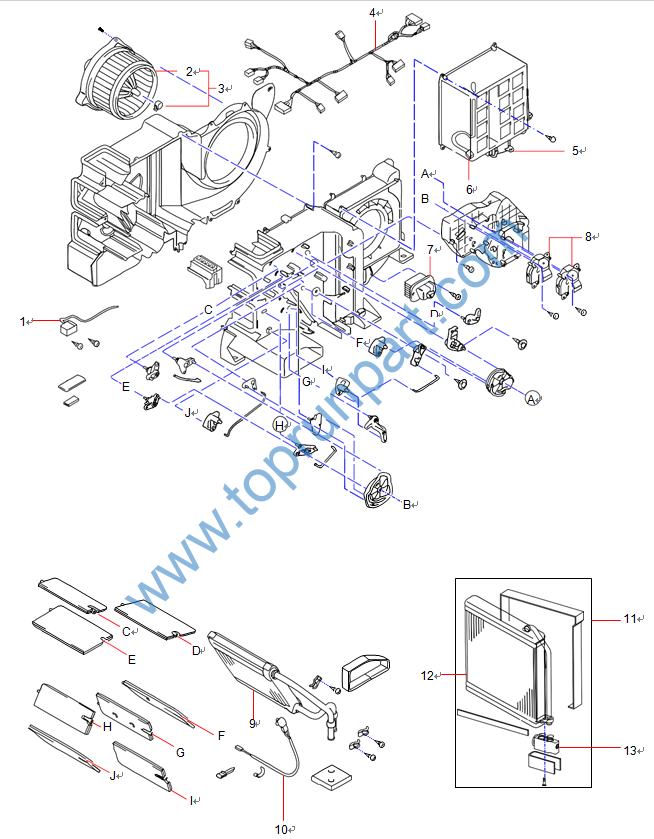

1 60049966 Temperature Sensor 1
2 60049951 Fan Blade 1
3 60153199 Blower Motor 1
4 60049948 Air Conditioning Unit Harness Assembly 1
5 60049945 DC motor 1
6 60153240 Internal Gas Sensor 1
7 141501000101A002 Speed Control Resistor 1
8 60049947 DC motor 2
9 141501000101A001 Heater Core Sub-assembly 1
10 60033039 Temperature Sensor 1
11 60153202 Evaporator Assembly With Components 1
12 60153218 Evaporator Vaporator Sub-assembly 1
13 60153197 Expansion Valve 1

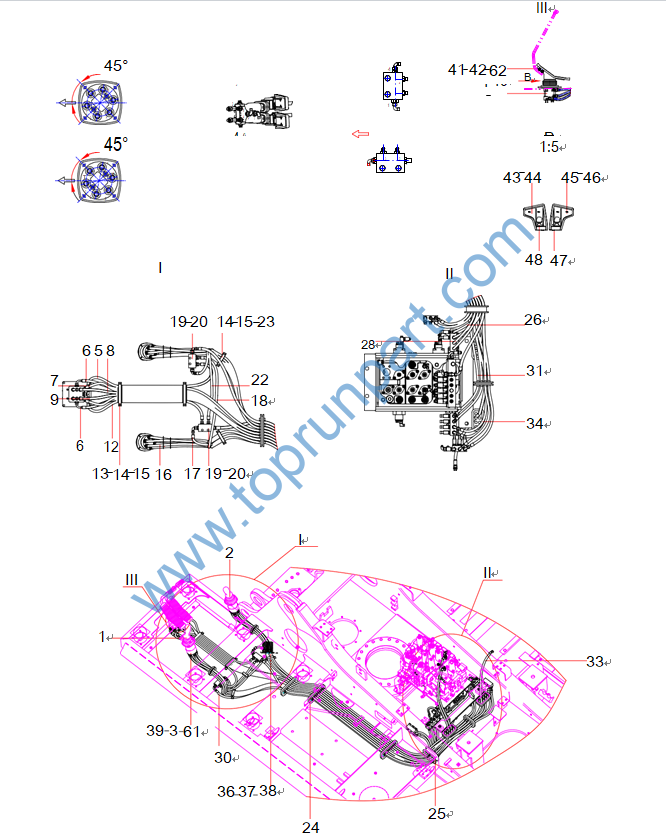

1 Left Handle Assembly 1 2-90

2 Right Handle Assembly 1 2-92

3 150505010037A Pilot Valve 2 2-94

4 150505020015A Pilot Valve 1 2-96

5 B230103004288 Hose 1
6 B230103005103 Rubber Hose Assembly 1
7 B230103004207 Hose 1
8 B230103006195 Rubber Hose Assembly 1
9 B230103003246 Rubber Hose Assembly 1
12 21027563 Rubber Hose 1
13 A820101117104 Pipe Nip 2
14 A210111000342 Bolt 8
15 24000633 Washer 8
16 A239900000065 nylon cable tie 12
17 B230103004127 Rubber Hose 1
18 B230103003138 Hose 1
19 A820199000360 Pt Block 2
20 A210204000355 Screw 4
22 23001051 Hose 1
23 A820101117116 Pipe Nip 2
24 13305841 Protective Sleeve 3
25 13305833 Protective Sleeve 1
26 B230103002946 Hose Assembly 1
30 B230103007716 Rubber Hose Assembly 1
31 60307232 Rubber Hose Assembly 1
33 B230103008477 Rubber Hose Assembly 1
34 B230103002238 Rubber Hose 1
36 A820601990304 Flange 2
37 A820601990336 Corrugated Tube Φ75×450 2
38 A210111000079 Bolt 8
39 24000632 Washer 16
40 11571909 Block 2
41 A210111000012 Bolt 4
42 A210491000120 Washer 12
43 12009972 Pedal Valve Backup Plate Assembly Right 1
44 12003641 Left Backup Plate of Pedal 1
45 12009258 Butterfly Backup Plate Sleeve of Pedal 1
46 12010268 Pedal Valve Backup Plate Set Right 1
47 A210204000334 Screw 4
48 23000066 Screw 4

61 24002251 Screw 8
62 A210111000197 Bolt 4

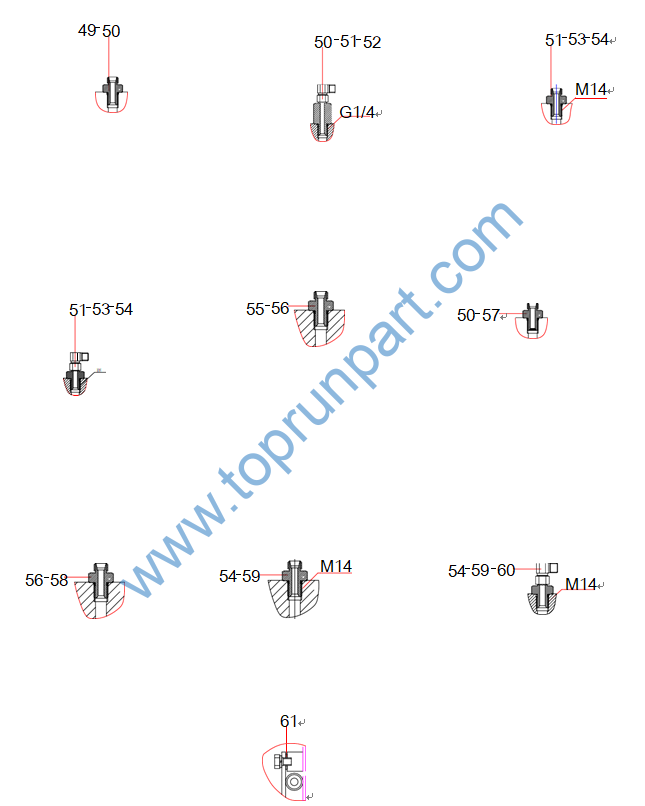

49 A820205002445 G1/4-m16 Connector 5
50 B230101000047 O-ring 10
51 B210780000636 Elbow Combination Joint 4
52 13106800 G1/4-M16 Extended Connector 2
53 B210780000148 End Straight Through Connector 6
54 A230101000247 O-ring 8
55 11287446 G3/8-M16 Connector 10
56 B230101000049 O-ring 12
57 60173491 Fitting Adapter 3
58 A820205000961 G3/8-M18 Connector 2
59 A820205000894 Fitting 2
60 B210780000024 Elbow Combination Joint 1
61 24002251 Screw 8

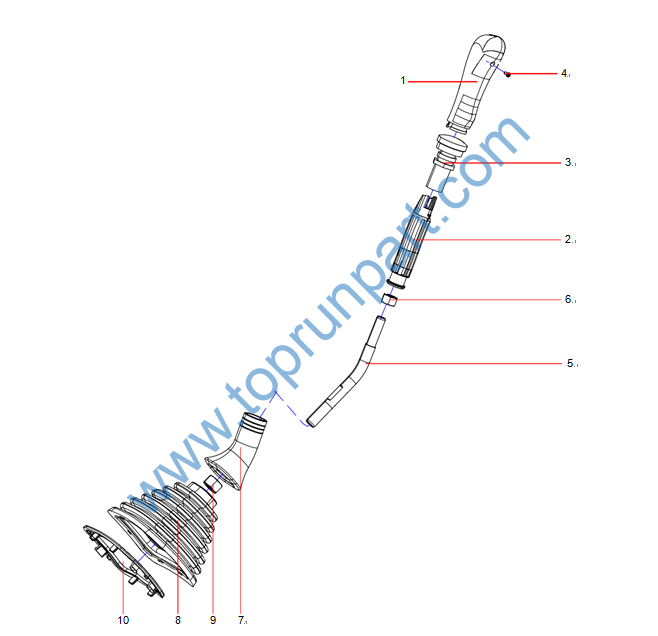

1 B229900001613 Left Handle 1
2 A229900006438 Insert 1
3 60046659 Button Switch 1
4 A210264000022 Self-tapping Screw 1
5 11050165 Handle 1
6 A210308000006 Nut 1
7 A229900006446 Cover 1
8 A229900001028 Cover 1
9 A210307000002 Nut 1
10 A229900001027 Plate 1

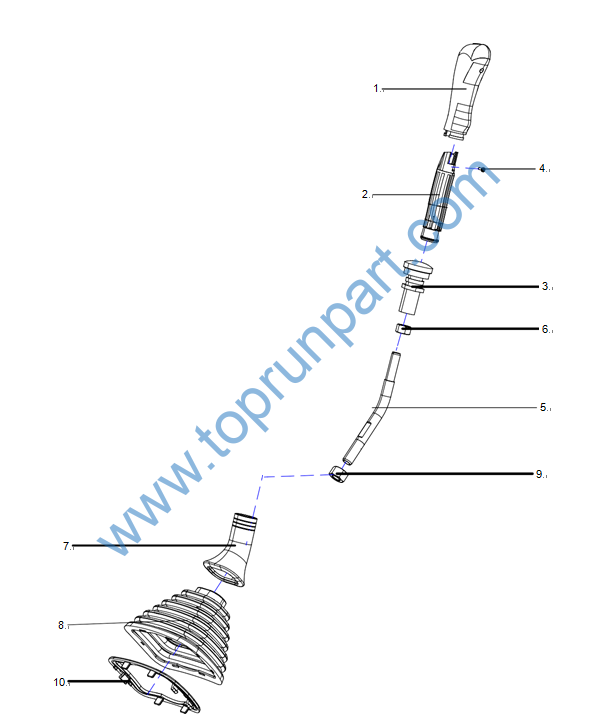

1 B229900001614 Right Handle 1
2 A229900006438 Insert 1
3 60046659 Button Switch 1
4 A210264000022 Self-tapping Screw 1
5 11050165 Handle 1
6 A210308000006 Nut 1
7 A229900006446 Cover 1
8 A229900001028 Cover 1
9 A210307000002 Nut 1
10 A229900001027 Plate 1

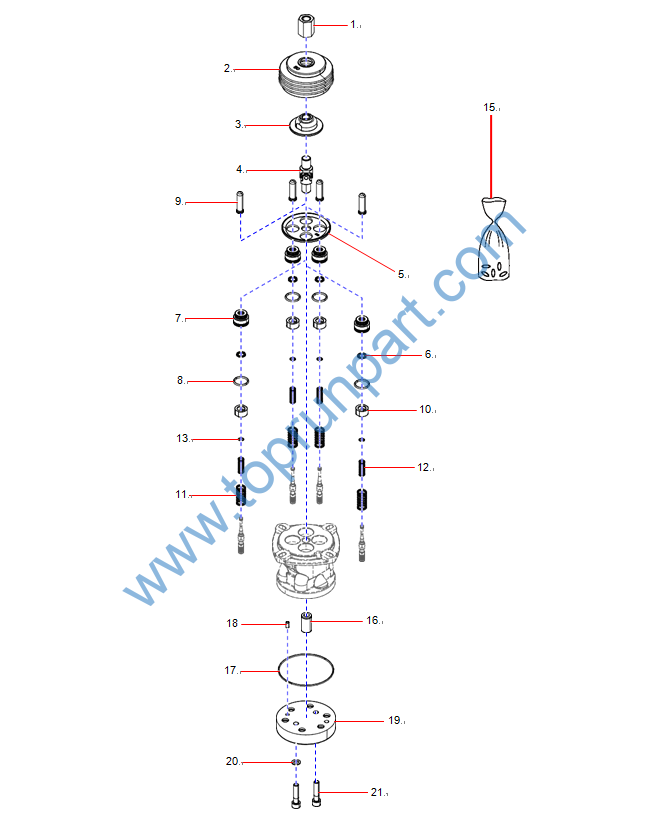

1 60038479 Nut 1
2 60192531 Rubber Cover 1
3 60008809 Plate, Circular 1
4 60008602 Joint 1
5 60037936 Plate 1
6 60230199 Sealing Ring 4
7 60221602 Plug 4
8 60221603 O-ring 4
9 60008599 Push Rod 4
10 60008758 Base, Spring 4
11 60008774 Spring 4
12 60008775 Spring 4
13 60008597 Washer 2
15 60340388 Pilot Valve Service Kit 1
16 60008806 Bushing, Sleeve 1
17 60008799 O-ring 1
18 60038259 Spring Pin 1
19 60008810 oil port connecting plate 1
20 60008598 Sealing Washer 2
21 60008786 Socket Head Cap Screw 2

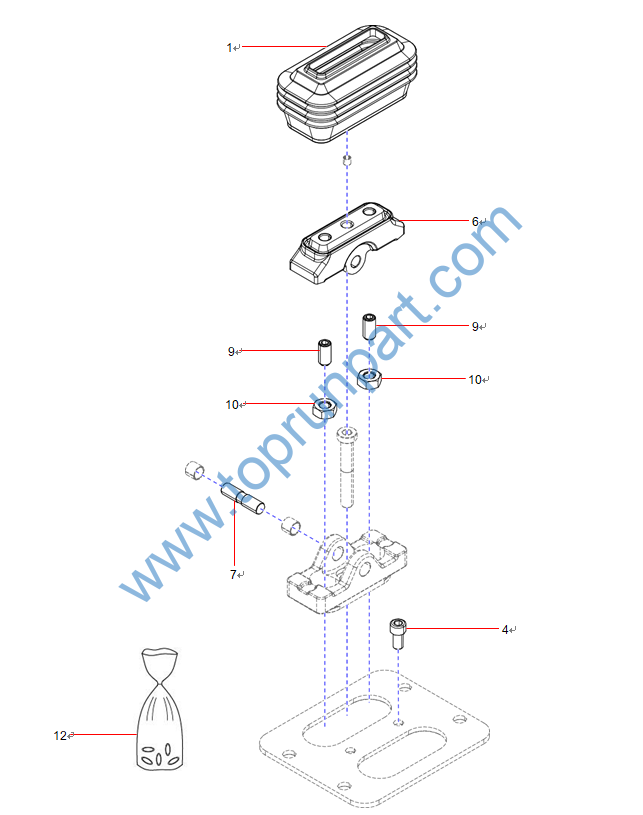

1 150588000150A Dust Cover 2
4 21005085 Screw 2
6 150588000146A control rod seat 2
7 150588000147A Cylindrical Pin 2
9 150588000149A positioning screw 4
10 A210307000036 Nut 4
12 150505020015B001 Pedal Pilot Valve Service Kit 1
