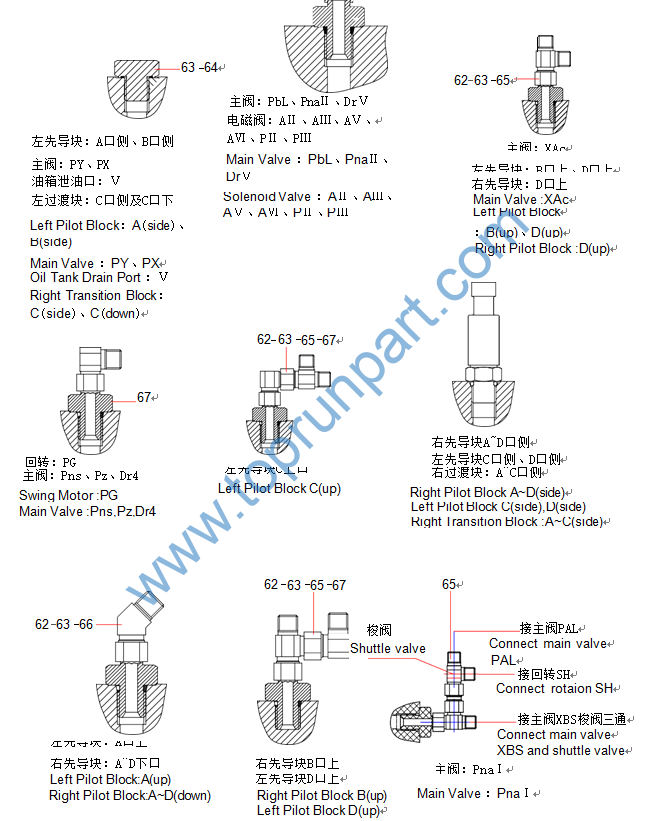

62 A820205002445 G1/4-m16 Connector 20
63 B230101000047 O-ring 23
64 11816259 Connector 2
65 B210780001404 Straight Through Combination Joint 3
66 B220401000316 Shuttle Valve 3
67 60217141 Pressure Sensor 9

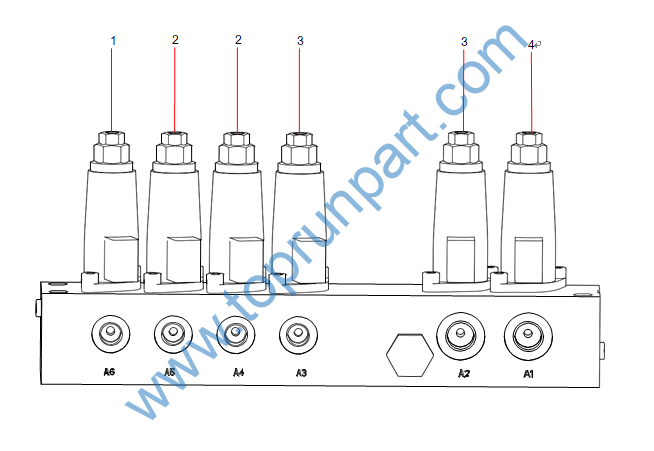

1 152300000051B001 Proportional Pressure Reducing Valve 1
2 61002282 Solenoid Switch Valve 2
3 61002281 Solenoid Switch Valve 2
4 60245189 Pressure Reducing Valve 1

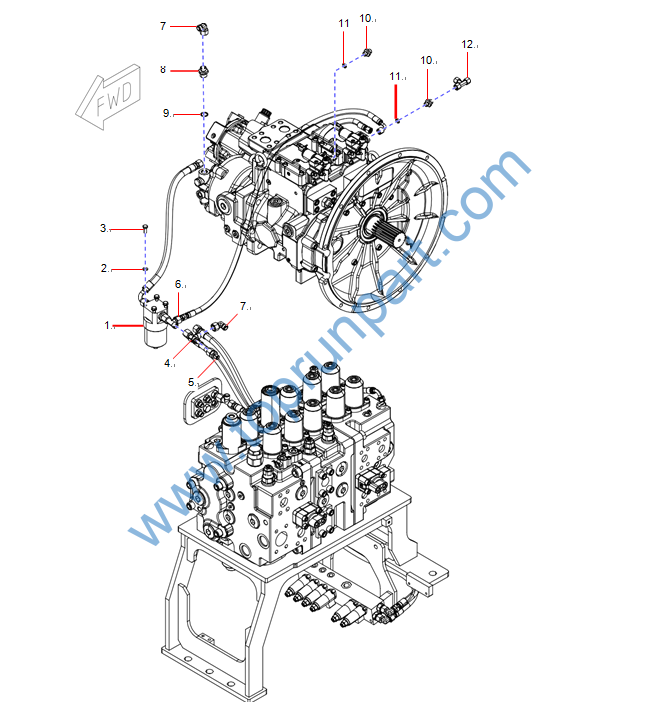

1 B229900000063 High Pressure Filter 1 2-120
2 24000633 Washer 4
3 A210111000343 Bolt 4
4 B210780000016 Tee Group Connector 2
5 B210780000683 Fitting, Adapter 1
6 B210780000827 Butt Joint Variable Diameter Connector 1
7 B210780000024 Elbow Combination Joint 3
8 A820205000941 G1/2-M18 Connector 1
9 B230101000090 O-ring 1
10 60020078 Filter Connector 2
11 B230101000047 O-ring 2
12 B210780000170 Tee Group Connector 1
13 60086356 Harness Fixing Clamp 1

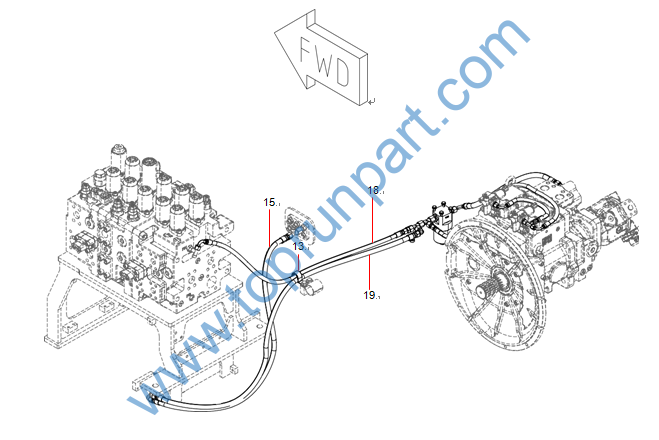

15 B230103001428 Hose 1
18 B230103003320 Hose 1
19 B230103001649 Rubber Hose 1

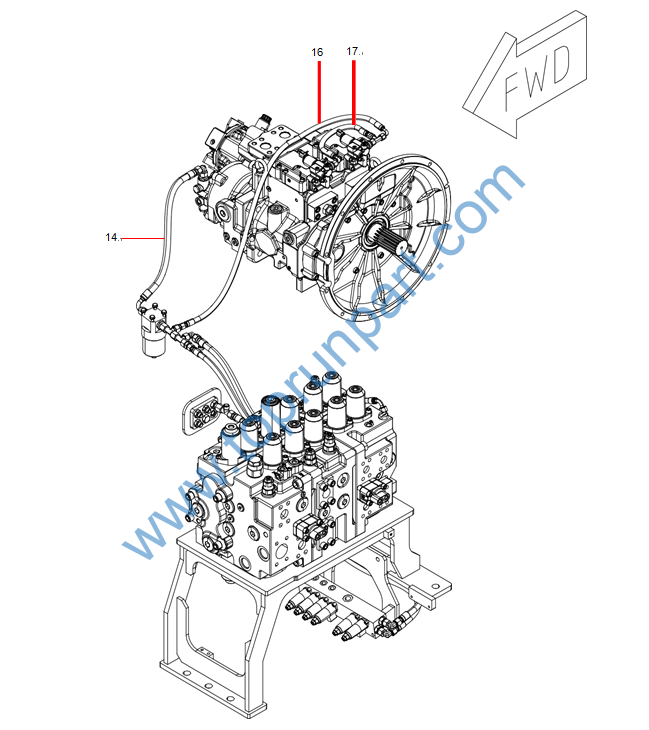

14 60101296 Rubber Hose 1
16 60187384 Rubber Hose 1
17 21018549 Hose 1

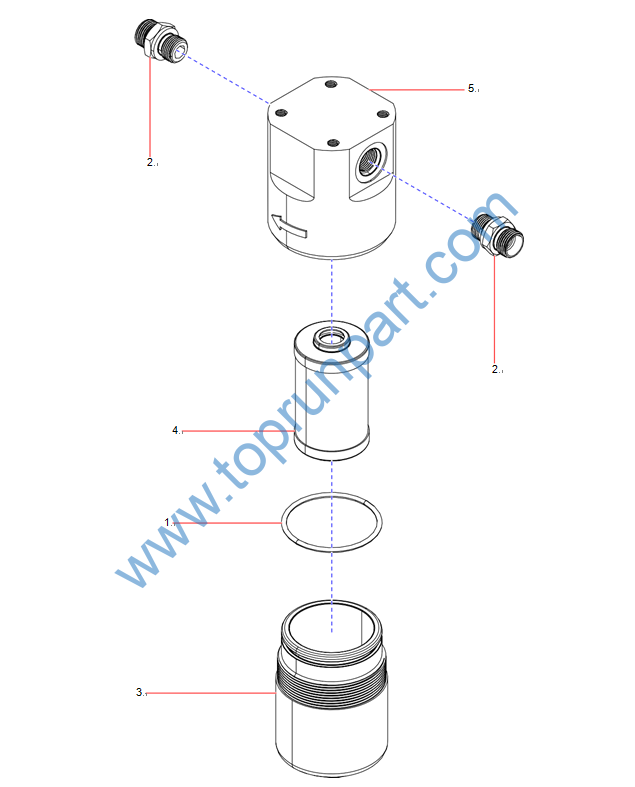

1 151403021228A O-ring 1
2 151599000053A002 Fitting, Adapter 2
3 151599000053A003 Cylinder Body 1
4 A222100000119 Hydraulic Filter Element 1
5 151599000053A001 Filter Head 1

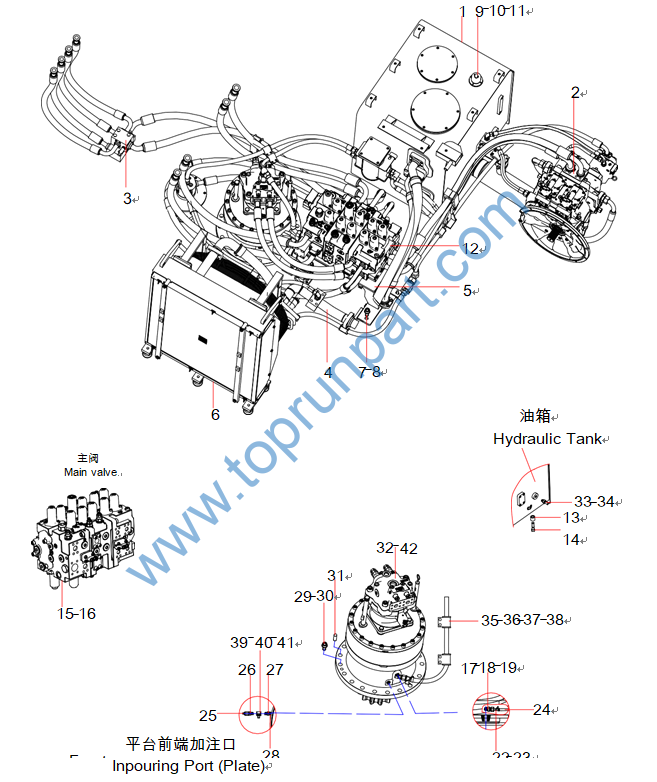

1 13510936 Hydraulic Oil Tank 1 2-124
2 Pump Chamber LIne 1 2-130
3 Platform main road 1 2-146
4 Drain pipeline 1 2-154
5 Main Valve Frame 1 2-160
6 Radiator Installation 1 2-162
7 A210111000061 Bolt 8
8 A210491000132 Washer 8
9 60129702 Breathing Valve 1 2-166
10 60249819 Screw 2
11 24000632 Washer 2
12 60242783 Hydraulic ydraulic control multi-way valve 1 2-168
13 11450168 Spacer Sleeve 6
14 A210110000201 Bolt 6
15 A820205002644 G1 Plug 1
16 B230101000050 O-ring 1
17 A820205002283 Rc1/2-M18 Connector 1
18 60202193 Fitting 1
19 B210780000829 Fitting, Adapter 1
22 B220401000916 Oil Drain Valve 1
23 A229900001347 Clamp 1
24 10192981 Pipe Joint 1
25 B229900000686 Oil Cup 1
26 21025907 Rubber Hose 1
27 A820205002483 Pt1/4-M14 Transition Connector 1
28 A229900010160 45° combined connector 1
29 A210111000321 Bolt 18
30 A210491000122 High Strength Washer For Steel Structure 18
31 23000080 Pin 1
32 JSJ004713521 Gear Box 1 2-178
33 10077549 M20-Inner G1/4Ed Connector 1
34 60060301 Temperature Sensor 1
35 13306471 Plate, Side 4
36 11206238 Rubber Cushion 2
37 A210111000024 Bolt 4
38 A210491000120 Washer 4
39 60086353 Wire Clamp 4
40 A210111000199 Bolt 4
41 A210491000121 Washer 4
42 60201949 Motor, Piston 1 2-186

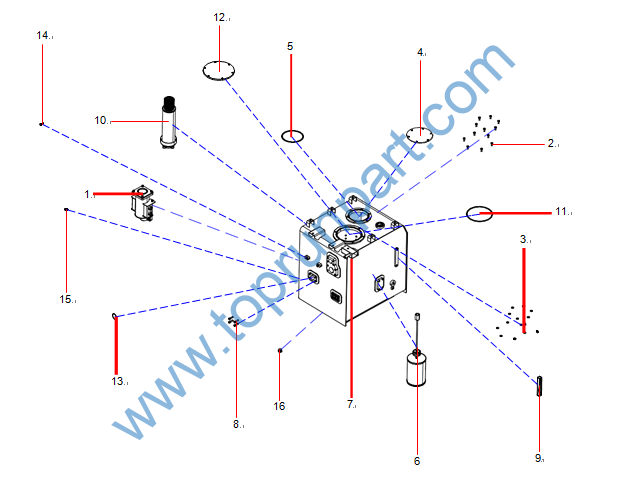

1 12353451 Filter Element 1 2-126
2 A210111000101 Bolt 12
3 A210491000121 Washer 14
4 13302886 Oil Suction Cap 1
5 A210609000112 O-ring 1
6 60251436 Oil Suction Filter 1 2-128
7 13493377 Hydraulic oil tank body 1
8 A210204000338 Screw 4
9 A250100000044 liquid level gauge 1
10 60014122 Oil Return Filter 1
11 A210609000219 O-ring 1
12 10695860 Cover Plate 1
13 B230101000366 O-ring 1
14 A210111000202 Bolt 2
15 B230101000356 O-ring 1
16 10514225 Screw Plug 1

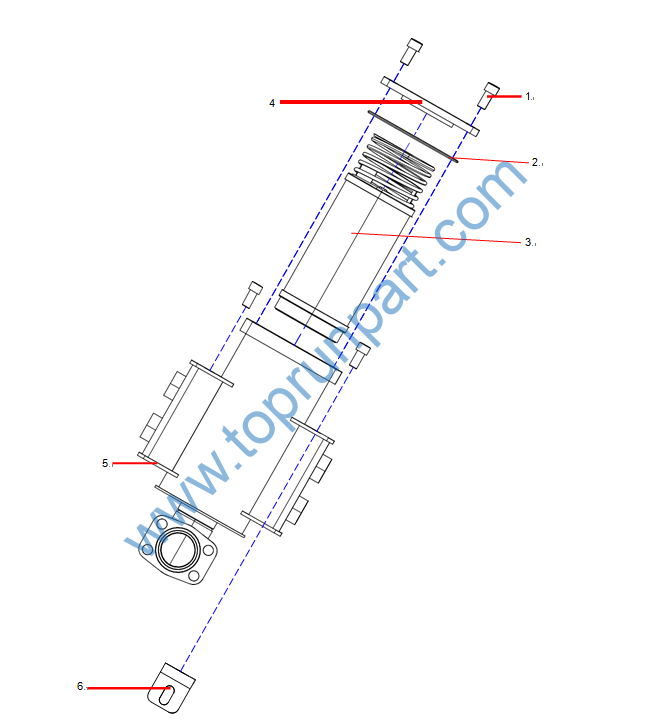

1 A210204000167 Screw 6
2 A210608000023 O-ring 1
3 60210416 Oil Return Filter 1
4 12355472 End Cover 1
5 12355690 Oil Draining Barrel 1
6 12355610 Plate 1
