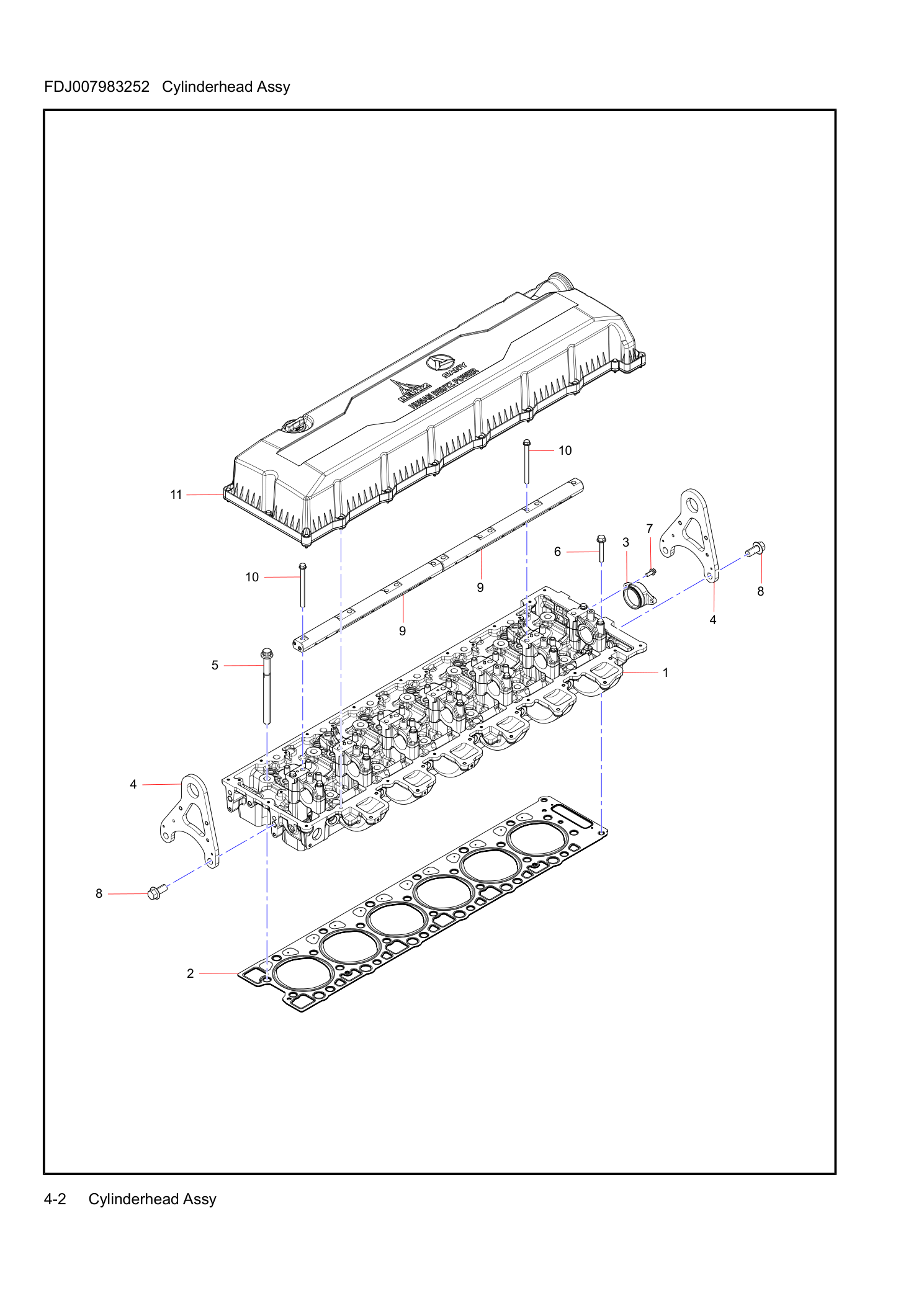

SANY D12C5T16D Cylinderhead Assy – Parts Catalog (FDJ007983252)

Part Number: FDJ007983252
Engine Model: SANY D12C5T16D
Catalog Section: Group 4

FDJ009388080 As Cylinderhead
FDJ007238884 Cylinder Head Gasket
13484292 Gear Cover Assembly
FDJ006075731 Lifting Lug
13465247 Cylinderhead Bolt
60265738 Bolt
60144915 Bolt
60207150 Bolt
13471280 Rocker Shaft As
13464685 Hexagon Flange Bolt
FDJ006751492 Cylinder Head Cover
13338912 Seat Intake
13338907 Seat Exhaust
13338865 Valve Guide Intake
13338822 Valve Guide Exhaust
A210503000041 Pin
13464656 Hexagon Flange Bolt
FDJ009387726 Injector Sleeve
13464153 Water Pipe
60123029 Bowl-shaped Plug Piece
60115759 Sealing Gasket
13484243 Hehagon Socket Pipe Plug
60189274 Bowl-Type Plug Piece
151403030183A O-ring
FDJ008605761 Seat Intake
FDJ008607908 Seat Exhaust
FDJ008599985 Valve Guide Intake
FDJ008600147 Valve Guide Exhaust
13464987 Idle Gear Cover At Cylinder Head
60050041 O-ring
13587046 Sealing Cylinderhead Cover
FDJ006040146 Oil Filler Cap
