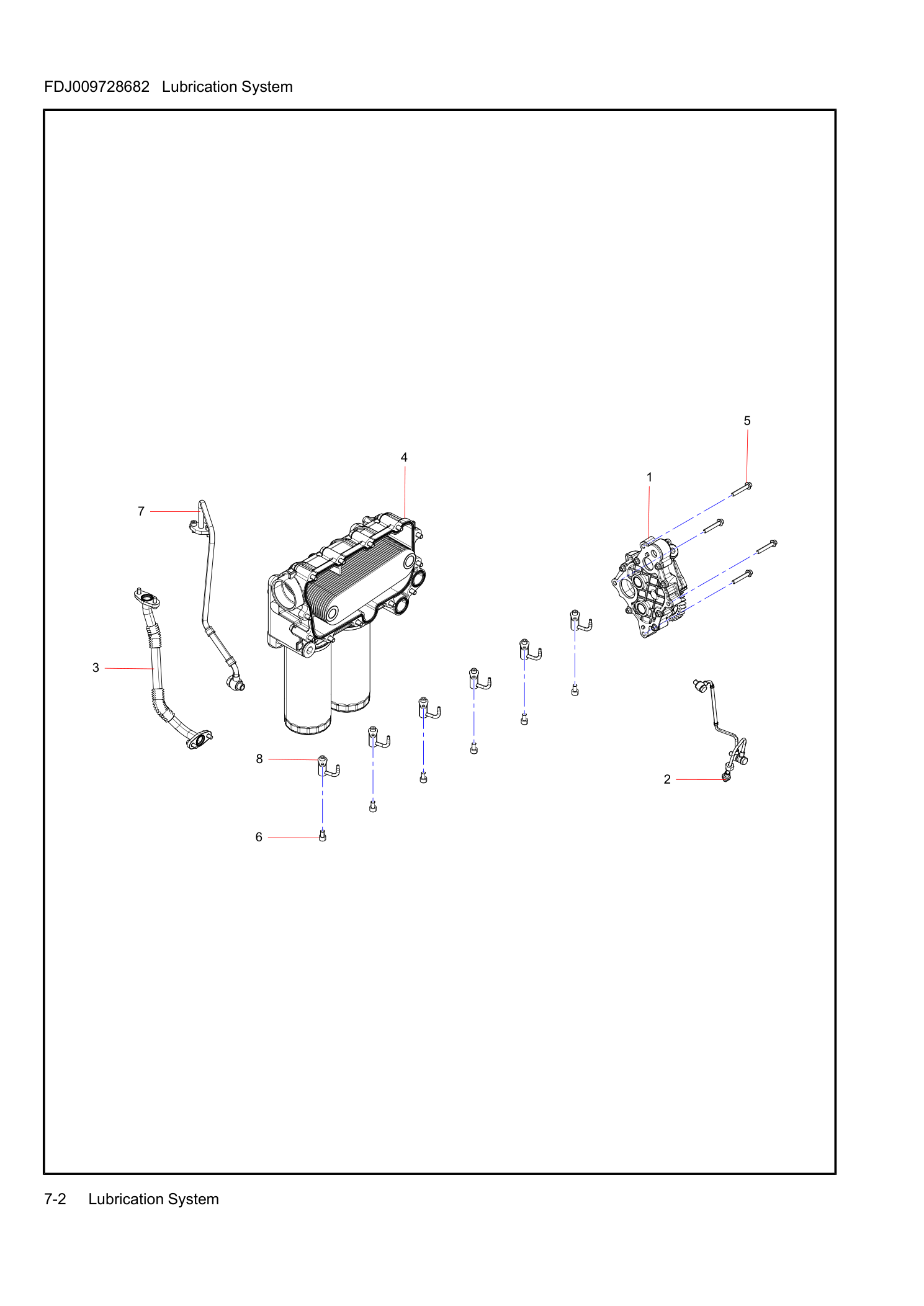

SANY D12C5T16D Lubrication System – Parts Catalog (FDJ009728682)

Part Number: FDJ009728682
Engine Model: SANY D12C5T16D
Catalog Section: Group 7

13508303 Oil Pump Assembly
FDJ006326894 Pipe
FDJ004747986 Outlet Oil Pipe Group On Supercharger
13472276 Oil Module
60265722 Bolt
A210204000172 Screw
FDJ006048047 Tc Lube Oil Inlet Pipe
160204000008A Piston Cooling Jet
FDJ006382063 Oil Pipe
13472286 Joint
13829238 Sc Hollow Screw Double
FDJ009306020 Washer
FDJ006170753 Oil Pipe
FDJ006143944 Hollow Bolt
FDJ005323275 Turbocharger Oil Return Tube
60144915 Bolt
13471151 Supercharger Oil Return Pipe Gasket 1
160299000049A Engine Oil Cooler
60265737 Bolt
FDJ009268150 O-ring
FDJ009271186 Combination Cushion Circle
160605010014A Engine Oil Filter
168805000041A Seal Washer
168805000040A Seal Washer
FDJ006030416 Tc Lube Oil Inlet Pipe
A210204000147 Screw
A210199000016 Hinge Bolt
FDJ009305984 Washer
FDJ006315778 Fp Seal Turbo Oil Drain To Pipe
