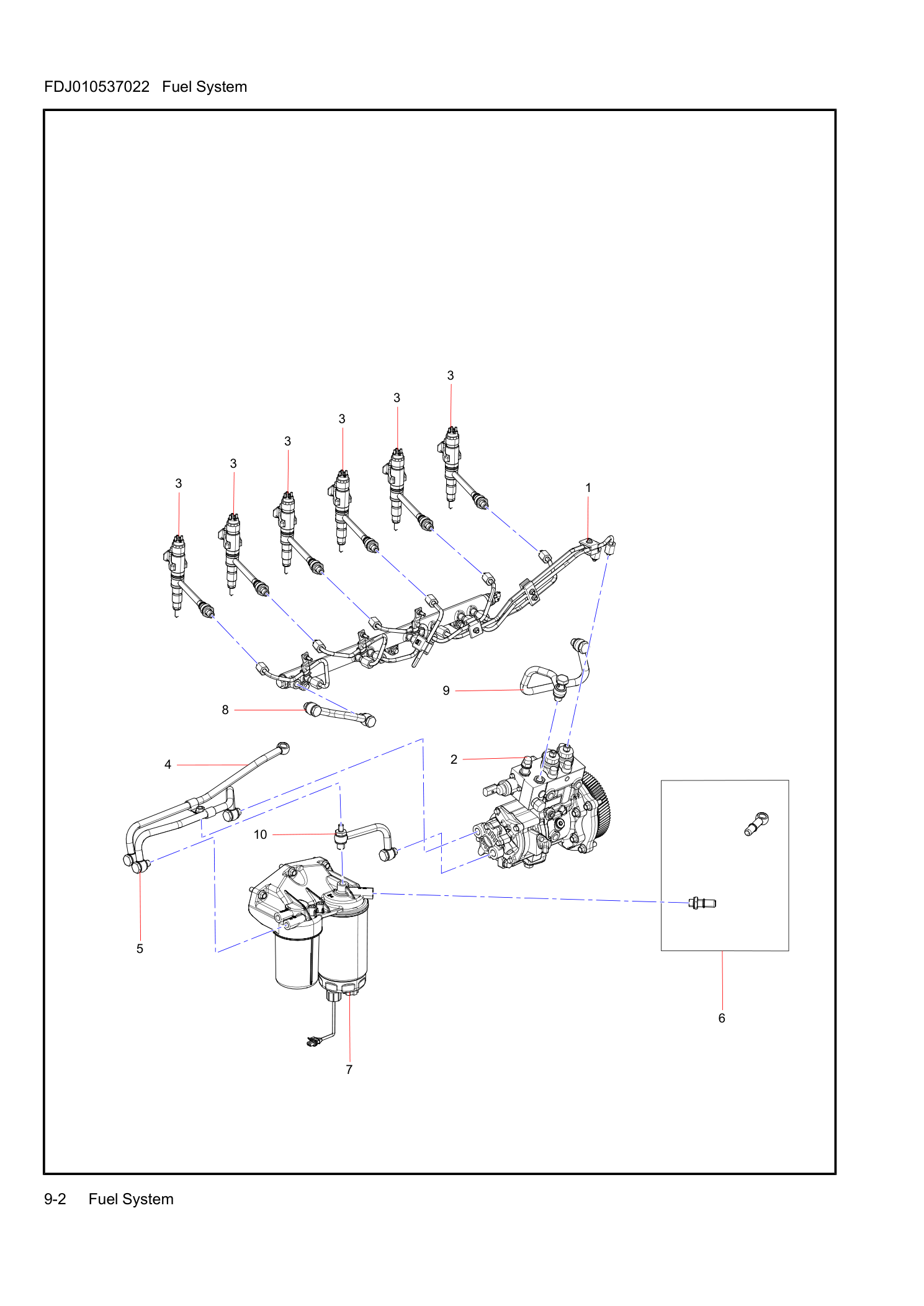

SANY D12C5T16D Fuel System – Parts Catalog (FDJ010537022)

Part Number: FDJ010537022
Engine Model: SANY D12C5T16D
Catalog Section: Group 9

13466242 Ar Fuel Pipe (High Pressure)
13465525 Ar Common Rail Pump
FDJ005977518 Ar Fuel Injector Eu4
FDJ010280916 Lpc From Filter To Pump
FDJ010280914 Lpc From Pump To Filter
FDJ010789831 Fuel Line Fitting
FDJ004752438 Filter Assembly
13468391 As Fuel Return Pipe 1
13468552 As Fuel Return Pipe 2
FDJ006619857 Pump Fuel Inlet Assenmbly
FDJ007406739 Sc Fuel Pipe Cyl1
FDJ007406905 Sc Fuel Pipe Cyl2
FDJ007406978 Sc Fuel Pipe Cyl3
FDJ007407115 Sc Fuel Pipe Cyl4
FDJ007407196 Sc Fuel Pipe Cyl5
FDJ007407277 Sc Fuel Pipe Cyl6
FDJ007407374 Sc Fuel Pump To Rail 1
FDJ007407413 Sc Fuel Pump To Rail 2
160404000005A Common Rail
13422671 Fp Washer
60265720 Bolt
13466243 Ar Clamp Hp Fuel Pipe
FDJ007409564 Triplet Clamp Assenbly
FDJ007276975 Support Bolt
60263982 High Pressure Oil Pipe Clamp
60144912 Bolt
151302020103A Tube Clamp
160401000006A Injection Pump
13401713 Common Rail Pump Adaptor
13384365 Gear, Fuel Pump
A210609000178 O-ring
60144895 Bolt
13409910 Injector Clamp
60262816 High Voltage Connector
13409996 Hexagon Nut
13472072 Bolt
60265757 Washer
160402000017A Injector
FDJ010316424 Pump To Filter Lpc
13729389 Hollow Bolt
13867871 Wire Harness Clip 15
60144880 Nut
FDJ009305996 Washer
FDJ010317620 pump to filter LPC
13412434 Hollow Bolt
FDJ009305984 Washer
FDJ004677026 Hinged Body
FDJ006496197 Air Compressor Water Pipe Connector M16
160604010060A Fuel Filter
160604020030B Fuel Filter Element
160603020018B Oil-water Separator Filter Element
160499000170A Harness Connector Component
13411487 As Fuel Return Pipe 1
FDJ005328946 As Fuel Return Pipe 2
13412594 Hollow Bolt
A210199000016 Hinge Bolt
FDJ006581257 Fuel Inlet Pipe
14551690 Hollow Bolt
