BHL75A1C3H Backhoe Loader cab – Parts Catalog (13231399)

Part Number: 13231399
Machine Model: BHL75A1C3H Backhoe Loader
Equipment No.: SSY100000222
Catalog Section: Group 3

130901001009B CAB
130903000130A Driver Seat
60228157 Damper
A210404000002 Washer
A210110000304 Bolt
SSY005273504 Cushion Block
A210307000005 Nut
60228210 right armrest box assembly
60228209 left armrest box assembly
A210405000011 Washer
A210111000018 Bolt
60256188 Fire Extinguisher

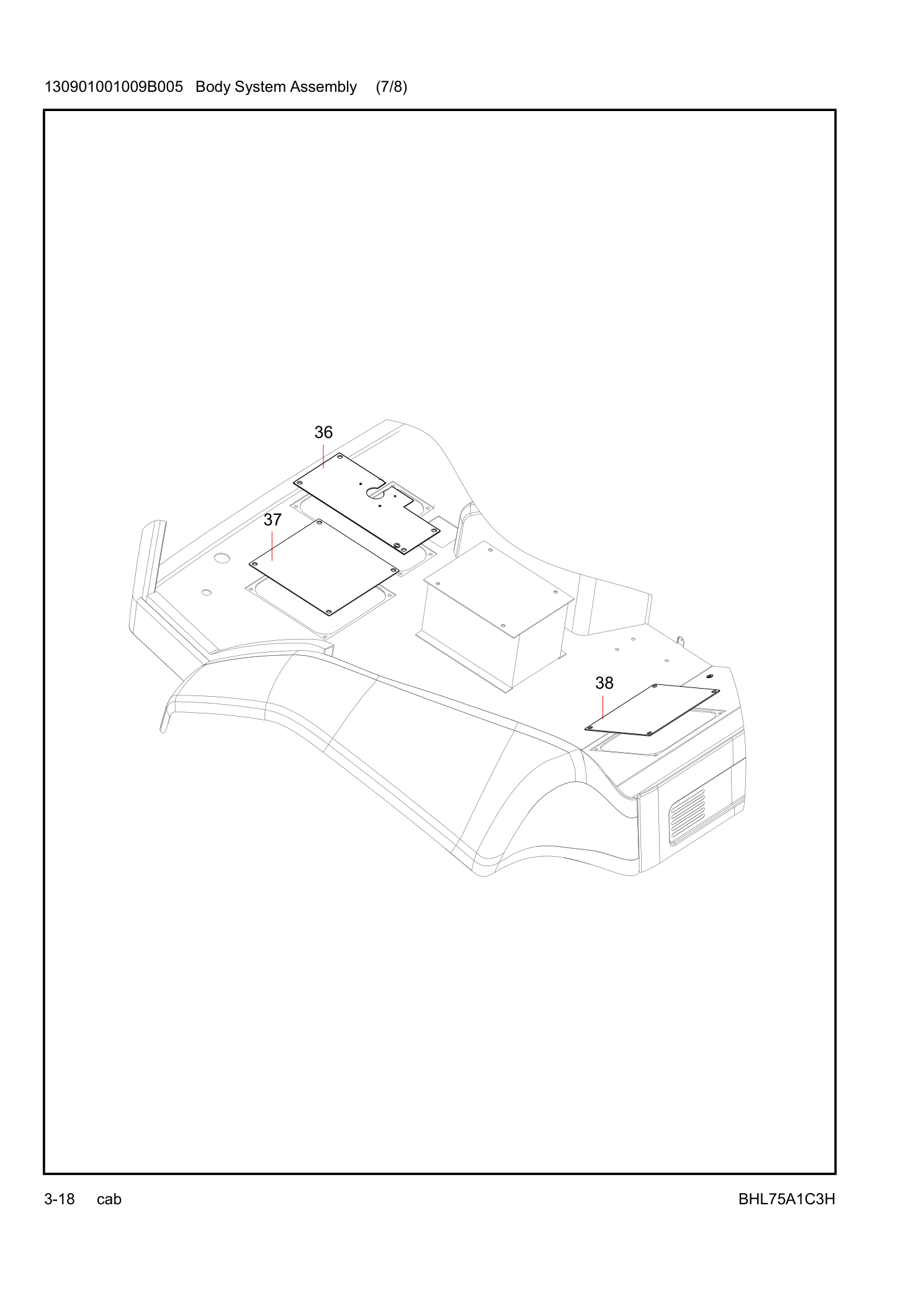

130901001009B005 Body System Assembly
130901001009B006 Canopy Electrical Assembly
60250566 Top Cover of the Cab
A210491000001 Ring Screw
60250567 Rubber Pad
61022986 Front Windshield
61022987 Front and Lower Glass
130901000657A009 Left Front Lower Glass
60250584 Right Front Decorating Plate
60250585 Right Splashboard
60250586 end plate
60250587 left splashboard
60250588 Left Front Decorating Plate
130901000805B002 Left Column Trim
130901000805B006 Kettle Cover
130901001009B002 Double Air Outlet Plug
130901000805B005 Left interior Body
130901000805B007 Left Access Cover
130901001009B004 Round Air Outlet Plug
130901000805B003 Right Column Trim
130901000805B030 Instrument Guard
130901000805B027 Right Multifunction Panel
130901000805B028 Gear Lever
130901000805B031 Instrument Panel
130901000805B024 Right Side Enclosure Body
130901000805B034 Right Return Air Panel
130901000805B029 Pilot Valve Cover
130901000805B023 Pilot Valve Shroud
130901000805B026 Right Front Bezel
130901000805B025 Right Access Cover
130901000805B021 Front Circumference Right Guard
130901000805B016 Front Enclosure Cover
130901001009B003 Single Air Outlet Plug
130901000805B018 Blockages
130901000805B022 Front Maintenance Cover
130901000805B019 Front Circumference Body
130901000805B020 Front Circumference Left Guard
60250614 Foot Throttle Plate
60250615 Front Maintenance Cover Plate
60250616 Back Maintenance Cover Plate
130901001009B001 Driving Canopy Interior
130901000657A022 Rearview Mirror Assembly
130901000805B008 Wiper Overhaul Cover
130907000157A Rearview Mirror Assembly
12051215 Rearview Mirror Bracket Assembly-22
130901000805B036 Sunshade
130901001562A003 Batten
130901000805B032 Front Floor Mat
130901001562A006 Aluminum Batten
130901000805B033 Rear Floor Mat
130901001562A004 Left Guard
130901001562A005 Right Guard
130901000805B014 Speaker Cover
130901000805B035 Wiper Kettle
60090606 Antenna
13922083 Cab Harness
130901001681A008 Boom Damping Switch
130901000805B040 Four-wheel Drive Switch
130901001681A005 Double Flash
60351452 12V Cigaretter Lighter
130901000657A014 Front windscreen wiper assembly
130901001681A003 Front Working Light Switch
130901001681A004 Rear Working Light Switch
130901000805B043 Automatic Idle Switch
130901000805B046 Static Regenerative Switch
130901000805B042 Parking Switch
130901000805B045 Pilot Switch
SSY007510634 Top Light
130901000657A016 Front Wiper Motor
130901000657A015 Front Wiper
130901000657A028 Front Wiper Blade
130903000129B016 Shock Absorber Assembly
130903000129B005 Cushion Block
130903000129B015 Rotary Mechanism
130903000129B014 Slideway Installation Plate
130903000129B013 Limit Block
130903000129B012 Slideway Assembly
130903000130A001 Leather Cushion
130903000130A002 Leather Chair
130903000130A003 Leather Headrest
130903000129B004 File Bag
130903000129B010 Seat Belt
130903000129B007 Right Handrail Assembly
130903000129B006 Left Handrail Assembly
130903000129B009 Right Covering
130903000129B008 Left Covering
A210204000130 Screw
A210401000016 Spring Shim
A210405000006 Washer
60250568 right upper cover
60250569 handle
60250570 side covering plate
60250574 right lower shell
A210202000021 Screw
A210401000015 Spring Shim
A210405000005 Washer
A210419000002 Retainer Ring
60250576 pin shaft
A210414000025 Retainer Ring
60250573 pin shaft
60250571 inside framework
60250572 Air Spring Assembly
60250575 left lower shell
60250577 Base
60250578 Sleeve, Rubber
60250579 left upper cover
60250580 side covering plate
60250583 left lower shell
60250581 Inside Framework
60250582 right lower shell
