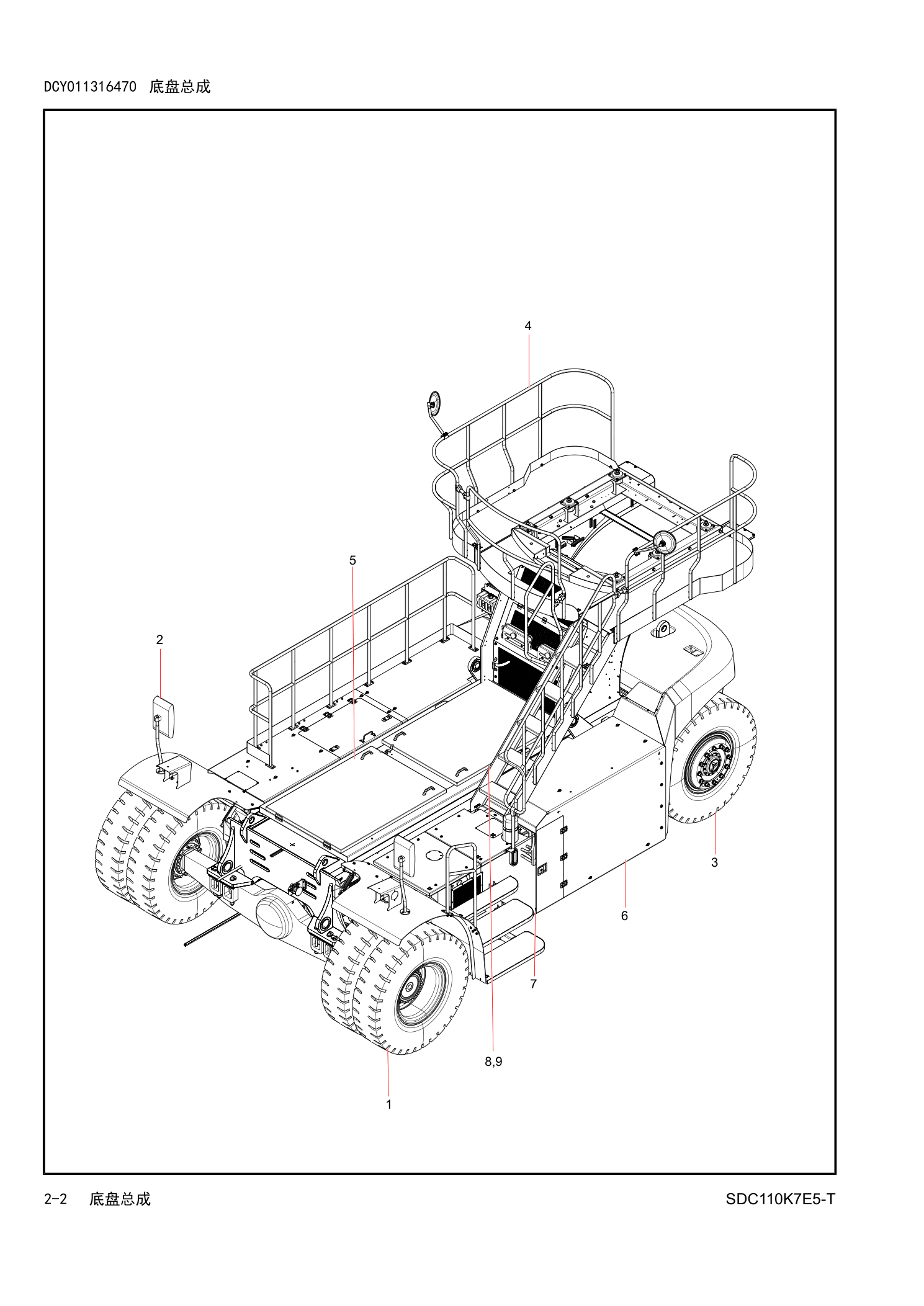

SANY Undercarriage Assembly – Parts Catalog (DCY010669298)

Part Number: DCY010669298
Machine Model: SDC110K7E5-T Double-Container Forklift
Equipment No.: DCY100000069
Catalog Section: Group 2

DCY008301402 驱动Assembly
14276618 转向桥Assembly
12892916 灭火System
DCY011316525 HydraulicOil TankAssembly
DCY011326795 电池电机水冷System
131401000001 Front桥
60001699 轮胎
DCY008299283 行驶电机Right支撑
14408195 减震器Gasket
131699000006A 减震器
24002346 Bolt
24000612 弹簧Washer
24000649 Washer
24000890 Nut
24000514 弹簧Washer
24000522 Nut
131401020330A008 转向驱动桥桥壳Assembly
60122005 螺旋塞
60121760 车轴
B229900004025 轮毂螺柱
60121637 碟
131401020330A009 密封圈
131401010248A004 Bearing
60121770 衬套
60223599 Bolt
131401020330A011 制动器Assembly
131802000060A 轮辋
131802000060A004 轮辋体
131802000060A003 挡圈
DCY011315142 FrameAssembly
DCY011308674 Frame体组焊
24000511 弹簧Washer
A210111000090 Bolt
A210401000017 弹簧Washer
60060572 Washer
A210111000203 Bolt
DCY010158888 RightFront大灯支架
DCY008113974YA RightFront挡泥板
DCY010623793 盖板Assembly
A221500000323 滑动Bearing
DCY008113915 LeftFront挡泥板
DCY008113915GE LeftFront挡泥板
DCY011647440 LeftFront大灯支架焊接
24000633 Washer
DCY011209784 管夹支架焊接
DCY008080481 Oil Tank支撑二
A210111000342 Bolt
DCY008096122 电池支架1
B221500000101 关节Bearing
24000512 弹簧Washer
DCY011175477 Water Pipe支架
DCY011290518 行驶电机Controller支架装配Assembly
DCY011287114 Battery支架装配Assembly
A210111000343 Bolt
24000642 Washer
DCY011202542 导轨支架
DCY011810414 加强筋
DCY011284774 支架
60136378 螺钉
A210405000004 Washer
DCY010730773 EVVC安装板
24000513 弹簧Washer
A210401000002 弹簧Washer
DCY009186133 电池支架加强板
DCY008337732 电池支架3
A210111000118 Bolt
DCY010227054 Front挡风板
DCY010227054YA Front挡风板
DCY008096172 固定板1
A210111000331 Bolt
A210405000008 Washer
60060564 弹簧Washer
24000887 Nut
DCY008096116 固定板2
A210111000080 Bolt
60024465 把手
DCY008096130GE Front挡板2
13997116 UpperCounterweight
13997116BE UpperCounterweight
12727960 LowerCounterweight
12727960GE LowerCounterweight
11006387 尾灯安装板
DCY010228612 中间连接板
A210110000463 Bolt
10182064 Rear视镜Assembly(Right)
10182062 支杆
DCY010622072 盖板支架焊接
14178109 压条
A210405000006 Washer
A210204000130 螺钉
DCY010622678 网板8号
DCY010623455 盖板焊接1
DCY010623683 盖板焊接2
A210401000001 弹簧Washer
A210307000036 Nut
DCY009116192 横梁
A210491000014 Pin
A229900009852 气弹簧
DCY009116553 卡板
120107010065A 弹簧Washer
12013810 弹性垫
14171050 角度Sensor支架
14171048 安装板(1)
A210204000136 螺钉
14171053 防护架
A210401000016 弹簧Washer
60291223 螺钉
A210204000129 螺钉
10201511 Rear视镜Assembly(Left)
DCY008096113 电池支架焊接
DCY008374098 电池托盘
A210405000001 Washer
A210111000204 Bolt
A210405000011 Washer
A210111000297 Bolt
DCY011291965 Controller支架装配Assembly
DCY011291745 Controller支架焊接
A210405000007 Washer
A210111000091 Bolt
DCY011288931 行驶电机Controller支架焊接
DCY011288981 行驶电机Controller接线支架1
DCY011289165 高压Wiring Harness支架焊接2
24000637 Washer
A210111000197 Bolt
A210111000323 Bolt
DCY011294969 配电箱安装支架装配Assembly
DCY011297042 配电箱安装支架焊接
A210111000024 Bolt
DCY011206428 管夹支撑支架
DCY011293117 管夹支撑支架焊接2
DCY008096124 电池支架2
24000874 Nut
21001334 Washer
24003464 螺钉
DCY004988914 电瓶压紧螺杆
14274735 转向桥梁
DCY006354292 Connecting Rod
A210416000037 挡圈
10854886 Connecting RodPin轴Assembly
A210804000002 油杯
24000619 弹簧Washer
10190663 止动Washer
24000388 Bolt
24000639 Washer
14276618 转向桥总成 (1/5)
A820202004672 Bearing挡圈（二）
A210501000016 Pin
A210604002246 滚动Bearing
A230101000302 旋转轴唇形密封圈
A210412000001 Washer
A820606020428 密封垫
DCY009867653 双头Bolt
14276618 转向桥总成 (2/5)
DCY009021149 Left转向节
10506526 斜Pin
13911245 盖板
A210612000023 关节Bearing
10040820 挡环
13911219 轴端挡板
13988380 滑动BearingGasket
60222128 旋转轴唇形密封圈
A210609000143 O形圈
24002328 Bolt
DCY009913366 无油Bearing
DCY009021146 Right转向节
B221500000109 关节Bearing
DCY008995992 转轴
60277734 Nut
24000437 螺钉
10428228 转向油Cylinder
10201691 导向套
A210401000004 弹簧Washer
A210434000013 Washer
10201700 Cylinder体Component
DCY011306082 护梯走台装配Assembly
DCY008086251 Left侧踏板装配
14472857 LeftFront扶手Assembly
24000904 Nut
24000632 Washer
A210204000218 螺钉
24000530 Bolt
DCY008086313 踏板2装配
DCY011304835 楼梯扶手
DCY008358183 Rear视镜装配
DCY011306078 Right平台焊合
DCY008086290 Left平台护栏焊合
24000303 Bolt
24000527 Bolt
DCY006608135 T型固定座
A210110000324 Bolt
11171393 Front封板
60100351 减震器
DCY008086262 Front平台焊合
DCY008086284 走台支架焊合
DCY008086305 Left踏板焊合
DCY008721120 Left踏板焊合
DCY008086329 踏板2焊合
DCY008086310 支座焊合
24000275 Bolt
DCY011320364 踏板1装配Assembly
DCY011320359 踏板1焊合
DCY008115434 盖板
DCY011303232 Left侧梯子装配
DCY011275470 梯子侧板焊合
DCY011279815 Left楼梯扶手焊合
DCY011282659 梯子侧板焊合
DCY008086258 梯子连接板焊合
24000295 Bolt
A210111000038 Bolt
DCY008358130 支架焊合
DCY008358133 卡板
24000911 Nut
60189130 灭火器
A210855000066 孔型喉箍
A210111000089 Bolt
130907001224A001 环形灭火器配件包
12892924 火灾探测报警System
60238584 灭火器启动及报警Switch
A241900000015 多芯电缆
60288517 插孔2.5
13479624 6芯德驰插头
13479682 6芯德驰插座
13479575 2芯德驰插座
A239900000561 尼龙管
DCY011302686 覆盖件Assembly
24000444 螺钉
DCY008800193 覆盖件支撑件3
120101020798A Bolt
60060546 Washer
A210309000011 Nut
DCY008115021 挡泥板支撑件2
DCY009359735RE Rear挡泥板焊接
DCY008529276 Counterweight连接板
DCY009353317YA 挡泥板封板
24002323 Bolt
24000868 Nut
DCY011301728 覆盖件支撑底板
DCY009360309RE Rear挡泥板焊接
DCY011296424 覆盖件支撑件1
DCY011301717 覆盖件支撑件2焊接
DCY008115020 挡泥板支撑件3
A210111000011 Bolt
DCY011301849 RightRear覆盖件Assembly
DCY008333924 Right侧踏板
DCY011300098 LeftRear覆盖件Assembly
DCY011299883 LeftRear覆盖件焊接
DCY009325996 折弯件
A210404000003 Washer
DCY008524718YA 装饰块
DCY008524719 装配板
DCY008524719GE 装配板
DCY008524717 橡胶Gasket
DCY008527947 挡泥板连接板
A210307000017 Nut
11360286 弹性垫
DCY011335863 Left维修门
A210891000015 铰链
121008000140B 门锁
DCY011302670 RightFront覆盖件Assembly
DCY011302440 RightFront覆盖件焊接
DCY008529199 盖板二
DCY008529199YA 盖板二
21005056 螺钉
21001328 Washer
DCY011302558 盖板
60013491 铰链
DCY011307949 充电盒
120107030060A Washer
24002322 Bolt
DCY011307942 充电盒安装板
DCY011307235 RightRear覆盖件焊接
DCY011301842 装饰块焊接
120102010140A Nut
DCY008524716 连接板
DCY008525806YA 装配板
24000529 Bolt
DCY011640194 Right维修门装配
DCY011640089 检修门
DCY011194184 HydraulicOil Tank本体
A210401000015 弹簧Washer
DCY007057806 格栅板
21051814 螺钉组合件
A210111000122 Bolt
A210111000036 Bolt
12980861 回油盖
60129616 AirFilter
A250100000043 液位计
A210609000049 O形圈
A210111000018 Bolt
A210609000295 O形圈
A210608000048 O形圈
DCY010005039 温度Sensor安装座
A222100000044 AirFilter
151800000001A004 法兰密封垫
A210204000259 螺钉
DCY011282629 电OilPump支架Assembly
DCY010085060 油Pump支撑板
131602000112A 减震器
A210401000005 弹簧Washer
A210405000003 Washer
A210111000229 Bolt
A210401000003 弹簧Washer
60351525 Washer
21005185 Bolt
DCY010721884 Sensor保护罩
DCY011326780 电池冷却System
60014676 管夹
DCY011175077 四分通水钢管
DCY011175092 二分通水钢管
151304060005A 钢带式弹性卡箍
14234144 热Water Pipe
DCY011287739 水冷机组安装
A230103000844 橡胶管
160299000038A 膨胀水箱及盖Assembly
DCY008370917 侧面支架
141502002228A 水冷机组
141502002228A004 压缩机
141301000045A004 快速熔断器
141502002228A002 冷凝风机
141502002228A007 板式换热器
160299000038A001 压力盖
DCY011287219 电机冷却System
141301000001 Radiator
DCY008099987 水Radiator支架
60197720 T型抱箍
151304060025A 钢带式弹性卡箍
DCY008080415 Water Pipe支撑
60028713 管夹
151304060019A 钢带式弹性卡箍
DCY008080414 Water Pump进水钢管
151304060041A 钢带式弹性卡箍
A229900002432 管夹
14021663 过渡Connector
A230103001052 橡胶管
160801040064A002 RadiatorFan
DCY011316522 ElectricalSystemAssembly
DCY011304521 11吨电堆ElectricalSystem
DCY011302365 CabinElectrical安装布置图
DCY011351087 11吨电堆Wiring HarnessAssembly
12895513 LED工作灯
A810201206151 三一I/OModuleAssembly
140702000067A 视频监视器
DCY006780426 扶手箱Electrical安装布置图
140106010040A 直流稳压电源
A241200001142 32芯圆形插头
141604000064B 照明灯
12893720 LED警示灯Assembly
141603000071B 警示灯
140702000011A001 三点模拟式倒车雷达Controller
60220627 Wiring Harness
140706000184A 摄像头
141999000024B005 平口护套
140702000067A002 蜂鸣器
A249900000513 侧边单框架
A249900000518 盖板(五联Switch)
120107010062A 弹簧Washer
60236177 Nut
120104010629A 螺钉
120104010549A 螺钉
B241200000484 旋钮Switch
140704000265B 显示控制屏
B240500000009 报警器
148800000001A 旋钮Switch钥匙
DCY010655121 Cabin电控柜
DCY010634062 Cabin控制柜
140601010208A 可编程Controller
A241600000011 卡轨
B240700000399 中间Relay
60210957 大电流Relay
13789120 安装支架
14335753 电控柜接插件安装板接线图
13127423 压力Sensor
B241200000602 3芯矩形插头
B229900001093 圆形插头
140502000196B 压力Sensor
DCY011304475 Frame体Electrical安装布置图
12901989 LEDFront大灯组合
60190637 酸性Battery
12901990 LED侧标识灯
B240700000378 电瓶Relay
60047106 指示灯
A229900004048 电缆Connector
A249900000530 电缆固定头
13275826 紧固夹13.0
A229900002420 管夹
13275836 紧固夹34.5System图
140608000005A 通讯Controller
60197434 角度Sensor
60227843 熔断器
141603000257A 警示灯
