SANY C3 Electrical System – Parts Catalog (DCY010633177)

Part Number: DCY010633177
Machine Model: SDC110K7E5-T Double-Container Forklift
Equipment No.: DCY100000069
Catalog Section: Group 3

12901989 LEDFront大灯组合
141604000064B 照明灯
13479575 2芯德驰插座

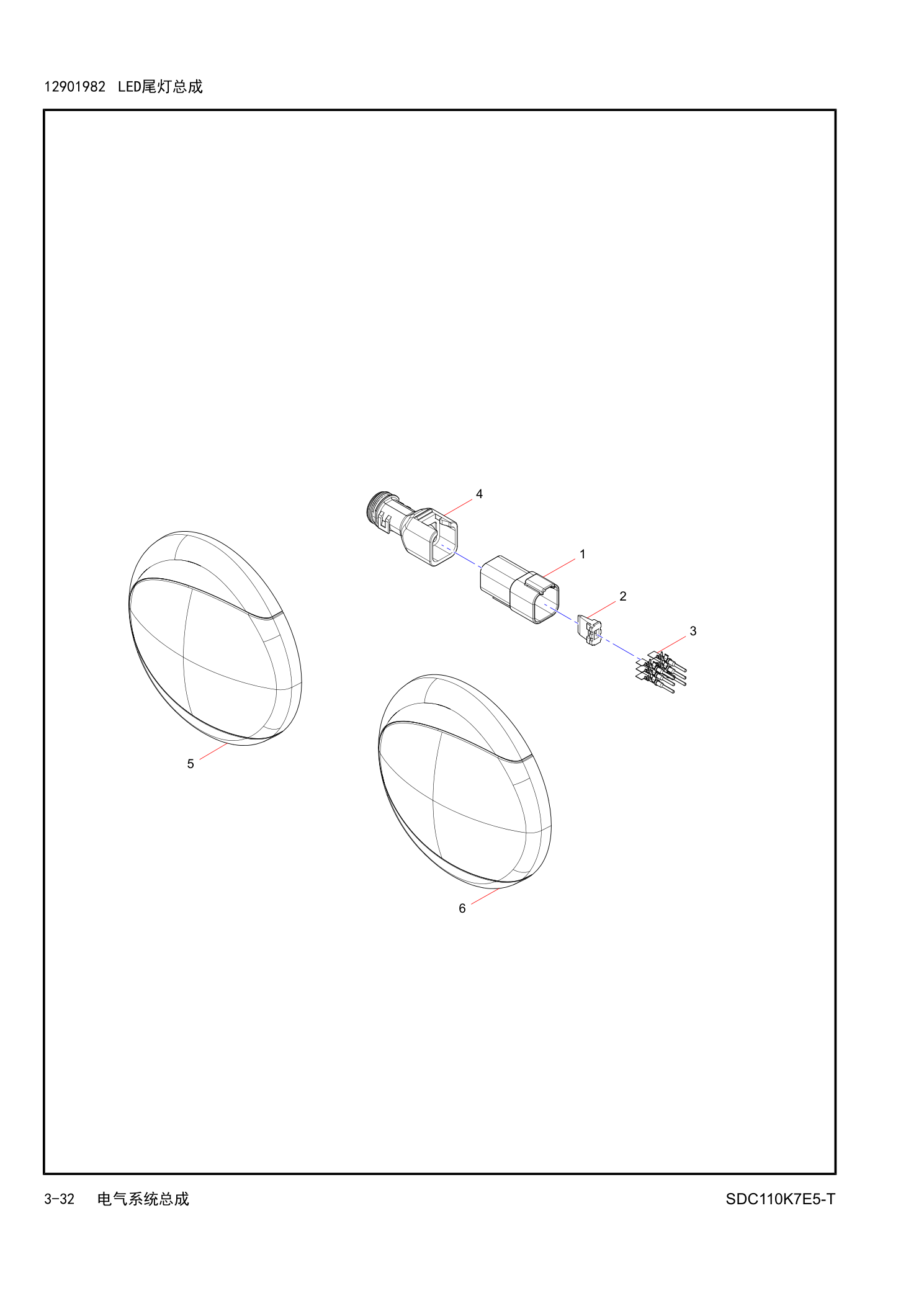

12901982 LED尾灯Assembly
B241200000606 6芯矩形插座
B249900000288 插针
60279385 Rear灯
12901990 LED侧标识灯
A241100000555 侧灯
A249900001139 次极锁2线(插针)
60120497 二线插座尾部
60034670 底盘配电盒Assembly
142999000143A003 保险
142999000143A002 保险
A241300000053 熔断器
B240700000378 电瓶Relay
12912575 单音喇叭Assembly
146399000015A 蜂鸣器
12934766 电源Switch
60125384 旋钮Switch
DCY011282670 Frame体Right侧Wiring Harness3
DCY011282665 Frame体Left侧Wiring Harness1
DCY011303784 扶手箱Wiring Harness
DCY011303783 方向机Wiring Harness
DCY011303785 Front面板Wiring Harness
DCY011282669 Frame体Right侧Wiring Harness2
DCY011316327 高压ElectricalSystem
DCY011330246 行驶电机正极高压Wiring Harness
DCY011330394 工作电机Controller高压Wiring Harness
DCY011330901 充电1高压Wiring Harness
141004010013A 电驱动Assembly
DCY009462969 DCDC高压Wiring Harness
DCY008519150 行驶电机U相线高压Wiring Harness
DCY008519215 行驶电机v相线高压Wiring Harness
140109010399A 动力电池Assembly
60227415 紧固夹
141004010013A001 电机Controller
141004010015A 电驱动Assembly
141004010015A002 驱动电机Controller
DCY011314570 HydraulicSystem
DCY011310339 举升摇摆布置图
DCY011312078 转向管路布置图
DCY011313200 回油散热System布置图
DCY011308404 防爆Valve泄油钢管Assembly
60029233 管夹
B210851000010 管夹
B210780000636 直角组合Connector
60012948 胶管
B210780000015 三通组合Connector
60340135 胶管
60151472 胶管
DCY011265770 泄油钢管
B230103003376 胶管
B230103000468 胶管Assembly
B210780001241 直角组合Connector
151008211097A 胶管Assembly
60351816 胶管Assembly
151009211483A 胶管Assembly
B230103000594 胶管Assembly
61025173 胶管Assembly
DCY011265546 吊具进油钢管
60153332 胶管
B230103004989 胶管
A229900002420 管夹
B210851000001 管夹
B230103002592 胶管Assembly
B230103006235 胶管
DCY011264951 摇摆钢管Assembly
60165336 管夹体
B230103006379 胶管
B230103011170 胶管Assembly
24001350 直通Connector
B210780000157 直通隔板式Connector
60255086 高压过滤器
60284069 Hydraulic滤芯
A210204000058 螺钉
B210780000006 对开法兰
B210770000034 测压Connector
DCY011302509 PumpValveSystem布置图
DCY011302379 MainValveAssembly
B210851000013 管夹
61012758 胶管
B230103001696 胶管
DCY011264611 油Pump装配Assembly
B210780000244 对开法兰
B220401000316 梭Valve
B210780000024 直角组合Connector
60264405 胶管
B210780000626 端直通Connector
24001318 管夹
B230103000390 胶管Assembly
DCY011302442 刹车Pump出口钢管Assembly
B230103006367 胶管Assembly
60001945 胶管
DCY011302436 先导Pump进油钢管Assembly
14153750 油散钢管支架
A210204000462 螺钉
B210780000018 三通组合Connector
60024155 对开法兰
B210780000016 三通组合Connector
61014896 胶管Assembly
12936847 胶管
60211928 胶管
B230101000235 O形圈
DCY011372624 吸油胶管
150602010028A 电控多路Valve
B210780000847 端直通Connector
B210780001347 端直通Connector
B210780000733 端直通Connector
150602010028A001 首联Assembly
150601010007B009 安全Valve
150406010010A003 密封圈
150602010028A002 手柄Part
150602080007B028 单向Valve
150602040026B034 电比例端盖Part
150602040026B037 弹簧
150602040026B039 梭Valve座
150602080007B023 O形圈
150688000479A 限位杆
150199000025A004 MainValve芯
150601020008B043 减压溢流Valve
DCY008530575 反馈切断Valve组
13818721 反馈Valve块
A210405000006 Washer
B210780001286 端直通Connector
150101070048A 开式柱塞Pump
60084121 Outer啮合GearPump
A210401000004 弹簧Washer
B210780000421 端直通Connector
B210780001397 堵头
B210780001048 端直通Connector
B230101000091 O形圈
151202010313A 端直通Connector
B210780001005 端直通Connector
150199000025A001 角度Sensor
