SANY Hydraulic System – Parts Catalog (DCY010668953)

Part Number: DCY010668953
Machine Model: SDC110K7E5-T Double-Container Forklift
Equipment No.: DCY100000069
Catalog Section: Group 4

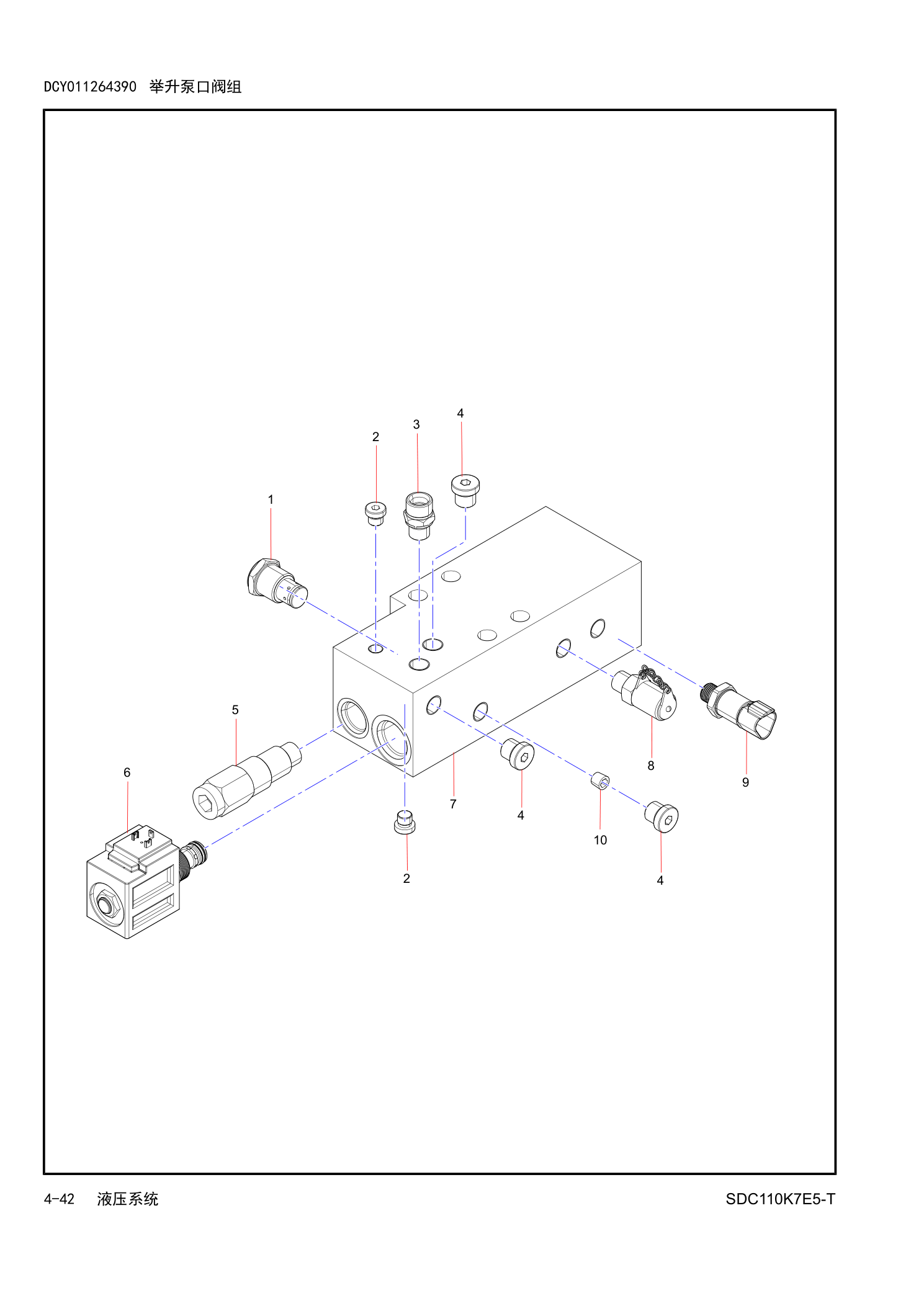

DCY011264390 举升Pump口Valve组
B220401000049 单向Valve
B210780000232 端直通Connector
60155029 溢流Valve
B210770000003 测压Connector
12217657 2.0阻尼螺塞
60306220 电磁换向Valve
60234608 线圈
DCY008762304 E2优先Valve组
60009763 优先Valve
B210780000141 端直通Connector
B210780000164 螺塞
151209000003B 阻尼Connector
DCY008530445 先导Valve组
DCY008426357 先导Valve块
B220401000105 溢流Valve
B210780000036 端直通Connector
B210780000201 螺塞
60277823 电磁换向Valve
60265303 隔膜式蓄能器
DCY011302506 先导过滤Assembly
151501000067A 高压过滤器
151505000050A Hydraulic滤芯
DCY011312078 转向管路布置图
60014676 管夹
DCY008493646 转向钢管Assembly
60290235 胶管
DCY008493652 Steering GearLS钢管Assembly
60029233 管夹
DCY006818359 油散钢管支架
B210780000015 三通组合Connector
60205857 压力Sensor
B230103005734 胶管
B230103005263 胶管
B230103006711 胶管Assembly
13468079 胶管
B230103000439 胶管
12301342 Steering Gear部装图
60161381 HydraulicSteering Gear
B210780000733 端直通Connector
151902000053A001 密封包
DCY011307998 制动System布置图
B230103000451 胶管Assembly
B210851000001 管夹
DCY011323212 刹车钢管Assembly
DCY011307940 制动钢管Assembly
B210770000005 测压Connector
DCY008177621 刹车钢管一Assembly
24001318 管夹
B230103004916 胶管Assembly
B210780000683 对接式变径Connector
B210780000898 端直通Connector
61012749 胶管
60207498 胶管
B210780000636 直角组合Connector
DCY011303815 蓄能器部装图
B230103004915 胶管Assembly
B230103000087 胶管
13417232 压油过滤器System
60212788 胶管
B210780001310 直角组合Connector
B230103007387 胶管Assembly
12874447 制动Valve部装图
21016830 导轨Nut
14378627 刹车充液Valve组
DCY011305029 刹车蓄能器钢管Assembly
B230103000393 胶管Assembly
60264405 胶管
13144051 胶管Assembly
B230103005082 胶管Assembly
B220401001141 刹车Valve
B210780000037 端直通Connector
DCY008530645 刹车Pump部装
60230597 手动HydraulicPump
A210405000007 Washer
24908096 端直通组合Connector
13744542 单向Valve
B220401000479 单向Valve
B229900003708 皮囊式蓄能器
60247916 O形圈
A820101353529 蓄能器卡箍
A210401000001 弹簧Washer
A820606010001 垫
60004233 蓄能器胶囊
151702000010C010 胶囊全套
151702000010C005 气Valve保护帽
14378510 刹车充液Valve块体
B210770000084 测压Connector
B210780000131 端直通Connector
150301030012 节流Valve
60155035 电磁换向Valve
60309807 线圈(电磁ValveDS3-TB23/10V-D24K7)
151501000132A 高压过滤器
60036519 压力Switch
B210669000000 O形圈
DCY011313200 回油散热System布置图
14388824 冲洗Valve组
24001315 管夹
B210780000235 端直通Connector
60028712 管夹
DCY008177521 冷却进油钢管二Assembly
21003822 胶管
B210780000626 端直通Connector
60028713 管夹
B210780000972 端直通Connector
DCY011312457 刹车油散回油钢管Assembly
B210780000907 对接式变径Connector
B230103005703 胶管Assembly
B210780001007 三通组合Connector
B230103005081 胶管Assembly
A229900002420 管夹
60046133 胶管
60340134 胶管
B210851000010 管夹
60291472 胶管
60202487 支撑轨NutSM6
B210780000838 直角组合Connector
B230103000375 胶管Assembly
B210780001353 端直通组合Connector
B210780000071 对接式变径Connector
B210780000685 隔板式Connector
A229900002040 管夹
60345457 胶管
13368147 胶管
DCY011312893 油散出油钢管Assembly
B230103003775 胶管
14015299 冲洗Valve块
B210780000052 端直通Connector
B210780000847 端直通Connector
151601020039A 风冷Radiator
151601020039A002 风机
151601020057A 风冷Radiator
151601020019A006 芯体Assembly
151601020061A001 电机Assembly
DCY008251405 K7门架Assembly
13745826 门架Hydraulic布置图
DCY007818237 k7门架机械Assembly
14157006 Outer门架选配件焊接图
14014682 限速Valve组
B210780000029 直角组合Connector
14157225 钢管Ⅰ
14157240 钢管Ⅲ
B210780000647 直通隔板式Connector
B210780000684 对接式变径Connector
B230103008138 胶管
B230103000114 胶管Assembly
151006160630A 胶管Assembly
B230103000466 胶管
A210204000140 螺钉
A210401000016 弹簧Washer
A210204000143 螺钉
10839483 油CylinderValve块
B210780001389 端直通Connector
A210401000002 弹簧Washer
B230101002071 O形圈
DCY009474018 门架蓄能器部装
24004982 皮囊式蓄能器
14088601 蓄能器标识牌
13424466 橡胶护套
B210780000072 对接式变径Connector
14231393 门架Electrical布置图
12895513 LED工作灯
12916538 接近Switch
60165338 管夹体
60004571 电缆Connector
A210307000016 Nut
A210405000006 Washer
13872878 门架焊钉ElectricalSystem图
14232418 门架Wiring Harness接线图
141604000064B 照明灯
