SANY SDJ90F Working Device – Parts Catalog (SDJ100000031)

Part Number: SDJ100000031
Machine Model: SDC110K7E5-T Double-Container Forklift
Equipment No.: DCY100000069
Catalog Section: Group 6

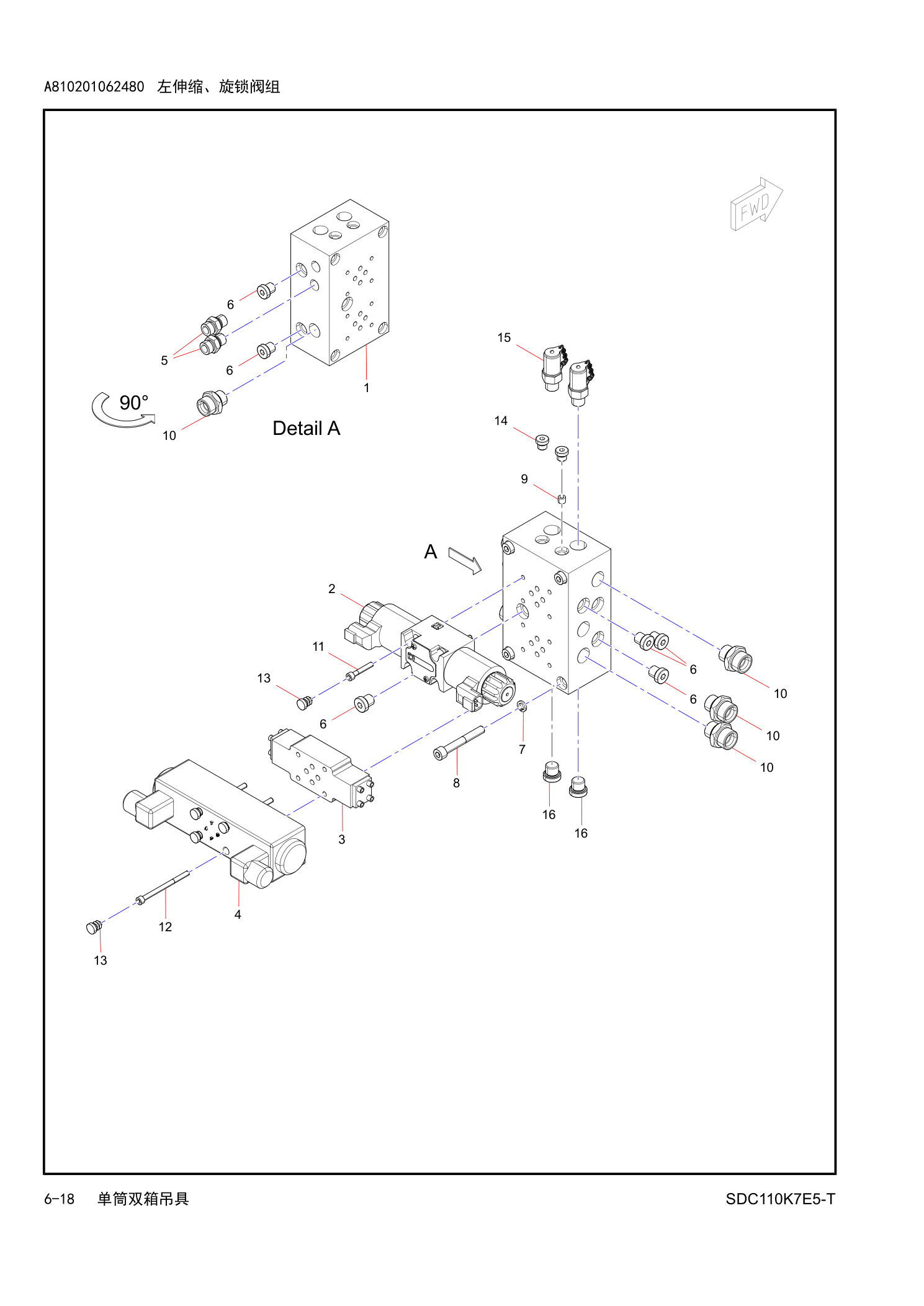

A810201062480 Left伸缩、旋锁Valve组
A820302010360 Left伸缩、旋锁Valve块
A220401000153 节流Valve
B210780000036 端直通Connector
A210401000017 弹簧Washer
12217584 1.0阻尼螺塞
A210204000119 螺钉
A820601020466 防水盖
B210770000084 测压Connector
60155033 电磁换向Valve
B249900000689 线圈(电磁ValveDG4V-3 24V)
60155034 电磁换向Valve
150401010186A001 线圈
DCY010736459 侧移管路布置图
12527243 摆动Valve组
B210780000685 隔板式Connector
B210780000177 端直通Connector
B210780000630 对接式变径Connector
12926118 胶管
B230103004808 胶管
A832611100000 胶管Assembly
B230103003027 胶管Assembly
60014674 管夹
B230103007175 胶管Assembly
12527233 摆动Valve块
B210780000201 螺塞
B210780000040 端直通Connector
B220401000105 溢流Valve
A210204000125 螺钉
SDJ010714799 吊具机械Assembly
SDJ010714271 Right伸缩梁装配
SDJ010707391 Main梁装配
SDJ010706723 闸门Assembly
SDJ010713784 Right伸缩梁焊合
SDJ008751251 灯支架
24000639 Washer
A210111000038 Bolt
SDJ010711501 拖线槽
SDJ010711644 立柱滑块装配
SDJ008741981 靠箱板
14153587 铜滑块
11342236 护套一
24000633 Washer
24000529 Bolt
A210804000002 油杯
A210319000004 Nut
24000632 Washer
SDJ010711786 立柱滑块装配2
SDJ010714157 Right浮动梁装配
SDJ010713862 Right浮动梁焊合
SDJ010710604 底部滑块
24000522 Nut
24000642 Washer
60060564 弹簧Washer
24000143 Bolt
SDJ011614843 连接板
12557835 Sensor支架
60009614 滑动Bearing
12527237 压板
12527241 Washer
12527236 压盖
60060525 Nut
10262659 弹簧
60311071 Washer
A210507000009 Pin
60238783 Washer
24003172 Bolt
11676710 抱钩油Cylinder
11676712 Cylinder筒Assembly
11676709 导向套
A221500000035 关节Bearing
B230101000369 B3密封圈
10250776 挡圈
13599600 GSJ密封圈
A210416000039 挡圈
11123539 螺塞
23002806 O形圈
A210208000026 螺钉
SDJ011599530 摄像头减震器
SDJ011599528 支架
13873602 导向块
SDJ011614873 底座
24000904 Nut
SDJ010711982 Left伸缩梁装配
SDJ010709450 Left伸缩梁焊合
14080602 A1类Pin轴
SDJ010711645 调整垫
SDJ008742001 Gasket
24000513 弹簧Washer
A210111000089 Bolt
24000292 Bolt
24002251 螺钉
A210319000003 Nut
SDJ010710613 Left浮动梁装配
SDJ010710132 Left浮动梁焊合
12557854 Sensor支架
13725488 Nut
SDJ011598193 LeftUpper箱支架
SDJ005659567 RightSensor支架
24000511 弹簧Washer
A210110000046 Bolt
A210401000004 弹簧Washer
SDJ010710590 底部滑块
A820301990128 铜螺钉
SDJ011282381 Upper顶杆
14079132 A1类Pin轴
11869823 接线板
A210356000006 Nut
SDJ010707270 Main梁焊合
13563089 Gasket
13563088 压板
12588756 橡胶垫
24002329 Bolt
60077869 Nut
A210111000307 Bolt
A210307000017 Nut
A210110000015 Bolt
B229900005701 拖链
12187870 缓冲螺柱
11929756 电控柜支撑
SDJ010721606 Left支架焊合
SDJ010707324 滑块
SDJ010707344 滑块固定板
SDJ008742021 垫板
24002328 Bolt
A210405000011 Washer
24002305 Bolt
24000432 螺钉
SDJ010707343 滑块座
SDJ010707346 滑块
SDJ008741977 垫板
SDJ010707286 套筒
10207101 伸缩油Cylinder
13990258 螺纹压盖
A210208000013 螺钉
11120959 Piston
10208422 卡Key帽
A210434000008 Washer
10207100 Cylinder筒Assembly
SYG008211537 DJ094A密封包
SDJ010706768 侧移支架Assembly
SDJ010706758 侧移架Component
SDJ010706767 F1类Pin轴
SDJ006118088 钢套
12057185 滑块
13853306 轨道侧板
24000617 弹簧Washer
11524363 Pin轴卡板
A210501000065 Pin
11248260 摆角油CylinderPin
10204097 侧移油Cylinder
10204100 Cylinder筒Assembly
10204102 Piston杆Assembly
10201417 挡圈
B230101001951 ZBR密封圈
13599604 GSJ密封圈
A210434000009 Washer
24004294 螺钉
A210609000044 O形圈
A210609000107 O形圈
SDJ010704122 闸门
10951445 滑块座
24000514 弹簧Washer
A210405000007 Washer
A210307000012 Nut
11935598 UpperOuter侧档块
24000316 Bolt
24002346 Bolt
SDJ010704497 滑块
13875045 偏心套
24000438 螺钉
A210111000103 Bolt
A820301021152 小Chain连Connector
A210491000028 Pin
24000874 Nut
10951444 调整Gasket
10951496 滑块
24002226 螺钉
24000437 螺钉
23002093 Bolt
11935587 限位滑块
14079354 A1类Pin轴
11126262 摆角油CylinderPin
11126293 套筒
A210111000204 Bolt
SDJ010704392 缓冲机构
60060544 Bolt
14421966 电缆架
14105111 固定块
10125936 弹簧
24000512 弹簧Washer
SDJ010704391 活动板
A210319000005 Nut
A210319000001 Nut
13727283 管Connector
SDJ010734448 滚轮Assembly
A210604000054 滚动Bearing
13339510 Lower滚轮
A210401000002 弹簧Washer
10973106 调整垫
11659775 摆角油Cylinder
A210416000034 挡圈
A210804000001 油杯
11275045 导向套
A880801010064 螺钉
10041694 螺塞G3/8A
SYG008362445 DJT091密封包
DCY010653104 吊具ElectricalAssembly
13944189 LED工作灯
140531000079A 光电Sensor
A810201206127 三一运动ControllerAssembly
14167874 接近Switch
DCY010717306 双箱吊具Wiring HarnessAssembly
148800000016A 磁感应接近Switch磁环
141604000064B 照明灯
A810201052901 吊具控制箱Assembly
60002280 控制柜
A241600000002 卡轨
A249900000530 电缆固定头
60004571 电缆Connector
A210307000016 Nut
A242000000390 针型端子
A242300000233 二极管
13558814 SYMC端子Wiring Harness/接线图
DCY010656913 LED指示灯(组合)
60024057 指示灯
60024056 指示灯
60004572 电缆Connector
A210338000002 Nut
A210307000014 Nut
B241200000602 3芯矩形插头
B229900001093 圆形插头
A249900000970 尼龙电缆Connector
60165339 管夹
A210204000139 螺钉
60111064 Nut
60028239 管夹
A210401000016 弹簧Washer
13888374 吊具固定件Assembly
A210404000009 Washer
12255758 缓冲螺柱
A210111000031 Bolt
60227412 线夹
60167157 固定夹
A210111000030 Bolt
A210204000129 螺钉
A210405000006 Washer
60227415 紧固夹
A210204000146 螺钉
DCY010717325 吊具滑移架Wiring Harness
DCY010717327 吊具Right侧Wiring Harness
DCY010717329 拖链Wiring Harness二
DCY010717331 Right锁头SensorWiring Harness
13839362 接近Switch
60285392 接近Switch
DCY011326317 操纵室Assembly
DCY006782660 操纵台Assembly
60025888 可调式转向柱Assembly
60149848 驾驶Seat
DCY006782642 手柄座支撑
12142583 双联踏板
10480997 安装套
13863031 波纹管抱箍2
12530718 收音机喇叭孔封板
A210307000001 Nut
59001329 ABC干粉灭火器
DCY006389998 操纵手柄座
A210203000005 螺钉
A210111000080 Bolt
A210307000015 Nut
A210405000005 Washer
60236822 警示灯
60236824 警示灯
60191985 柱UpperSwitch
60191987 切换Key
60191989 按钮Switch
60191991 切换Key
60236826 橡胶伸缩盘
60236828 举升调节器
60236830 RearUpper盖
60236832 RearLower盖
60236834 Right保护
60236836 伸缩调节器
60191992 切换Key
130903000062B003 MSG85 Seat悬置
130903000062B004 Seat安全带
12142587 底座
13058570 滚轮Pin轴
13400089 扭簧
12142582 RightPin轴
14127832 橡胶套
A210211000002 螺钉
12906437 调节螺杆
DCY011326311 A/CSystem
141501000416A A/CAssembly
A210111000018 Bolt
DCY011228732 压缩机支架焊合
A210404000005 Washer
DCY011227954 压缩机罩子
11928711 通风管
11087254 水壶Assembly
A210111000090 Bolt
A229900006067 T型抱箍
151304060019A 钢带式弹性卡箍
151304060041A 钢带式弹性卡箍
DCY011141088 支架
DCY011326301 防护罩焊合
14234144 热Water Pipe
151304060003A 钢带式弹性卡箍
60343856 蒸发器
141501000247A001 电动压缩机
141501000416A014 压缩机支架2
60351560 冷凝器Assembly
141501000416A005 手动水Valve
141501000416A001 电控盒(24V)
141501000416A006 压—冷管路
141501000416A002 储—蒸管路
141501000416A010 热Water Pipe
60228850 波纹风道管
141501000198A012 三通管
141301000045A018 O形圈
141501000416A009 O型密封圈
141501000416A012 搭铁线
60100916 唇形Valve
141501000248B001 预充盒
141502000237A 蒸发风机Assembly
141501000047B005 H型膨胀Valve
141502000415A001 调速电阻
