SANY Undercarriage System Assembly – Parts Catalog (ODT008743471)

Part Number: ODT008743471
Machine Model: SKT35S Wide Body Mining Water Truck
Equipment No.: ODT100000184
Catalog Section: Chapter 2

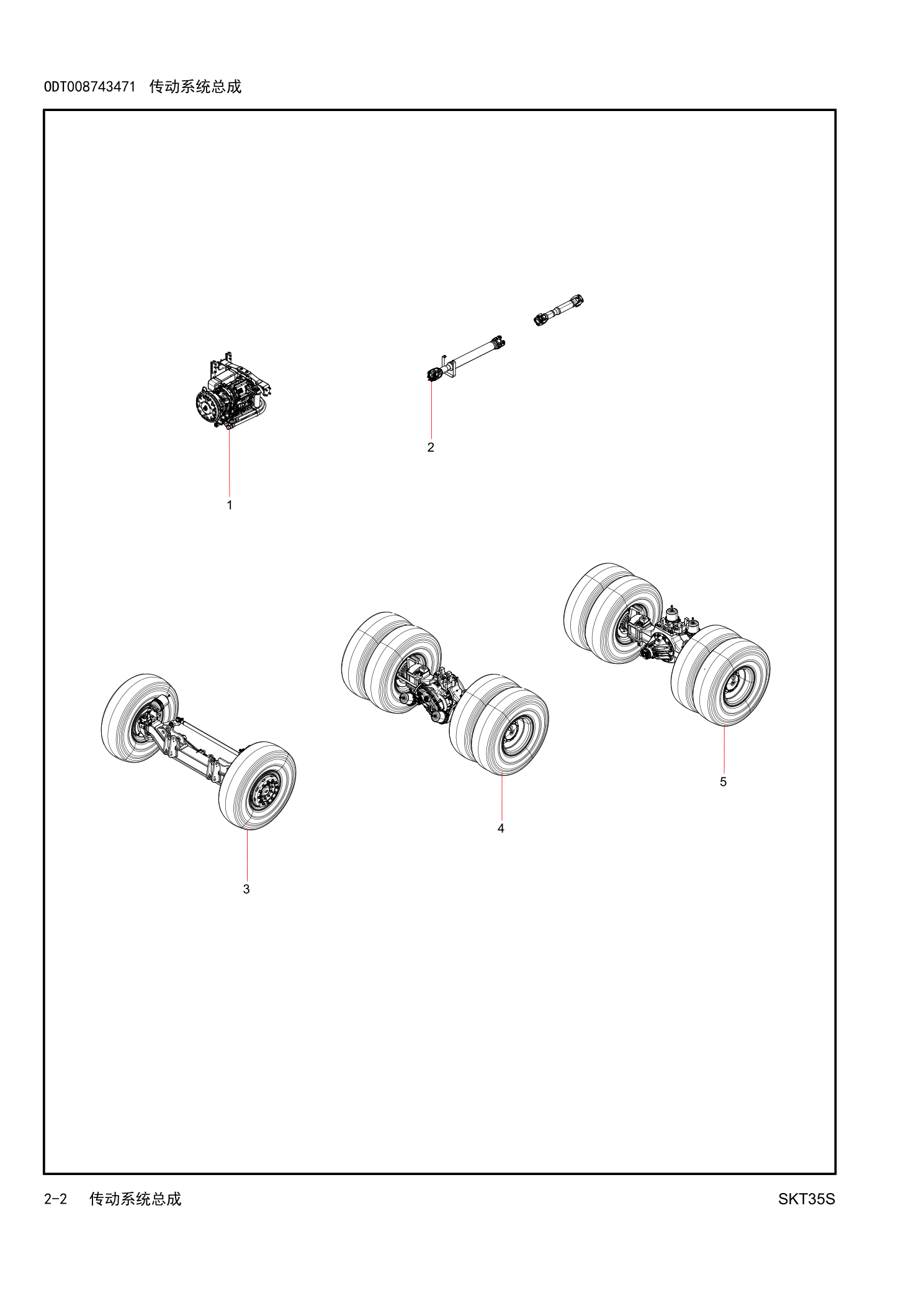

ODT008743471 DriveSystemAssembly
ODT008740366 变速箱安装Assembly
ODT008740342 Front Axle安装Assembly
ODT008741575 Rear Axle安装Assembly
130202000187A 变速器
ODT005366445 油冷器安装Assembly
ODT008277042 变速箱板簧Rear悬置
130202000093A260 变矩器Assembly
130202000093A262 行星变速器Assembly
130202000093A264 盖子Assembly
130202000093A266 油底壳Assembly
130202000093A268 变速器油滤器Assembly
130202000093A270 Rear取力组件Assembly
130202000093A272 卡环
130202000093A274 适配器
130202000093A276 Pump轮
130202000093A278 卡环
130202000093A280 Washer
130202000093A282 止推Bearing座圈
130202000093A284 导轮托架
130202000093A286 变矩器导轮
130202000093A287 六角头Bolt
130202000093A289 固定Gasket
130202000093A291 螺塞
130202000093A293 Bolt
130202000093A294 壳体Assembly
130202000093A296 离合器Piston
130202000093A298 O形圈
130202000093A300 钢片
130202000093A302 背板
130202000093A304 涡轮齿毂
130202000093A306 单向离合器支座
130202000093A308 单向离合器滚子Spring
130202000093A395 圆锥滚子BearingAssembly
130202000093A312 密封环
130202000093A314 双头Bolt
130202000093A315 六角头Nut
130202000093A316 六角头Bolt
130202000093A318 O形圈
130202000093A320 齿轮
130202000093A323 防护罩Assembly
130202000093A390 圆锥滚子Bearing
130202000093A328 止推Bearing
130202000093A330 六角头Bolt
130202000093A332 密封圈
130202000093A334 缓速器定子
130202000093A336 六角头Bolt
130202000093A338 O形圈
130202000093A340 Bearing锁紧Nut
130202000093A342 多Pipeline壳
130202000093A344 Washer
130202000093A346 六角头Bolt
130202000093A348 六角头Bolt
130202000093A261 变矩器壳体Assembly
130202000093A262 行星变速器总成 (1/3)
130202000093A061 Rear壳钢垫
130202000093A063 Piston
130202000093A378 BearingAssembly
130202000093A038 Washer
130202000093A068 壳体
130202000093A070 螺塞
130202000093A016 Oil Seal
130202000093A011 O形圈
130202000093A074 滚针Bearing
130202000093A076 行星齿轮
130202000093A078 行星轴Assembly
130202000093A080 齿圈
130202000093A082 离合器对偶片
130202000093A084 止推Bearing
130202000093A086 弹性销
130202000093A088 弹性销
130202000093A090 齿圈
130202000093A092 Piston
130202000093A094 O形圈
130202000093A095 六角头Bolt
130202000093A096 六角头Bolt
130202000093A098 变速器壳体Assembly
130202000093A100 行星架
130202000093A102 离合器背板
130202000093A104 行星轴Assembly
130202000093A106 行星齿轮
130202000093A108 推力Bearing
130202000093A110 Bearing座
130202000093A112 卡环
130202000093A262 行星变速器总成 (2/3)
130202000093A091 密封圈
130202000093A093 密封圈
130202000093A103 Spring销
130202000093A114 联接器
130202000093A116 推力盘
130202000093A118 行星齿轮
130202000093A120 推力盘
130202000093A122 O形圈
130202000093A125 O形圈
130202000093A127 密封壳
130202000093A129 金属密封环
130202000093A131 齿毂
130202000093A133 离合器对偶片
130202000093A135 离合器背板
130202000093A137 挡圈
130202000093A139 密封圈
130202000093A420 碟形Spring
130202000093A143 密封圈
130202000093A145 太阳齿轮
130202000093A146 Washer
130202000093A148 多Pipeline壳Assembly
130202000093A262 行星变速器总成 (3/3)
130202000093A150 O形圈
130202000093A384 密封圈
130202000093A367 波形Spring
130202000093A156 卡环
130202000093A158 卡环
130202000093A419 摩擦片
130202000093A162 卡环
130202000093A389 圆锥滚子Bearing替代
130202000093A165 O形圈
130202000093A167 型密封圈
130202000149A030 Washer
130202000093A170 管子组件
130202000093A171 金属板
130202000093A174 纸垫
130202000093A176 Rear盖Assembly
130202000093A178 Flange
130202000093A013 压板
130202000093A385 防尘罩
130202000093A179 O形圈
130202000093A181 Bolt
130202000093A184 Connector
130202000093A207 O形圈
130202000093A186 O形圈
130202000093A188 螺塞
130202000093A189 Washer
130202000093A191 六角头Bolt
130202000093A193 六角头Bolt
130202000093A195 六角头Bolt
130202000093A197 六角头Bolt
130202000093A026 吸油滤网
130202000093A198 六角头Bolt
130202000093A200 六角头Bolt
130202000093A201 螺塞
130202000093A355 油底壳
130202000093A204 O形圈
130202000093A208 Washer
130202000093A210 型密封圈
130202000093A212 游标Pipe Joint
130202000093A215 六角头Bolt
130202000093A217 Wiring Harness固定带
130202000093A017 防尘罩
130202000093A216 卡子
130202000093A221 Filter底座Assembly
130202000093A023 滤芯
130202000093A220 Filter壳体Assembly
130202000093A269 变速器控制系统总成 (1/3)
130202000093A008 SensorAssembly
130202000093A223 Bolt
130202000093A225 隔震垫
130202000093A192 Washer
130202000093A229 控制器接口盖
130202000093A230 Wiring HarnessAssembly
130202000093A232 Wiring Harness固定夹子
130202000093A234 Wiring Harness固定夹子
130202000093A235 六角头Bolt
130202000093A236 O形圈
130202000093A238 型密封圈
130202000093A012 SensorAssembly
130202000093A269 变速器控制系统总成 (2/3)
130202000093A233 Wiring Harness固定夹子
130202000093A010 SensorAssembly
130202000093A239 六角头Bolt
130202000093A240 Wiring Harness固定夹子
130202000093A242 密封圈
130202000093A071 O形圈
130202000093A020 纸垫Assembly
130202000093A244 安全ValveAssembly
130202000093A246 Bolt
130202000093A269 变速器控制系统总成 (3/3)
130202000093A248 带肩Bolt
130202000093A250 SensorAssembly
130202000093A252 排油背压Valve
130202000093A254 卡环
130202000093A256 轴Assembly
130202000093A258 球Bearing
130202000093A052 冷却器
130202000093A053 适配Connector
130202000093A380 油管Assembly
130202000093A056 45°度弯头
130202000093A002 换挡手柄
130401000001A017 六角头Bolt
130401000001A019 O形圈
130401000001A021 Flange盘
130401000001A023 Bearing盖
130401000001A024 深沟球Bearing
130401000001A054 O形圈
130401000001A027 Label
130401000001A029 防护帽
130401000001A031 防护塞子
130401000025A001 电磁ValveAssembly
130401000001A034 Inner六角Bolt
130401000001A036 隔垫
130401000001A038 弹性圆柱销
130401000001A040 Piston座
130401000001A042 圆锥滚子Bearing
130401000001A044 隔垫
130401000001A046 圆柱销
A210111000323 Bolt
A210307000015 Nut
A210111000071 Bolt
A210307000028 Nut
A311141609016 Bolt
ODT004701237 胶垫
ODT004701226 橡胶垫
21001334 Washer
ODT008740451 Drive Shaft安装Assembly
A210314000007 Nut
A210111000207 Bolt
A210307000025 Nut
A210319000001 Nut
131300000053A 油PumpDrive Shaft
131702000226A Tire
ODT008579226 Wheel RimAssembly
250901040643A Steering油Cylinder
A210111000023 Bolt
A210405000011 Washer
A210612000000 关节Bearing
14354395 定位套
131402010013A011 六角头Bolt
131401020083A006 车轮组合Nut
131402010257A002 Brake鼓
131402010257A004 锁紧Nut
131402010257A006 锁紧Nut
131401020820A045 挡油罩
131402010257A009 车轮Bolt
131401020083A010 圆锥滚子Bearing
131402010257A011 隔圈
131402010257A084 Brake器AssemblyLeft
131402010257A028 轴头
131402010013A041 调整螺钉
131402010257A015 Gasket
131402010257A018 衬套
131402010257A043 Gasket
131401020742A009 六角头Bolt
131402010257A041 手动间隙调整臂
131402010257A037 调整Washer
131402010257A039 调整Washer
131401020742A010 六角头细牙Bolt
131402010257A Front Axle
131402010257A079 气室Bracket（Left）
131402010257A068 Piston式SpringBrake气室(36/30)
131402010257A013 BrakeCamshaft(Right)
131402010257A059 Steering横拉杆Assembly
131402010256B032 横拉杆球头（Right）
131402010257A045 六角头Bolt-细牙
131488001205A Brake蹄Assembly
131488001204A Brake蹄
131402010257A031 摩擦片(Lower)
131401021498A009 回位Spring销
131401021193A017 Brake蹄销
131402010257A021 回位Spring销
131402010257A024 衬套
131402010257A026 Washer
131402010257A074 Front轴壳Assembly
131402010257A046 轴密封圈
131402010380A003 Lower主销
131402010257A057 O型圈
131402010380A004 Steering节(Left)
131402010013A042 1型六角Nut
131402010257A078 Front轴壳分Assembly
12355725 螺塞
A210416000021 挡圈
A210855000011 孔型喉箍
ODT008741016 Middle Axle安装Assembly
131401021104A Middle Axle
A210204000158 螺钉
A210401000001 SpringWasher
A210405000003 Washer
131401020112A060 Brake鼓
131401020106A099 Inner六角Bolt
131401020106A105 半轴
131402010013A063 Gasket
131401020106A031 六角FlangeBolt
131401020099A130 Washer
131401020083A014 Oil Seal
131401020112A062 直通式滑脂嘴
131401020106A115 气室Bracket（Left）
131401020106A121 调整Gasket
131401020106A119 调整Gasket
131401020112A049 调整Washer
131401020112A051 调整Washer
131401020112A054 Washer
131402010256B002 气室Assembly
131401020112A058 六角Flange面承面带齿Bolt
131401020742A055 主减速器Assembly
131401020106A143 LowerBracket（Right）
131401020106A220 螺纹堵塞
131401020106A144 六角头Bolt
131401020106A141 销子
131401020106A192 板簧Bracket
131401020106A137 板簧垫板
131401020106A131 六角头Bolt-细牙
131401020842A006 六角头Bolt
131401020106A193 板簧Bracket
131401021153A018 贯通驱动桥桥壳Assembly
131401020106A097 挡油罩
131401020083A003 HubOil Seal
131401021153A019 Hub
131401020083A005 O型密封圈
131401020106A095 齿圈Bracket
131401020106A104 锁紧Nut
131401020083A008 锁紧Nut
131401020106A164 行星架带轮边减壳Assembly分装件
131401020106A084 轴用压扁钢丝挡圈
131401020106A051 开槽圆Nut
131401020106A053 调整Nut
131401021104A002 贯通轴
131401020106A079 太阳轮止推Gasket
131401020106A087 孔用弹性挡圈
131401020106A074 六角Flange面Bolt
131401020748A026 密封WasherDIN7603-Cu A22*27D-Ring
131401021153A020 Brake蹄Assembly
131401020881A007 Brake蹄
131402010013A056 Lower回位Spring
131401020106A128 Brake蹄销
131401020106A188 防尘罩Assembly
131402010013A067 堵塞
131402010013A051 回位Spring
131401020881A006 滚轮
131401020824A001 自锁NutVM141.5 DIN980-8ZN
131401020824A002 十二角Nut
131401020824A006 Oil Seal
131401020533B001 锁片
131401020106A005 圆锥滚子Bearing
131401020106A003 六角Flange面承面带齿Bolt-细牙
131401020106A194 过桥箱盖
131401021104A013 滑动啮合套
131401020820A011 推力滚针座圈
131401021104A006 主动圆柱齿轮
131401020106A227 圆锥滚子Bearing
131401021153A017 Middle Axle主减速壳Assembly
131401020106A032 锁止片
131401020106A225 Bearing
131401021104A019 轮间差速器分Assembly
131401020106A013 圆柱滚子Bearing
61019999 圆锥滚子Bearing
131401020106A019 调整Gasket
131401020106A022 调整Gasket
131401020106A231 六角Flange面承面带齿Bolt-细牙
131401021104A007 被动圆柱齿轮
60314436 密封Washer
131401020106A206 Cylinder盖
131401020106A215 衬套
131401020106A213 Piston杆
131401020106A066 Washer
131401020106A230 差速锁回位Spring
131401021104A010 半轴齿轮
131401020106A234 调整Washer
131401021104A008 轴间差速器壳
131401021153A005 Washer
131401021153A004 行星齿轮
131401020106A028 集油罩
131401020106A237 半轴齿轮Gasket
131401020106A239 半轴齿轮Gasket
131401020106A207 差速器壳
131401021498A003 行星齿轮
131401021498A006 十字轴
131401021498A007 十字轴支座
131401020106A189 防尘罩Assembly
131401020748A Rear Axle
131401020820A001 车轮Bolt
131401020106A100 Brake器Assembly（Left）
131401020106A107 BrakeCamshaft（Left）
131402010013A064 O型密封圈
131401020106A110 Outer球座
131401020742A001 球Bearing
131401020106A113 Inner球座
131401020106A114 六角头Bolt
131401020106A120 调整Gasket
131401020106A170 间隙调整臂
131401020112A050 调整Washer
131401020112A052 调整Washer
131401020112A056 轴用弹性挡圈
131401021193A022 六角Flange面承面带齿Bolt
131401020748A010 Rear Axle主减速器Assembly
131401020106A001 螺纹堵塞
131401020842A005 驱动桥桥壳Assembly
131401020106A088 调整Gasket
131401020748A022 调整Gasket
131401020748A024 调整Gasket
131401020106A101 Brake器Assembly（Right）
131401020881A001 Rear Axle主减速器壳Assembly
131401020824A009 轮间差速器Assembly
131401020106A223 圆锥滚子Bearing32316BX3
131401020106A208 差速器壳
