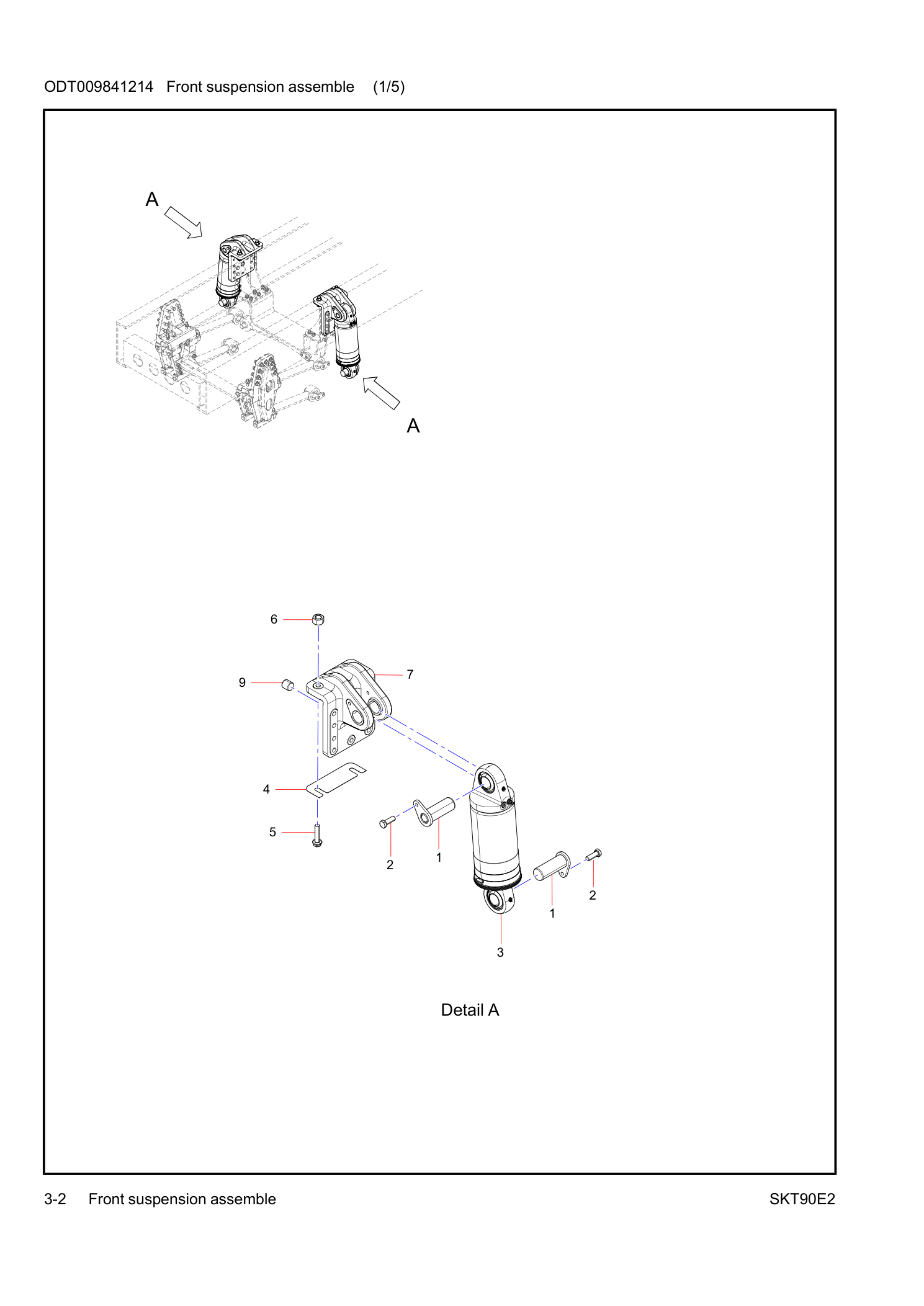

SANY Front Suspension Assembly – Parts Catalog (ODT009841214)

Part Number: ODT009841214
Machine Model: SKT90E2EH Pure Electric Mining Wide-Body Dump Truck
Equipment No.: ODT100000286
Catalog Section: Group 3

A210111000208 Bolt
250901040645A Suspension oil cylinder
60010516 Cap Nut
131503010027A Front Suspension Lateral Thrust Rod
131503010026A Front Suspension Longitudinal Thrust Rod
A210307000028 Nut
A210416000036 Retainer Ring
B221500000101 Joint Bearing
A210804000002 Oil Cup
B210399000001 Screw
152504990217A Charging Valve
A210855000079 Clamp
131503010027A001 Front Suspension Lateral Thrust Rod Body
131503010026A003 Repair Kit For Joint Ball Pin
131503010026A001 Front Suspension Longitudinal Thrust Rod Body
