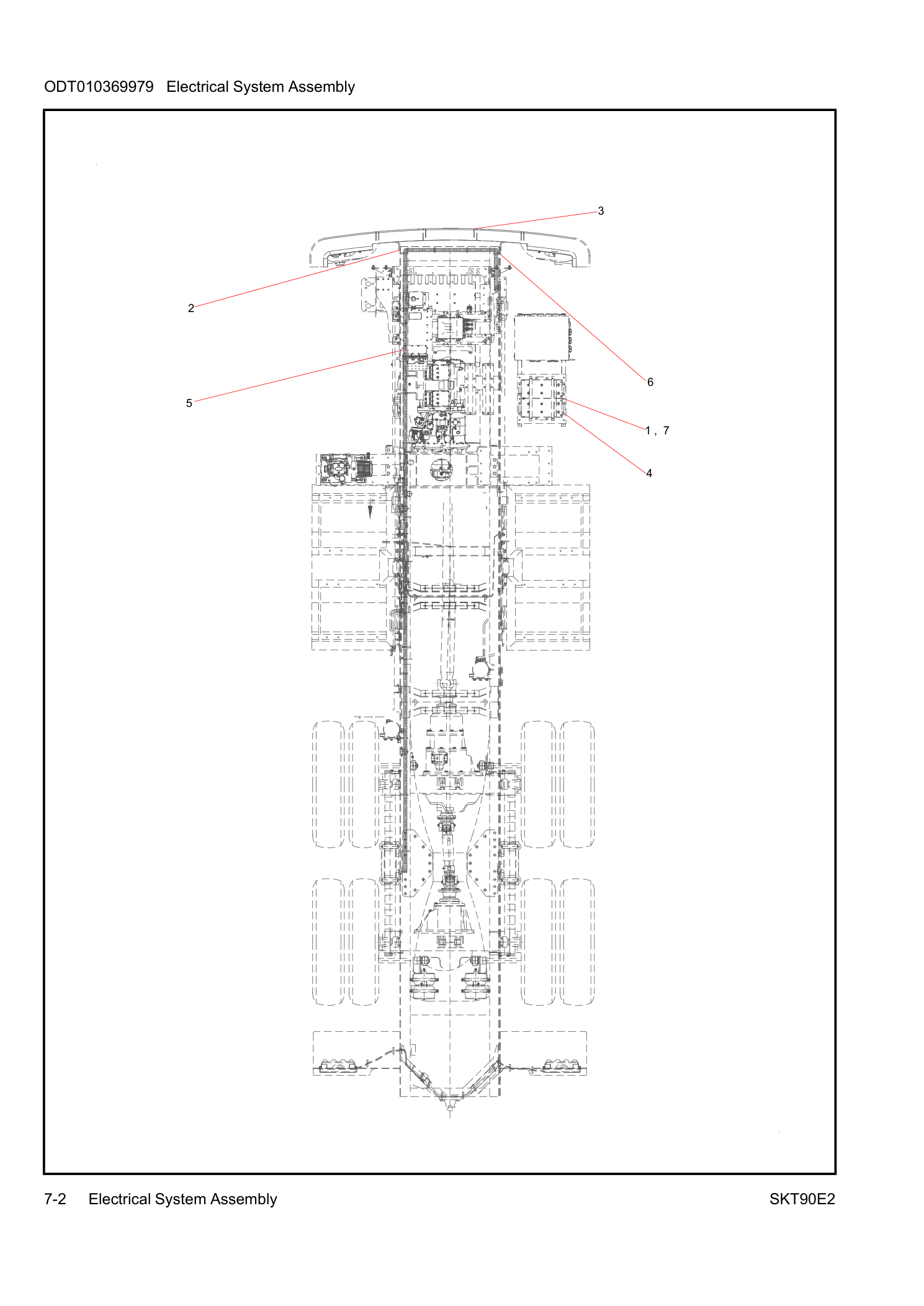

SANY Electrical System Assembly – Parts Catalog (ODT010369979)

Part Number: ODT010369979
Machine Model: SKT90E2EH Pure Electric Mining Wide-Body Dump Truck
Equipment No.: ODT100000286
Catalog Section: Group 7

141998000176A Conbination Instrument Assembly
142601000062A Electric Handle Assembly
A810201206235 Motion controller assembly
140603170005A Transmission Controller
140599000201A Angle Sensor
140902000038A Mobile Terminal
141999000052A Digital Recorder
141604000113A Work Lamp
141601020026A Rear Light
146303000015A Buzzer
140502000048A Pressure Sensor
140702000027A Video Monitor
60154391 suction cup
A210405000003 Washer
A210307000015 Nut
A210204000116 Screw
140524000321A Proximity Switch
B241000000004 3 Core Rectangular Socket
B241000000002 Pin Terminal
B290000001123 Water-proof
142001000013A Time Relay
140101020016D Acid Battery
60013322 A Type Battery Positive Electrode Connector
60013321 A-battery Negative Electrode Connector
142906000068A Distribution Box
