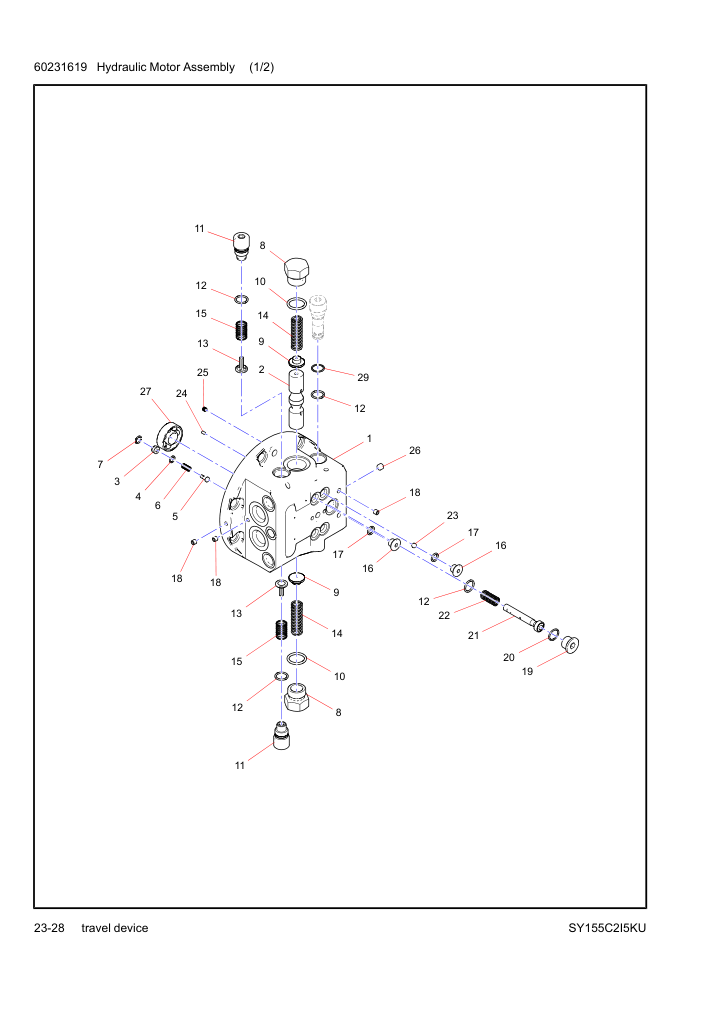

SY155C Group 23 60231619 Hydraulic Motor Assembly
Model: SY155C2I5KU Hydraulic Excavator
Part Number: N/A
Contact: salesany@yeah.net
Parts List
| Part No. | Description |
|---|---|
| 60231612 | Flange |
| 60231613 | Balancing Valve |
| 60082952 | Valve Seat |
| 60082999 | O-ring |
| 60082935 | V/Vpin |
| 60082942 | Spring |
| 60082946 | Retainer Ring |
| 60082968 | Plug |
| 60082945 | Base, Spring |
| 60082996 | O-ring |
| 60231614 | Plug |
| 60082994 | O-ring |
| 60231615 | Valve Check |
| 60082943 | Spring |
| 60082944 | Spring |
| 60082966 | Plug |
| 60082992 | O-ring |
| 60082969 | Plug |
| 60158916 | Blanking Screw |
| 60082995 | O-ring |
| 60231616 | Spool(2Speed) |
| 60231617 | Spring(2Speed) |
| 60082921 | Steel Ball |
| 60192252 | Screw |
| 60164161 | Orifice |
| 60082963 | Plug |
| 60231618 | Ball Bearing |
| 60192264 | Support Ring |
| 60231620 | Piston |
| 60231621 | Disc, Slipper |
| 60231622 | Cylider Block |
| 60231623 | Retainer Plate |
| 60231624 | Ball Guideing Set |
| 60231625 | Washer |
| 60231626 | Washer |
| 60231627 | Spring |
| 60231628 | Roller |
| 60231629 | Snap Ring |
| 60231630 | Swash Plate |
| 60231631 | Parking Piston |
| 60231632 | Friction Plate |
| 60231633 | Brake Disc |
| 60231634 | O-ring |
| 60231635 | O-ring |
| 60231636 | Socket Bolt |
| 60231637 | Support Ring |
| 60231639 | Support Ring |
| 60231638 | Spring |
| 60231642 | Trunnion |
| 60082997 | O-ring |
| 60231643 | Pin Parallel |
| 60231644 | O-ring |
| 60231645 | Disc, Oil Distribution |
| 60231646 | Pin |
| 60082941 | Spring |
