SY155C Group 24 60231580 Reduction Gear Assembly
Model: SY155C2I5KU Hydraulic Excavator
Part Number: N/A
Contact: salesany@yeah.net
Parts List
| Part No. | Description |
|---|---|
| 60233745 | Plug |
| 60082967 | Plug |
| 60082993 | O-ring |
| 60231597 | Bolt |
| 60231583 | Front Cap Assembly |
| 60158991 | Washer Thrust |
| 60158990 | Plate Thrust |
| 60231598 | Pin |
| 60231589 | Gear Primary |
| 60231593 | Thrust Plate(R) |
| 60231603 | Race Inner |
| 60231604 | Bearing Needle |
| 60231587 | Gear Planet Primary |
| 60231584 | Holder |
| 60231590 | Screw |
| 60231592 | Thrust Plate(F) |
| 60231595 | Bushing |
| 60231594 | Washer Thrust |
| 60231605 | Bearing Needle |
| 60231588 | Gear Planet Primary |
| 60082960 | Ring, Snap |
| 60231586 | Sun Gear |
| 60231596 | Snap Ring |
| 60213899 | Plug |
| 60231585 | Ring Nut |
| 60231601 | Snap Ring |
| 60231600 | Bearing Angular Ball |
| 60231591 | Seal Ring |
| 60231602 | O-Ring |
| 130101010145B001 | Floating Oil Seal |
| 60231582 | Hub |
| 60231581 | Pin |
| 60231607 | Oil Seal |
| 60231608 | Bearing Roller |
| 60231606 | Drive Shaft |

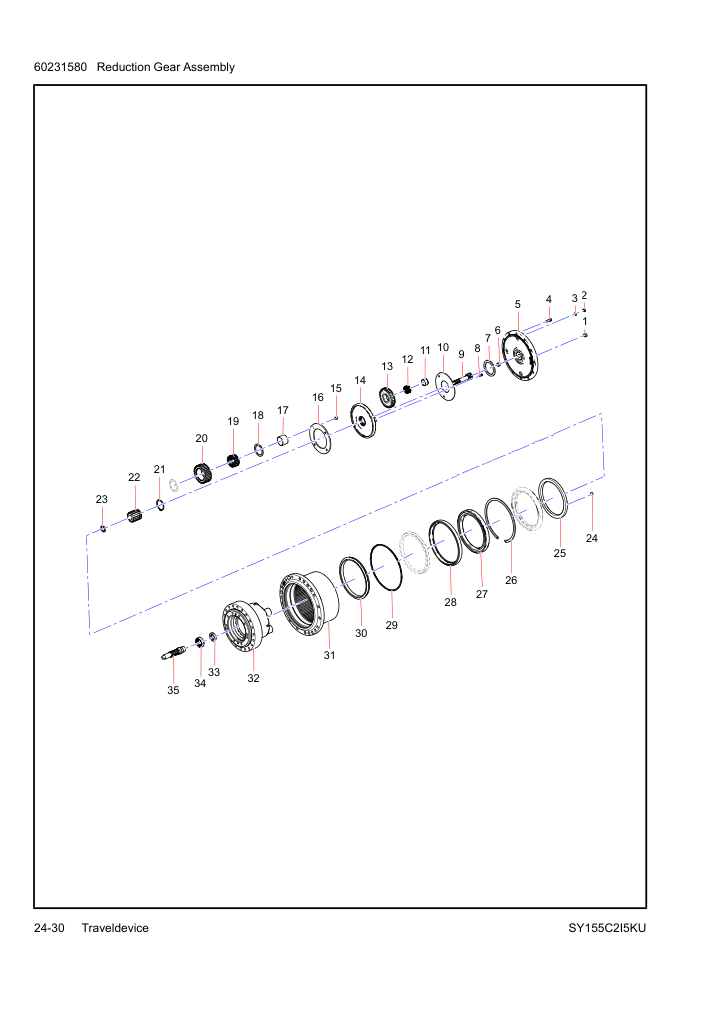

| 60231580 Reduction Gear Assembly |
