SY175W3EBR Group 2 Cooling System
Model: SY175W3EBR Electric Wheel Excavator
Part Number: N/A
Contact: salesany@yeah.net

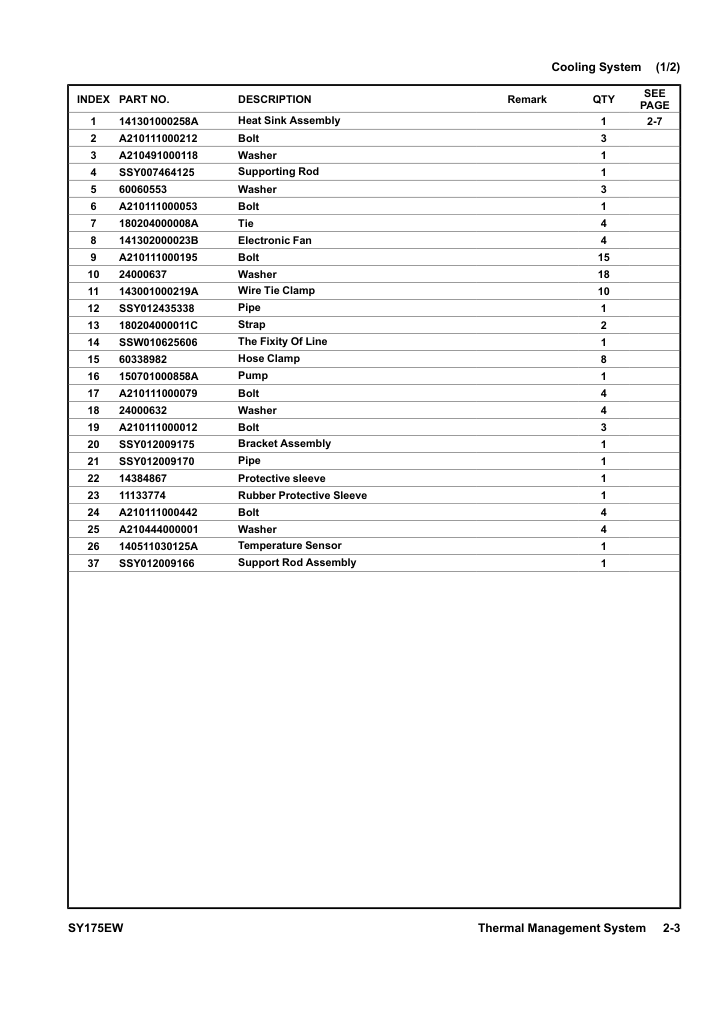

Parts List
| Part No. | Description |
|---|---|
| 141301000258A | Heat Sink Assembly |
| A210111000212 | Bolt |
| A210491000118 | Washer |
| SSY007464125 | Supporting Rod |
| 60060553 | Washer |
| A210111000053 | Bolt |
| 180204000008A | Tie |
| 141302000023B | Electronic Fan |
| A210111000195 | Bolt |
| 24000637 | Washer |
| 143001000219A | Wire Tie Clamp |
| SSY012435338 | Pipe |
| 180204000011C | Strap |
| SSW010625606 | The Fixity Of Line |
| 60338982 | Hose Clamp |
| 150701000858A | Pump |
| A210111000079 | Bolt |
| 24000632 | Washer |
| A210111000012 | Bolt |
| SSY012009175 | Bracket Assembly |
| SSY012009170 | Pipe |
| 14384867 | Protective sleeve |
| 11133774 | Rubber Protective Sleeve |
| A210111000442 | Bolt |
| A210444000001 | Washer |
| 140511030125A | Temperature Sensor |
| SSY012009166 | Support Rod Assembly |
| A239900000065 | Nylon Cable Tie |
| 14539082 | Protective Sleeve |
| SSY012435345 | Pipe |
| 143001000222A | Line Clamp |
| 151304030100A | Throat Clamp |
| SSY007366486 | Rubber Protective Sleeve |
| 11225692 | Boot |
| 143001000214A | Wire Tie Clamp |
| SSY012435344 | Pipe |
| SSY012435343 | Pipe |
