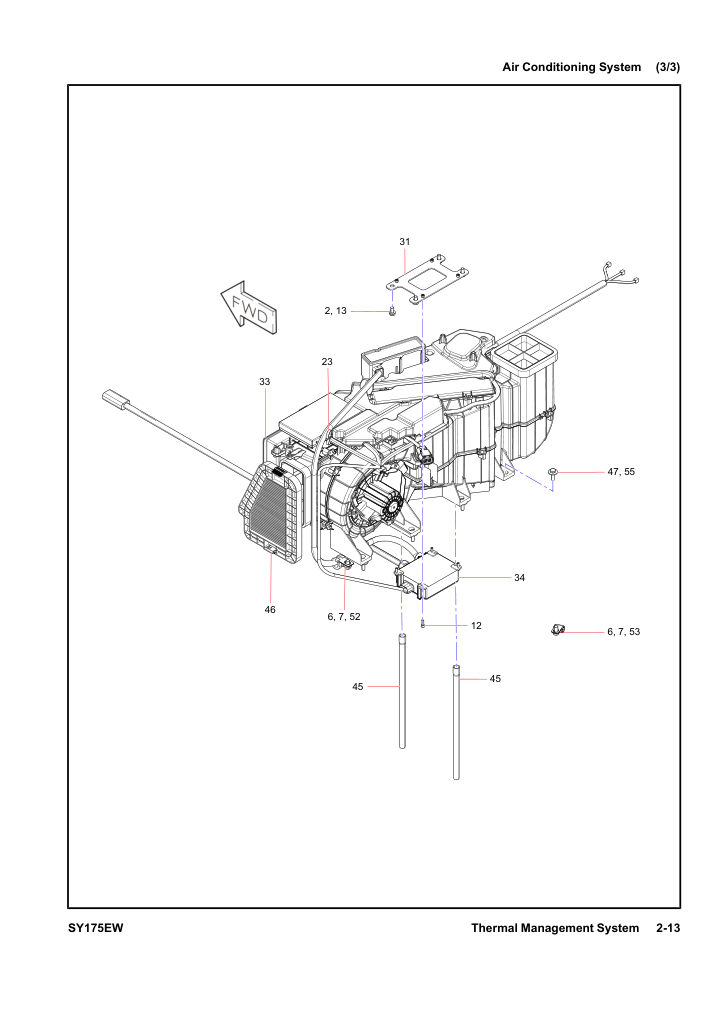

SY175W3EBR Group 2 Air Conditioning System
Model: SY175W3EBR Electric Wheel Excavator
Part Number: N/A
Contact: salesany@yeah.net
Parts List
| Part No. | Description |
|---|---|
| 24000431 | Screw |
| 24000637 | Washer |
| A210111000195 | Bolt |
| 24000632 | Washer |
| 24002251 | Screw |
| 13447220 | Protective Sleeve |
| 13817427 | Boot |
| SSY007158552 | Protective Sleeve |
| 11225692 | Boot |
| SSY005714839 | Protective Sleeve |
| 14539082 | Protective Sleeve |
| A239900000053 | Nylon Ribbon |
| A239900000065 | Nylon Cable Tie |
| 11225694 | Boot |
| 180299000677A | Rotatable Fixing Coupler |
| 141502001437A | Compressor |
| 141502002754A | Exhaust Pipe |
| 141502002752A | Condenser |
| 141502002755A | Liquid Pipe |
| 141502001465A | Liquid Storage Reservoir |
| 60060565 | Washer |
| SSQ009677047 | Steel Tube |
| SSY009106951 | A/C Outside Air Temperature Sensor Bracket |
| 141502001187A | Environmental Temperature Sensor |
| 143001000222A | Line Clamp |
| 143001000215A | Wire Tie Clamp |
| 143001000219A | Wire Tie Clamp |
| A210204000151 | Screw |
| 24000633 | Washer |
| A210111000343 | Bolt |
| A210405000001 | Washer |
| A210111000101 | Bolt |
| A210111000197 | Bolt |
| 24002323 | Bolt |
| 13215450 | Protective Sleeve |
| 180204000011C | Strap |
| A210111000079 | Bolt |
| 131602000201B | Damping Pad |
| SSY007887526 | Waher |
| SSY009298811 | Electric compressor support |
| SSY012452054 | Bracket |
| SSY012438040 | Bracket |
| 141502002753A | Suction Pipe |
| 141502002756A | Liquid Pipe |
| 141302000048A | Heat Exchanger |
| 141502001464A | Solenoid Valve |
| 141502002757A | Liquid Pipe |
| A210111000323 | Bolt |
| A210111000098 | Bolt |
| 24003401 | Bolt |
| A210307000001 | Nut |
| A210204000116 | Screw |
| A210111000342 | Bolt |
| SSY012112068 | Bracket Assembly |
| 141502002758A | Air Conditioning Unit |
| 141502002796A | Controller |
| 60213359 | Drain Pipe |
| 141502000797B | External Air Filter |
| 143001000316A | Line Clamp |
