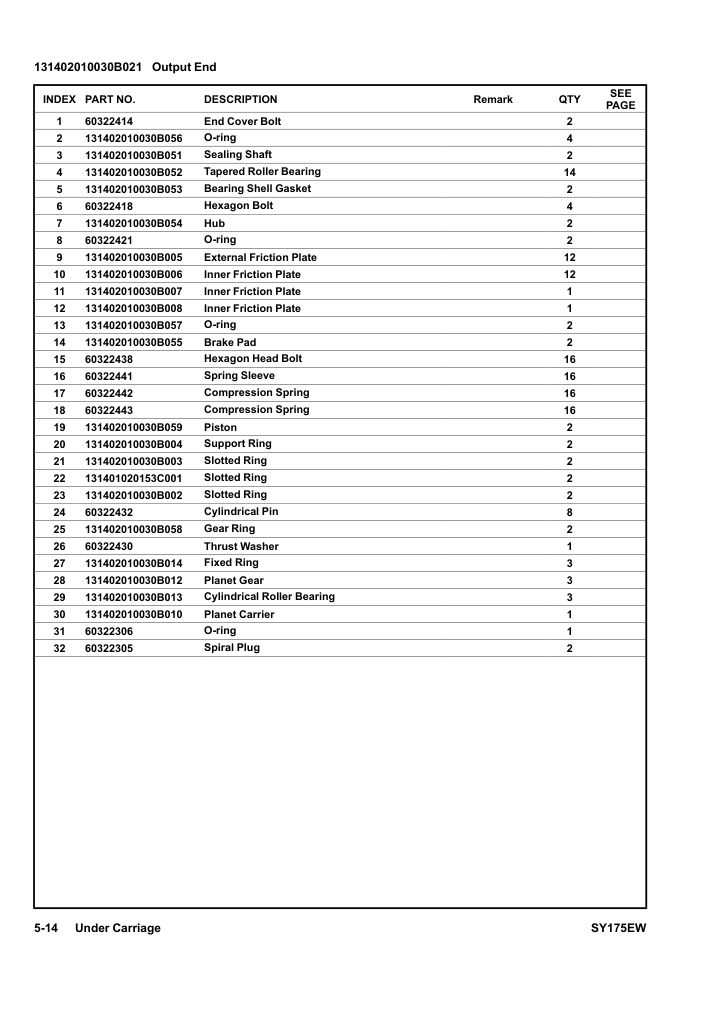

SY175W3EBR Group 5 131402010030B021 Output End
Model: SY175W3EBR Electric Wheel Excavator
Part Number: N/A
Contact: salesany@yeah.net
Parts List
| Part No. | Description |
|---|---|
| 60322414 | End Cover Bolt |
| 131402010030B056 | O-ring |
| 131402010030B051 | Sealing Shaft |
| 131402010030B052 | Tapered Roller Bearing |
| 131402010030B053 | Bearing Shell Gasket |
| 60322418 | Hexagon Bolt |
| 131402010030B054 | Hub |
| 60322421 | O-ring |
| 131402010030B005 | External Friction Plate |
| 131402010030B006 | Inner Friction Plate |
| 131402010030B007 | Inner Friction Plate |
| 131402010030B008 | Inner Friction Plate |
| 131402010030B057 | O-ring |
| 131402010030B055 | Brake Pad |
| 60322438 | Hexagon Head Bolt |
| 60322441 | Spring Sleeve |
| 60322442 | Compression Spring |
| 60322443 | Compression Spring |
| 131402010030B059 | Piston |
| 131402010030B004 | Support Ring |
| 131402010030B003 | Slotted Ring |
| 131401020153C001 | Slotted Ring |
| 131402010030B002 | Slotted Ring |
| 60322432 | Cylindrical Pin |
| 131402010030B058 | Gear Ring |
| 60322430 | Thrust Washer |
| 131402010030B014 | Fixed Ring |
| 131402010030B012 | Planet Gear |
| 131402010030B013 | Cylindrical Roller Bearing |
| 131402010030B010 | Planet Carrier |
| 60322306 | O-ring |
| 60322305 | Spiral Plug |
| 131402010030B021 | Output End |
