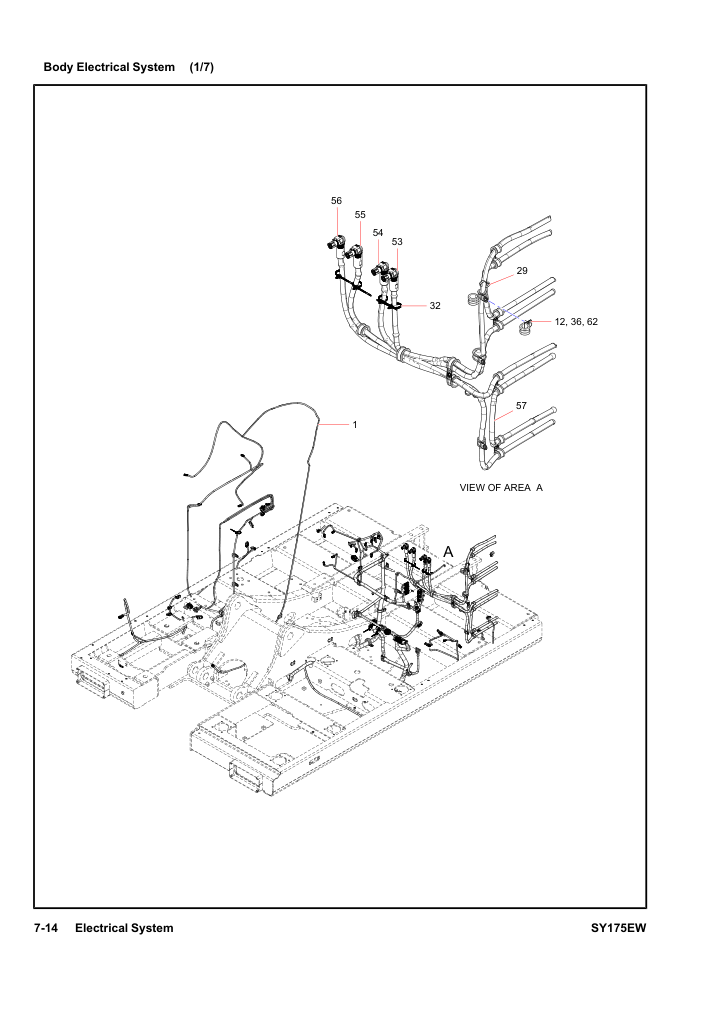

SY175W3EBR Group 7 Body Electrical System
Model: SY175W3EBR Electric Wheel Excavator
Part Number: N/A
Contact: salesany@yeah.net
Parts List
| Part No. | Description |
|---|---|
| SSY012019470 | Body Harness |
| 120107030074A | Washer |
| 180204000011C | Strap |
| 180204000008A | Tie |
| A210111000012 | Bolt |
| SSY012421381 | Harness |
| SSY012421522 | Harness |
| SSY012421530 | Harness |
| SSY012421691 | Harness |
| SSY012421707 | Harness |
| 143001000217A | Wire Tie Clamp |
| 120 | |
| A210111000125 | Bolt |
| A210210000023 | Screw |
| 11133774 | Rubber Protective Sleeve |
| A210491000120 | Washer |
| 141601010124A | Work Lamp |
| SSY012014019 | Harness |
| 140706000587A | Camera |
| SSY012047238 | Lamp Holder |
| A820606020470 | Rubber Cushion |
| 141601020050D | Indicator Lamp |
| 141602000084D | Indicator Lamp |
| 141602000128B | Indicator Lamp |
| 141601990092A | License Plate Light |
| 60060562 | Washer |
| A210405000007 | Washer |
| 143001000215A | Wire Tie Clamp |
| A210110000340 | Bolt |
| A210111000095 | Bolt |
| SSY012009204 | Harness |
| SSY012018995 | Harness |
| SSY012009104 | Harness |
| SSY012019015 | Harness |
| SSY012019027 | Harness |
| 12061491 | YAZAKI Connector Fixed Clamp |
| 12738039 | Boot |
| 11225694 | Boot |
| 14384867 | Protective sleeve |
| 11225692 | Boot |
| 60060546 | Washer |
| 13447219 | Protective Sleeve |
| SSY012019497 | Harness |
| SSY012019506 | Harness |
| SSY012013517 | Harness |
| SSY012013537 | Harness |
| SSY012013552 | Harness |
| SSY012013555 | Harness |
| SSY012019509 | Electrical Bracket |
| SSY012019131 | Harness |
| SSY012019175 | Harness |
| SSY012008897 | Installation Plate |
| 60060565 | Washer |
| A210111000343 | Bolt |
| SSY012426652 | Harness |
| SSY010974490 | Fuse Bracket Assem |
| SSY012435327 | Support |
| 60125384 | Knob Switch |
| SSY005996123 | Electrical Installation Cover |
| 60351431 | Washer |
| A210204000134 | Screw |
| A820606030643 | Battery Rubber Pad |
| A210307000036 | Nut |
| 143001000003B | Fuse Holder |
| 142301000052B | Fuse |
| 143001000219A | Wire Tie Clamp |
| SSY012046990 | Harness |
| 60013322 | A Type Battery Positive Electrode Connector |
| 60013321 | Battery Negative Terminal Assembly |
| A249900000824 | Rubber Sleeve |
| SSY012019076 | Harness |
| SSY012421817 | Plate |
| SSY012013564 | Harness |
| SSY012019114 | Harness |
| SSY012013984 | Harness |
| SSY012019252 | Harness |
| SSY012019087 | Harness |
| SSY012013968 | Harness |
| SSY012421810 | Plate |
| B242200000026 | Acid Battery |
| A820301015908 | Stud |
| 10839083 | Battery rubber pad |
| 140107000071B | Power Module |
| SSY012421825 | Plate |
| 142906000255A | Junction Box |
| A210204000116 | Screw |
| 141601010097B | Headlight |
| 141601010098B | Headlight |
| 24000630 | Washer |
| A210204000168 | Screw |
| SSY012422131 | Plate |
| A210405000006 | Washer |
| A210204000130 | Screw |
| 143001000220A | Wire Tie Clamp |
| 24000514 | Spring Washer |
| A210111000263 | Bolt |
| 12215066 | Rubber Pad |
| A210111000018 | Bolt |
| SSY012013998 | Harness |
| 143001000218A | Wire Tie Clamp |
| SSY012013999 | Harness |
| SSY012019521 | Body Harness |
| 146303000024B | Buzzer |
| SSY012047032 | Cover |
| SSY012435160 | Harness |
| SSY012422270 | Plate |
| 141603000086A | Side Light |
| SSW010625606 | The Fixity Of Line |
| A210111000079 | Bolt |
| 11225691 | Protective Sleeve |
| 11225693 | Boot |
| A239900000065 | Nylon Cable Tie |
| 140502000055F | Pressure Sensor |
| 140502000054E | Pressure Sensor |
| A249900000823 | Sleeve, Battery |
| 143001000020B | Clip |
| SSY012013995 | Harness |
| SSY012014011 | Harness |
| 146306000001B | Horn |
| 140511010010A | Temperature Sensor |
