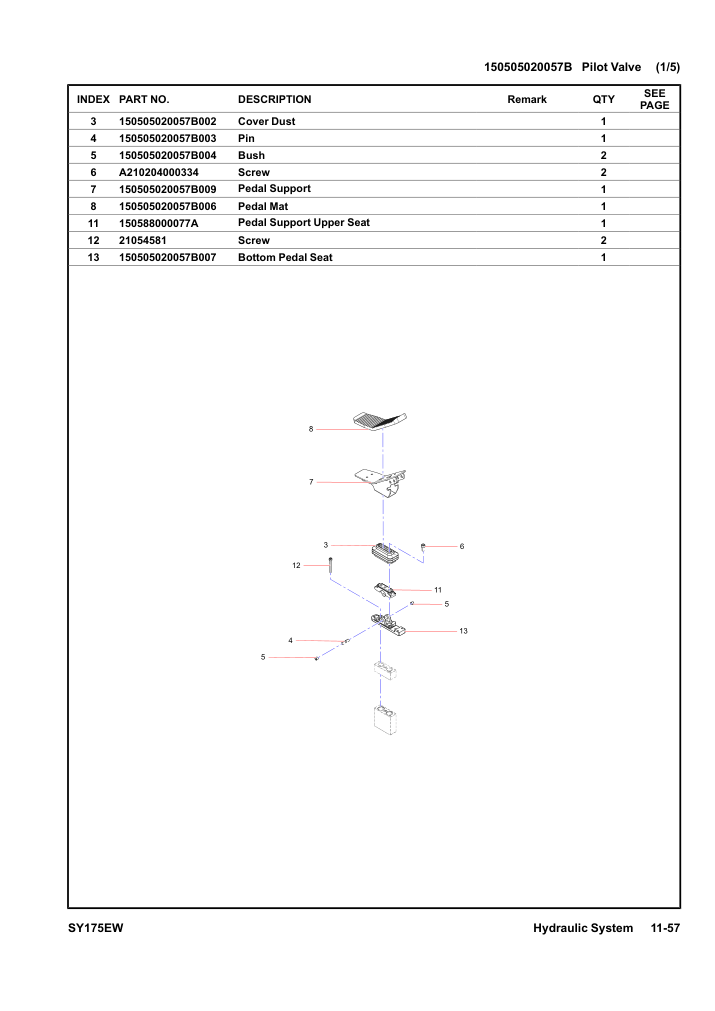

SY175W3EBR Group 11 150505020057B Pilot Valve
Model: SY175W3EBR Electric Wheel Excavator
Part Number: N/A
Contact: salesany@yeah.net
Parts List
| Part No. | Description |
|---|---|
| 150505020057B002 | Cover Dust |
| 150505020057B003 | Pin |
| 150505020057B004 | Bush |
| A210204000334 | Screw |
| 150505020057B009 | Pedal Support |
| 150505020057B006 | Pedal Mat |
| 150588000077A | Pedal Support Upper Seat |
| 21054581 | Screw |
| 150505020057B007 | Bottom Pedal Seat |
| 150505020057B | Pilot Valve |
| 150505020057B008 | Bracket |
| 150505020057B005 | Bracket Unit |
| 150505020057B010 | Pin |
| 150505020057B011 | Fix Nut |
| 120102010101A | Nut |
| A210204000341 | Screw |
| 150505020057B017 | Spring |
| 150588000075A | Adjustment Screw |
| 60314062 | Hexagon Nut |
| 150505020057B014 | Piston Rod |
| 150505020057B015 | Steel Ball |
| 150505020057B016 | Flat Washer |
| 60117283 | Retainer Ring |
| 61009331 | Spring |
| 150505020057B001 | Valve Spring |
| 150505020057B012 | Spring Seat |
| 150505020057B013 | Spring Seat |
| 151403010218A | O ring |
| B210780000895 | Plug Screw |
| 61026989 | O-ring |
