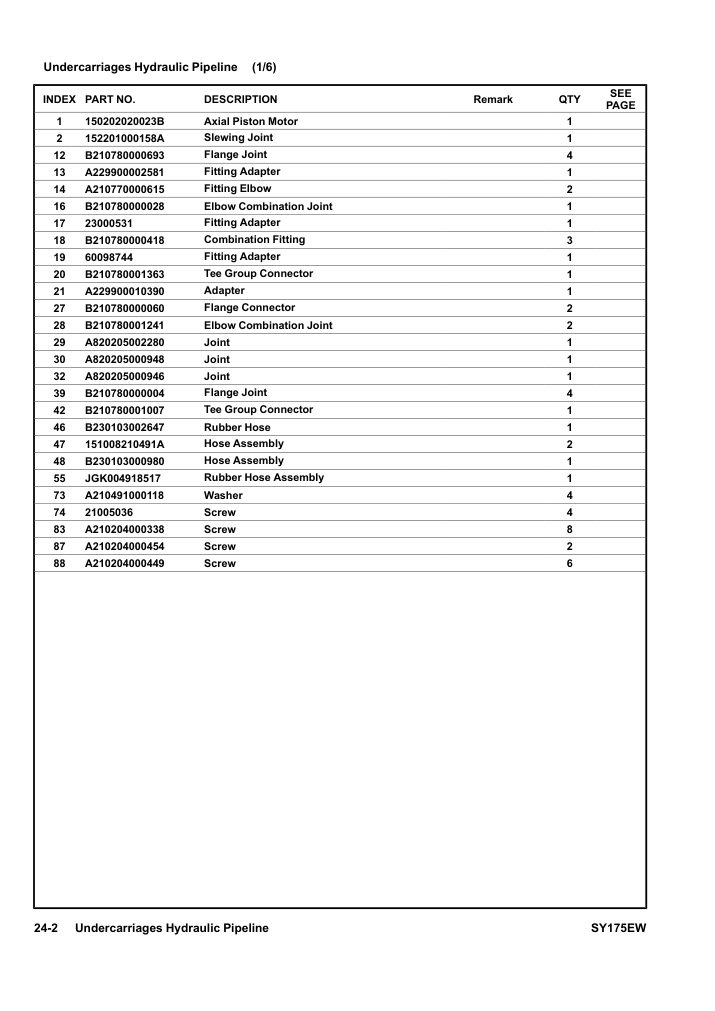

SY175W3EBR Group 24 Undercarriages Hydraulic Pipeline
Model: SY175W3EBR Electric Wheel Excavator
Part Number: N/A
Contact: salesany@yeah.net
Parts List
| Part No. | Description |
|---|---|
| 150202020023B | Axial Piston Motor |
| 152201000158A | Slewing Joint |
| B210780000693 | Flange Joint |
| A229900002581 | Fitting Adapter |
| A210770000615 | Fitting Elbow |
| B210780000028 | Elbow Combination Joint |
| 23000531 | Fitting Adapter |
| B210780000418 | Combination Fitting |
| 60098744 | Fitting Adapter |
| B210780001363 | Tee Group Connector |
| A229900010390 | Adapter |
| B210780000060 | Flange Connector |
| B210780001241 | Elbow Combination Joint |
| A820205002280 | Joint |
| A820205000948 | Joint |
| A820205000946 | Joint |
| B210780000004 | Flange Joint |
| B210780001007 | Tee Group Connector |
| B230103002647 | Rubber Hose |
| 151008210491A | Hose Assembly |
| B230103000980 | Hose Assembly |
| JGK004918517 | Rubber Hose Assembly |
| A210491000118 | Washer |
| 21005036 | Screw |
| A210204000338 | Screw |
| A210204000454 | Screw |
| A210204000449 | Screw |
| 150901010437A | Floating Oil Cylinder |
| 61002979 | Balance Valve |
| B210780000180 | Fitting Adapter |
| JGK009401926 | Hose Assembly |
| A210491000132 | Washer |
| A210111000062 | Bolt |
| A210204000179 | Screw |
| SSY009978028 | Rigid Board 2 |
| SSY009978027 | Rigid Board 1 |
| B210780000115 | Fitting Adapter |
| B210780000024 | Combination Fitting |
| B210780000016 | Tee Group Connector |
| 21002848 | Fitting, Adapter |
| B230103001727 | Rubber Hose |
| B230103003203 | Hose |
| 151004110047A | Hose Assembly |
| B230103001649 | Hose |
| B230103001022 | Hose Assembly |
| 60351808 | Rubber Hose Assembly |
| 60060565 | Washer |
| A210111000342 | Bolt |
| SSY008124817 | Protecting Ring |
| A820205000961 | Connector |
| 21020777 | Adapter |
| 60086354 | Harness Fixing Clamp |
| 21018092 | Adapter |
| 23000634 | Butt Joint Variable Diameter Connector |
| 151004110016A | Rubber Hose |
| B230103007615 | Hose AS |
| B230103004426 | Rubber Hose |
| B230103001456 | Hose Assembly |
| B230101000049 | O-ring |
| 21020313 | O-ring |
| A210444000001 | Washer |
| A210111000442 | Bolt |
| A210110000304 | Bolt |
| 24000646 | Gasket |
| A210307000029 | Nut |
| 150901010815A | Bulldozing Shovel Oil Cylinder |
| 150901010814A | Bulldozing Shovel Oil Cylinder |
| B210780000019 | Tee Group Connector |
| B210780000176 | Fitting Adapter |
| JGK010945723 | Rubber Hose |
| JGK005904631 | Rubber Hose |
| 151004210457A | Hose Assembly |
| 151002260038A | Hose Assembly |
| 10541251 | Joint |
| 152301001261B | Dumper Control Valve Block |
| 13355697 | 3-way Block |
| B210780000179 | Fitting Adapter |
| 11679982 | Fitting |
| 14151343 | M14-M18 Connector |
| B210780001384 | Plug |
| B210780000164 | Plug |
| B210780000175 | Fitting Adapter |
| B230103001021 | Rubber Hose |
| B230103003714 | Hose |
| 61010382 | Hose Assembly |
| B230101000047 | O-ring |
| B230101000090 | O-ring |
| A230101000247 | O-ring |
| A210401000001 | Spring Washer |
| A210204000354 | Screw |
| 24000511 | Spring Washer |
| 21027532 | Screw |
| 11133779 | Protective Sleeve |
