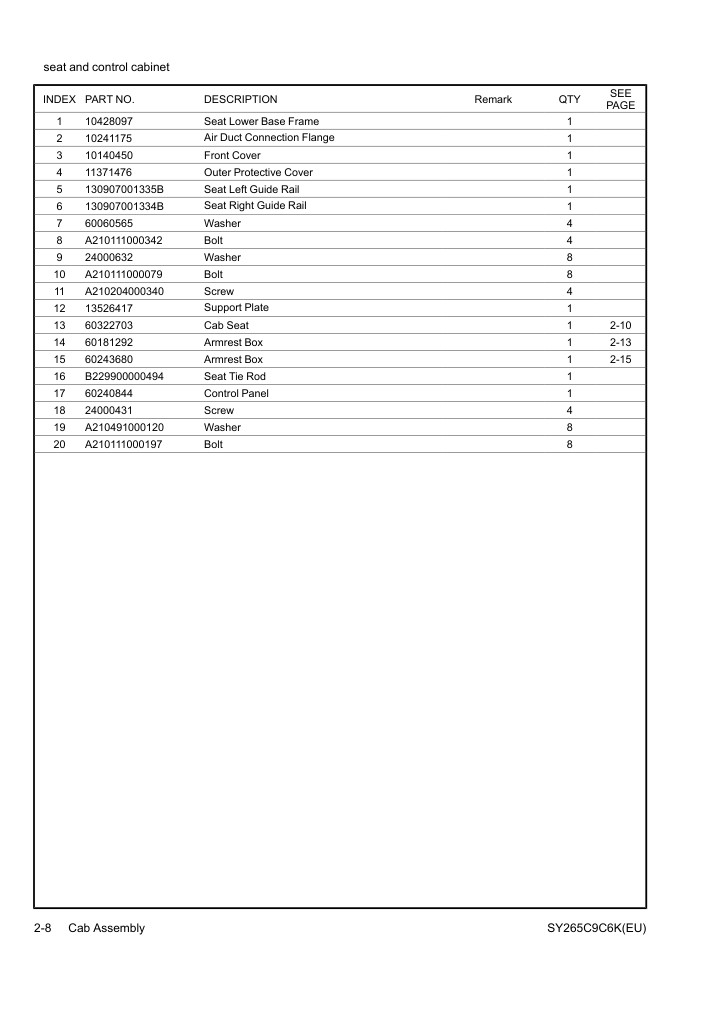

SY265C9C6K(EU) Hydraulic Excavator seat and control cabinet
Model: SY265C9C6K(EU) Hydraulic Excavator
Part Number: N/A
Contact: salesany@yeah.net
10428097 Seat Lower Base Frame
10241175 Air Duct Connection Flange
10140450 Front Cover
11371476 Outer Protective Cover
130907001335B Seat Left Guide Rail
130907001334B 1
60060565 Washer
A210111000342 Bolt
24000632 Washer
A210111000079 Bolt
A210204000340 Screw
13526417 1
60322703 Cab Seat
60181292 Armrest Box
60243680 Armrest Box
B229900000494 Seat Tie Rod
60240844 Control Panel
24000431 Screw
A210491000120 Washer
A210111000197 Bolt
Cab Assembly SY265C9C6K(EU)
10241175 Air Duct Connection Flange
10140450 Front Cover
11371476 Outer Protective Cover
130907001335B Seat Left Guide Rail
130907001334B 1
60060565 Washer
A210111000342 Bolt
24000632 Washer
A210111000079 Bolt
A210204000340 Screw
13526417 1
60322703 Cab Seat
60181292 Armrest Box
60243680 Armrest Box
B229900000494 Seat Tie Rod
60240844 Control Panel
24000431 Screw
A210491000120 Washer
A210111000197 Bolt
Cab Assembly SY265C9C6K(EU)
