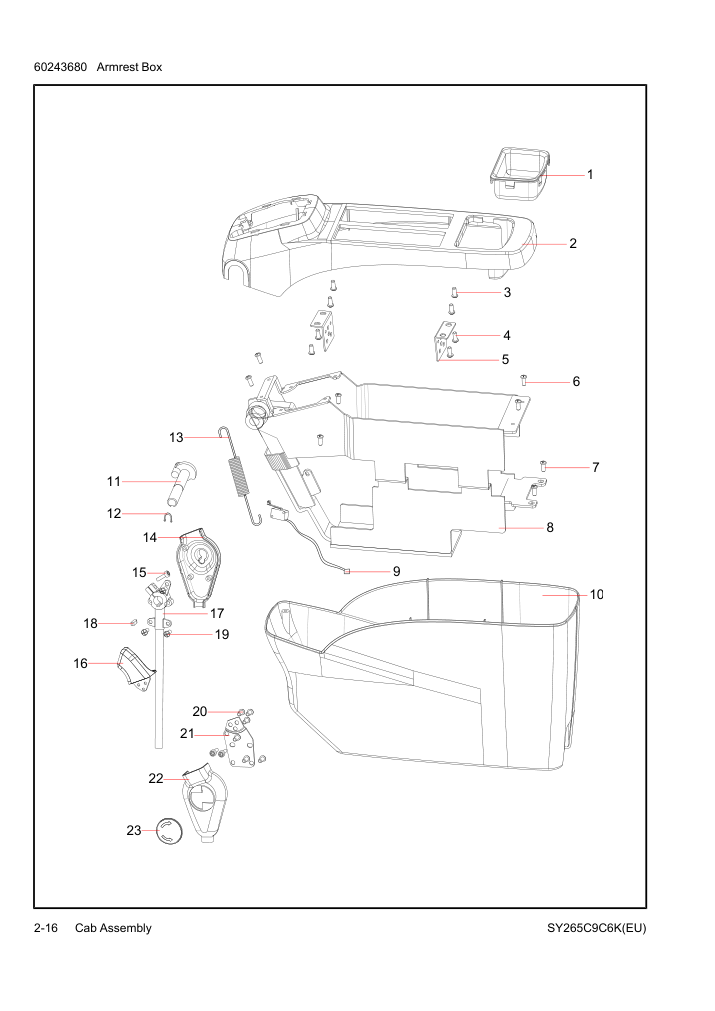

SY265C9C6K(EU) Hydraulic Excavator 60243680 Armrest Box
Model: SY265C9C6K(EU) Hydraulic Excavator
Part Number: 60243680
Contact: salesany@yeah.net
60312528 Parts Box
60307217 Left Handrail Box Top Cover
A210210000006 Screw
A210210000002 Screw
60309918 Radio Bracket
A210210000017 Screw
A210210000008 Screw
60312529 left steel frame
60309921 Microswitch
60312530 lower housing
60312531 Camshaft
60309917 1
60309914 Spring
60312532 Left End Cap
A210204000131 Screw
60312533 handle head
60312534 Pilot Rod
60312535 1
A210210000015 Screw
A210204000247 Screw
60312536 end cover connecting plate
60312537 right end cap
60312538 Round Cover
Cab Assembly 2-15
60307217 Left Handrail Box Top Cover
A210210000006 Screw
A210210000002 Screw
60309918 Radio Bracket
A210210000017 Screw
A210210000008 Screw
60312529 left steel frame
60309921 Microswitch
60312530 lower housing
60312531 Camshaft
60309917 1
60309914 Spring
60312532 Left End Cap
A210204000131 Screw
60312533 handle head
60312534 Pilot Rod
60312535 1
A210210000015 Screw
A210204000247 Screw
60312536 end cover connecting plate
60312537 right end cap
60312538 Round Cover
Cab Assembly 2-15
