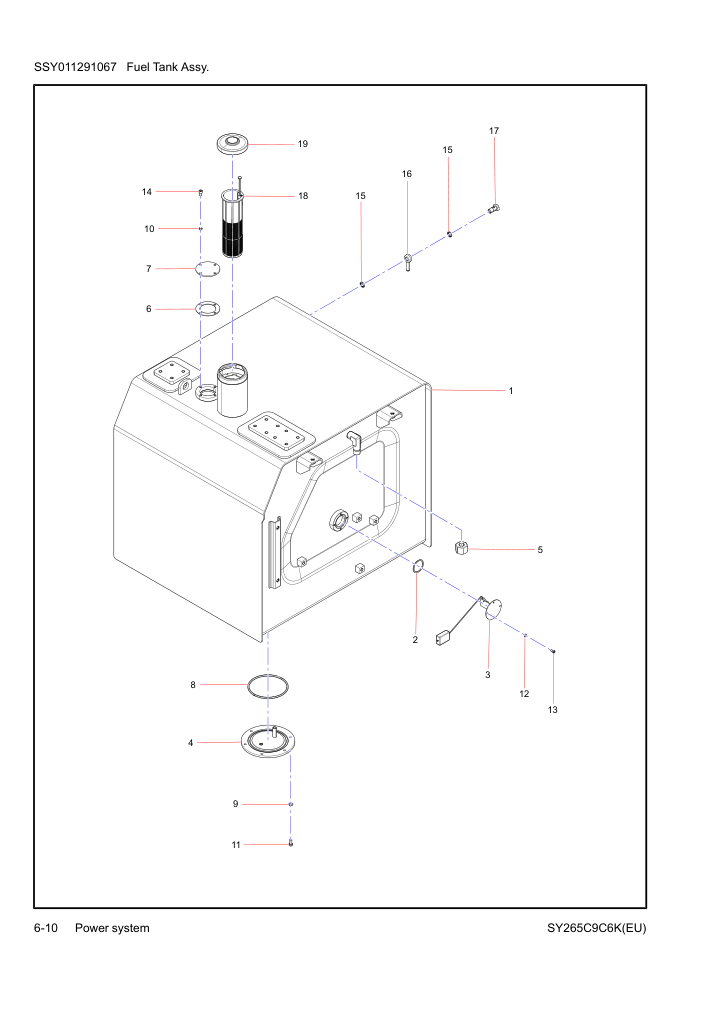

SY265C9C6K(EU) Hydraulic Excavator SSY011291067 Fuel Tank Assy.
Model: SY265C9C6K(EU) Hydraulic Excavator
Part Number: SSY011291067
Contact: salesany@yeah.net
SSY011291030 Fuel Tank
B230101000457 O-ring
60029642 Liquid Level Sensor
13943522 Bottom Cap Assembly
10210082 Screw Plug
10210081 Rubber Plate
10210078 Pressure Plate
B230101000934 O-ring
24000633 Washer
24000511 Spring Washer
A210111000343 Bolt
24000632 Washer
A210204000129 Screw
A210204000339 Bolt
A210434000008 Washer
13446043 Pipe Connectorii
A210199000016 Hinge Bolt
169900000257A Fuel Tank Filter Screen
60355380 TC Plastic Three-clip Oil Tank Cap (with Lock)
Power system 6-9
B230101000457 O-ring
60029642 Liquid Level Sensor
13943522 Bottom Cap Assembly
10210082 Screw Plug
10210081 Rubber Plate
10210078 Pressure Plate
B230101000934 O-ring
24000633 Washer
24000511 Spring Washer
A210111000343 Bolt
24000632 Washer
A210204000129 Screw
A210204000339 Bolt
A210434000008 Washer
13446043 Pipe Connectorii
A210199000016 Hinge Bolt
169900000257A Fuel Tank Filter Screen
60355380 TC Plastic Three-clip Oil Tank Cap (with Lock)
Power system 6-9
