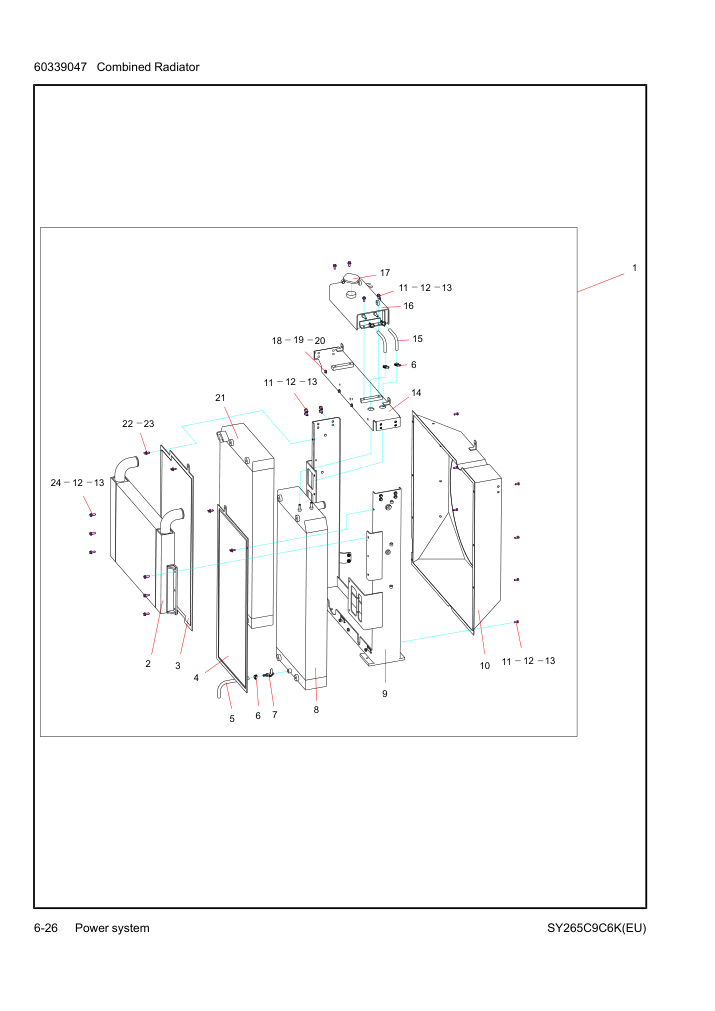

SY265C9C6K(EU) Hydraulic Excavator 60339047 Combined Radiator
Model: SY265C9C6K(EU) Hydraulic Excavator
Part Number: 60339047
Contact: salesany@yeah.net
60339065 Radiator
60339066 Left Dust Net
60339067 Right Dust Net
11273607 Hose
A229900001347 Throat Clamp
60344223 1
60306652 Radiator
60339068 framework sub-assembly
60339005 Guide Uide Cover Sub-assembly
A210111000012 Bolt
24000637 Washer
24000512 26
60339069 cover plate subassembly
13700609 Exhaust hose for radiator
60306655 Expansion Water Tank
60125365 Water Tank Lid
A210111000101 Bolt
24000639 Washer
24000513 Spring Shim
60306653 Radiator
60344222 Bolt
60060565 Washer
A210111000197 Bolt
Power system 6-25
60339066 Left Dust Net
60339067 Right Dust Net
11273607 Hose
A229900001347 Throat Clamp
60344223 1
60306652 Radiator
60339068 framework sub-assembly
60339005 Guide Uide Cover Sub-assembly
A210111000012 Bolt
24000637 Washer
24000512 26
60339069 cover plate subassembly
13700609 Exhaust hose for radiator
60306655 Expansion Water Tank
60125365 Water Tank Lid
A210111000101 Bolt
24000639 Washer
24000513 Spring Shim
60306653 Radiator
60344222 Bolt
60060565 Washer
A210111000197 Bolt
Power system 6-25
