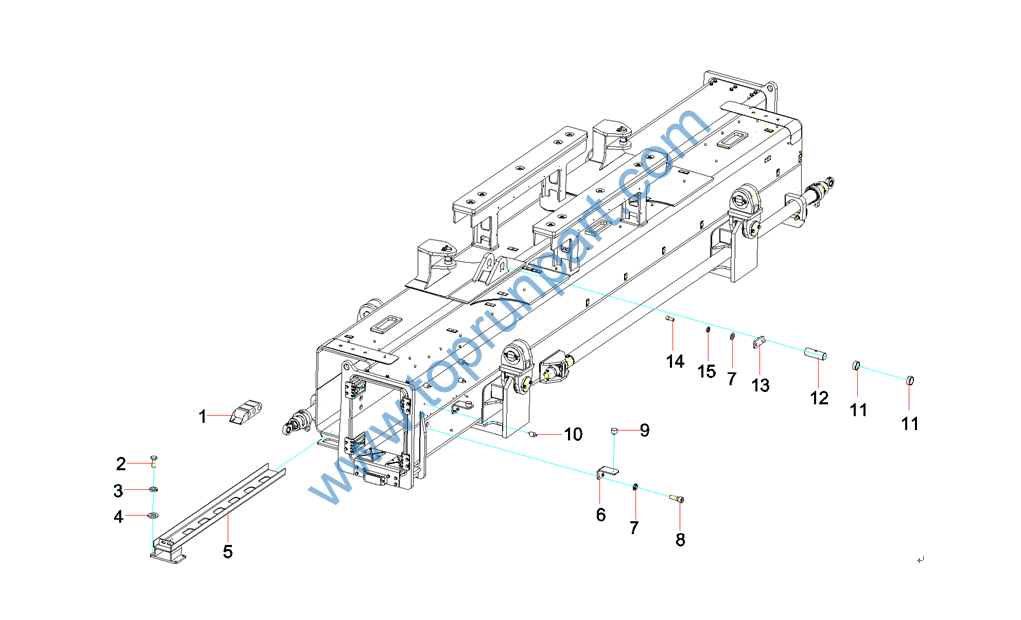

1 60262866 Chain, drag, telescopic
2 A210111000038 Bolt
3 A210401000002 Washer
4 A210405000001 Washer
5 13024639 Dee
6 13595104 backup SDJW450.1.2-4
7 A210405000007 Washer
8 A210204000162 Screw
9 12196286 Buffer threaded stud
10 12187870 Stud, bamper
11 13451938 Ring, retaining
12 13591493 Pin, cylinder
13 11478611 Lock plate
14 A210204000147 Screw
15 A210401000017 Washer

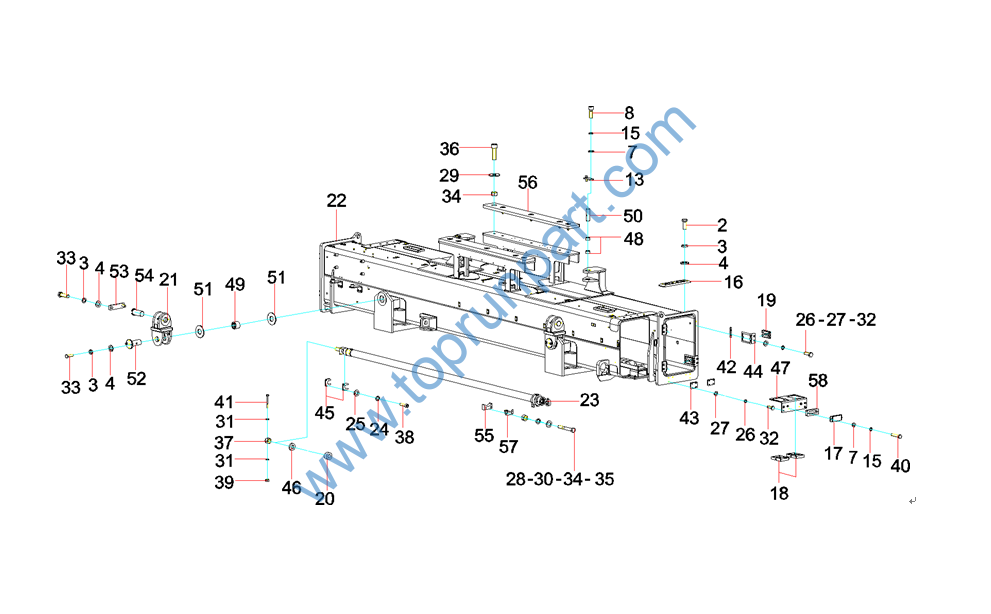

2 A210111000038 Bolt
3 A210401000002 Washer
4 A210405000001 Washer
7 A210405000007 Washer
8 A210204000162 Screw
13 11478611 Lock plate
15 A210401000017 Washer
16 12978874 Set, sliding block, upper
17 10030816 Component, buffer pad
18 13166596 Block, valve, sideshift
19 13166595 Block, valve, side
20 13563084 Pad, buffer
21 13591272 Chain Base A SDJW450.1.2.2
22 13735757 Center beam SDJW450A.1.2.1
23 10207101 telescopic oil cylinder
24 A210401000016 Washer
25 A210405000006 Washer
26 A210401000001 Washer
27 A210405000011 Washer
28 A210401000004 Washer
29 A210404000008 Washer
30 A210405000003 Washer
31 60023507 Washer, lock
32 A210111000024 Bolt
33 A210111000204 Bolt
34 A210319000012 Nut
35 A210110000035 Bolt M16×120GB5782-00
36 A210204000183 Screw
37 A210356000006 Nut
38 A210204000132 Screw
39 A210319000004 Nut
40 21005351 Bolt
41 A210110000340 Bolt
42 13024646 Plate, backup
43 13024645 Plate, backup
44 13158396 Plate, slide block
45 13563089 Gasket
46 13563088 Plate, pressure
47 13448796 Plate, slide block
48 13448797 Ring, retaining
49 13571641 Sleeve
50 13571721 Pin
51 13571722 Washer
52 13591505 PIN SDJW450.1.2-1
53 13591517 Plate, pressure
54 13591519 Pin
55 13735758 rubber pad SDJW450A.1.2-1
56 13739582 palte SDJW450A.1.2-10
57 13735759 supporting plate SDJW450A.1.2-2
58 13735761 bottom board SDJW450A.1.2-3

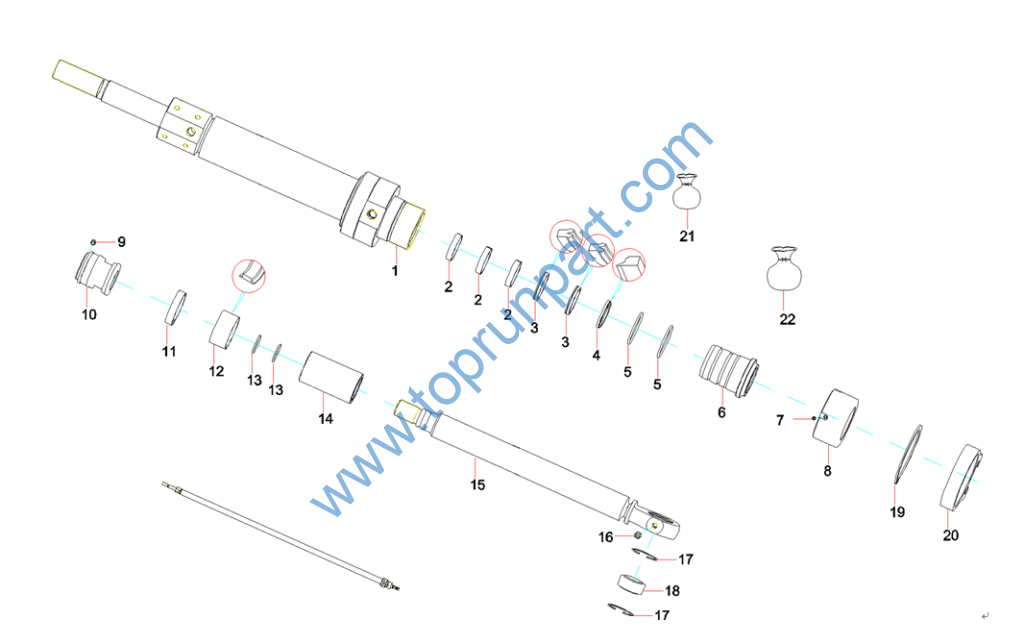

1 10207100 Cylinder assem
2 A880803040036 Guide ring
3 B230101000219 BS-type Seal Ring-45×55×7.3 PARKER
4 B230101000065 Ring, dustproof
5 A210609000162 O-ring
6 12002149 Sleeve, guide
7 A880801010065 Screw
8 12720571 Screw pressure cover
9 A210208000001 Screw
10 10206486 Piston
11 A880803040047 Ring, guide, UP
12 A880806030022 Seal, MD
13 A210608000122 O-Ring-30×2.65GB3452.1
14 10206485 spacer sleeve
15 10207098 Piston Rod Component
16 A210804000002 Fitting, grease
17 A210416000039 Ring, retainer
18 A221500000035 Bearing, Joint
19 A210414000012 Retainer ring
20 10207092 Oil Cylinder Seat
21 10209797 DJ094A Package for sealing parts
22 14179071 Sealing kit
1 B230101000065 Ring, dustproof
2 A880806030023 Seal
3 A880803040036 Guide ring
4 A210609000162 O-ring
5 A210608000122 O-Ring-30×2.65GB3452.1
6 A880806030022 Seal, MD
7 A880803040047 Ring, guide, UP

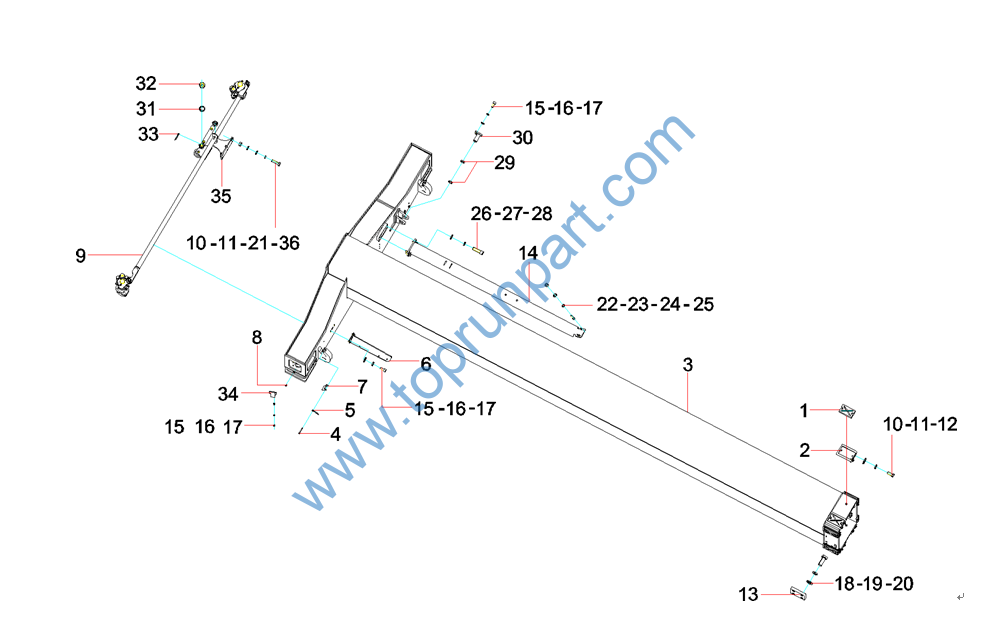

23 A210319000003 Nut
24 A210405000006 Washer
25 A210401000016 Washer
26 A210204000338 Screw
27 A210405000001 Washer
28 A210401000002 Washer
29 13647330 Ring, retaining
30 13146174 Components, pin, telescopic cylinder
31 12612646 retainer ring
32 A210319000012 Nut
33 A210501000025 Pin, Cotter
34 12608220 sensor support
35 13559331 Components, seat, twistlock cylinder
36 A210307000017 Nut

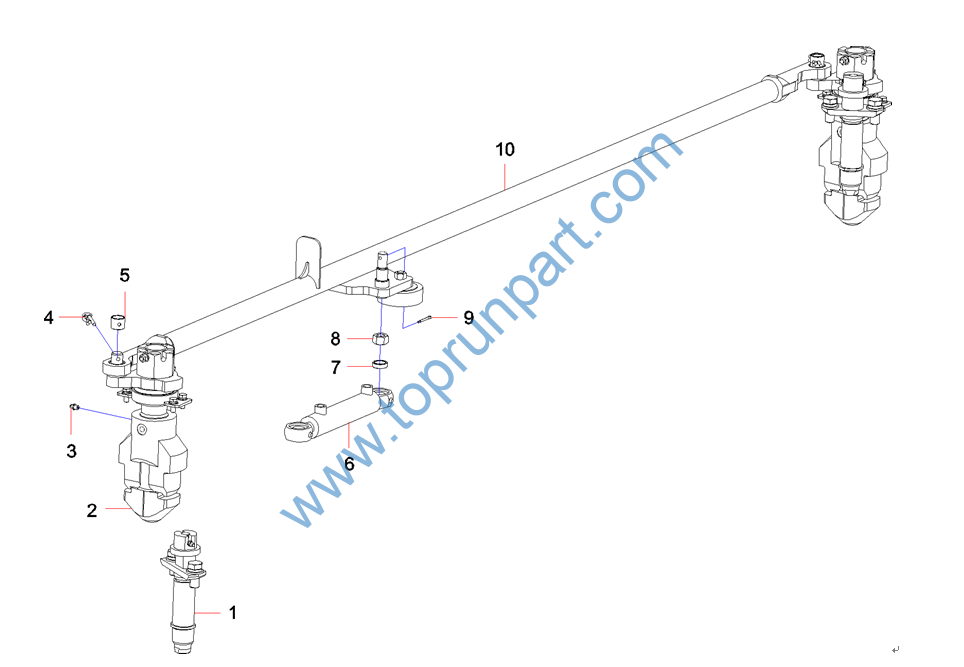

1 13394788 Device, mandrel
2 13559292 Device, twistlock
3 A210804000001 Fitting, grease
4 13480956 Pin, β
5 13658848 Ring, retaining
6 12632237 Turning Lock Cylinder
7 12612646 retainer ring
8 A210319000012 Nut
9 A210501000025 Pin, Cotter
10 13559315 Assembly, handspike

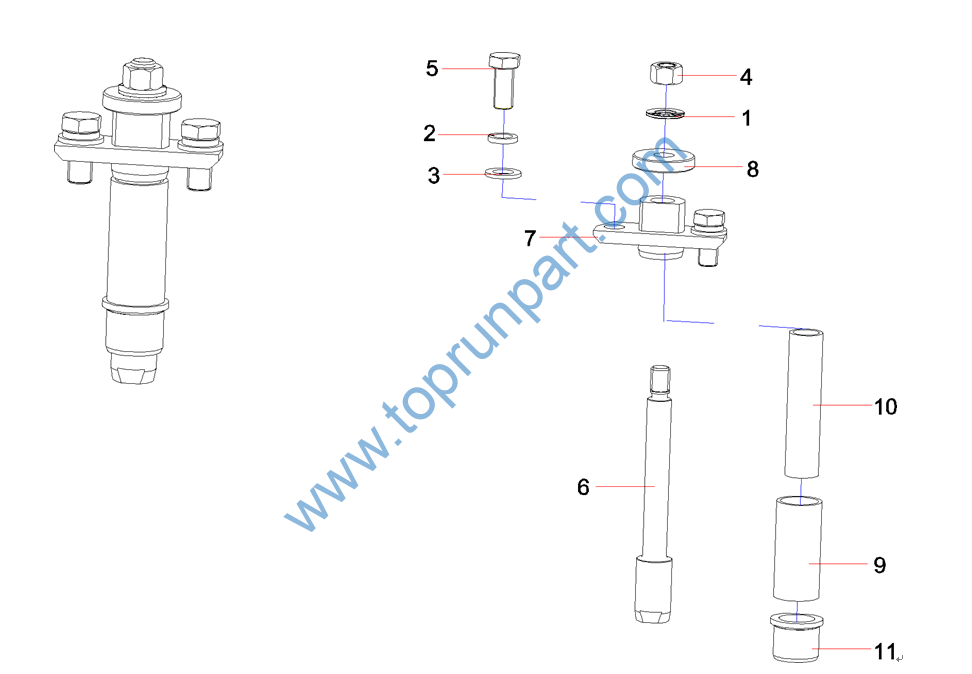

1 60013684 Washer
2 A210401000004 Washer
3 A210405000003 Washer
4 13880937 Nut
5 A210111000100 Bolt
6 13858703 Mandrel
7 13660100 Seat, mandrel
8 13858711 Lock, space
9 13141300 Bushing, steel
10 10262659 Spring
11 11775629 Lower bush

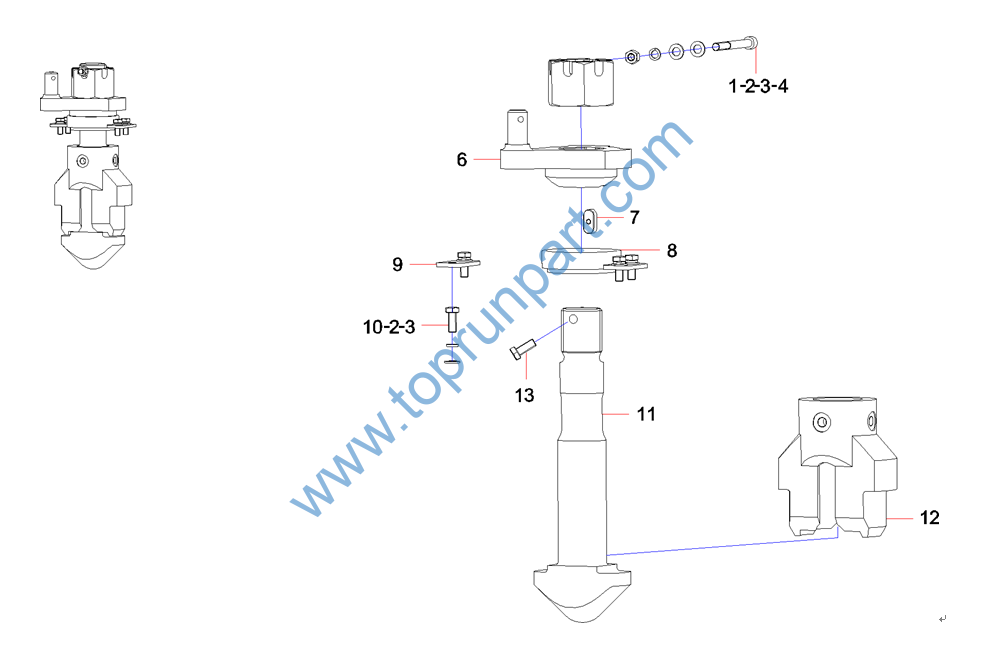

1 A210204000179 Screw
2 A210401000017 Washer
3 A210405000007 Washer
4 A210319000004 Nut
6 13582641 Turntable
7 13636104 Key
8 13866909 Bearing, ball
9 10042829 plate
10 A210204000147 Screw
11 13559144 Pin, lock
12 13141211 Sleeve, protective
13 B210399000003 Plug, threaded
