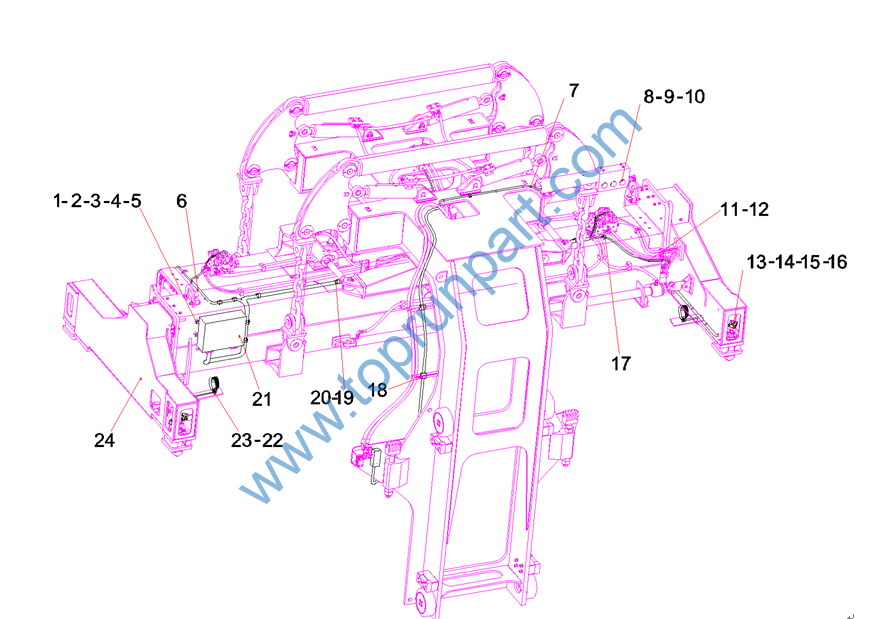

1 13739244 unit assembly SDJW450A.3.1
2 12187870 Stud, bamper
3 A210405000007 Washer
4 A210307000012 Nut
5 A210401000017 Washer
6 13738335 Spreader harness SDJW450A.3.2
7 13275826 Clamp, fastening
8 60024057 Lamp, indicator, LED, green
9 60024055 Lamp, indicator, LED, red
10 60024056 Lamp, indicator, LED, yellow
11 60028239 Body, pipe clamp
12 60167157 Fuse
13 13499521 Switch, proximity
14 60165339 Body, pipe clamp
15 A210204000139 Screw
16 60111064 Nut M6
17 60207958 Plate, fixed
18 60014675 Tube clamp body
19 13275836 Clamp, fastening
20 13275833 Clamp, fastening
21 13739255 Wiring diagram SDJW450A.3-2
22 12895513 Working lamp

23 12255758 Buffer threaded stud
24 13739254 Electrical Schematic Diagram SDJW450A.3-

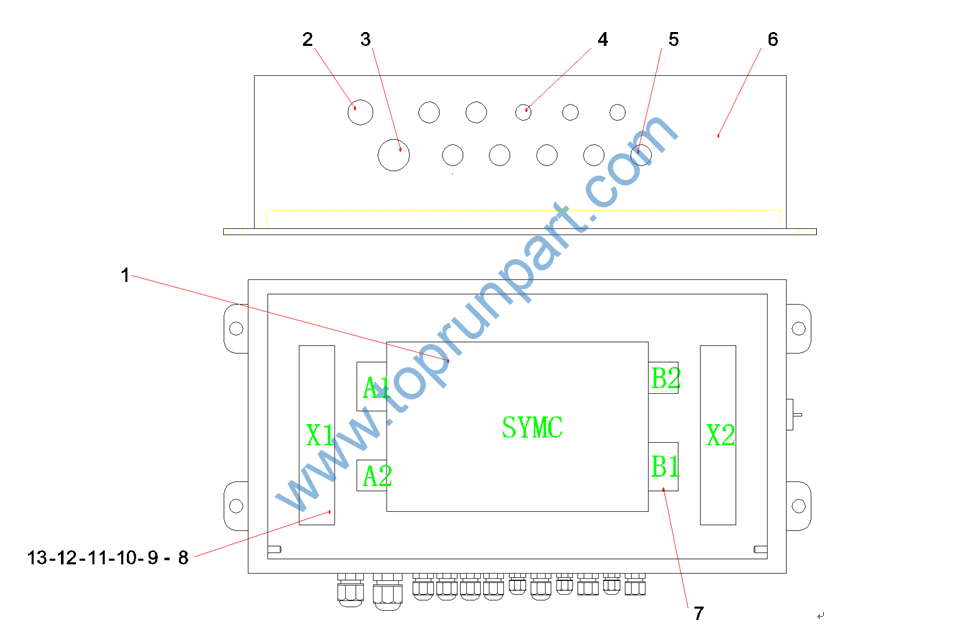

1 A810201206127 Assembly, movement controller, SANY
2 60004572 Strain Relief, Cable, Waterproof
3 A249900000530 Head, fixing, cable
4 A249900000529 Head, fixing, cable
5 60004571 Strain Relief, Cable, Waterproof
6 60002280 Box, control
7 A829900003236 SYMC(Pump)Terminalcluster
8 A242300000233 Card LED 5Q/SY1149 red
9 A242300000026 Electric Resistance 2K 0.5W
10 A242300000406 Electric Resistance
11 B242000000017 Connecting terminal
12 A242000000390 Terminal
13 A241600000002 Rail

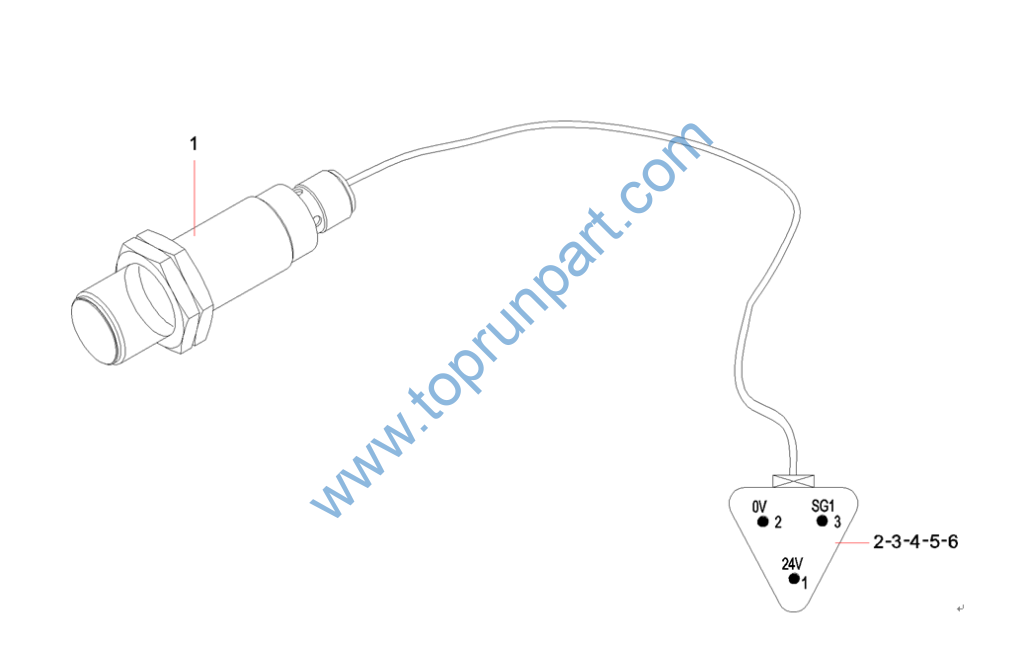

1 60259837 Switch, proximity
2 B241200000602 Plug, 3-position
3 B241200000585 Lock, 3-position Plug
4 B229900001093 Socket
5 60145084 Lock head, plug, 3-wire
6 A249900000970 Joint, cable, nylon

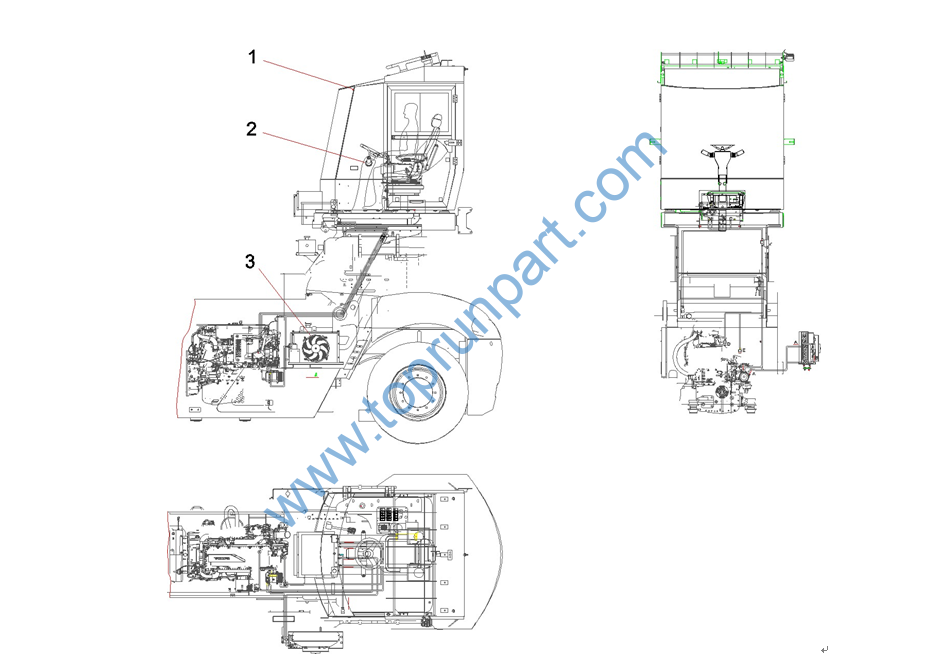

1 12373628 Subassembly, cab, container handler
2 10422630 Controlling system assembly
3 13739569 air condition system SDCY450K3C2.12

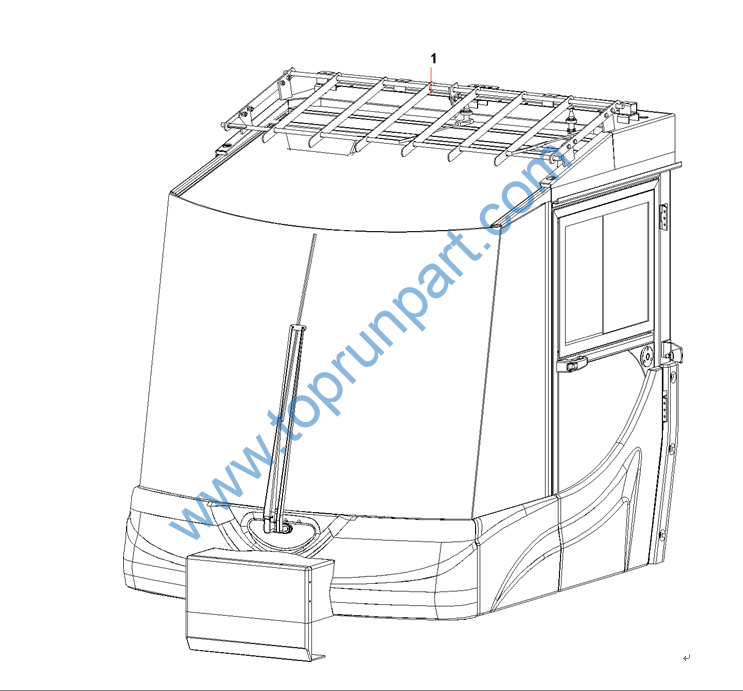

1 12373629 Sub-body, cab, container handler

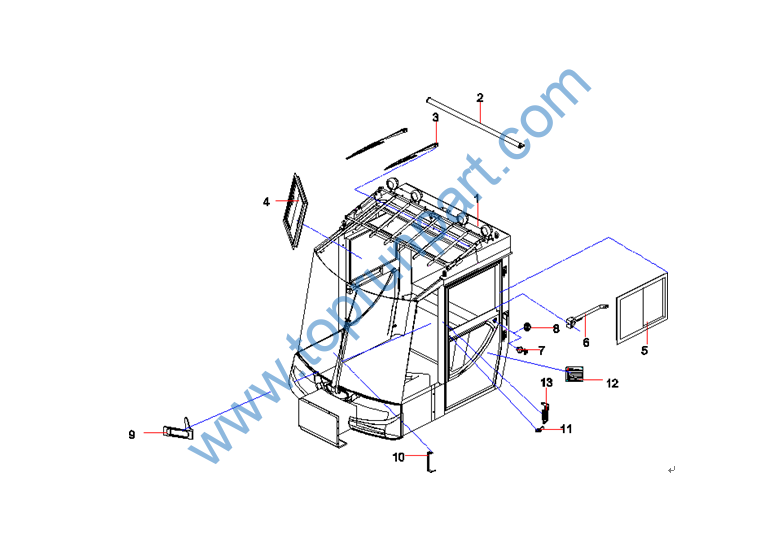

1 12978469 Cab preassemble, stacker
2 13764743 Assembly, inner-decoration
3 13808987 Assembly, electrical
4 11009455 Horizontal sliding window
5 11028976 Horizontal sliding window
6 60028231 Door lock
7 A222200000118 Lock, door
8 10144609 Rubber cap
9 A222200000036 Latch, Cover
10 59001251 Bracket, Fire Extinguisher, 1kg
11 60061748 Handle, door
12 11270627 Nameplate, vehicle body
13 60001291 Luxury safety hammer

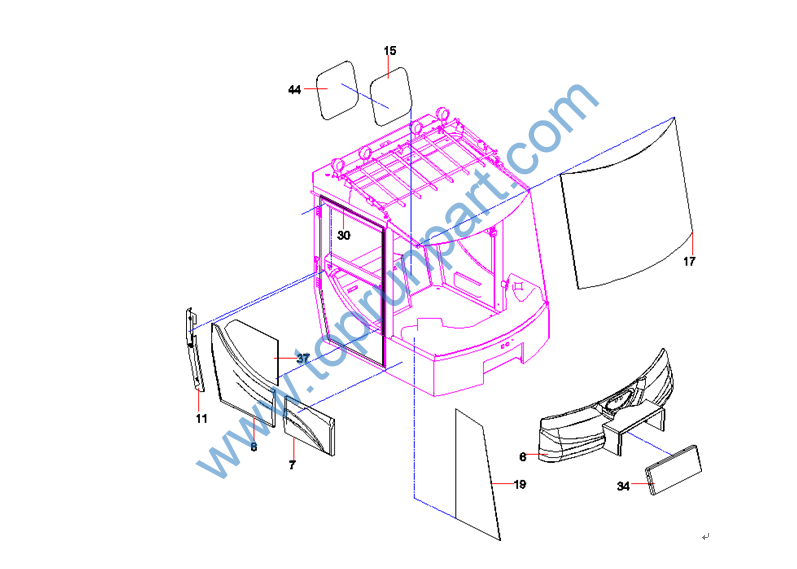

6 13861033 Front, wall, outer, decoration
7 13860578 Decoration, outer, right front panel
8 13860577 Decoration, outer, right door panel
11 13860560 Decoration, outer, right rear pillar
15 10491212 Rear Lower Window Glass
17 11008996 Front Glass
19 11009288 Right Side Glass
30 11124525 Rubber strip, right door
34 13861065 Cover, of, front, wall, outer, decoratio
37 11009381 Left Door Glass
44 A230105000065 Seal Strip, Window

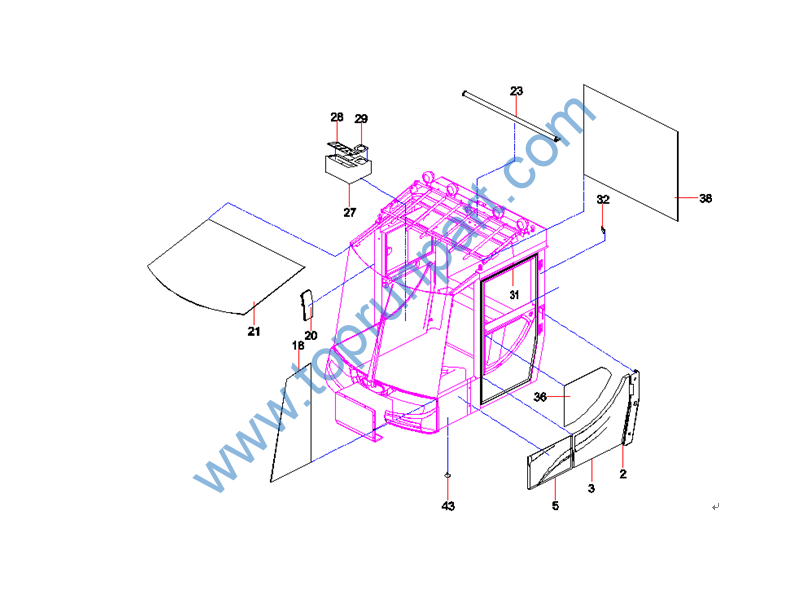

2 13860596 Decoration, outer, left rear pillar
3 13860639 Decoration, outer, left door panel
5 13860580 Decoration, outer, left front panel
18 11009021 Left Side Glass
20 A229900004406 Mirror, Rearview, Inner
21 11008877 Top Glass
23 60299586 Curtain, sunshield
27 11040455 Implement, control, seat
28 11081454 Panel
29 11048665 Cover Plate
31 11124526 Rubber strip, left door
32 A229900005559 Hook, Hat & Coat
36 11009357 Right Door Glass
38 11009341 Rear Window Glass
43 60014124 Pintle, fixed
