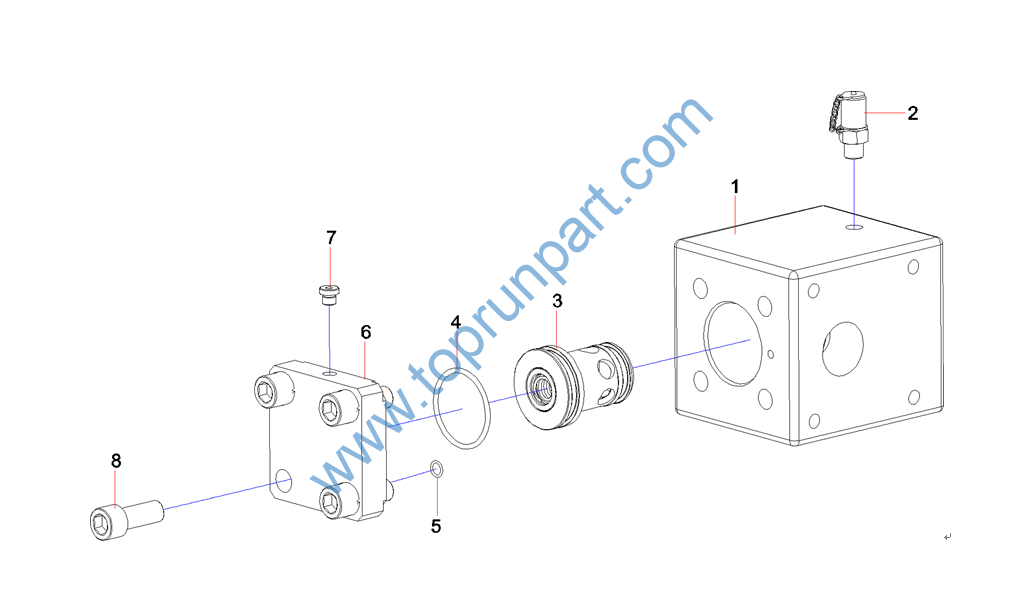

1 A820199003187 Back pressure valve block
2 B210770000084 Pressure tap
3 B220400000033 Cartridge Inserted Valve
4 A210609000199 O-ring
5 151403010099 O-ring 9×2.0
6 10675203 Plate, cover, standard CVCS32
7 B210399000003 Plug, threaded
8 A210204000165 Screw

1 60222334 Package, repair kit, seal

1 60136573 Bearing, support
2 60136687 Kits, servo spring
3 60136509 Kit, keep the fixed clearance
4 60136640 Kit, piston cylinder
5 60136526 Group, rotating, clockwise
6 60136540 Kits, max. volume
7 60136693 Kits, swash plate
8 60136707 Kits, plunger
9 60136538 Kits, specific
15 60136682 Kits, port plate
16 60136631 Kits, end cover
17 60136587 Kits, transmission shaft
18 60136652 Kit, shell body
19 60136746 Module, torque control
20 60136499 Kits, compensater
23 60136688 Kits, servo piston

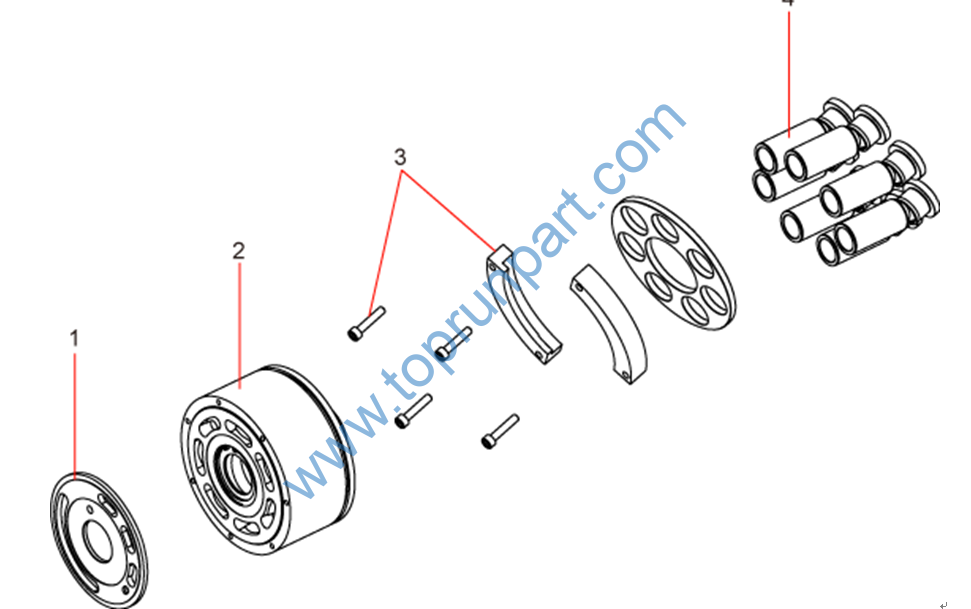

1 60136509 Kit, keep the fixed clearance
2 60136640 Kit, piston cylinder
3 60136707 Kits, plunger
4 60136682 Kits, port plate

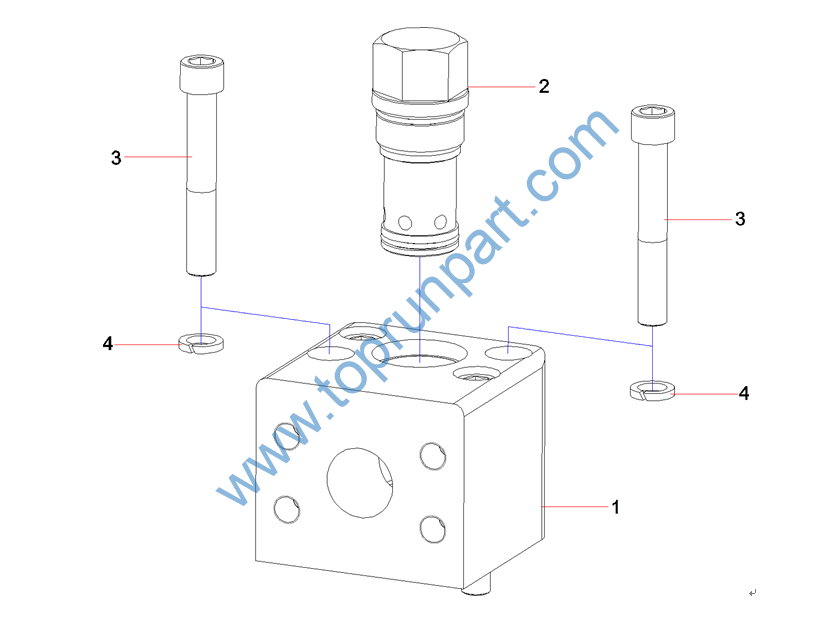

1 A820199003188 One-way valve seat
2 B220401000535 Check Valve
3 A210204000360 Screw
4 A210401000002 Washer

1 60136677 Bolt
2 60136500 Pad, elastic
3 60136630 Cover, end
4 60136729 O-ring, shell body
5 60136497 Seal, back
6 60136523 Elements, seal
7 60136570 Bearing, thrusting
8 60136692 Bolt, pin
9 60136651 Body, shell
10 60136574 Gear, driven
11 60136685 Axle, driving
12 60136578 Key, woodruff
13 60136683 Key, square
14 60136605 Ring, retaining, elastic
15 60136637 Flange, fixed
16 60136737 Seal, shaft
17 60136606 Ring, retaining, elastic
18 60136616 Washer
19 60136668 Nut
20 60136749 Tool, assemblying, shaft sleeve

21 60136526 Group, rotating, clockwise
22 60136499 Kits, compensater

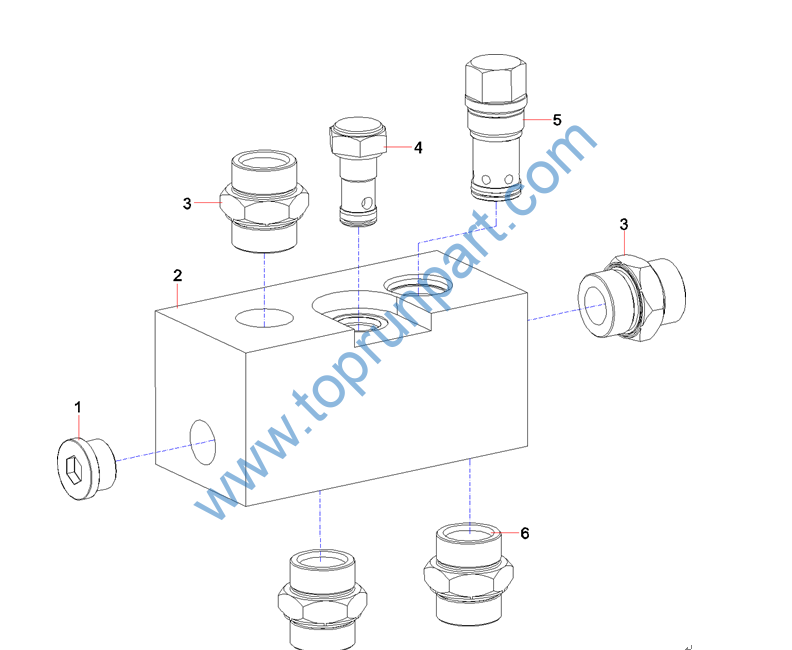

1 B210780000896 Screw plug
2 12691460 Confluent valve block
3 B210780000053 Fitting, adapter
4 B220401000540 Valve, Check
5 B220401000535 Check Valve
6 24001376 Stud Straight Connector

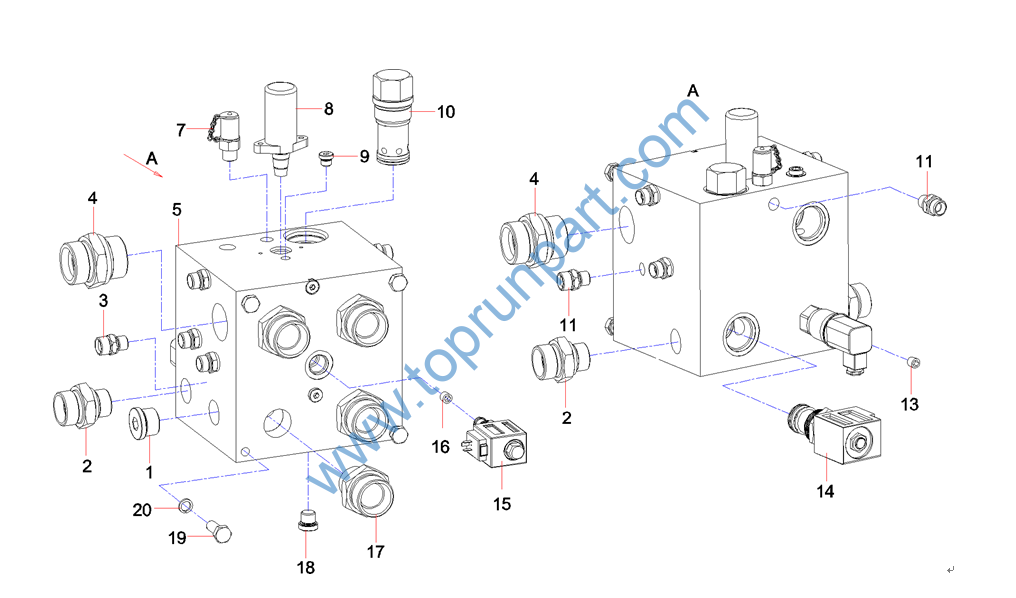

1 B210780001397 Choke plug
2 B210780000847 Connector
3 B210780001347 Stud Straight Connector
4 B210780000053 Fitting, adapter
5 13453486 Block, valve, transition
7 B210770000084 Pressure tap
8 B220401000601 Valve, pressure reducing, proportional
9 24001958 Screw plug
10 B220401000535 Check Valve
11 B210780000733 Fitting, adapter
13 12217584 Φ1.0 damping screw plug
14 60338459 Valve, electromagnetic
15 12187261 Φ3.5 damping screw plug
17 24001376 Stud Straight Connector
18 B210780000164 Screw plug
19 A210111000018 Bolt
20 A210401000001 Washer

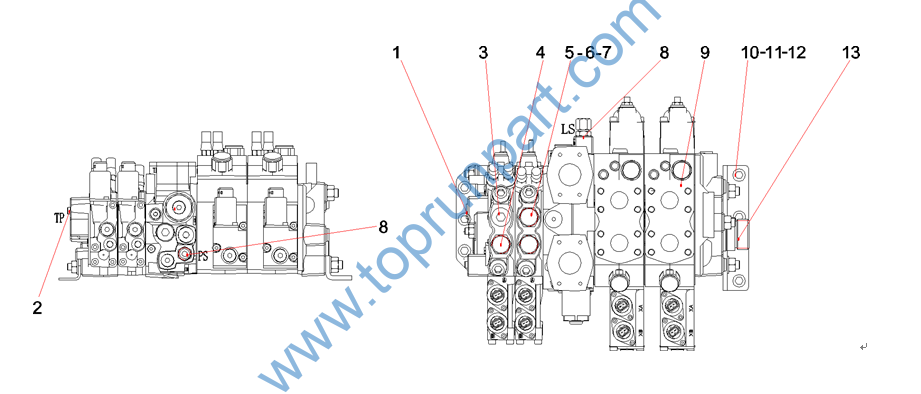

1 B210780001397 Choke plug
2 B210780000042 Stud Straight Connector
3 B210780001384 Screw plug
4 B210780000141 Stud Straight Connector
5 B210780001007 Fitting, tee
6 A820301017979 Steering gear adaptor
7 A210609000298 O-ring
8 B210780000733 Fitting, adapter
9 60117498 Valve, multiway
10 A210204000020 Screw
11 A210401000002 Washer
12 A210405000001 Washer
13 24001376 Stud Straight Connector

16 B220401000601 Valve, pressure reducing, proportional
59 60239968 Valve, pressure reducing, proportional
