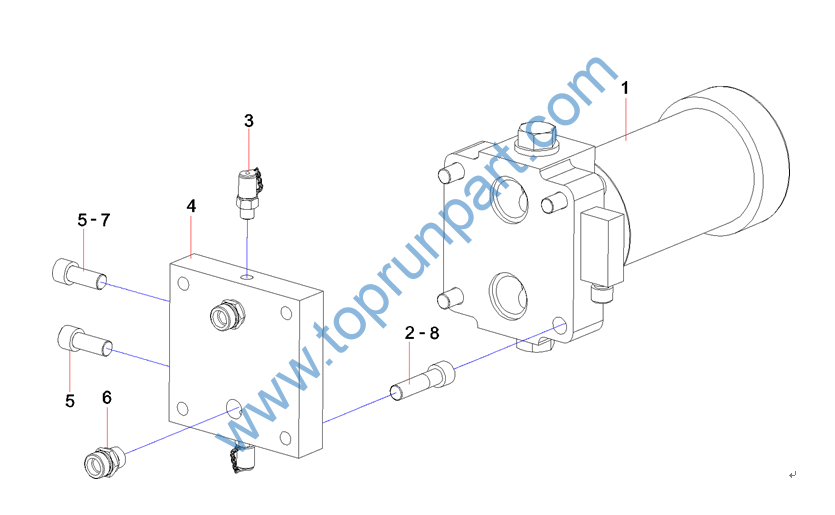

1 60072294 Pressure Oil Filter
2 A210204000041 Screw
3 B210770000084 Pressure tap
4 14348806 valve block SRSC45C30.2.3.6S-1
5 A210111000112 Bolt
6 B210780000131 Fitting, adapter
7 A210405000003 Washer
8 A210401000004 Washer

1 29000967 Core,filter

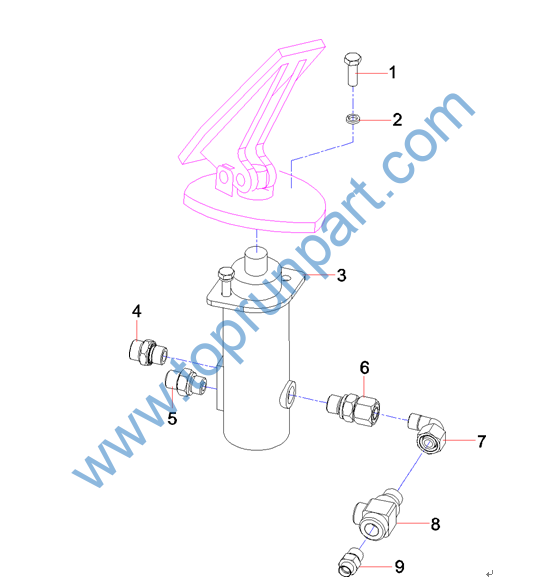

1 A210111000090 Bolt
2 A210401000017 Washer
3 B220401001141 Valve, brake
4 B210780000037 Fitting, adapter
5 B210780001026 Fitting, adapter
6 B210780001026 Fitting, adapter
7 B210780000636 Fitting, Elbow
8 B210780000015 Fitting, tee
9 60222700 Connector

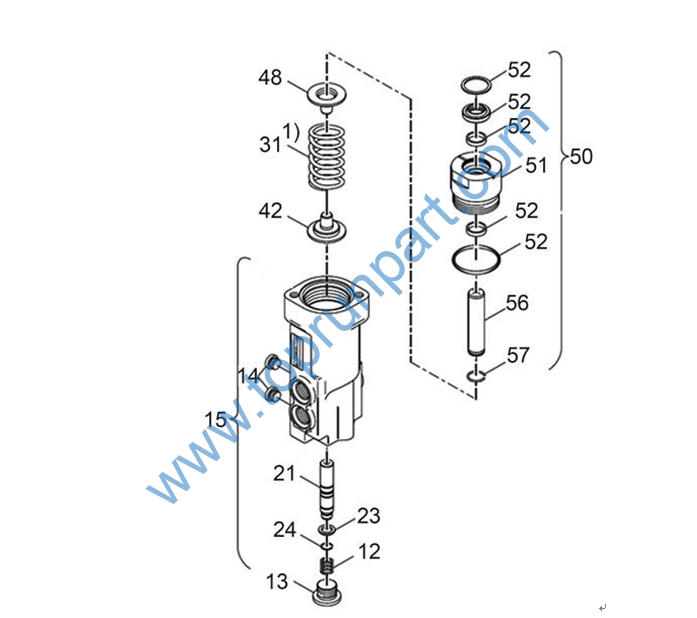

12 60136697 Spring, compressed
13 60136624 Plug
14 60136623 Plug
15 60136649 Body, shell
21 60136551 Core, valve
23 60136515 Ring
24 60136603 Ring, retaining, elastic
31 60136701 Spring, compressed
42 60136601 Seat, spring
48 60136602 Seat, spring
50 60136745 Controller
51 60136639 Sleeve, sliding
52 60136522 Sleeve, seal
56 60136691 Pin
57 60136604 Ring, retaining, elastic

1 B210780000228 Fitting, Adapter
2 B210780001286 Fitting, adapter
3 B220401000020 Valve, prefill
4 B210780000316 Fitting, Adapter
5 10252030 –
6 A210401000001 Washer
7 A210111000018 Bolt
8 A210204000139 Screw
9 A210401000016 Washer
10 B210780000698 Fitting, Adapter

1 60199801 Radiator
2 A210111000012 Bolt
3 A210401000001 Washer
4 A229900008750 Stud Straight Connector
5 B220501000269 Motor, Gear
6 B210780000131 Fitting, adapter
7 B210780000232 Fitting, Adapter
8 B241200000833 Switch, Temperature
9 A210434000011 Washer
10 13993926 Plug

1 60222767 Cover, protective
2 60222768 Plate, cooling
3 60222769 Housing, air cooler
4 60222770 Blade, air cooler
5 60222771 Guard, fan

1 60107554 Cover, Front
2 60107625 Cover, Rear
3 60107578 Gear, Driving
4 60107577 Gear, Driving
5 60123686 Bearing, Ball
6 21008534 Screw
7 60107662 Rod, Backup
8 60107673 O-ring
9 60107645 Seal
10 60107544 Ring, Sealing
11 60107677 Seal
12 60107547 Ring
13 60107546 Ring
14 60107617 Gasket
15 60107658 Pin
16 60107616 Flange
17 60107627 Shaft, Spline
18 60107661 Washer, Thrust
19 60107663 Body, Thrust, Gear Pump

1 B230103003377 Hose, rubber
2 61030570 Hose
3 B230103000484 Hose Assembly
4 B210780000631 Fitting, tee
5 13424467 Assembly, pilot accumulator
6 A222100000128 Pressure Oil Filter
7 A820205001857 Nipple-body
8 A210434000015 Washer
9 A210111000089 Bolt
10 A210401000017 Washer
11 B230103004915 Hose, rubber
12 B230103000477 Hose Assembly 2SN8-DKOL-DKOL90-650 Q/SY
13 60233034 Rubber Hose
14 B210399000003 Plug, threaded
15 11791801 Block valve, feedback
16 A210204000170 Screw
17 B210780000036 Fitting, adapter
18 B230103003984 Hose, rubber
19 B220401000046 Valve, shuttle
20 60156807 Rubber Hose2SN8-DKOL-DKOL90-900(ST)Q/SY1
21 B210780000117 Fitting, Tee
22 B210780001246 Fitting, Adapter

23 B210780000798 Fitting, Tee
24 B210780000090 Screw Plug VKA22A3C
25 B210334000010 Nut
26 21030629 Rubber hose 2SN8-DKOL-DKOL90-1800(ST)
27 B230103003876 Rubber Hose

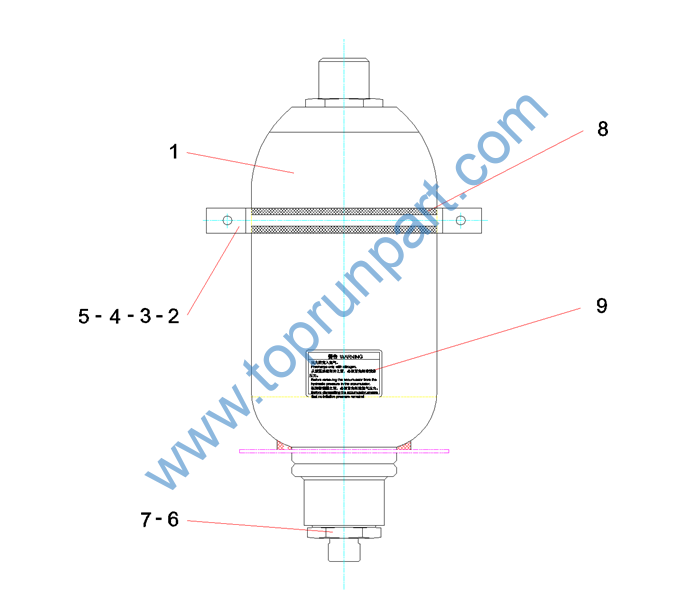

1 B229900000045 Accumulator
2 A820101320714 Plate, mounting
3 A210204000147 Screw
4 A210401000017 Washer
5 A210405000007 Washer
6 B210780001307 Fitting, adapter
7 B210780000683 Fitting, adapter
8 13424466 Sleeve, protective, rubber
9 14088601 Label

1 A210204000197 Screw
2 A210204000258 Screw-M4×16GB70.1
3 60136463 Head, filter
4 60136460 Cover
5 A240500000033 Transmitter, CMS
6 29001672 O-ring
7 A210609000199 O-ring
8 60136468 Valve, bypass
9 A210608000074 O-ring
10 A210609000132 O-ring
11 60136476 Body, shell
12 A222100000148 Filter element
13 A210434000007 Washer
14 A210333000010 Screw plug
15 60136489 Label
16 A210510000010 Rivet
17 A210204000120 Screw
18 60136486 O-ring

1 B210780000179 Fitting, adapter
2 A239900000066 Strap, nylon
3 A810201062404 Assembly, flow amplifier
4 A810201022541 Steel tube
5 A810312019052 Steel tube
28 B230103006925 Hose Assembly 2SN10-DKOL-2000 Q/SY1102
29 B230103003984 Hose, rubber
30 B210780000115 Fitting, Bulkhead Connector
31 B210780000647 Fitting, bulkhead connector

21 B210780000049 Fitting, adapter
22 B210780000028 Fitting, Elbow
23 61014896 Rubber hose
24 A810299000235 Steel pipe
25 A810299000236 Pipe, steel
26 B230103004781 Hose, rubber
27 B230103005332 Hose, rubber
32 60014676 Tube clamp body
33 A210110000416 Bolt

6 A210204000181 Bolt
7 A210405000011 Washer
8 60167505 Gear, steering, dynamic
9 B210780000733 Fitting, adapter
10 B230103000322 Hose, rubber
11 B210780000636 Fitting, Elbow
12 B210780000015 Fitting, tee
13 B230103001366 Rubber hose
14 A210111000197 Bolt
15 B230103006320 Rubber hose 2SN10-DKOL-1850 (with plasti
16 B210780000016 Fitting, tee
17 21021152 Rubber Hose
18 B230103007225 Hose, rubber
19 B230103000608 Rubber Hose
20 B230103000956 Hose Assembly

1 60167504 Amplifier, flow, dynamic
2 B210780000179 Fitting, adapter
3 B210780000421 Stud Straight Connector
4 B210780000626 Stud Straight Connector
5 B210780000016 Fitting, tee
6 B210780000024 Fitting, elbow
7 B210780000847 Connector
8 24001378 Pipe connector
9 B210780000733 Fitting, adapter
10 B220401000479 Check valve RHD12LOMDCF
11 B210780000829 Swivel Straight Connector

1 60136718 O-ring 633B1378
2 60136717 O-ring 633B1364

1 60140760 Ring, seal, dustproof
2 60140725 Ball, steel
3 60140749 Bushing, threaded
4 60140761 Seal, shaft
5 60140729 Bearing
6 60140720 Ring
7 60140730 Bolt
8 60140736 Spring
9 60140755 Shaft, universal
10 60224581 Washer 150-0415
11 60140759 O-ring 633B1202
12 60140753 Disc, distributor
13 60140732 Device, transmission, gear
14 60140758 O-ring 633B1173
15 60140745 Cover, end
16 60140744 Washer 684×2481
17 60224582 Screw, special-made
18 60224583 Screw 681×1582
19 60140751 Nameplate
20 60224584 Valve, pressure reducing
21 60224585 Spring, pressure reducing valve
22 60140717 Seal, lip
