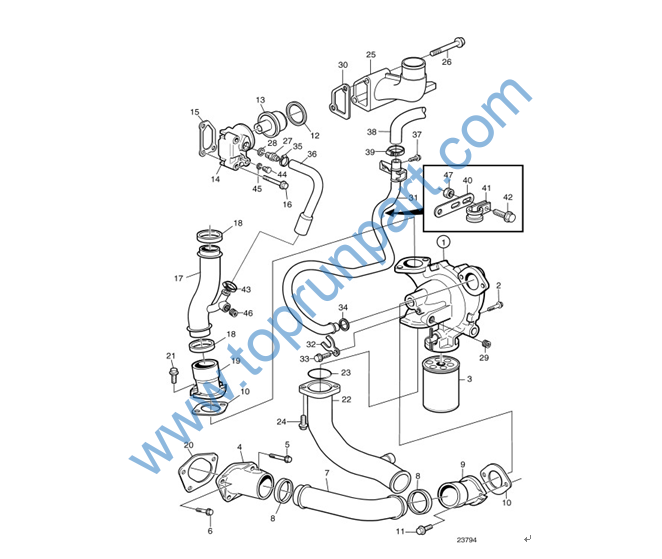

1 60130252 Waterpump
2 B229900002073 Screw
3 B222100000358 Element,filter,water
4 60131570 Pipeconnection
5 60094285 Bolt, flange
6 60131063 Flangescrew
7 60129968 Coolantpipe
8 60086206 Seal Ring,Water pipe
9 60094309 Joint，tube
10 60086190 Interface pad,water pipe
11 B229900005655 Bolt，fan
12 60085955 Ring,seal
13 60129886 Thermostat
14 60132857 Connector
15 60130779 Gasket
16 60092462 Bolt, flange
17 60129980 Coolantpipe
18 60086206 Seal Ring,Water pipe
19 60094309 Joint，tube
20 60130780 Gasket
21 B229900005655 Bolt，fan
22 60129977 Coolantpipe

23 B230101001208 Seal,O-ring
24 B229900005655 Bolt，fan
25 60129974 Coolantpipe
26 60094396 Bolt
27 60092530 Joint
28 60109418 Gasket
29 60131002 Plug
30 60086192 Spacer,seat,water pipe
31 60129880 Fillerpipe
32 60086174 Lock,Pipe,water,small
33 60094286 Bolt, flange
34 60086207 Ring,seal,water pipe
35 60131944 Hoseclamp
36 60132490 Hose
37 60094285 Bolt, flange
38 60132501 Hose
39 60094351 Lathedog
40 60132232 Bracket
41 60139366 Clamp
42 60094286 Bolt, flange
43 60094351 Lathedog
44 60092408 Plug

45 60085707 Washer
46 60130988 Plug
47 B229900002075 Screw

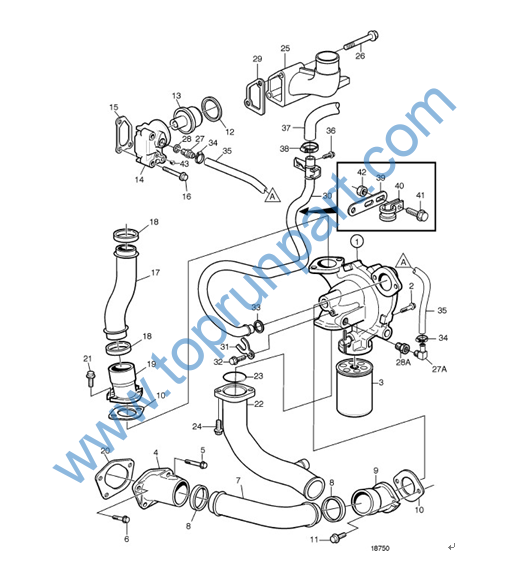

1 60130253 Waterpump
2 B229900002073 Screw
3 B222100000358 Element,filter,water
4 60131570 Pipeconnection
5 60094285 Bolt, flange
6 60131063 Flangescrew
7 60094140 Pipe,cooling
8 60086206 Seal Ring,Water pipe
9 60094309 Joint，tube
10 60086190 Interface pad,water pipe
11 B229900005655 Bolt，fan
12 60085955 Ring,seal
13 60129886 Thermostat
14 60132857 Connector
15 60086181 Pad,thermostat
16 60092462 Bolt, flange
17 60094150 Coolant pipe
18 60086206 Seal Ring,Water pipe
19 60094309 Joint，tube
20 60130780 Gasket
21 B229900005655 Bolt，fan
22 60129977 Coolantpipe

23 B230101001208 Seal,O-ring
24 B229900005655 Bolt，fan
25 60129974 Coolantpipe
26 60094396 Bolt
27 60092530 Joint
28 60085707 Washer
29 60086192 Spacer,seat,water pipe
30 60129880 Fillerpipe
31 60086174 Lock,Pipe,water,small
32 60094286 Bolt, flange
33 60086207 Ring,seal,water pipe
34 60131944 Hoseclamp
35 60132528 Rubberhose
36 60094285 Bolt, flange
37 60132501 Hose
38 60094351 Lathedog
39 60132232 Bracket
40 60139366 Clamp
41 60094286 Bolt, flange
42 B229900002075 Screw
43 60092408 Plug
44 60131992 Elbownipple

45 60131465 Nipple

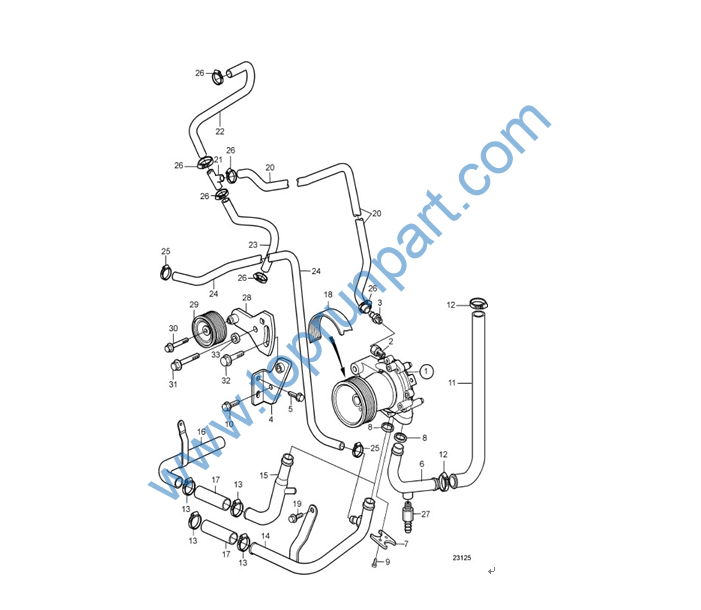

1 B220302000007 Pump,water,auxiliary
2 60131445 Nipple
3 B229900002805 Nipple
4 60132202 Bracket
5 60092478 Bolt,flange
6 60129979 Coolantpipe
7 60130018 Anchorage
8 60132412 Sealingring
9 60094292 Bolt,flange
10 60092468 Bolt,flange
11 60130139 Hose,intercooler
12 60131945 Hoseclamp
13 60094351 Lathedog
14 60129978 Coolantpipe,radiator
15 60129983 Coolantpipe
16 60129982 Coolantpipe
17 60132501 Hose
18 B230106000073 Belt,pump,water
19 60094286 Bolt, flange
20 60094513 Hose
21 60129706 T-pipe
22 60094513 Hose

23 60094513 Hose
24 60132527 Rubberhose
25 60094349 Hose clamp
26 60131942 Hoseclamp
27 60130268 Draincock
28 60131857 Belttensioner
29 60130449 Idlergear
30 60131049 Flangescrew
31 60092486 Bolt,flange
32 60131822 Screw
33 60129950 Spacertube

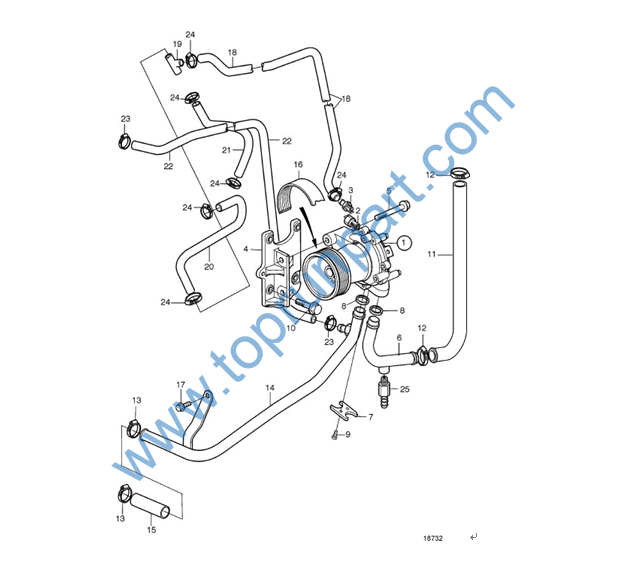

1 B220302000007 Pump,water,auxiliary
2 60131445 Nipple
3 B229900002805 Nipple
4 60132197 Bracket
5 60092468 Bolt,flange
6 60129979 Coolantpipe
7 60130018 Anchorage
8 60132412 Sealingring
9 60094292 Bolt,flange
10 60131082 Flangescrew
11 60130139 Hose,intercooler
12 60131945 Hoseclamp
13 60094351 Lathedog
14 60129987 Pipeset,radiator
15 60132501 Hose
16 60132578 Drivebelt
17 60094286 Bolt, flange
18 60094513 Hose
19 60129706 T-pipe
20 60094513 Hose
21 60094513 Hose
22 60132527 Rubberhose

23 60094349 Hose clamp
24 60131942 Hoseclamp
25 60130268 Draincock
