1 A229900003468 Nozzle, valve
2 A229900003467 Nozzle, valve
3 A229900003469 Nozzle, valve
1 10971941 System, lubrication, frame
2 10971942 System, lubrication, boom
3 10971943 System, lubraication, steering axle

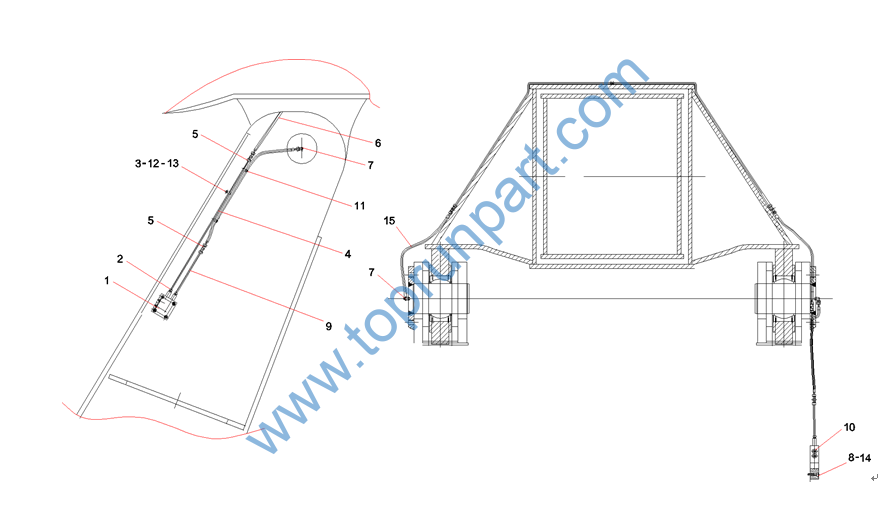

1 11015707 Block, multi-channel, 3
2 A210711000011 Connector, pipe
3 A229900010155 Clamp, pipe
4 10632471 Pipe, oil
5 A210714000005 Connector, pipe
6 A229900010159 Pipe, oil
7 A210734400001 Connector, pipe
8 A210204000153 Screw
9 10632474 Pipe, oil
10 A229900010158 Cup, oil
11 A239900000065 Strap, cable
12 A210210000006 Screw
13 A210405000005 Washer
14 A210401000017 Washer
15 12025358 Hose, straight
1 A229900010155 Clamp, pipe
2 10632560 Pipe, oil
3 A210210000006 Screw
4 A210405000005 Washer
5 A210714000005 Connector, pipe

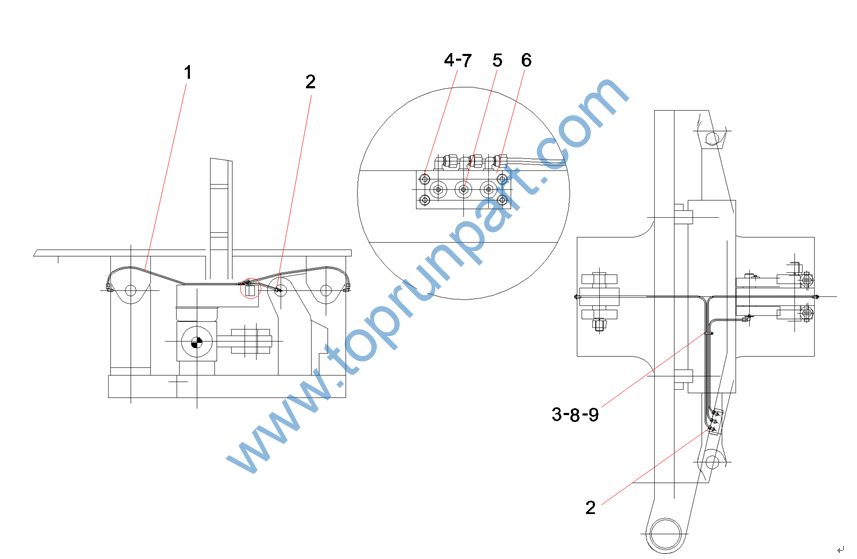

1 10632560 Pipe, oil
2 A210734400001 Connector, pipe
3 A229900010157 Clamp, pipe
4 A210204000153 Screw
5 A229900010158 Cup, oil
6 10697673 Block, multi-channel, 2
7 A210401000017 Washer
8 A210210000006 Screw
9 A210405000005 Washer

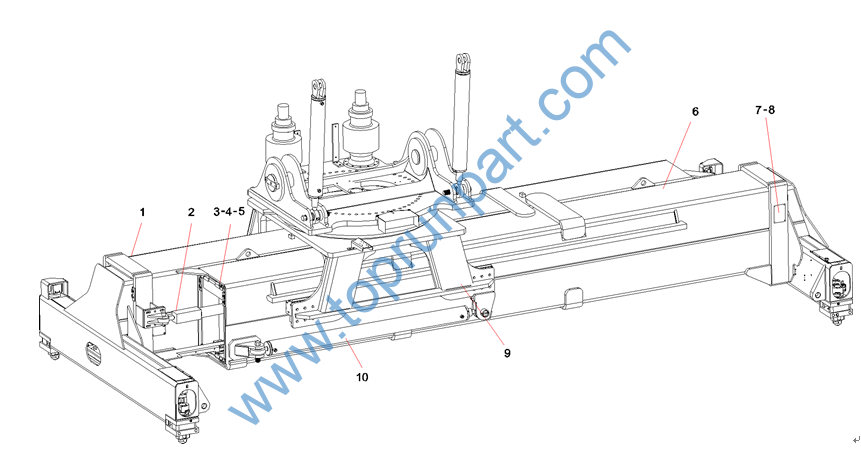

1 A810201050344 System, electrical, spreader
2 A810201060288 System, hydraulic
3 A210111000011 Bolt
4 A210405000011 Washer
5 A820101331392 Support, hydraulic pipe
6 A810421000786 Assembly, cross beam
7 A810508000146 Nameplate
8 A210506000016 Rivet
9 A810421000785 Assembly, turntable
10 10201421 Cyliner, side-shifting

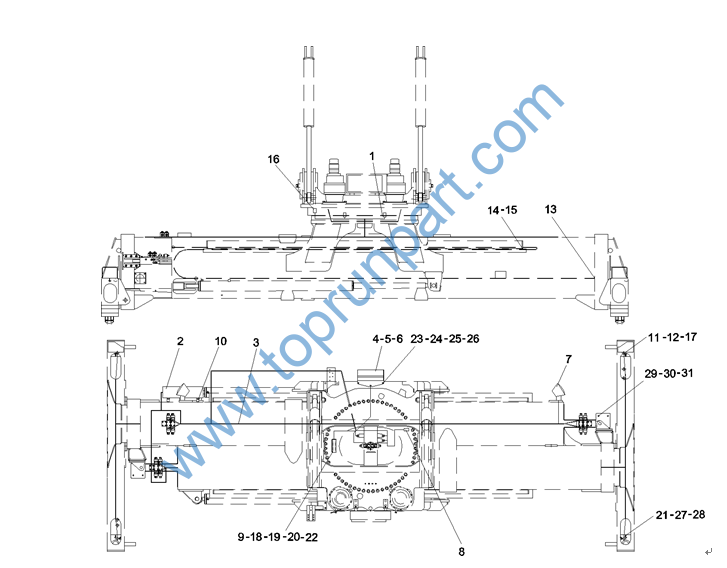

1 B210840000016 Clamp, single pipe
2 A810201052736 Assembly, control box, spreader
3 A810201058505 Harness, mounting, spreader
4 60024057 Lamp, indicator, LED, green
5 60024055 Lamp, indicator, LED, red
6 60024056 Lamp, indicator, LED, yellow
7 B241100000445 Lamp, working, LED
8 A240600000055 Switch, proximity
9 A241200001060 Plate, cover, 24-core plug
10 A810421000802 Stud, damper
11 A210405000007 Washer
12 A210307000012 Nut
13 A249900000970 Joint, cable, nylon
14 A230200000176 Clip, wire
15 A230200000178 Clamp, cord
16 60150757 Switch, proximity
17 A210401000017 Washer
18 A210307000016 Nut
19 A210405000006 Washer
20 A210401000016 Washer
21 A210210000015 Screw
22 A210204000137 Screw
23 A210241000001 Screw
24 A210405000004 Washer
25 A210401000013 Washer
26 A210307000014 Nut
27 A210204000139 Screw
28 A210204000129 Screw
29 A210210000006 Screw
30 A210405000005 Washer
31 A210401000015 Washer

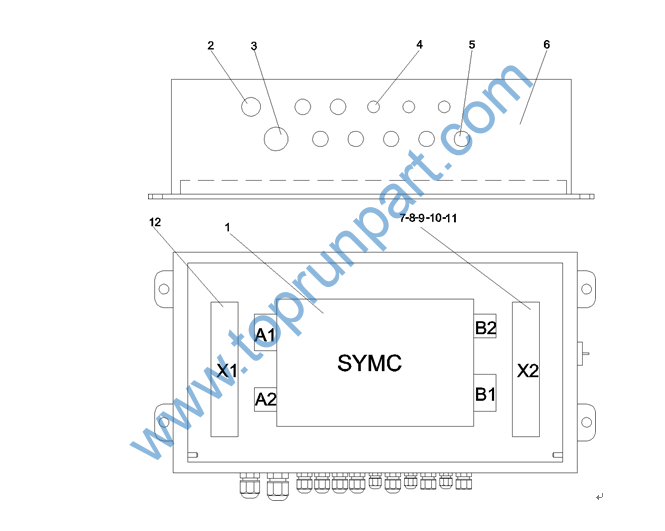

1 A810299000709 Assembly, movement controller, SANY
2 60004572 Head, fixing, cable, waterproof
3 A249900000530 Head, fixed, cable
4 A249900000529 Head, fixed, cable
5 60004571 Head, fixing, cable, waterproof
6 60002280 Box, control
7 A829900003236 Harness, terminal, SYMC
8 A242300000233 Diode, lighting, plug-in
9 A242300000026 Resistance, plug-in
10 A242300000406 Resistance
11 B242000000017 Terminal, wiring
12 A241600000002 Ring, clamping

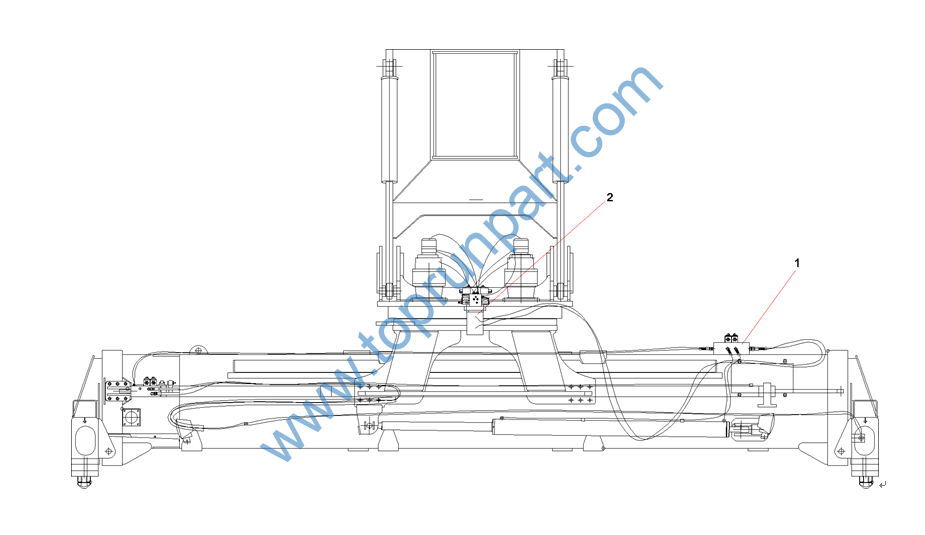

1 A810201060302 System, hydraulic, cross beam
2 A810201060301 System, hydraulic, turntable

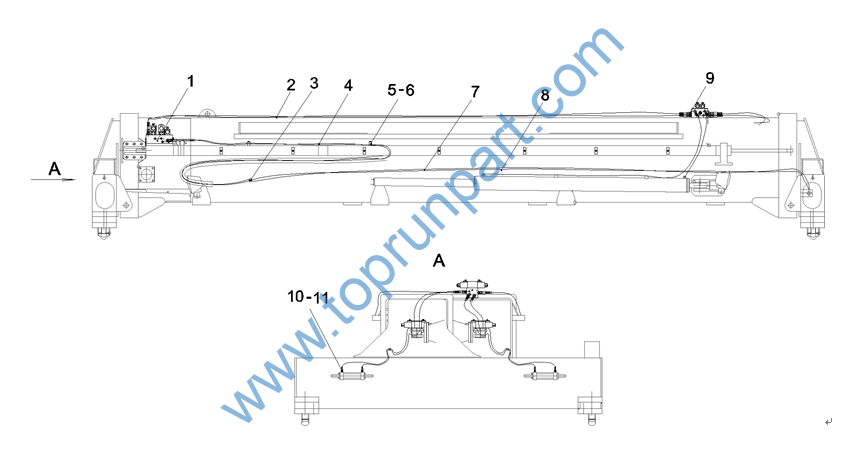

1 A810201062341 Group,valve,extension
2 B230103004752 Hose, rubber
3 B210780001445 Connector, pipe
4 B230103005312 Hose, rubber
5 60028239 Body, pipe clamp
6 A210204000134 Screw
7 B230103005380 Hose, rubber
8 B230103005101 Hose, rubber
9 A810201062342 Group, side-shifting valve
10 B210780000176 Connector, pipe
11 B210780000418 Connector
12 60014674 Body, pipe clamp
13 A210204000170 Screw
14 A210204000184 Screw
15 B210780000042 Connector, pipe
16 B210780000025 Connector, pipe
17 60014675 Body, pipe clamp
18 A210204000137 Screw
19 B230103000345 Hose, rubber
20 B230103000348 Hose, rubber
21 B230103000336 Hose, rubber
22 B230103000356 Hose, rubber
23 B230103000334 Hose, rubber
24 B230103000333 Hose

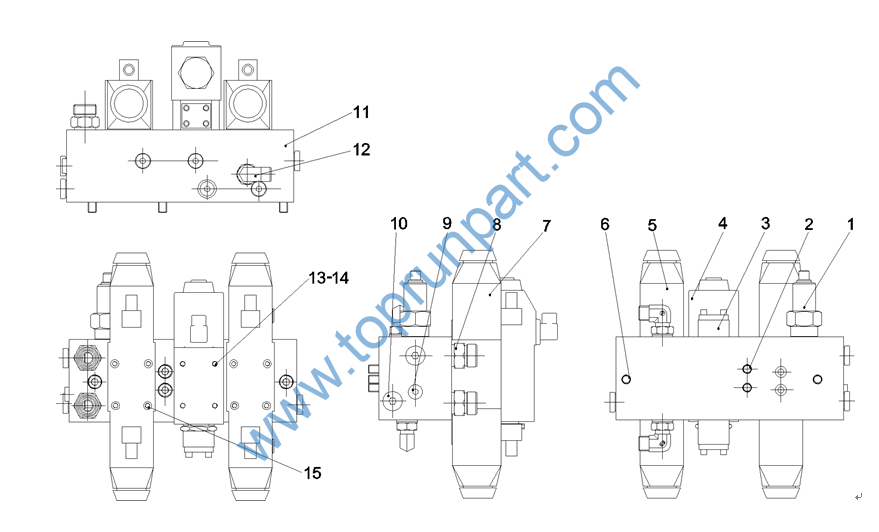

1 B220401000105 Valve, overflow
2 A210609000092 O-ring
3 A220401000153 Valve, throttle, one-way, double
4 B220400000026 Valve, reversal, electromagnetic
5 B220400000323 Valve, reversal, electromagnetic
6 A210204000151 Screw
7 B220402000363 Valve, reversal, electromagnetic
8 B210780000040 Connector, pipe
9 B210399000003 Plug, screw
10 B210780000201 Plug, screw
11 A820302010290 Block,valve,extension
12 B210780001444 Connector, pipe
13 A210204000125 Screw
14 A820601020466 Cover, waterproof
15 A210204000168 Screw
