1 13412100 1 回转装置 Slewing device SY55C9I3R.1
2 13546773 1 行走装置 Travel device SY55C.2C
3 12120044 1 工作装置 Work equipment

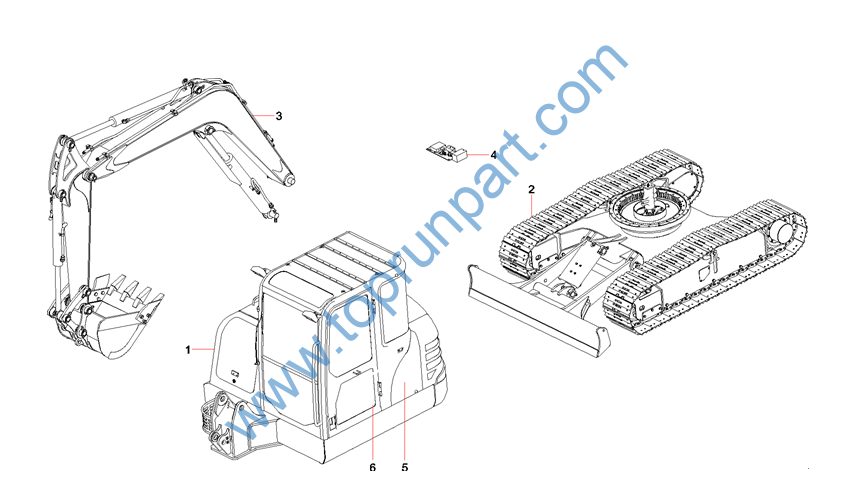

4 11818935 1 挖掘机电气系统装配图 Drawing, assembly, electrical
5 11326577 1 挖掘机涂装 Painting, excavator
6 13408151 1 随机附件 SY55C9 attached accessories

1 A311141609016 25 螺栓M16×90GB5782 10.9级 Bolt
2 10613201 1 护套 Sheath
3 11225695 4 护套 Sheath
4 11225713 1 电瓶压条 Strip, retaining, battery
5 A820606030918 1 护套 Sheath
6 12655338 1 固定架 fixed frameSY55C.1.6.33
7 12655827 1 黄油枪卡箍 grease gun clipSY55C.1.6.34
8 变更或见其他配置 1 回转平台 Revolving Frame SY55C9I3R.1.1A
9 A210804000002 1 黄油嘴 Fitting, Grease
10 A820205000858 2 管接头 Connector
11 B230103000977 1 胶管 Rubber hose
12 13428780 1 先导管路 Pilot Pipeline SY55C9I3R.1.4

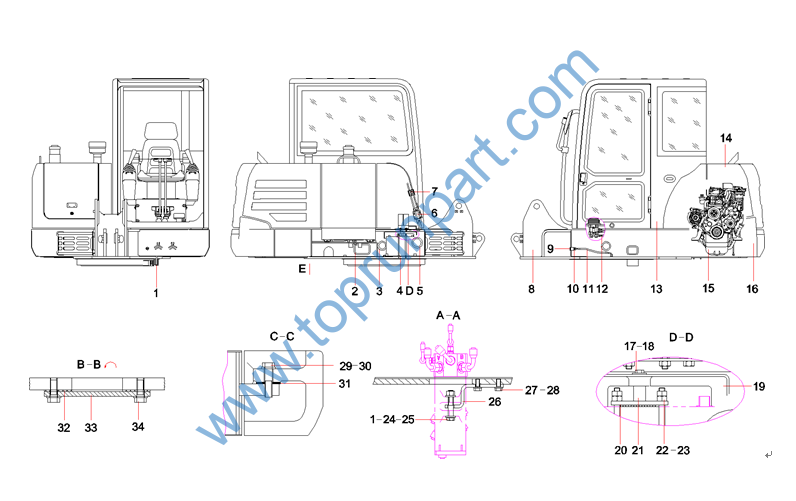

13 12088849 1 驾驶室总成 Cab GP
14 11147622 1 覆盖件总成 Cover GP
15 13398268 1 动力系统 power system SY55C9I3R.1.3A
16 10542509 1 配重总成 Counterweight GP
17 60060565 2 垫圈8GB96.1 达克锈 Washer
18 A210111000092 2 螺栓 Bolt
19 11685533 1 电瓶罩 Cover, battery
20 10569316 2 电瓶压条 Plate, pressure, battery

21 11587179 1 电瓶压板 Plate, pressure, battery
22 A210307000036 8 螺母 Nut
23 A820301015908 4 双头螺柱 Stud
24 A210491000118 2 垫圈 Washer
25 A210307000028 1 螺母 Nut
26 12063689 1 止动板 Plate, retaining
27 A210111000205 2 螺栓M14×30GB5783 10.9级 Bolt M14x30
28 60238781 2 垫圈14GB97.1 达克锈 Washer
29 A210110000239 3 螺栓M24×100GB5782 10.9级 Bolt M24×100GB5782 10.9
30 A210491000122 3 垫圈 Washer
31 A820101327187 15 垫片 Shim
32 A820606030364 1 密封垫 Gasket, seal
33 A820101117871 1 盖 Cover
34 A210111000202 2 螺栓 Bolt

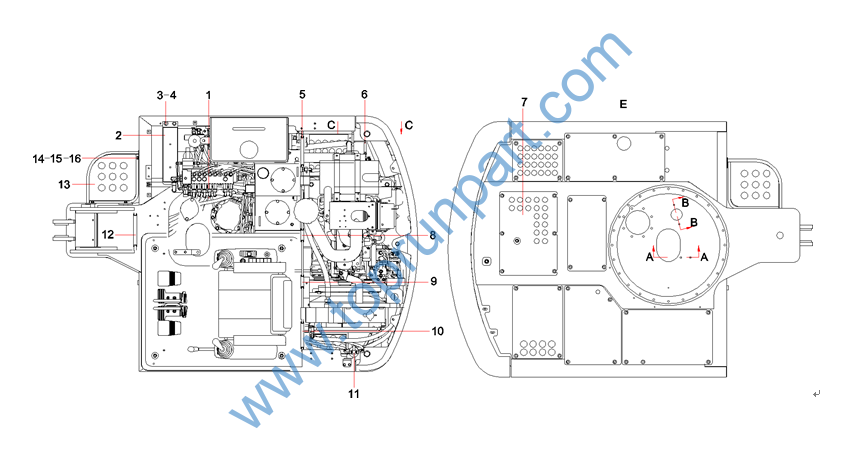

1 13428631 1 液压主管路 Hydraulic main pipeline
2 11959389 1 工具箱 ToolboxSY60C1I2R.1.12A
3 A210111000012 8 螺栓 M10×20GB5783 10.9级 Bolt
4 A210491000120 4 垫圈 Washer Flat M10
5 11225691 1 护套 Sheath
6 11133753 1 护套 Sheath
7 11142074 1 封板总成 Plate AS, sealing
8 11225692 1 套 Sheath
9 11225693 1 护套 Sheath
10 11225694 1 护套 Sheath
11 11178836 1 空调系统 Air conditioning system
12 10613200 1 护套 Sheath
13 10944984 1 黄油桶支架 Bracket, grease bucket
14 A210111000101 4 螺栓M12×25GB5783 10.9级 Bolt M12×25GB5783 10.9
15 24000513 5 垫圈12GB93 达克锈 Washer
16 24000639 11 垫圈12GB97.1 达克锈 Washer

1 B210780000418 22 管接头 Connector
2 B220401000623 1 先导阀4TH6NR(脚踏) Valve, foot
3 A210111000342 18 螺栓M8×16GB5783 10.9级 Bolt M8x16
4 60225750 2 先导阀 Pilot-control Valve

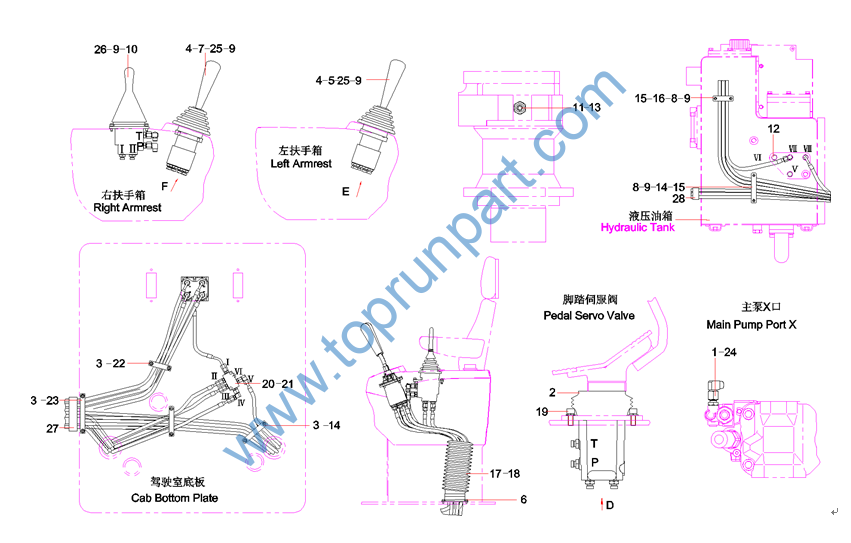

5 10585259 1 左手柄总装 Joystick AS, left
6 A210111000343 2 螺栓M8×20GB5783 10.9级 Bolt
7 10585261 1 右手柄总装 Joystick AS, right
8 变更或见其他配置 4 螺钉 Screw
9 60060564 14 垫圈6GB93 达克锈 Washer
10 变更或见其他配置 1 先导阀 Valve, pilot
11 A820205000844 1 接头 Connector
12 B210780000164 6 螺塞 Plug, screw
13 B230101000047 12 O形圈 O-ring
14 10735444 3 管夹 Clamp, pipe
15 24000632 4 垫圈6GB97.1 达克锈 Washer
16 10735443 1 管夹 Clamp, pipe
17 11035346 1 法兰 Flange
18 11082048 1 波纹管 Bellows
19 A210111000197 4 螺栓 Bolt
20 12053111 1 PT块 Block, PT

21 变更或见其他配置 2 螺钉 Screw
22 10735417 2 夹 Clamp, pipe
23 10735452 1 夹 Clamp, pipe
24 23000531 1 管接头 Connector
25 A210204000131 8 螺钉 Screw M6×20GB70.1
26 变更或见其他配置 2 螺钉 Screw
27 13391349 1 胶管护套 hose protective sleeve
28 13391350 1 胶管护套 hose protective sleeve

1 11147465 1 安装板 Plate, mounting

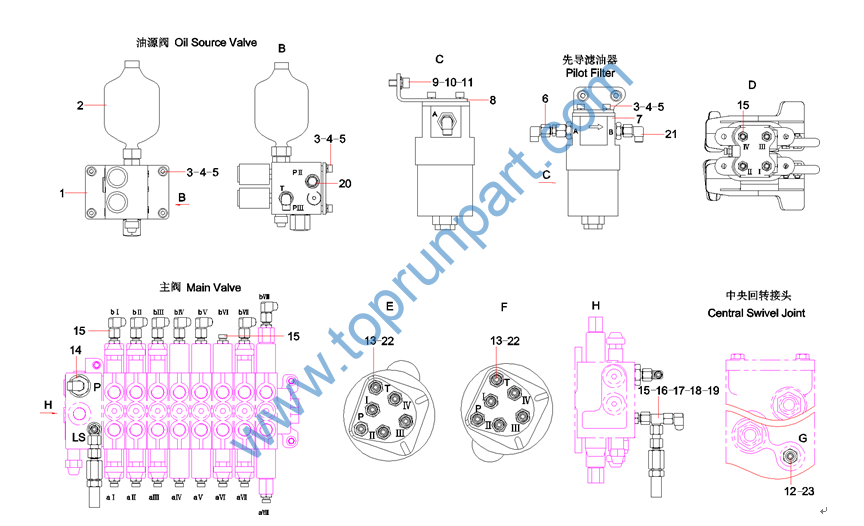

2 变更或见其他配置 1 油源控制阀 Valve, oil source control
3 A210111000342 10 螺栓M8×16GB5783 10.9级 Bolt M8x16
4 24000511 8 垫圈8GB93 达克锈 Washer
5 24000633 18 垫圈8GB97.1 达克锈 Washer
6 B210780000827 1 管接头 Connector
7 B229900000063 1 液压油过滤器 Filter, oil
8 12625442 1 滤油器安装板 Mounting plate of high-pressure oil
9 A210204000196 2 螺钉 Screw
10 24000512 10 垫圈10GB93 达克锈 Washer
11 变更或见其他配置 10 垫圈10GB97.1 达克锈 Washer
12 21002840 1 管接头 Fitting, pipe
13 B230101000047 13 O形圈 O-ring
14 11147241 1 接头 Connector
15 B210780000176 42 管接头 Connector
16 B210780000170 1 管接头 Connector
17 B210780001045 1 管接头 Connector
18 A820205001061 1 负流量传感器接头 Coupler, sensor, negative flow
19 60114799 1 压力传感器 Sensor, pressure
20 60049162 1 压油过滤器 Filter, tube-type

21 B210780000024 2 直角组合接头 Fitting, Elbow
22 21002815 12 管接头 Pipe connector
23 A230101000247 1 O形圈 O-ring 10.9×2.3(JISB2401)

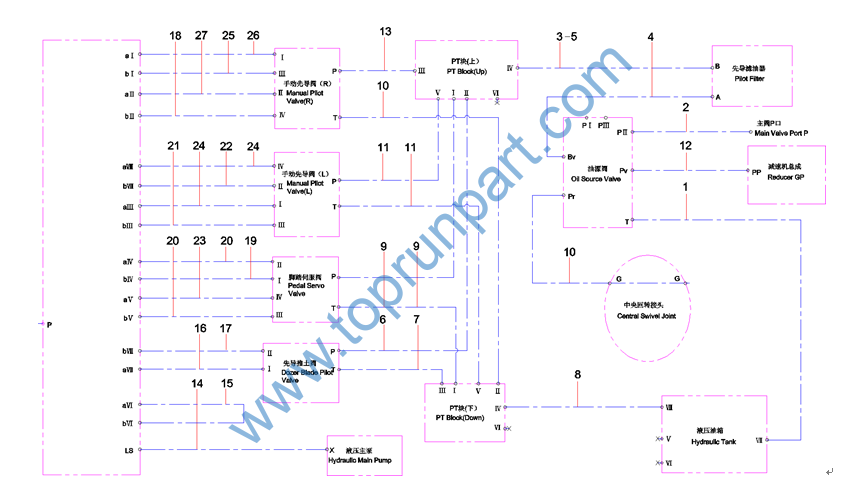

1 B230103000982 1 胶管 Hose
2 B230103004283 1 胶管 Hose
3 60024592 1 胶管 Hose,rubber
4 B230103000977 1 胶管 Rubber hose
5 B210780000847 1 管接头 Connector, pipe
6 21053860 1 胶管 Hose
7 B230103001456 1 胶管 Rubber hose
8 A831213105000 1 胶管 Hose
9 60158614 2 胶管 Hose
10 B230103003277 2 胶管 Rubber hose
11 B230103000984 2 胶管 Rubber hose
12 B230103005488 1 胶管 Rubber hose
13 B230103000983 1 胶管 Hose
14 B230103007227 1 胶管 Rubber Hose
15 A831233055000 1 胶管 Hose
16 B230103002722 1 管 Rubber hose
17 60032648 1 胶管 Hose
18 A831211210000 1 胶管 Hose
19 21025907 1 胶管 Hose
20 B230103002684 2 胶管 Hose

21 23000929 1 胶管 Hose
22 B230103002708 1 胶管 Hose
23 B230103003295 1 胶管 Hose
24 21027341 2 胶管 Hose
25 B230103000671 1 胶管 Rubber hose
26 B230103005490 1 胶管 Hose
27 B230103001434 1 胶管 Hose
