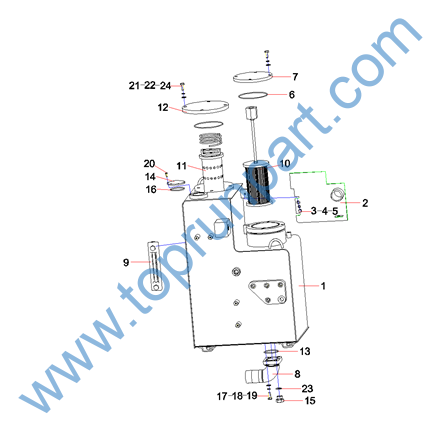

1 12546459 1 液压油箱 Hydraulic Fuel Tank
2 13139288 1 中间隔板 Middle partition plate
3 A210401000017 3 垫圈 Washer
4 A210405000007 3 垫圈 Washer
5 A210111000088 3 螺栓 Bolt
6 B230101000614 2 O形圈 O-ring
7 10541196 1 吸油盖 Cover, oil suction
8 11148655 1 接头 Connector
9 A250100000174 1 液位计 Gauge, sight glass
10 60081613 1 吸油过滤器 Element AS, filter, oil suction
11 60072195 1 回油过滤器 Filter, return oil
12 A810201011303 1 回油盖 Cover, oil return
13 A210609000131 1 O形圈 O-ring
14 12267004 1 法兰 Flange SY55C3K2R.1.2.15-4
15 10514225 1 堵头 Plug
16 B230101000039 1 O形圈 O-ring
17 A210204000337 4 螺钉M12×30GB70.1 10.9级 Screw
18 A210401000002 4 垫圈 Washer
19 A210405000001 4 垫圈 Washer
20 A210204000161 4 螺钉 Screw

21 A210401000001 14 垫圈 Washer
22 A210405000011 14 垫圈 Washer
23 B230101000356 1 O形圈 O-ring
24 A210111000197 8 螺栓 Bolt

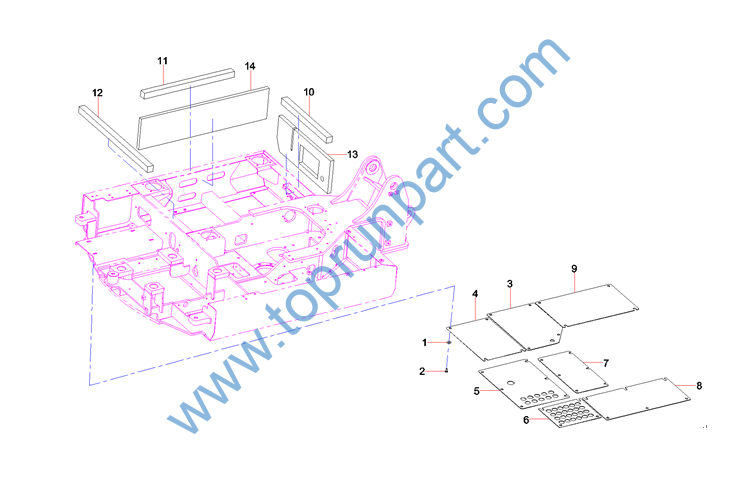

1 60060546 32 垫圈10GB96.1 达克锈 Washer 10GB96.1
2 A210111000197 32 螺栓 Bolt
3 11142073 1 封板 Plate, sealing
4 11142075 1 板 Plate
5 11142069 1 封板 Plate, sealing
6 11142071 1 封板 Plate, sealing
7 11142068 1 封板 Plate, sealing
8 11142070 1 封板 Plate, sealing
9 11142072 1 封板 Plate, sealing
10 10541179 1 前上海绵 Foam
11 10541180 1 左上海绵 Foam
12 10541185 1 后海绵 Foam
13 12685850 1 前海绵 spongeSY55C.1.10-10A
14 10541268 1 左海绵 Foam

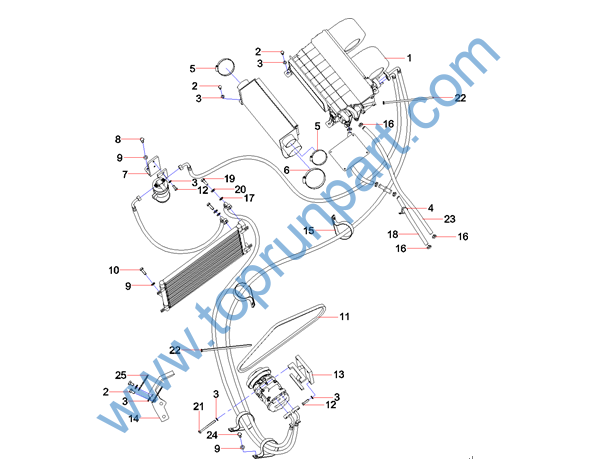

1 60210926 1 空调系统 Air conditioning system
2 A210111000343 8 螺栓M8×20GB5783 10.9级 Bolt
3 24000633 18 垫圈8GB97.1 达克锈 Washer
4 60086357 1 线束固定夹 Harness clamp
5 A210855000012 2 喉箍 Clamp
6 A210855000014 1 喉箍 Hoop
7 11141695 1 干燥瓶安装支架 Bracket, mounting, drying bottle
8 A210111000024 2 螺栓 Bolt
9 A210111000012 4 螺栓 M10×20GB5783 10.9级 Bolt
10 24000637 9 垫圈10GB97.1 达克锈 Washer
11 A230106000322 1 V带 V-belt
12 A210111000293 6 螺栓 Bolt
13 11141529 1 压缩机安装支架 Bracket, mounting, compressor
14 12183767 1 皮带保护架 belt protective
15 60086356 2 线束固定夹 Clamp, harness
16 60166393 4 单联管夹 Clamp, pipe
17 60060564 2 垫圈6GB93 达克锈 Washer
18 11084196 1 电装空调冷水管 Pipe, cold pipe, air conditioner
19 A210111000082 2 螺栓 Bolt
20 24000632 2 垫圈6GB97.1 达克锈 Washer

21 A210111000098 4 螺栓 Bolt
22 A239900000065 8 尼龙扎带 Strap, nylon
23 10448928 1 蒸汽胶管 Hose, steam
24 A210111000195 3 螺栓 Bolt
25 60086353 2 线束固定夹 Clamp, harness

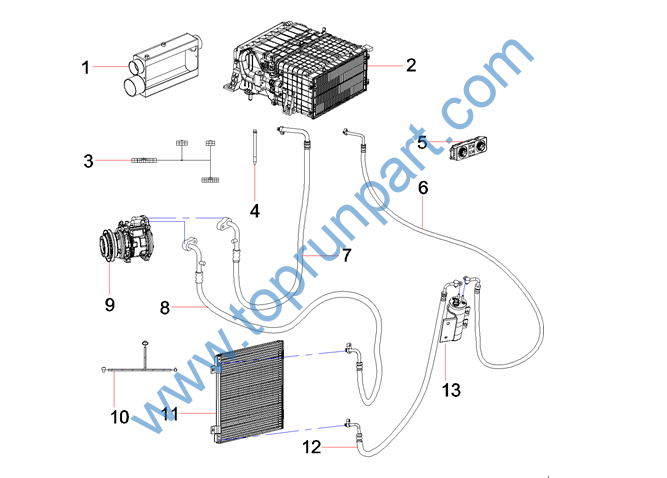

1 60210925 1 空调风室 Chamber, wind, air conditioner
2 60211268 1 蒸发器 Evaporator
3 60210923 1 空调线束 Harness, air conditioner
4 60068273 1 排水管 Pipe, water drain
5 60161191 1 控制面板总成 Panel AS, control
6 60291407 1 冷媒管 HOSE PIPE LIQ NO2
7 60210922 1 蒸压软管总成 Hose AS, evaporator to
8 60056556 1 排气软管总成 Hose AS, exhaust
9 60056549 1 压缩机YJ155 总成12240-32800江 Compressor GP
10 60056558 1 空调线束 Harness, air conditioner
11 60013771 1 冷凝器 Condenser
12 60291409 1 冷媒管 HOSE PIPE LIQ NO1
13 60242103 1 干燥瓶组件 RECEIVER DRIER ASSY

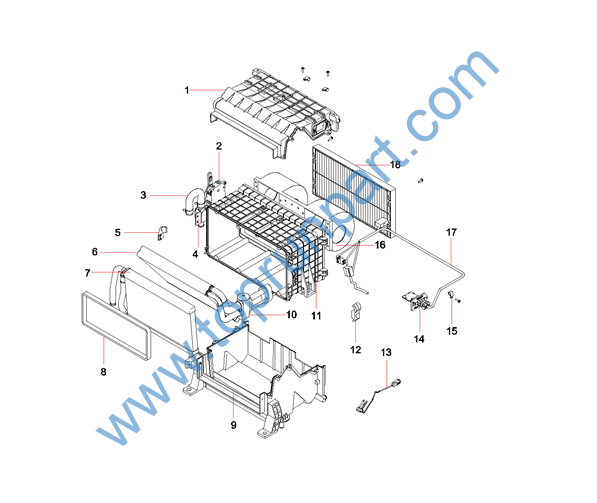

1 60215880 1 上盖 Cover, upper
2 60215884 1 步行电机 Motor, stepping
3 60215893 1 暖水管 Pipe, hot water
4 60215892 1 暖水阀 Valve, hot water
5 60215885 1 固定盖 Cover, fixing
6 60215882 1 蒸发器芯 Core, evaporator
7 60215883 1 暖水箱 Box, hot water
8 60091505 1 密封海绵 Sponge, sealing
9 60215881 1 下盖 Cover, lower
10 60068270 1 膨胀阀 Valve, expansion
11 60215888 1 风道 Passage, air
12 60215887 1 固定盖 Cover, fixing
13 60190276 1 除霜传感器感应头 Probe, sensor, defrost
14 60215891 1 电阻器 Resistor
15 60215890 5 夹子 Clamp
16 60215886 1 鼓风电机 Motor, blower
17 60210924 1 空调线束 Harness, air conditioner
18 60215889 1 过滤器 Filter

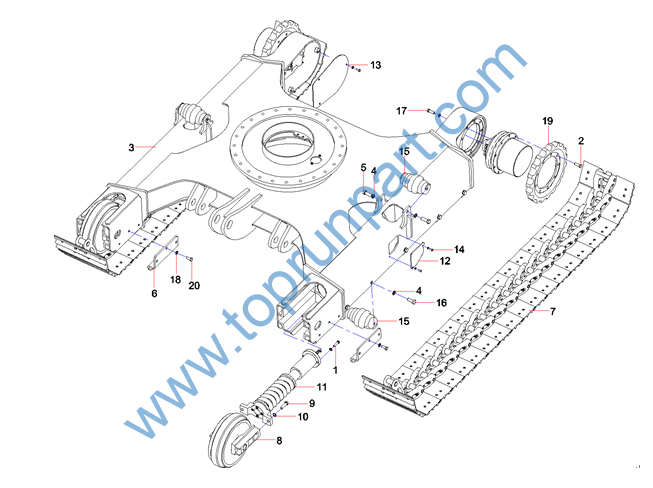

1 A210111000119 4 螺栓M12×45GB5783 10.9级 Bolt
2 A210111000442 24 螺栓 Bolt
3 11571570 1 行走架 Frame, track
4 A210491000144 24 垫圈 Washer Flat M18
5 A210111000216 4 螺栓M18×50GB5783 10.9级 Bolt M18x50
6 10542621 4 弯板 Plate, bent
7 11044379 2 履带总成 Track AS
8 A229900002163 2 引导轮 Wheel, idler
9 A210111000054 4 螺栓 Bolt
10 24000642 4 垫圈16GB97.1 达克锈 Washer
11 60011764 2 张紧装置 Idler tensioner AS
12 10542624 2 盖板 Cover
13 11205490 2 盖板 Cover
14 A210111000342 4 螺栓M8×16GB5783 10.9级 Bolt M8x16
15 13901646 12 支重轮总成 Track Roller
16 A210111000215 20 螺栓M18×40GB5783 10.9级 Bolt M18×40GB5783 10.9
17 A210111000209 24 螺栓M14×45GB5783 10.9级 Bolt M14×45GB5783 10.9
18 60238781 12 垫圈14GB97.1 达克锈 Washer
19 变更或见其他配置 2 驱动轮 Sprocket
20 A210111000208 12 螺栓 Bolt

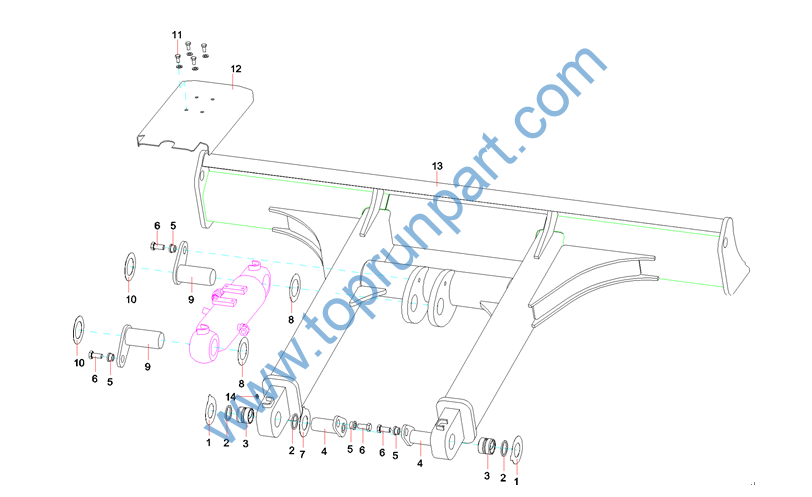

1 10574180 4 垫片 Shim
2 A230101000323 4 VAY密封圈 Ring, sealing
3 A820208000293 2 轴套 Sleeve, shaft
4 A810312110118 2 联板销轴 Roll, pin
5 A820202004034 4 衬套 Sleeve
6 A210111000212 4 螺栓M16×35GB5783 10.9级 Bolt
7 10574179 2 垫片 Shim
8 A820102010781 4 垫片 Shim
9 13374574 2 联板销轴 Brace piece axial pin SY55.2.3
10 A820102010782 2 垫片 Shim
11 A210111000012 16 螺栓 M10×20GB5783 10.9级 Bolt
12 10597771 1 盖板 Cover
13 11996962 1 推土铲 Bulldozing shovel SY55C.2.2A
14 A210804000002 2 黄油嘴 Fitting, Grease

1 A210111000199 3 螺栓M12×20GB5783 10.9级 Bolt
2 60060548 11 垫圈12GB96.1 达克锈 Washer 12GB96.1
3 10600405 1 盖板 Coverplate

1 A820606030917 2 护套 Sleeve, protective
2 A820606030920 2 护套 Sheath

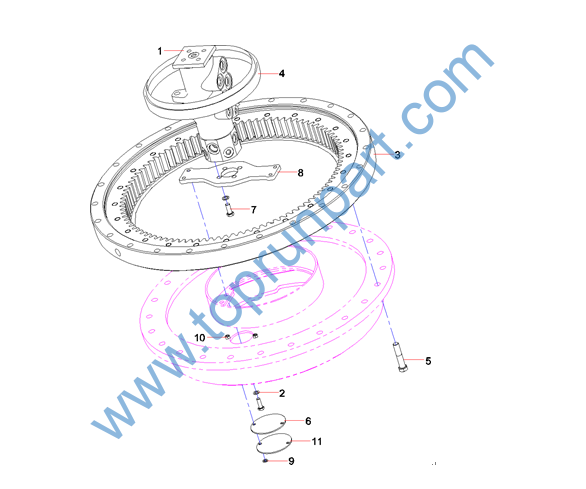

1 13468720 1 下车液压系统 Undercarriages hydraulic pipeline
2 24000637 14 垫圈10GB97.1 达克锈 Washer
3 11309667 1 回转支承 Bearing,slewing
4 12087542 1 黄油池密封圈 Ring, sealing, grease chamber
5 A210111000055 24 螺栓 Bolt
6 A820101343429 1 垫片 Gasket
7 A210111000202 4 螺栓 Bolt
8 10542622 1 连接板 Plate
9 24000633 6 垫圈8GB97.1 达克锈 Washer
10 A210307000012 2 螺母 Nut
11 A820101343428 1 盖板 Coverplate
