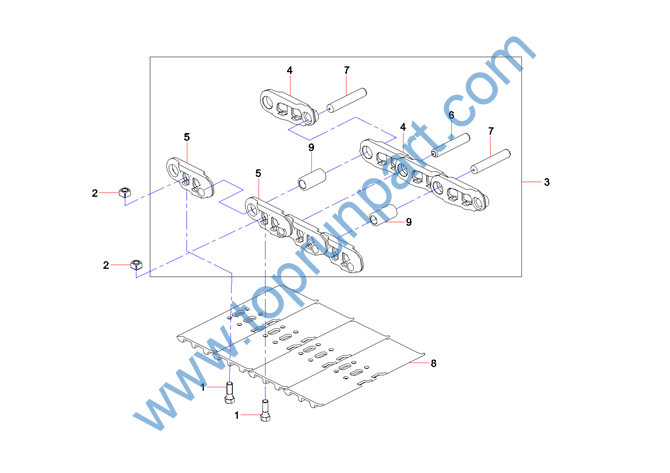

1 60018961 160 履带螺栓 Bolt, track
2 60018957 160 履带螺母 Nut, track
3 11044380 1 链轨总成 Track Chain
4 11039486 40 右链轨节 Link, track
5 11039485 40 左链轨节 Link, track, left
6 11737694 1 主销轴 Master Pin
7 11039490 39 销轴 Pin
8 60019248 40 履带板 Shoe, track
9 11039589 40 销套 Sleeve, pin

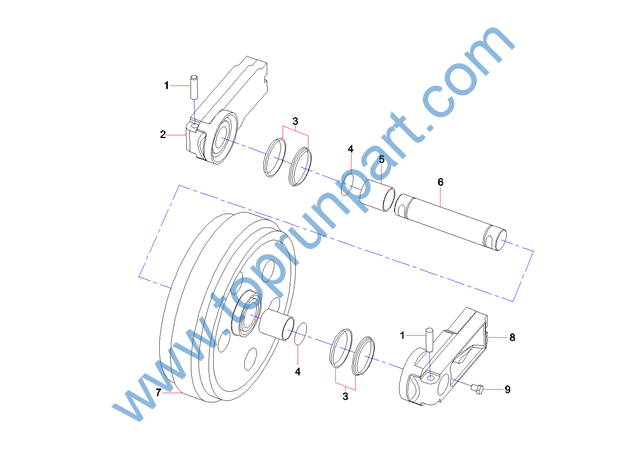

1 60086233 2 销 Pin
2 60086231 1 内支座 Support, inner
3 60086229 2 密封组件 Seal GP
4 A230101000256 2 O形圈 O-ring
5 60086240 2 轴套 Sleeve, shaft
6 60086236 1 轴 Shaft
7 60086234 1 引导轮 Wheel, idler
8 60086232 1 外支座 Support, outer
9 60078263 1 螺塞 Plug, screw

1 A210204000008 4 螺钉 Screw M10×40GB70.1
2 A210401000001 4 垫圈 Washer
3 60086243 1 座 Seat
4 60086227 1 拉杆 Rod, pull
5 60086242 1 左支架 Bracket
6 60086224 1 弹簧 Spring
7 60086220 1 定位套 Sleeve, locating
8 60086235 1 右支架 Bracket
9 60086226 1 固定螺母 Nut, fixing
10 60086241 1 柱塞 Plunger
11 60063161 1 耐磨环 Ring,wearable
12 B230101000054 1 AF防尘圈 Seal Dust M55×69×8
13 B229900006176 1 支承环 Ring, bearing
14 60281351 1 密封圈 Seal ring
15 60281352 1 耐磨环 Wearing ring
16 60086225 1 缸体 Block, cylinder
17 60202699 1 张紧装置注油阀 Tensioning Equipment Refiller
18 60337293 1 长龄张紧装置黄油嘴 (直) grease fitting
19 60337292 1 SY55长龄张紧维修包 缸体密封 Tensioning device repair kit
20 60337289 1 SY55长龄张紧弹簧端 Spring part of tensioning device

21 60337290 1 SY55长龄张紧油缸端 缸体密封 Oil cylinder of tensioning device

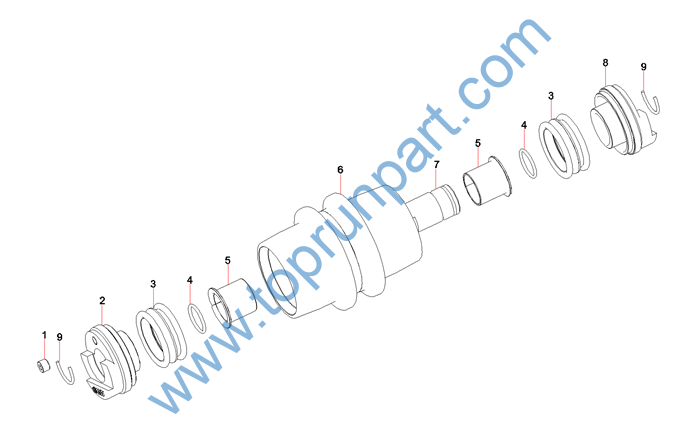

1 60047627 1 闷头螺塞 Plug, screw
2 13901389 1 右端盖 right cover SWZ135B-3
3 60117853 2 浮动油封51×65×23 线径 Seal oil，floating
4 B230101000036 2 O形圈 O-ring 29.4×3.1JISB2401
5 60117091 2 衬套39×35×37 法兰 Bushing
6 13901588 1 支重轮轮体 Track Roller Wheel body
7 11951606 1 轴 shaft SWZ135A-1
8 13901281 1 左端盖 LEFT COVER SWZ135B-2
9 60117092 2 钢丝挡圈 Baffle，wire，steel

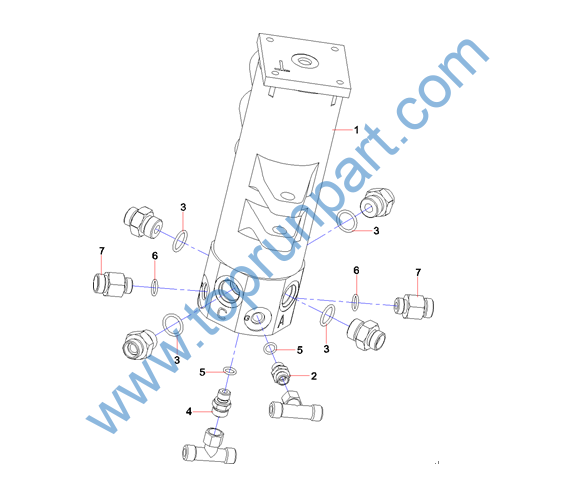

1 60190224 1 中央回转接头 Center Swivel Joint
2 21002840 1 管接头 Fitting, pipe
3 A230101000244 4 O形圈 O-ring
4 A820205000894 1 接头 Connector
5 A230101000247 2 O形圈 O-ring 10.9×2.3(JISB2401)
6 B230101000049 2 O形圈 O-ring 13.8×2.4JISB2401
7 B229900003725 2 端直通接头 Fitting, Adapter

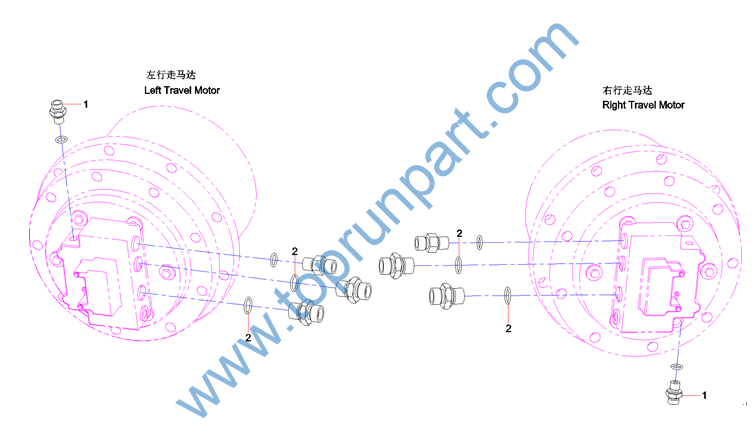

1 A820205000844 2 接头 Connector
2 B230101000090 6 O形圈 O-ring

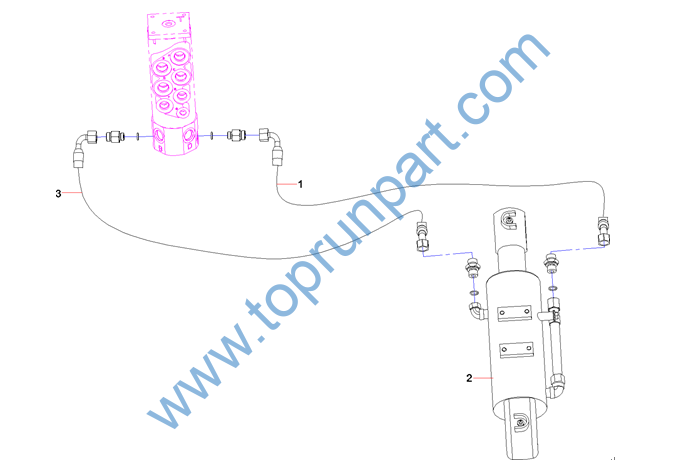

1 60022412 1 胶管 Hose, rubber
2 13066989 1 推土铲油缸 Bulldozing shovel oil cylinder
3 60022411 1 胶管 Hose, rubber
