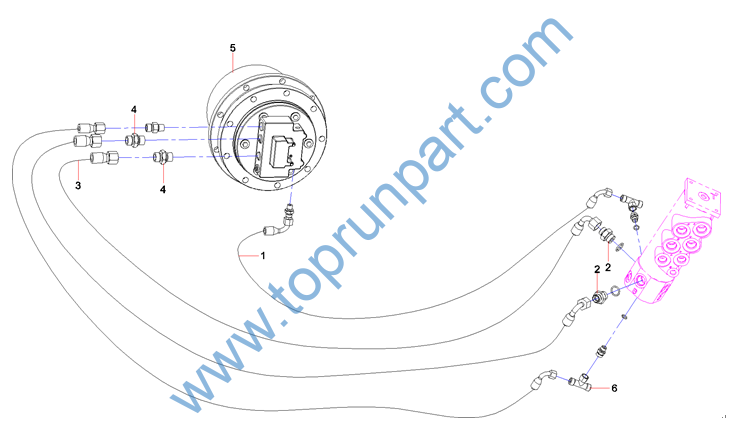

1 B230103000872 2 胶管 Rubber hose
2 A820205002388 4 接头 Connector
3 B230103001398 2 胶管 Hose Assembly
4 21002822 6 管接头 Pipe connector
5 60166522 2 减速机总成 Reducer GP
6 B210780000019 1 管接头 Connector

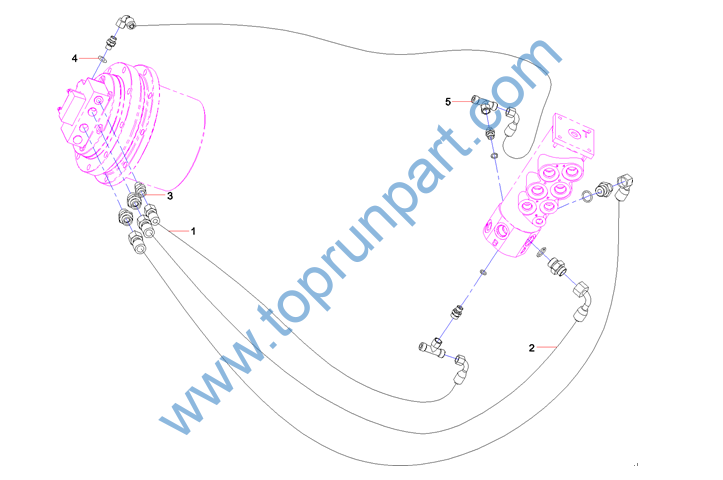

1 B230103003212 2 胶管 Rubber hose
2 60015208 2 胶管 Hose, Assembly, Hydraulic
3 11679982 2 接头 Connector
4 B230101000047 4 O形圈 O-ring
5 B210780000172 1 管接头 Connector

1 60147943 3 堵头 Plug
2 B230101000047 3 O形圈 O-ring
3 60265418 1 外管 Rotary shaft
4 60221418 4 工艺螺堵 Plug
5 A210608000098 1 O形圈 O-ring 79.4×3.1JISB2401
6 60265419 1 防尘圈 Dust ring
7 A210608000134 1 O形圈 O-ring
8 60265420 8 旋转密封 Rotary sealing ring
9 60265421 1 定位板 board
10 60265422 1 轴用挡圈 Shaft Retainer Ring
11 B230101000039 1 O形圈 O-ring
12 60265423 1 壳体 Center Rotate Body
13 60265424 1 端盖 End cover
14 60265425 4 弹簧垫圈 Spring washer
15 60265426 4 内六角螺钉 Inner hexagon screw
16 60265427 1 中央回转接头维修包 Swivel Joint Repair Kit

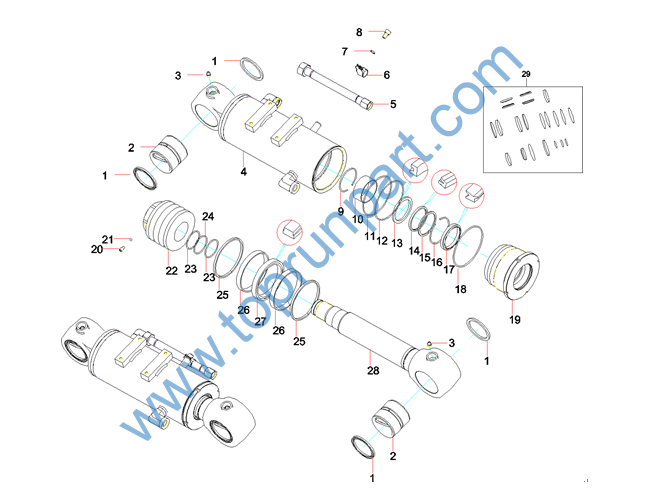

1 A880808070033 4 DLI防尘圈 Ring – Dust
2 11694457 2 衬套 Bushing
3 A229900010158 2 油杯JB7940.1 不锈钢 Cup, oil
4 13066994 1 缸筒总成 Cylinder Assem. ZX55.3.4B.2
5 13206350 1 油管组件 Cylinder Drum
6 11647963 1 管夹 Clamp，tube
7 13039393 1 垫片 washerZX65.3.1B-13
8 A210204000196 1 螺钉 Screw
9 A210417000075 1 挡圈 Retaining ring
10 A880809020008 1 杯士 日本大同 Sleeve
11 A880804040028 2 挡圈 Ring, retaining
12 A210608000012 1 O形圈 O-ring 120×3.1 GB1235
13 60084612 1 HBY密封圈 Ring,seal
14 60107394 1 IUH密封圈 Seal ring
15 A880806030100 1 支承环 Ring – Bearing
16 A210417000103 1 挡圈 Retaining ring
17 60136782 1 DKBZ3防尘圈 Dust ring
18 A210609000009 1 0形圈 O-ring
19 13066987 1 导向套 Guide Sleeve ZX55.3.4B-1
20 A210208000008 1 螺钉 Screw

21 A880899030000 1 钢球 Steel Ball
22 13066988 1 活塞 Piston ZX55.3.4B-2
23 13254957 2 挡圈 Retaining Ring ZX_DQ55×3.1
24 A210608000077 1 O形圈 O-ring 49.4×3.1JISB2401
25 60192128 1 UP防污圈 Ring, anti-smudging
26 60192116 2 UP导向环 Guide ring
27 60087456 1 SPGW密封圈 Ring,seal
28 13066992 1 活塞杆 Piston Rod ZX55.3.4B.1
29 60266040 1 推土铲油缸维修包 Dozer Cylinder Repair Kit

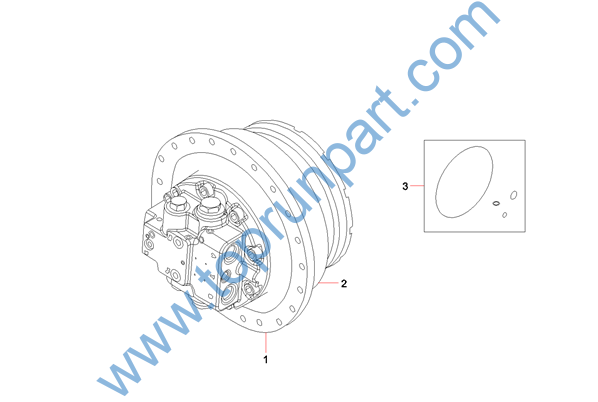

1 60216967 1 马达 Motor
2 60218534 1 减速机 Reducer
3 60217000 1 减速机维修包 Repair kit, reducer

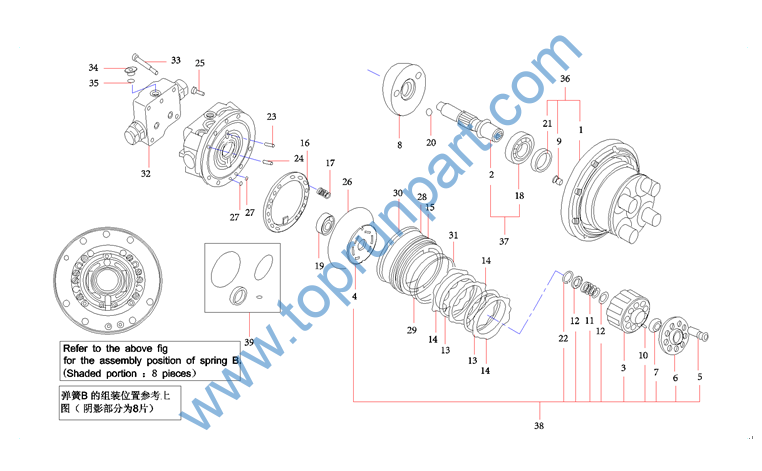

1 60216971 1 壳体 Housing
2 60164226 1 传动轴 Shaft, drive
3 60164157 1 缸筒 Barrel, cylinder
4 60164317 1 配油盘 Tray, oil distribution
5 60164358 9 柱塞组件 Plunger GP
6 60164165 1 九孔盘 Plate, nine-hole
7 60164320 1 球形衬套 Bushing, spheric
8 60216972 1 斜盘 Plate, swash
9 60216973 1 控制活塞 Piston, control
10 60164328 3 销子 Pin
11 60164222 1 C弹簧 Spring
12 60164253 2 垫圈 Washer
13 60164292 2 金属垫圈 Washer, metal
14 60164251 3 垫圈 Washer
15 60164313 1 密封垫 Seal, ring
16 60164334 1 压板 Plate, pressure
17 60164231 8 弹簧 Spring
18 60164200 1 轴承 Bearing
19 60216975 1 油封 Seal, oil
20 60164159 2 钢珠 Ball, steel

21 60216975 1 油封 Seal, oil
22 60164298 1 卡簧 Spring, snap
23 60216976 1 弹簧销 Pin, spring
24 60164329 1 销子 Pin
25 60164376 7 螺钉 Screw
26 60216977 1 O形圈 O-ring
27 60091798 2 O形圈 O-ring
28 60164378 1 O形圈 O-ring
29 60164377 1 O形圈 O-ring
30 60164345 1 支撑环 Ring, support
31 60164344 1 支撑环 Ring, support
32 60164171 1 安全阀组件 Valve GP, relief
33 60164311 4 螺钉 Screw
34 60164262 1 堵头 Plug
35 60164379 1 O形圈 O-ring
36 60216998 1 壳体组件 Housing AS
37 60164228 1 传动轴总成 Shaft AS, drive
38 60164158 1 缸筒组件 Barrel GP, cylinder
39 60216999 1 密封组件 Seal AS

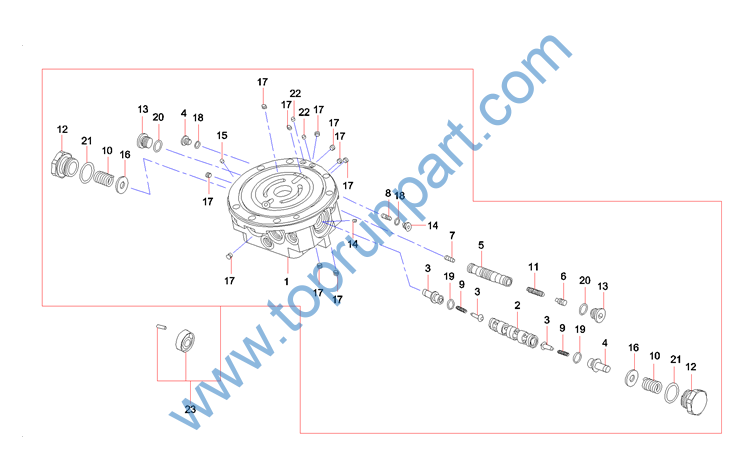

1 60216978 1 阀体 Body, valve
2 60216979 1 阀芯 Spool, valve
3 60216980 2 单向阀 Valve, check
4 60216981 2 弹簧座 Seat, spring
5 60216982 1 阀芯 Spool, valve
6 60216983 1 阀芯 Spool, valve
7 60216984 1 阀芯 Spool, valve
8 60216985 1 阀芯 Spool, valve
9 60216986 2 弹簧 Spring
10 60216987 2 弹簧 Spring
11 60216988 1 弹簧 Spring
12 60216989 2 堵头 Plug
13 60216990 2 堵头 Plug
14 60216991 2 堵头 Plug
15 60216992 2 螺塞 Plug, screw
16 60216993 2 弹簧座 Seat, spring
17 60216994 10 堵头 Plug
18 60038808 2 O形圈 O-ring
19 60216995 2 O形圈 O-ring
20 60030614 2 O形圈13.8×2.4JISB2401 氟橡胶 O-ring

21 A210609000136 2 O形圈 O-ring 29.7×3.5JISB2401
22 60216996 2 螺塞 Plug, screw
23 60216997 1 阀体组件 Body GP, valve
