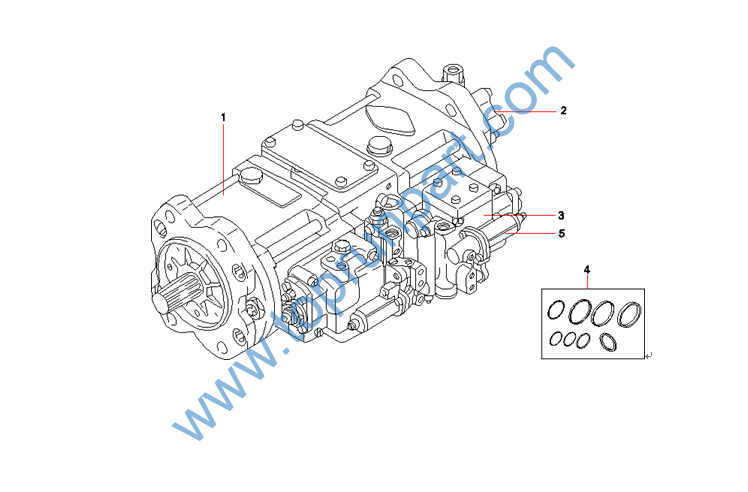

1 60155077 1 主泵 Main Pump
2 60153895 1 先导泵 Leading Pump
3 60153897 2 调节器 Regulator
4 60197254 1 主泵维修包 Main Pump Repair Kit
5 61002283 2 比例减压阀 Proportional pressure reducing

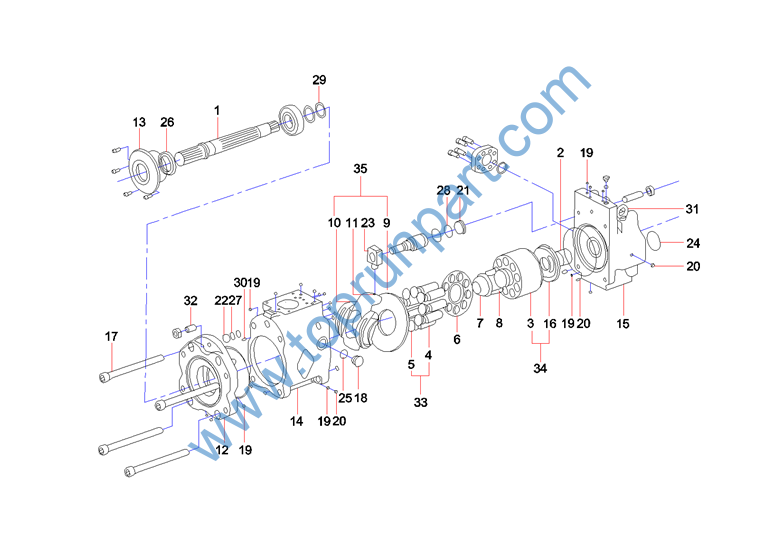

1 60075452 1 驱动轴 Shaft(G) drive
2 60006939 2 轴承 bearing
3 60125196 2 缸体 Cylinder body
4 60125205 18 柱塞 Plunger
5 60125190 18 滑靴 Boots,sliding
6 60075467 2 压板 Plate set
7 60015817 2 球面衬套 Spherical bushing
8 60054345 18 弹簧 Spring
9 60015757 2 滑板 Plate, sliding
10 60015821 2 斜盘 Plate, swash
11 60075449 2 倾斜衬套 Sleeve, incline
12 60064450 2 斜盘支撑台 Support, swash plate
13 60075480 1 油封盖 Oil seal cover
14 60125192 2 泵体 Pump body
15 60075385 1 配油盖 Cover, oil distribution
16 60125201 1 配油盘 Plate,oil,distribution
17 60075438 4 螺钉 Screw
18 60039400 4 油塞 Plug, oil
19 60008728 28 紧定螺钉 Screw, set
20 60008820 5 堵 Plug

21 60075377 2 挡柱 Post, bumping
22 60075376 2 挡柱 Post, bumping
23 60008549 2 销 Pin
24 60150563 1 O形圈 O-Ring
25 60039422 4 O形圈 O-RING
26 60075479 1 油封 Oil seal
27 60075424 2 挡圈 Ring, retaining
28 60075423 2 挡圈 Ring, retaining
29 60064417 2 1号太阳齿轮卡环 Gear, sun
30 60008878 5 销 Pin
31 60075426 2 吊环 Ring, lifting
32 60075441 2 螺杆 Rod, threaded
33 60331154 1 柱塞组件 Component
34 60331155 1 缸体组件 Component
35 60331156 1 斜盘组件 Component

1 60075453 1 驱动轴 Shaft(R) drive
2 60075431 1 花键接头 Coupler, spline
3 60006941 2 轴承 bearing
4 60075476 3 轴承垫圈 Bearing washer
5 60075469 1 增压叶轮 Vane, boosting
6 60150552 1 配油盖 Cover Valve
7 60125200 1 配油盘 Plate,oil,distribution
8 60075439 4 螺钉 Bolt
9 60039371 4 内六角螺栓 Bolt, socket head
10 60038654 4 油塞 Plug, oil
11 60075450 2 倾斜销 Pin, angular
12 60075455 2 伺服柱塞 Plunger, servo
13 60093160 2 O形圈 O-ring
14 60125207 1 O形圈 O-ring
15 60125209 2 O形圈 O-ring
16 60075477 3 O形圈 O-ring
17 60038716 19 O形圈 O-ring(seal)
18 60038712 6 O形圈 O-ring(seal)
19 60125208 2 O形圈 O-ring
20 60039359 4 六角螺母 Nut

21 60075461 2 销 Pin
22 60075440 2 螺杆 Rod, screw
23 60100511 1 铭牌 Nameplate
24 60038620 2 销子 Pin
25 60331157 1 伺服柱塞组件 Component

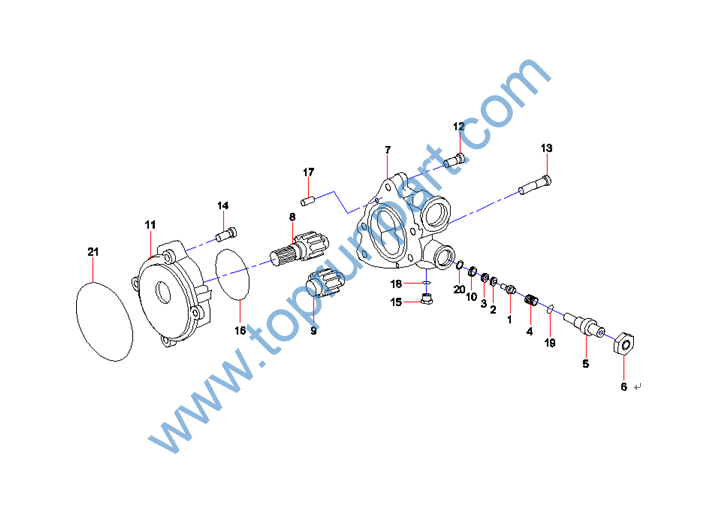

1 60008508 1 阀杆 Stem, valve
2 60008493 1 阀座 Seat, valve
3 60008523 1 挡圈 Ring, retaining
4 60008500 1 弹簧 Spring
5 60008496 1 调节螺杆 Screw, adjusting
6 60008505 1 螺母 Nut
7 60075382 1 机体 Body, machine
8 60075409 1 齿轮 Gear
9 60075410 1 齿轮 Gear
10 60008491 1 滤芯 Filter
11 60075381 1 机体 Body, machine
12 60081461 2 螺钉 Screw
13 60081462 2 螺钉 Screw
14 60081460 4 螺钉 Screw
15 60008724 1 堵 Plug
16 60008504 1 垫圈 O-ring
17 60008736 2 销 Pin
18 60008697 1 O形圈 O-ring
19 60008701 1 O形圈 O-ring
20 60075425 1 垫圈 Washer

21 60125207 1 O形圈 O-ring

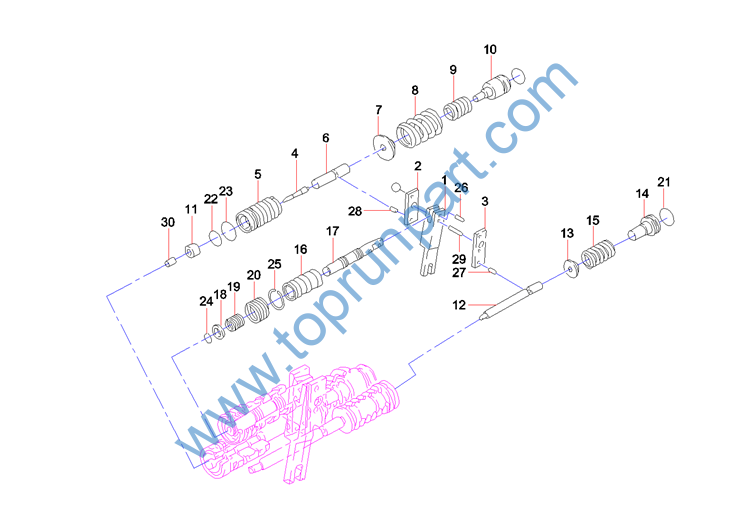

1 60075481 1 杠杆 Lever
2 60008532 1 杠杆 Lever
3 60008522 1 杠杆 Lever
4 60008535 1 活塞 Piston
5 60008536 1 阀体 Body, valve
6 60008524 1 推杆 Pushrod, valve
7 60008494 1 弹簧座 Seat, spring
8 60150555 1 弹簧-外 Spring-Outer
9 60008547 1 弹簧-内 Spring, inner
10 60008526 1 调节杆 Rod, adjusting
11 60150553 1 衬套 Bushing
12 60008520 1 活塞 Piston
13 60008495 1 弹簧座 Seat, spring
14 60150551 1 调节杆 Adjuster
15 60150554 1 弹簧 Spring
16 60008503 1 阀套 Sleeve, valve
17 60008538 1 推轴 Shaft, thrust
18 60008539 1 弹簧座 Seat, spring
19 60008541 1 弹簧 Spring
20 60008540 1 弹簧 Spring

21 60008702 1 O形圈 O-ring
22 60008701 1 O形圈 O-ring
23 60008703 1 O形圈 O-ring
24 60009938 1 垫片 Gasket
25 60008748 1 挡圈 Ring, retaining
26 60008734 1 销 Pin
27 60008733 2 销 Pin
28 60008735 2 销 Pin
29 60008736 1 销 Pin
30 60150562 1 销 Pin

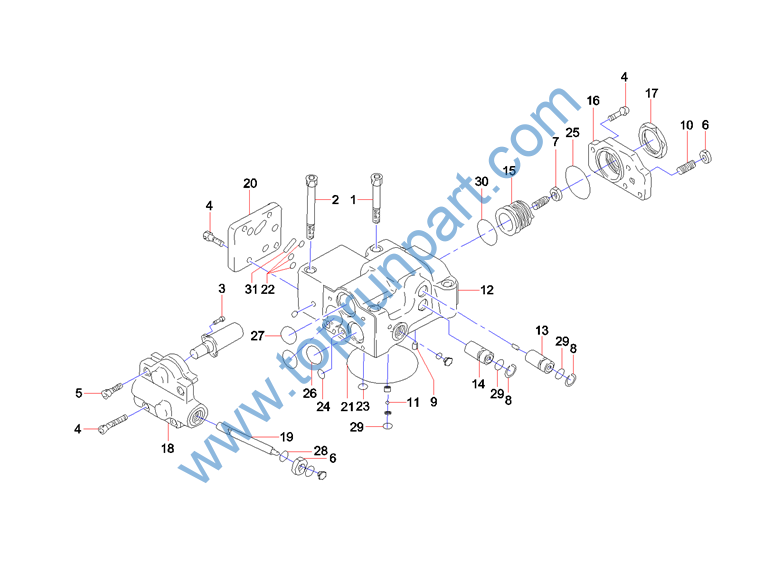

1 60150559 2 螺钉 Bolt
2 60150560 2 螺钉 Screw
3 60150556 2 螺钉 Bolt
4 60150557 10 螺钉 Screw
5 60150558 3 螺钉 Screw
6 60150561 2 螺母 Nut
7 60008506 1 螺母 Nut
8 60009937 2 挡圈 Ring, retaining
9 60008546 1 销 Pin
10 60008743 1 螺杆 Screw
11 60008886 2 钢球 Ball, steel
12 60008513 1 机体 Body, machine
13 60008534 1 堵 Plug
14 60008533 1 堵 Plug
15 60008497 1 调节螺母 Nut, adjusting
16 60008529 1 盖 Cover
17 60008537 1 螺母 Nut
18 60008510 1 机体 Body, machine
19 B229900001021 1 转换杆 Lever, change-over
20 60008548 1 盖 Cover

21 60008694 1 O形圈 O-ring
22 60008707 3 O形圈 O-ring
23 60008708 8 O形圈 O-ring
24 60008696 1 O形圈 O-ring
25 60008693 1 O形圈 O-ring
26 60008704 1 O形圈 O-ring
27 60008692 1 O形圈 O-ring
28 60008709 2 O形圈 O-ring
29 60008697 5 O形圈 O-ring
30 60008706 1 O形圈 O-ring
31 60008698 1 O形圈 O-ring
