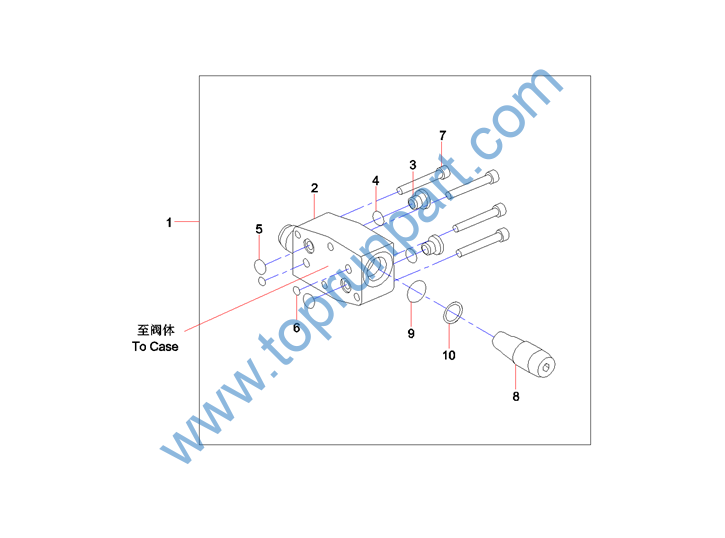

1 B220401000687 1 回转马达防摆阀 Valve, anti-rebound, swing motor
2 60008793 1 机体 Valve, body
3 60008711 2 堵 Plug
4 60038711 2 O形圈 O-ring(seal)
5 60039420 2 O形圈 O-RING
6 60039424 2 O形圈 O-RING
7 60039369 4 内六角螺钉 Screw, socket head
8 60008753 2 防反转阀 Valve, anit-rebound
9 60038715 2 O形圈 Ring, seal
10 60039404 2 支承圈 Ring, supporting

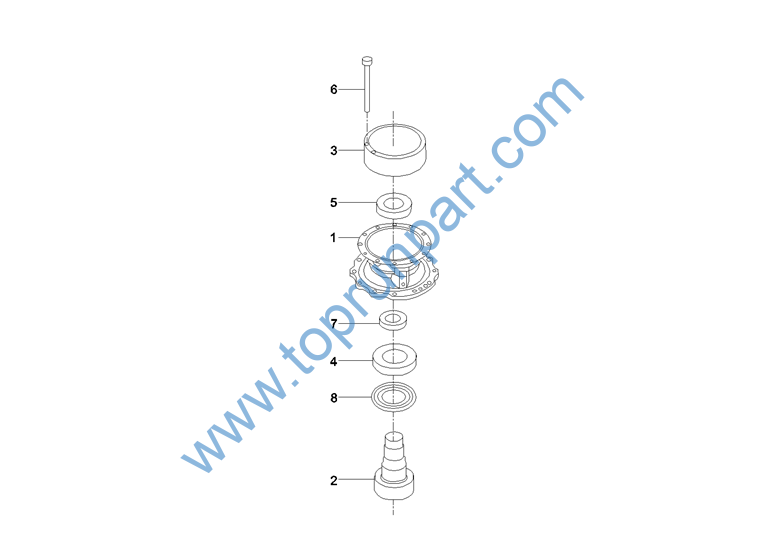

1 60110640 1 壳体 Housing
2 60110641 1 驱动轴 Shaft, drive
3 60081432 1 齿圈 Ring, gear
4 60039303 1 圆柱滚珠轴承 Bearing, ball, cylindrical
5 60039302 1 圆柱滚珠轴承 Bearing, ball, cylindrical
6 60081464 16 内六角螺钉 Bolt
7 60081495 1 油封 Seal, oil
8 60081496 1 轴承密封件 Seal, bearing

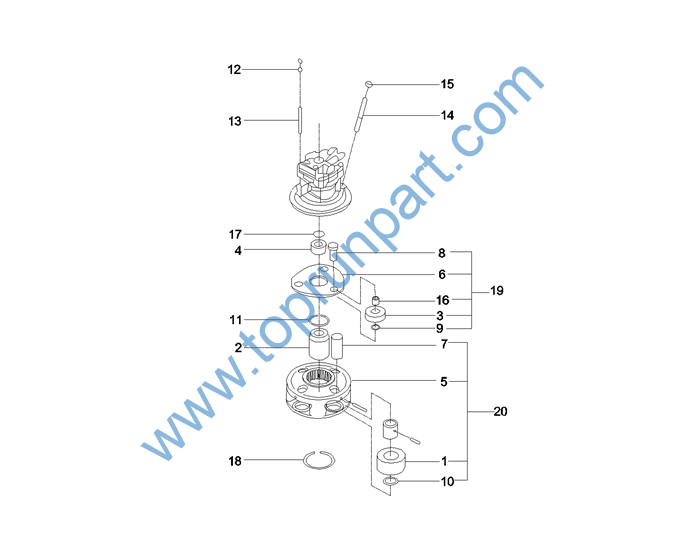

1 60081427 4 2号行星齿轮 Gear, planetary, No. 2
2 60081426 1 2号太阳齿轮 Gear, sun, No. 2
3 60081429 3 一级行星轮 Gear, planetary, first level
4 60081425 1 1号太阳齿轮 Gear, sun, No. 1
5 60081431 1 2号支架 Bracket, No. 2
6 60081469 1 一级行星架 Carrier B no.1
7 60081428 4 二级行星轮组件 Gear GP, planetary, secondary
8 60081470 3 一级行星轮轴 Shaft, planetary gear, first level
9 60081403 3 垫 Gasket
10 60081430 4 2号行星齿轮垫片 Gasket, No. 2 planetary gear
11 60081404 1 垫 Gasket
12 60081471 1 油尺 Gauge, oil
13 60081472 1 油尺外管 Tube, oil gauge
14 60008615 1 加油管 Tube, fill
15 B229900002437 1 呼吸管盖 Cap, breather
16 60081476 3 轴套 Sleeve, shaft
17 60064417 1 1号太阳齿轮卡环 Gear, sun
18 60081447 1 弹性挡圈 Ring, snap
19 60331158 1 一级行星架组件 Component
20 60331159 1 二级行星架组件 Component

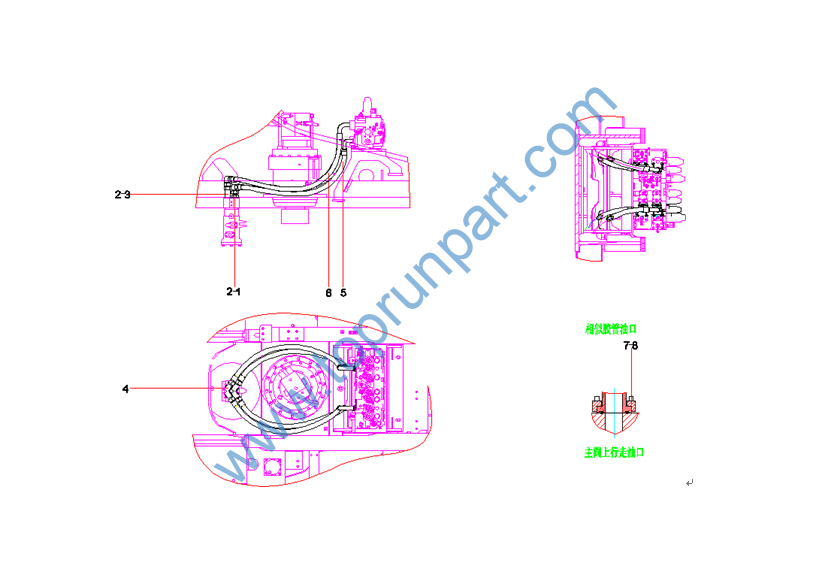

1 A820205001356 2 M33-M42接头 Connector
2 A210609000136 4 O形圈 O-ring
3 A820205001355 2 M33-M42加长接头 Lengthening adaptor
4 B210780001241 4 直角组合接头 Fitting, Elbow
5 61013337 2 胶管 Hose assembly
6 61013338 2 胶管 Hose assembly
7 A210204000354 16 螺钉 M10×30GB70.1 10.9级 Screw
8 B210780000244 8 对开法兰 Flange, Split

1 60186788 1 呼吸阀滤芯 Filter, hydaulic tank breather

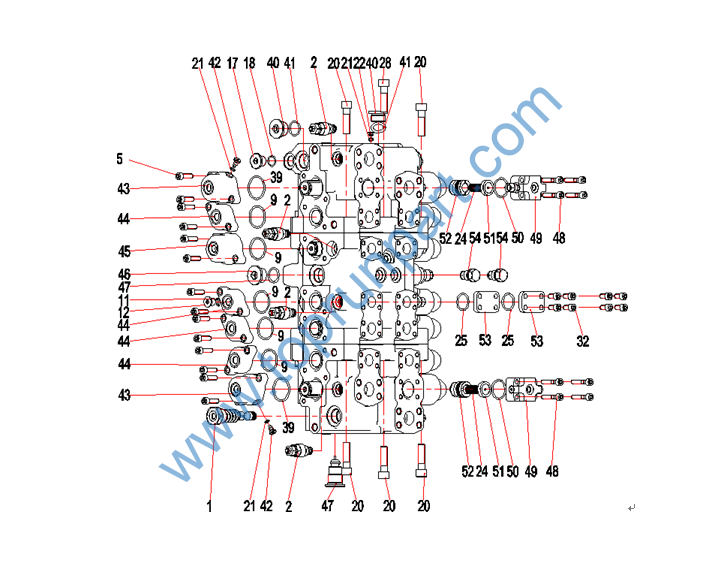

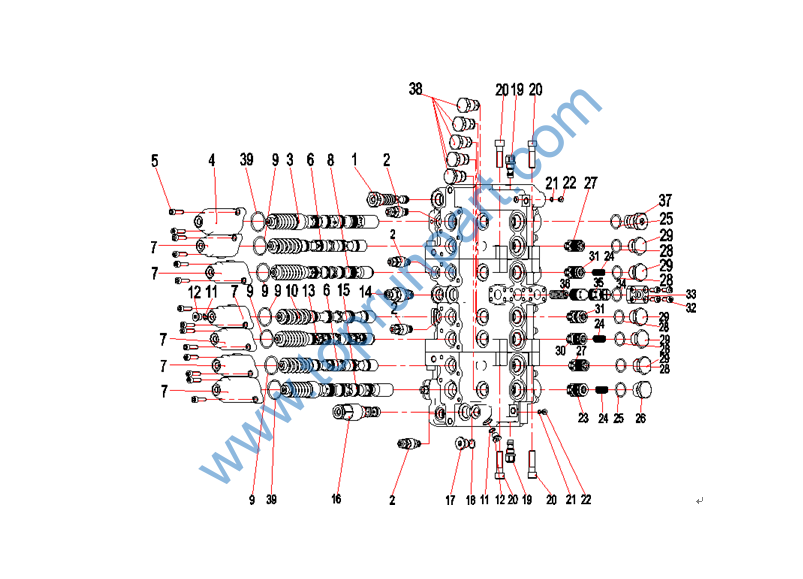

1 13915512 2 旁通阀 Bypass valve2241016
2 13342962 8 溢流阀 Port Relief SVL180H1.12.1
3 14219978 1 动臂阀芯组件 spool say
4 13829487 2 端盖 COVER2041031
5 60144456 28 螺钉M10×35JISB1176 10.9级 Screw
6 14219754 2 行走阀芯组件 spool asy
7 13829483 5 端盖 COVER2041030
8 14219688 1 铲斗阀芯组件 spool asy
9 60357792 10 O形圈 O-ring
10 14219931 1 备用阀芯组件 spool asy
11 B230101000049 3 O形圈 O-ring
12 14149587 3 螺塞 Plug
13 14219699 1 回转阀芯组件 spool asy
14 14168731 1 溢流阀 RELIEF ASY
15 14219961 1 斗杆阀芯组件 spool asy
16 13917203 1 变量再生阀 REGENER 2241017
17 B230101000439 2 O形圈 O-ring 20.8×2.4JISB2401
18 13960107 2 螺塞 plug2161100
19 14148290 2 冲洗阀 flcon
20 60357795 10 螺钉M16×55JISB1176等级 Screw

21 A210608000097 4 O形圈 O-ring
22 60118027 3 螺塞 Plug, screw
23 13927448 1 补偿阀芯 Pc Spool2026011
24 13863788 3 定流量阀弹簧 SPOOL
25 60144291 1 O形圈33.7×3.5JISB2401 氟橡胶 O-ring
26 14149514 1 螺塞 plug2161124
27 14213381 2 补偿阀芯组件 spool
28 60197695 5 O形圈31.7×3.5JISB2401 氟橡胶 O-ring
29 14149579 5 螺塞 plug2161129
30 13954152 1 补偿阀芯 PC spool2025041
31 13954153 2 补偿阀芯 PC spool2025042
32 60144455 12 螺钉M10×20JISB1176 10.9级 Screw
33 13920140 1 法兰 Flange1081006
34 60144290 1 O形圈25.7×3.5JISB2401 氟橡胶 O-ring
35 13922787 1 中央阀芯 Center spool 2025040
36 13956135 1 合流弹簧 Spring2063002
37 13917154 1 单向螺塞 Check plug SVL360H2.3.3
38 13915141 10 单向阀 Check valve2231012
39 60051495 4 O形圈 O-Ring

1 13915512 2 旁通阀 Bypass valve2241016
2 13342962 8 溢流阀 Port Relief SVL180H1.12.1
5 60144456 28 螺钉M10×35JISB1176 10.9级 Screw
9 60357792 10 O形圈 O-ring
11 B230101000049 3 O形圈 O-ring
12 14149587 3 螺塞 Plug
17 B230101000439 2 O形圈 O-ring 20.8×2.4JISB2401
18 13960107 2 螺塞 plug2161100
20 60357795 10 螺钉M16×55JISB1176等级 Screw
21 A210608000097 4 O形圈 O-ring
22 60118027 3 螺塞 Plug, screw
24 13863788 3 定流量阀弹簧 SPOOL
25 60144291 1 O形圈33.7×3.5JISB2401 氟橡胶 O-ring
28 60197695 5 O形圈31.7×3.5JISB2401 氟橡胶 O-ring
32 60144455 12 螺钉M10×20JISB1176 10.9级 Screw
39 60051495 4 O形圈 O-Ring
40 14149523 2 螺塞 PLUG2161125
41 B230101000050 3 O形圈 O-ring
42 13954254 2 螺塞 PLUG2161037
43 13829643 2 端盖 COVER2041033

44 13829485 4 端盖 COVER2041032
45 14165537 1 端盖 COVER2041143
46 14149526 1 螺塞 PLUG
47 14099725 1 补油阀 supply oil valve
48 60357796 8 螺钉M10×40JISB1176 10.9级 Screw
49 13916724 2 闭锁阀 Holding valve2300006
50 61003518 2 O形圈39.7×3.5JISB2401 氟橡胶 Oring
51 13919784 2 闭锁弹簧座 plate2101030
52 13919737 2 闭锁提升阀芯 Poppet2081103
53 14205692 2 盖板 FLANGE
54 13915895 2 单向阀 Check valve 2231013

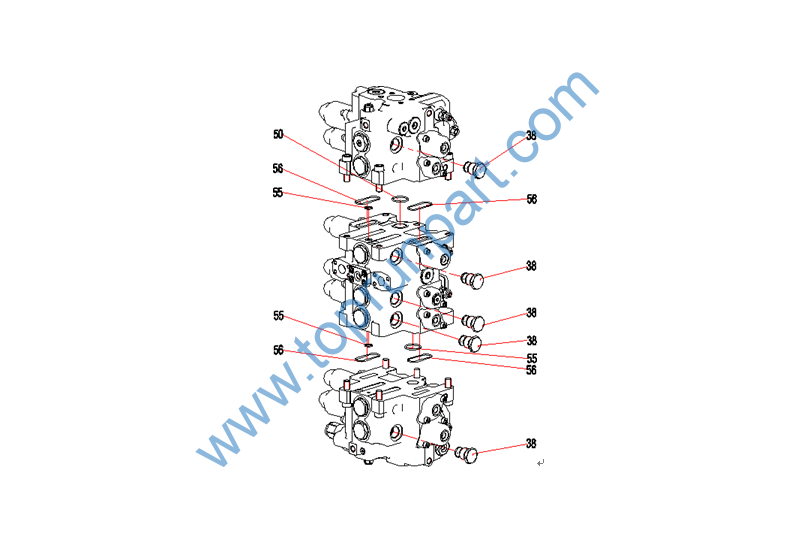

38 13915141 10 单向阀 Check valve2231012
50 61003518 2 O形圈39.7×3.5JISB2401 氟橡胶 Oring
55 21021245 2 O形圈17.8×2.4JISB2401 氟橡胶 O-ring
56 A210608000180 4 O形圈59.4×3.1JISB2401 氟橡胶 O-ring

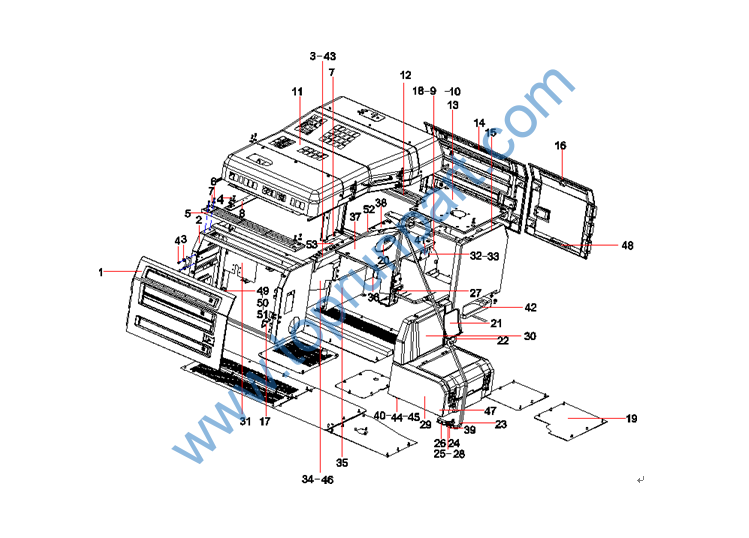

1 13605012 1 右门 Right door
2 13700570 1 主泵舱 pump cabin
3 13300896 100 加厚垫片 Thickening Washer
4 A210111000202 82 螺栓 Bolt
5 13346904 1 右后上盖 Right rear upper cover
6 A210111000101 10 螺栓M12×25GB5783 10.9级 Bolt
7 13587109 34 加厚垫片 Thickening Washer
8 13700817 1 后横梁 rear cross beam
9 13700871 1 散热器隔板 Radiator spacing plate
10 13537210 1 海绵 sponge
11 13633400 1 机顶罩总成 Bonnet Assy.
12 13700632 1 散热器舱 Radiator cabin
13 13347268 1 空滤上盖板 air filter upper cover plate
14 13605011 1 左门 Left door I
15 14164763 1 空滤舱 air filter cabin
16 13517642 1 左门 Left door II
17 13701321 1 支架 support
18 13346887 1 空滤隔板海绵 sponge
19 13346457 1 底封板总成 Bottom cover plate assembly
20 13314057 1 右上后视镜总成 upper right rearview mirror

21 60126001 1 后视镜 mirror
22 13556376 1 后视镜支架 Bracket for rear mirror
23 14139473 1 扶手总成 Armrest assembly
24 13525800 1 固定夹 fixed clamp
25 A210111000053 10 螺栓 Bolt
26 A210111000106 20 螺栓 Bolt
27 A210111000243 2 螺栓 Bolt
28 A210307000028 2 螺母 Nut
29 13348131 1 工具箱总成 Tool Box Assy.
30 13348211 1 装饰盒 ornament box
31 13346986 1 主泵上隔板 Upper partition plate
32 60238783 8 垫圈6GB96.1 达克锈 Washer
33 A210111000079 8 螺栓 Bolt
34 13346991 1 主阀下隔板主体 Main body of main valve lower
35 13347017 1 柴油机上隔板 Engine clapboard
36 13700917 1 柴油机下隔板 engine clapboard
37 13347761 1 中上盖板 Middle plate
38 13605893 1 盖板 Plate
39 13488842 1 橡胶套 rubber sleeve
40 A210111000204 4 螺栓 Bolt

41 13537584 2 隔板 Plate
42 13443055 1 电瓶保护总成 Battery protective assembly
43 变更或见其他配置 1 主横梁 main cross beam
44 A820101210711 4 垫片 Washer
45 A820101210712 4 垫片 Washer
46 13346993 1 侧隔板主体 Main body of side clapboard
47 11169936 1 橡胶护套 Rubber protective sleeve
48 13348396 3 风钩 Wind hook
49 13824709 1 线束支架 Support
50 A210111000012 2 螺栓 M10×20GB5783 10.9级 Bolt
51 A210491000120 2 垫圈 Washer
52 14084338 1 主横梁 main cross beam
53 14084401 1 防烫板 Plate
