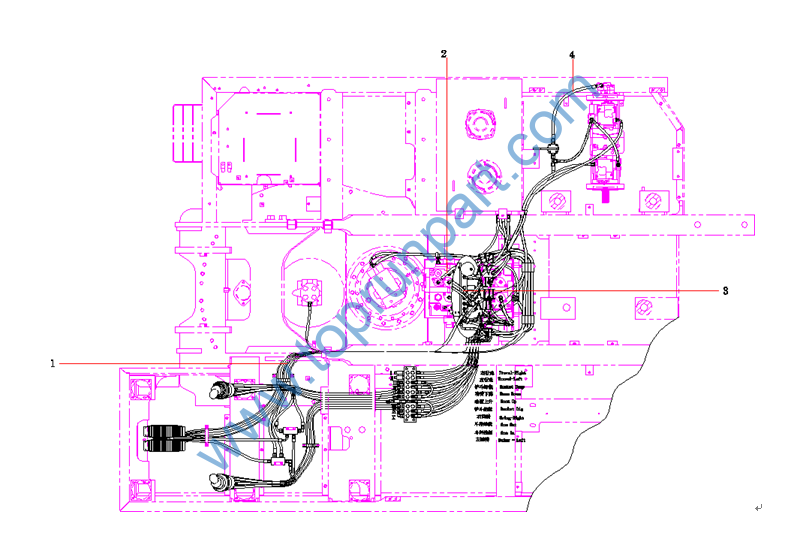

1	14212502	1	PPC管路	PPC Pipeline
2	14185272	1	主阀管路	Main valve pipeline
3	14185276	1	电磁阀管路	Electromagnetic valve pipeline
4	13441693	1	主泵管路	Main pump pipeline

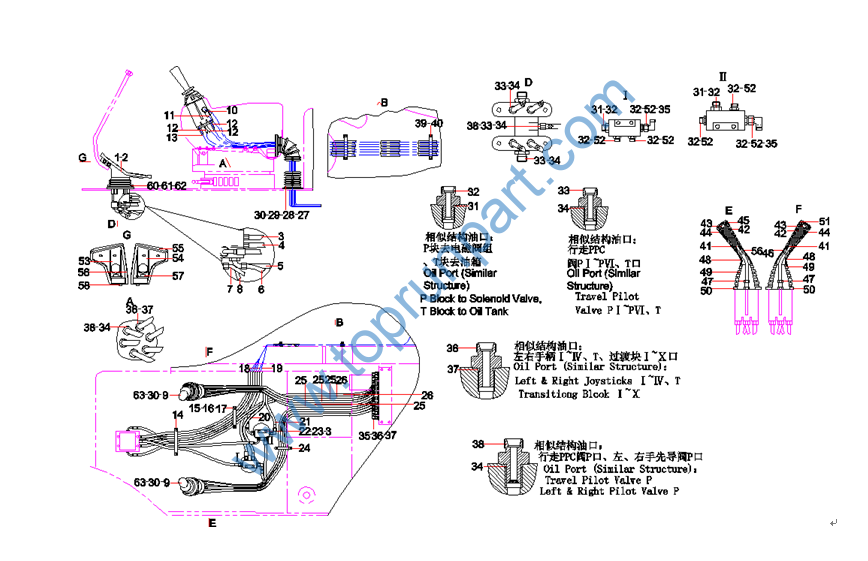

1 11571909 2 联接块 Block
2 60283709 1 先导阀 Pilot Valve
3 B230103001216 1 胶管 Rubber hose
4 B230103000979 1 胶管 Hose Assembly
5 21021883 1 胶管 Rubber Hose
6 21021926 1 胶管 Rubber Hose
7 21053817 1 胶管 Rubber Hose
8 21017536 1 胶管 Rubber Hose
9 60210245 2 先导阀 Pilot-control Valve
10 21027563 1 胶管 Hose Assembly
11 B230103004654 1 胶管 Rubber Hose
12 60034294 3 胶管 Hose Assembly
13 B230103000037 1 胶管 Hose Assembly
14 11288188 1 八管夹 8-tube clamp
15 12348458 1 六管夹 6-tube clamp
16 A210111000342 6 螺栓M8×16GB5783 10.9级 Bolt
17 24000511 6 垫圈8GB93 达克锈 Washer
18 61017819 1 胶管 Hose
19 61017820 1 胶管
20 21017526 1 胶管 Hose Assembly

21 21017372 1 胶管 Hose Assembly
22 A820199000360 2 PT块 Block, PT
23 A210204000355 4 螺钉M10×40GB70.1 10.9级 Bolt, socket head
24 12348433 1 四管夹 4-tube clamp
25 B230103004309 4 胶管 Rubber Hose
26 B230103002374 2 胶管 Hose Assembly
27 A820601990304 2 法兰 Flange
28 A820601990336 2 波纹管 Grommet
29 A210111000079 8 螺栓 Bolt
30 24000632 16 垫圈6GB97.1 达克锈 Washer
31 A820205000894 2 接头 Fitting
32 A230101000247 8 O形圈 O-ring 10.9×2.3(JISB2401)
33 A820205002445 7 G1/4-M16接头 Fitting
34 B230101000047 10 O形圈 O-ring
35 B210780000636 12 直角组合接头 Fitting, Elbow
36 11287446 20 G3/8-M16接头 Fitting
37 B230101000049 20 O形圈 O-ring
38 60173491 3 过滤接头 Filter joint
39 A210111000101 4 螺栓M12×25GB5783 10.9级 Bolt
40 12348467 2 七管夹 7-tube clamp

41 11050165 2 手柄 Handle, grip
42 A229900006438 2 插入件 Insert, switch
43 60046659 2 按钮开关 Button Switch
44 A210264000022 2 自攻螺钉 Screw, self-tapping
45 B229900001613 1 左手柄 Joystick , left
46 A210308000006 2 螺母 Nut
47 A210307000002 2 螺母 Nut
48 A229900006446 2 罩 Joystick, rubber cover
49 A229900001028 2 罩 Joystick, rubber cover
50 A229900001027 2 板 Plate
51 B229900001614 1 右手柄 Joystick, right
52 B210780000148 6 端直通接头 Stud Straight Connector
53 12009972 1 脚踏阀垫板总成右 Right backup plate of pedal Asy.
54 12003641 1 脚踏阀垫板总成左 Left backup plate of pedal
55 12009258 1 蝶形脚踏垫板套 Backup sleeve of pedal
56 12010268 1 脚踏阀垫板套右 Backup sleeve of pedal
57 A210204000334 4 螺钉M10×16GB70.1 10.9级 Bolt, socket head
58 23000066 4 螺钉 Screw
60 A210111000197 4 螺栓 Bolt
61 A210111000012 4 螺栓 M10×20GB5783 10.9级 Bolt

62	21001328	12	垫圈                                       Washer
63	24002251	8	螺钉M6×25GB70.1 10.9级         Screw M6×25GB70.1 Grade 10.9

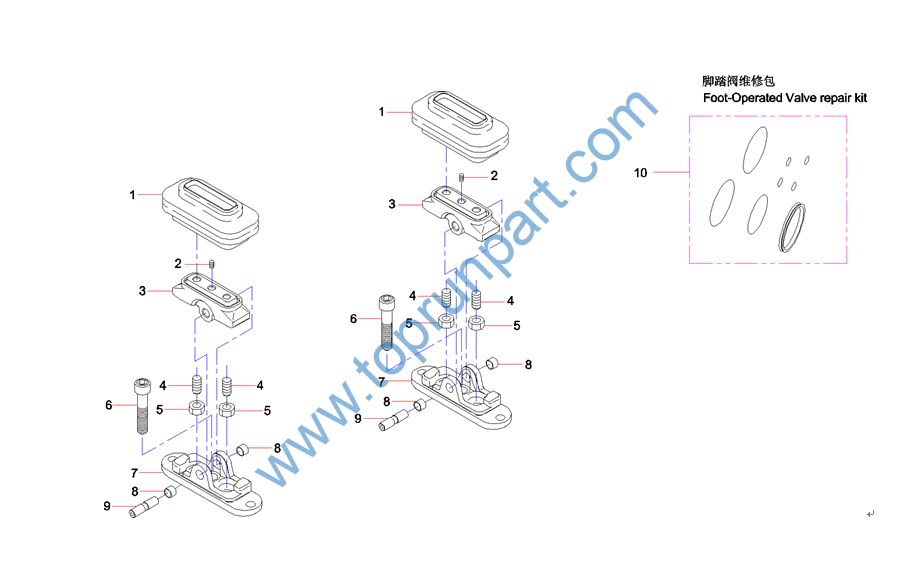

1 60319776 2 护罩 Bellows
2 60038339 2 定位螺栓 Bolt, positioning
3 60008591 2 凸轮 Mount, upper
4 60008592 4 调整螺杆 Screw, adjusting
5 60038480 4 螺母 Nut
6 60319777 2 螺栓 Set screw
7 60319778 2 盖 Cover
8 60038181 4 衬套 Sleeve
9 60008585 2 凸轮轴 Shaft
10 60340389 1 脚踏阀维修包 Foot-Operated Valve repair kit

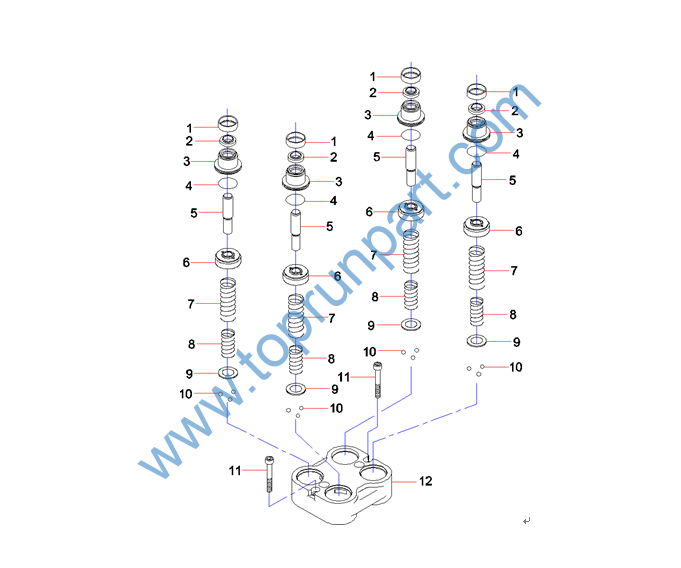

1 60008754 4 盖 Cover
2 60008776 4 防尘圈 Dust ring
3 60163768 4 堵 Plug
4 60038720 4 O形圈 O-ring
5 60319779 4 推杆 Rod
6 60008803 4 活塞 Piston
7 60008767 4 弹簧 Spring
8 60008766 4 弹簧 Spring
9 60008756 4 弹簧座 Seat, spring
10 60038140 12 轴承钢珠 Bearing, ball
11 60038563 2 内六角螺钉 Screw, socket head
12 60319780 1 外壳(阻尼器) Casing（damper）

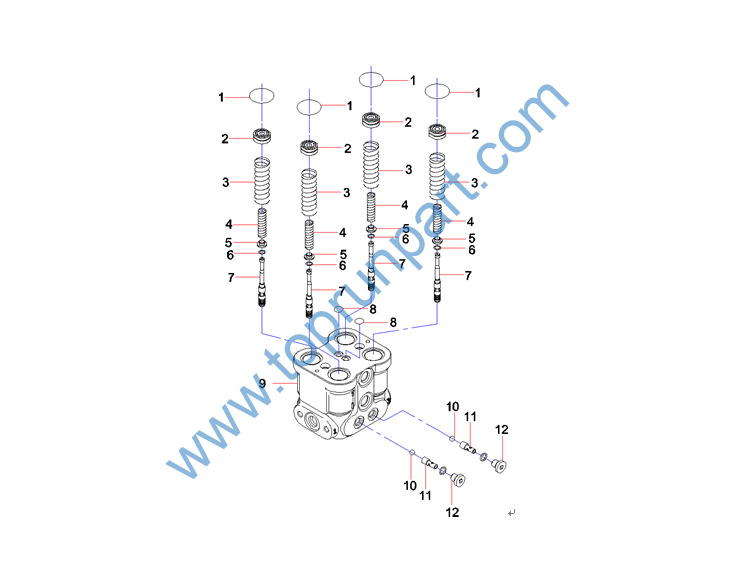

1 60038820 4 O形圈 O-ring
2 60237080 4 弹簧座 Seat, spring
3 60038221 4 弹簧 Spring, large
4 60008594 4 弹簧 Spring, small
5 60008589 4 垫圈 Washer
6 60008597 4 垫圈 Washer
7 60273528 4 阀芯 Spool
8 60038727 2 O形圈 O-ring
9 60273523 1 壳体 Valve, travel, pilot
10 60038139 2 轴承钢珠 Bearing, ball
11 60319781 2 座 Seat
12 60319782 2 螺塞 Plug

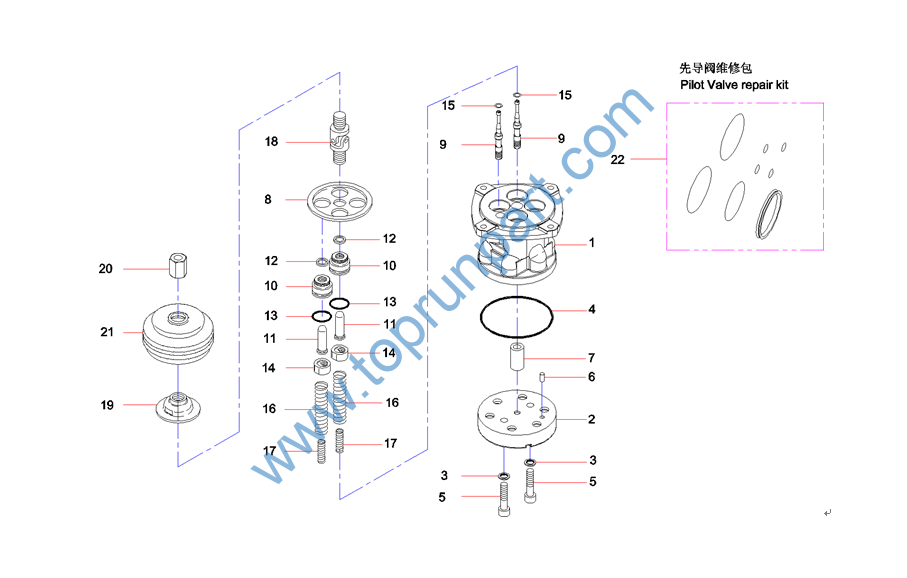

1 60008795 1 壳体 Housing
2 60008810 1 油口接板 Plate, connecting
3 60008598 2 密封垫圈 Washer, seal
4 60008799 1 O形圈 O-ring
5 60008786 2 内六角螺钉 Bolt, socket head
6 60038259 1 弹簧销 Pin, spring
7 60008806 1 衬套 Sleeve
8 60037936 1 板 Plate
9 60008760 4 滑轴 SPOOL
10 60221602 4 堵头 Plug
11 60008599 4 推动杆 Rod
12 60230199 4 密封圈 SEAL
13 60221603 4 O形圈 O-ring
14 60008758 4 弹簧座 Seat, spring
15 60008597 4 垫圈 Washer
16 60008774 4 弹簧 Spring, large
17 60008775 4 弹簧 Spring
18 60008602 1 接头 Shaft
19 60008809 1 圆板 Plate, circular
20 60038479 1 螺母 Nut

21 60192531 1 橡胶罩 Cover, rubber
22 60340388 1 先导阀维修包 Pilot Valve repair kit
