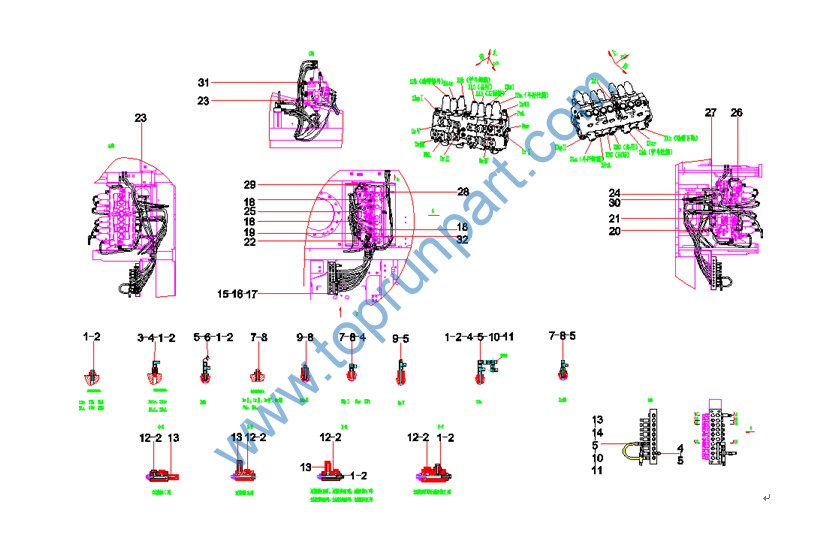

1 11287446 24 G3/8-M16接头 Fitting
2 B230101000049 42 O形圈 O-ring
3 A220401000609 4 单向节流阀 One-Way Throttle
4 B210780000636 12 直角组合接头 Fitting, Elbow
5 B210780000015 6 三通组合L型接头 Fitting, Tee
6 B210780001658 1 管接头 Pipe connector
7 A820205002445 11 G1/4-M16接头 Fitting
8 B230101000047 13 O形圈 O-ring
9 13106800 2 G1/4-M16加长接头 G1/4-M16connector
10 B210780001404 3 直通组合接头 Fitting, Elbow
11 B220401000316 2 三通梭阀 Three-way shuttle valve
12 A820205000947 14 堵头 G3/8 jam-SY200A.1.4.3-5
13 60217141 9 压力传感器 Sensor, pressure
14 11287448 1 继电器接头 Relay adapto
15 10077269 1 过渡块 Transitional block
16 A210110000437 4 螺栓M12×65GB5782 10.9级 Bolt M12×65GB5782 Grade 10.9
17 24000513 4 垫圈12GB93 达克锈 Washer
18 B230103003304 3 胶管 Rubber Hose 1SN8-DKOL-
19 21003903 1 胶管 Rubber Hose
20 B230103004127 1 胶管 Hose Assembly

21 21027563 1 胶管 Hose Assembly
22 60211152 1 胶管 rubber hose
23 B230103000694 2 胶管 Hose Assembly
24 B230103000076 1 胶管 Hose Assembly
25 B230103000162 1 胶管 Hose Assembly
26 60268616 1 胶管 Hydraulic Hose Assembly
27 A831313045000 1 胶管 Hose Assembly
28 60183227 1 胶管 rubber hose
29 A831313055000 1 胶管 Hose Assembly
30 B230103000610 1 胶管 Rubber hose
31 21020624 1 胶管 Hose Assembly
32 B230103000037 1 胶管 Hose Assembly

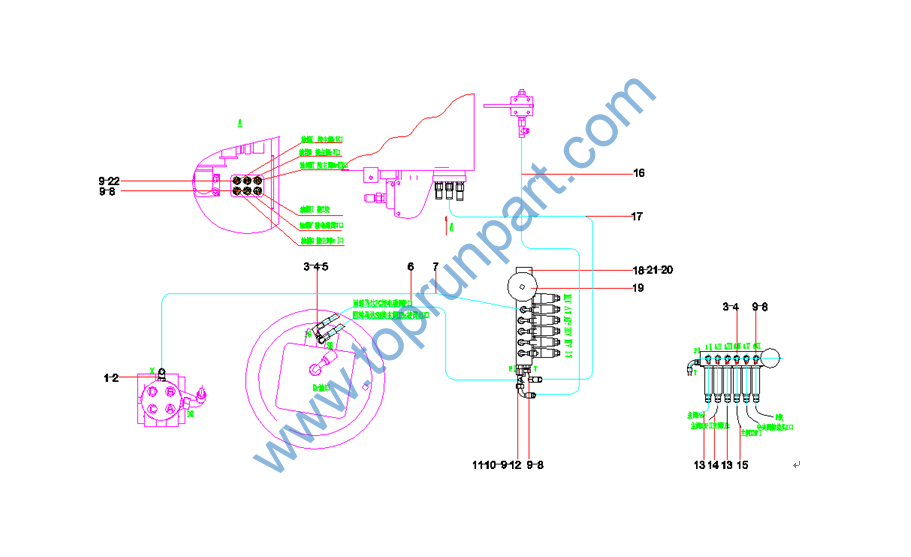

1 A820205001148 1 M14-M16接头 Adaptor
2 A230101000247 1 O形圈 O-ring 10.9×2.3(JISB2401)
3 A820205002445 7 G1/4-M16接头 Fitting
4 B230101000047 7 O形圈 O-ring
5 B210780000636 2 直角组合接头 Fitting, Elbow
6 B230103000731 1 胶管 Rubber Hose
7 21017396 1 胶管 Hose Assembly
8 A820205000961 4 G3/8-M18接头 Connector
9 B230101000049 9 O形圈 O-ring
10 B210780000016 1 三通组合L型接头 Fitting, Tee
11 B210780000683 1 对接式变径接头 Fitting, Adapter
12 12395992 1 G3/8-M18过滤接头 Filter joint
13 B230103000189 2 胶管 Hose Assembly
14 B230103001082 1 胶管 Hose Assembly
15 B230103000855 1 胶管 Rubber hose
16 60251367 1 胶管 rubber hose
17 B230103004806 1 胶管 Rubber hose
18 60136331 1 六联电磁换向阀组 Solenoid valve group
19 60265303 1 隔膜式蓄能器 Accumulator
20 A210204000345 2 螺钉M10×70GB70.1 10.9级 Bolt

21 21001328 2 垫圈 Washer
22 11287446 4 G3/8-M16接头 Fitting

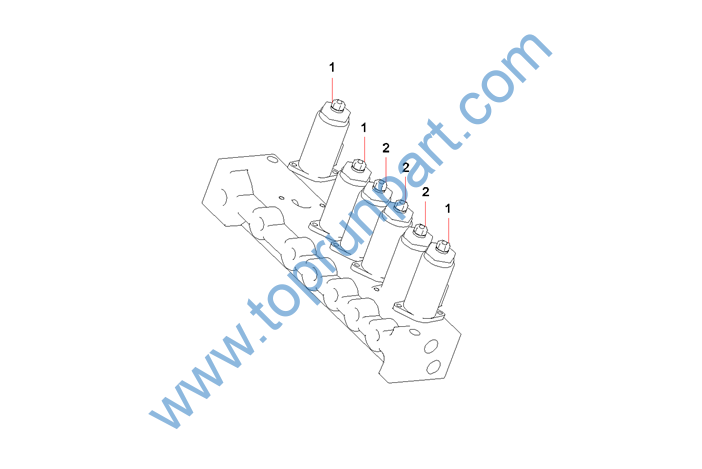

1 60065224 3 电磁切换阀 Solenoid, valve on/off
2 60065222 3 减压阀KDRDE5K-31/30C50-122( Pressure Reducing Valve

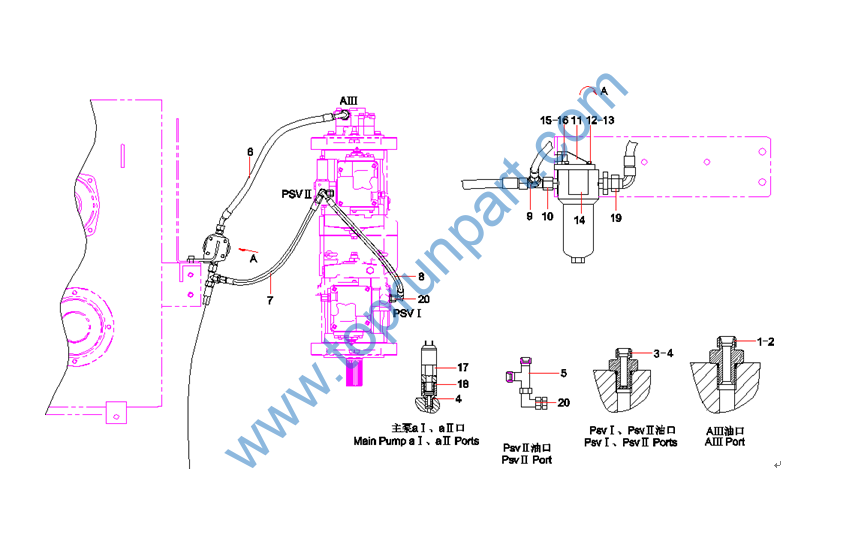

1 A820205000941 1 接头 Connector, straight
2 B230101000090 1 O形圈 O-ring
3 60020078 2 过滤接头 Fitting, screen
4 B230101000047 4 O形圈 O-ring
5 B210780000170 1 管接头 Fitting
6 60207478 1 胶管 Hose Assembly
7 B230103002718 1 胶管 Rubber Hose
8 21018549 1 胶管 Rubber Hose
9 B210780000827 1 管接头 Fitting
10 B210780000016 1 三通组合L型接头 Fitting, Tee
11 12861976 1 支架 Supporting Plate
12 24000511 4 垫圈8GB93 达克锈 Washer
13 A210204000220 4 螺钉M8×20GB70.1 10.9级 Screw
14 B229900000063 1 液压油过滤器 Filter, pilot AS
15 A210111000202 2 螺栓 Bolt
16 A210491000121 2 垫圈 Washer
17 60217140 2 压力传感器 Sensor, pressure
18 A820205001513 2 G1/4-G3/8接头 Connector
19 B210780000024 1 直角组合接头 Fitting, Elbow
20 B210780000418 2 管接头 Fitting

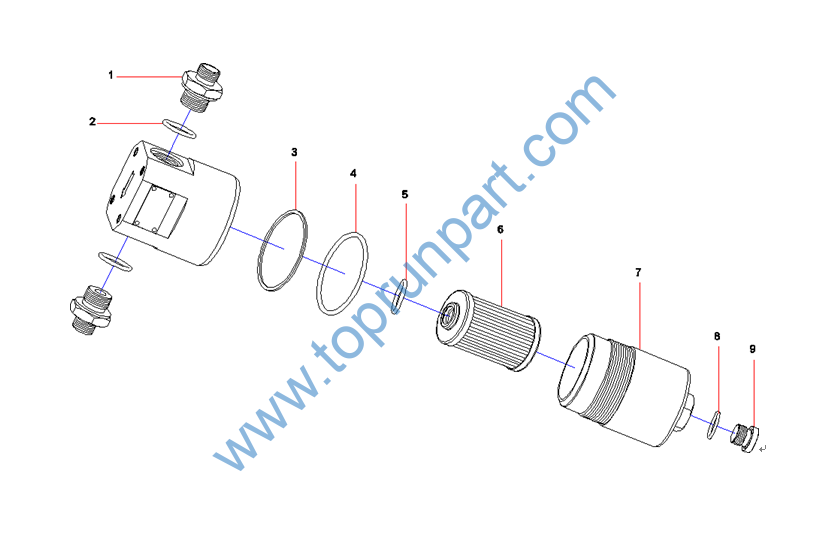

1 60294881 2 管接头 Fitting
2 29010015 2 O形圈 O-ring
3 60294882 1 密封垫 Ring, back up
4 A230101000563 1 O形密封圈 O-ring
5 24002612 1 O形圈 O-ring
6 A222100000119 1 先导滤芯 Filter, pilot
7 60294883 1 壳体 Housing
8 21000077 1 O形圈 O-ring
9 60294884 1 螺塞 Plug

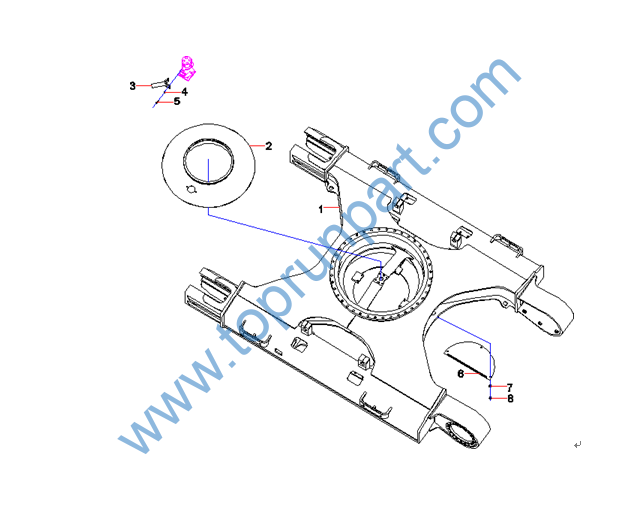

1 变更或见其他配置 1 履带架 Track Frame
2 A810401990192 1 黄油池 seal module SY420.45.3
3 12804286 1 止动座 Stopping seatSY420.13.4.1.2
4 24000513 4 垫圈12GB93 达克锈 Washer
5 A210111000204 4 螺栓 Bolt
6 变更或见其他配置 2 盖板总成 Belly pan SY365C8I2K.2B.3
7 变更或见其他配置 6 加厚垫片 Thickening Washer
8 变更或见其他配置 6 螺栓M16×35GB5783 10.9级 Bolt

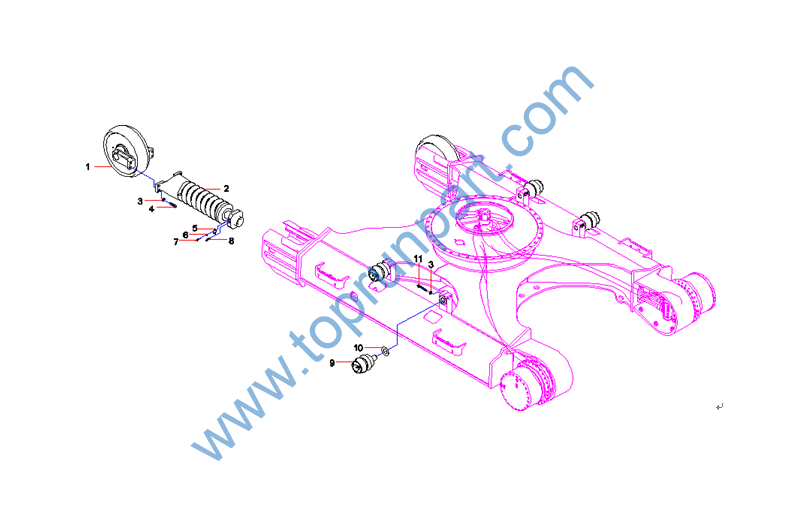

1 60263596 2 引导轮 Track idler
2 60355363 2 张紧装置 Tensioning Equipment
3 A210491000132 16 垫圈 Washer
4 A210110000201 8 螺栓M20×80GB5783 10.9级 Bolt
5 A820101010372 2 支板 Shoe, triple grouser
6 24000513 2 垫圈12GB93 达克锈 Washer
7 A210111000101 2 螺栓M12×25GB5783 10.9级 Bolt
8 B229900000862 2 黄油阀 Grease Valve
9 12123787 4 托链轮总成 Carrier Sprocket Wheel Assy
10 10167597 8 垫片 Spacer
11 变更或见其他配置 8 螺栓 Bolt
