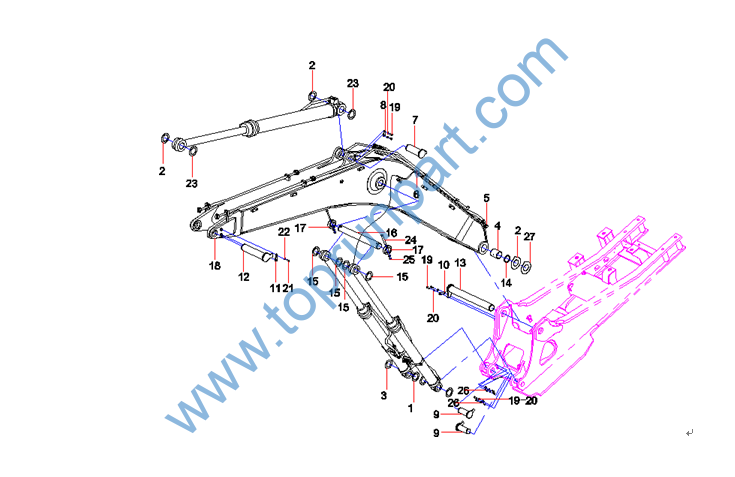

1 A820102010390 2 垫片 Spacer
2 A820102010676 9 垫片 Adjusting Spacer
3 A820102010389 4 垫片 Spacer
4 11306936 2 轴套 Shaft Sleeve SY300.3-14B
5 13443458 1 工作装置管路(2.9m斗杆) Work device Tube
6 11352533 1 润滑油路 Lubricating circuit SY365C8I2K.3.7
7 A810303990037 1 销轴 PinSY300.3.15
8 A820101211710 1 压板 Clamp
9 13562517 2 销轴 Pin
10 11274177 1 压板 Board
11 10951430 1 压板 Clamp
12 14052565 1 销轴 Pin SY365CDI3K.3.9A
13 13562518 1 销轴 Pin
14 B230101000534 2 ME-2防尘圈 Dust Ring
15 A820101040453 12 垫片 Spacer
16 13039467 1 销轴 PinSY365CCI2KH.3-8
17 A820101211704 2 挡片 PlateSY300.3-7
18 14023685 1 动臂 Boom
19 A210111000212 8 螺栓M16×35GB5783 10.9级 Bolt
20 A210491000118 8 垫圈 High-strength steel washer

21 A210111000289 2 螺栓M20×45GB5783 10.9级 Bolt
22 A210491000132 2 垫圈 Washer
23 A820102010761 2 垫片 Spacer
24 A210110000347 2 螺栓M20×200GB5782 10.9级 Bolt-M20
25 A210307000029 4 螺母 Nut
26 11274145 2 压板 Clamp
27 A820101041077 2 垫片 Spacer

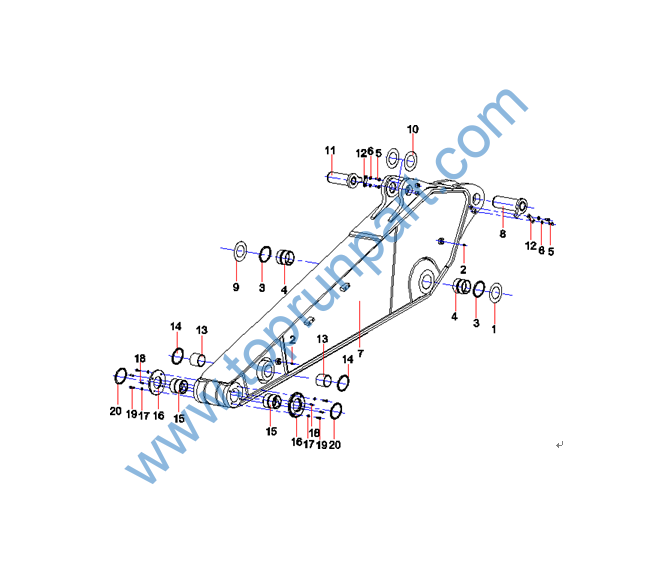

1 A820102010760 5 垫片 Spacer
2 A210804000002 4 黄油嘴 Fitting, Grease
3 B230101000534 2 ME-2防尘圈 Dust Ring
4 11644425 2 轴套 Shaft Sleeve SY365C8I2K.3-2
5 A210111000212 4 螺栓M16×35GB5783 10.9级 Bolt
6 A210491000118 4 垫圈 High-strength steel washer
7 14023905 1 斗杆 Arm
8 A810303990035 1 销轴 PIN
9 A820102010744 2 垫片 Spacer
10 A820102010387 7 垫片 Gasket
11 A810303990033 1 销轴 PinSY300.3.11
12 A820101211710 2 压板 Clamp
13 A820202003323 2 轴套 Bushing
14 60055872 2 DLI防尘圈 O-ring
15 13624387 2 斗杆前支承轴套 Bushing
16 13673796 2 耐磨环 Abrasion Proof Ring
17 24000513 4 垫圈12GB93 达克锈 Washer
18 13124496 4 定位销 Locating Pin
19 A210204000337 4 螺钉M12×30GB70.1 10.9级 Screw
20 60044257 2 MCS防尘圈 Seal, Dust

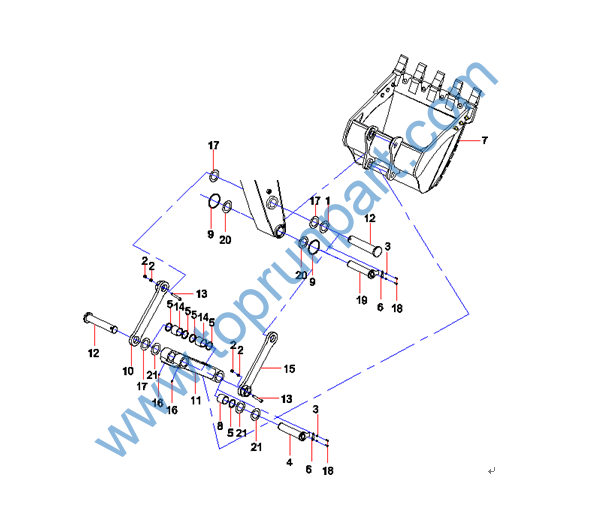

1 A820102010387 2 垫片 Gasket
2 A210307000029 4 螺母 Nut
3 A210491000118 4 垫圈 High-strength steel washer
4 13124497 1 销轴 Pin ShaftSY365CEI2KH.3.9
5 60055872 6 DLI防尘圈 O-ring
6 13619666 2 盖板 Plate
7 13756172 1 铲斗总成 Bucket assem(1.6)
8 A820202003323 2 轴套 Bushing
9 A210609000343 2 O形圈 O-ring
10 13996579 1 右摇杆 Right rocker
11 13996309 1 连杆 Connecting bar
12 A810303990032 2 销轴 PinSY300.3.10
13 A210110000352 2 螺栓 M20×180GB5782 10.9级 Bolt-M20×180
14 A820202003321 2 轴套 Bushing
15 13996578 1 左摇杆 Left rocker
16 A210804000002 3 黄油嘴 Fitting, Grease
17 11472100 2 垫片 Spacer
18 A210111000212 4 螺栓M16×35GB5783 10.9级 Bolt
19 13623374 1 销轴 Lock pin
20 A820101040453 4 垫片 Spacer

21 A820102010390 7 垫片 Spacer

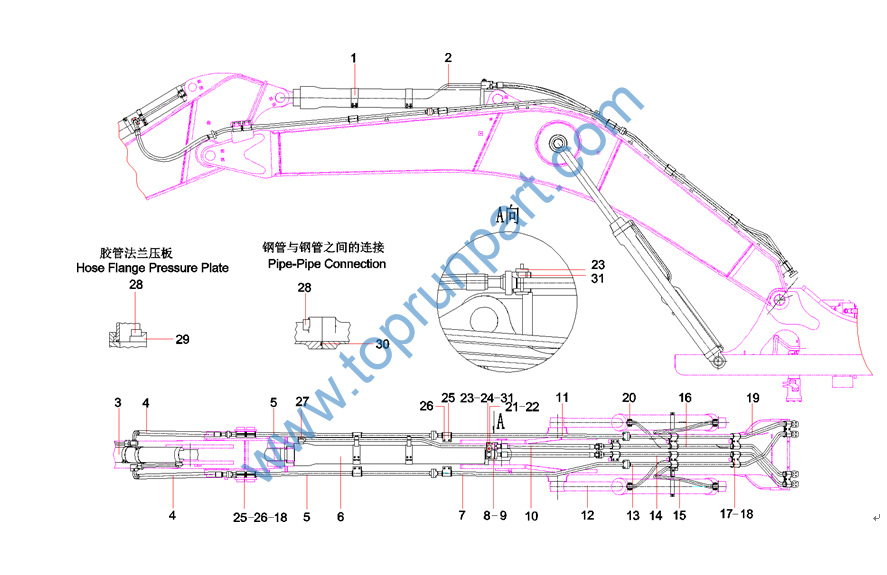

1 13519281 2 管卡组合 Pipe Clip Combination
2 12919046 1 钢管总成 Steel Pipe Assy.
3 13527618 1 铲斗油缸总成 Bucket cylinder assembly
4 60062816 2 胶管 Rubber Hose
5 13727799 2 铲斗右钢管总成 steel tube assembly 3(right bucket)
6 60216115 1 斗杆油缸 arm clinder
7 12187463 1 铲斗左钢管总成 steel tube assembly 2 (left
8 11163375 1 过渡块 Transitional
9 B230101000456 3 O形圈 O-ring
10 60041738 2 胶管 Rubber Hose
11 12188247 1 铲斗右钢管总成 steel tube assembly 2 (right
12 60318120 2 动臂油缸 Boom Cylinder
13 12384594 1 铲斗左钢管总成 steel tube assembly 1 (left
14 12384418 1 斗杆左钢管总成 steel tube assembly (head of
15 13611495 1 左动臂油缸管路 Left boom oil cylinder pipeline
16 12384334 1 斗杆右钢管总成 steel tube assembly (rod of
17 13661254 12 双管夹 Clamp
18 11168201 22 衬垫 Cushion
19 12384565 1 铲斗右钢管总成 steel tube assembly 1 (right
20 13611481 1 右动臂油缸管路 Right boom oil cylinder pipeline

21 11285250 1 U型螺栓 U-Bolt
22 A210307000031 4 螺母M12GB6170 10级 Nut
23 13706828 1 支板 plate
24 A210110000384 4 螺栓M12×110GB5782 10.9级 Bolt
25 13661242 20 管夹 Clamp
26 A210111000106 64 螺栓 Bolt
27 A210204000462 4 螺钉M12×45GB70.1 10.9级 Bolt
28 A210204000353 48 螺钉M14×50GB70.1 10.9级 Screw
29 B210780000693 16 对开法兰 Flange, Split
30 B230101000578 4 O形圈 O-ring
31 13706831 1 垫块 block

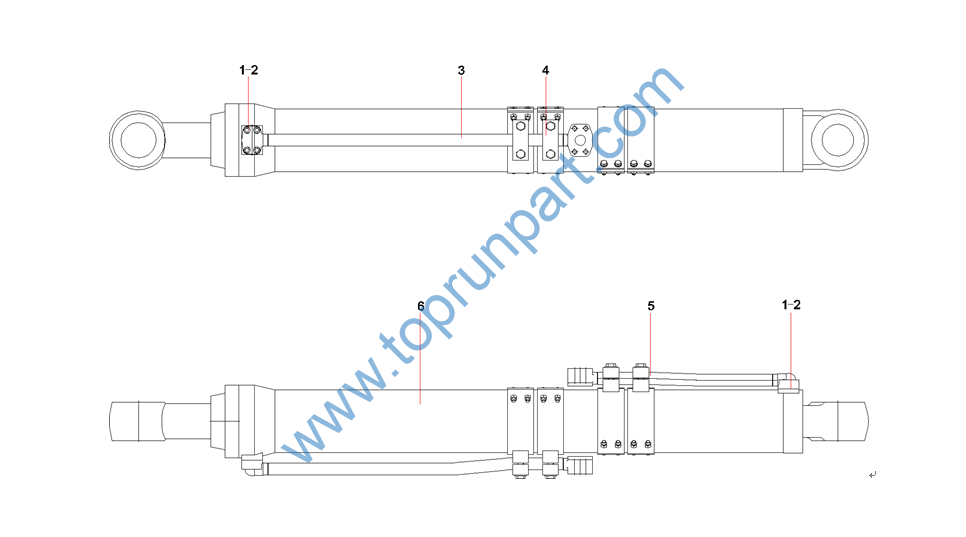

1 A210204000462 8 螺钉M12×45GB70.1 10.9级 Bolt
2 B230101000456 2 O形圈 O-ring
3 12194032 1 钢管总成 steel tube
4 13519329 4 管夹组合 Pipe Clip Combination
5 12193530 1 钢管总成 steel tube assembly
6 60117473 1 铲斗油缸 Bucket Oil Cylinder

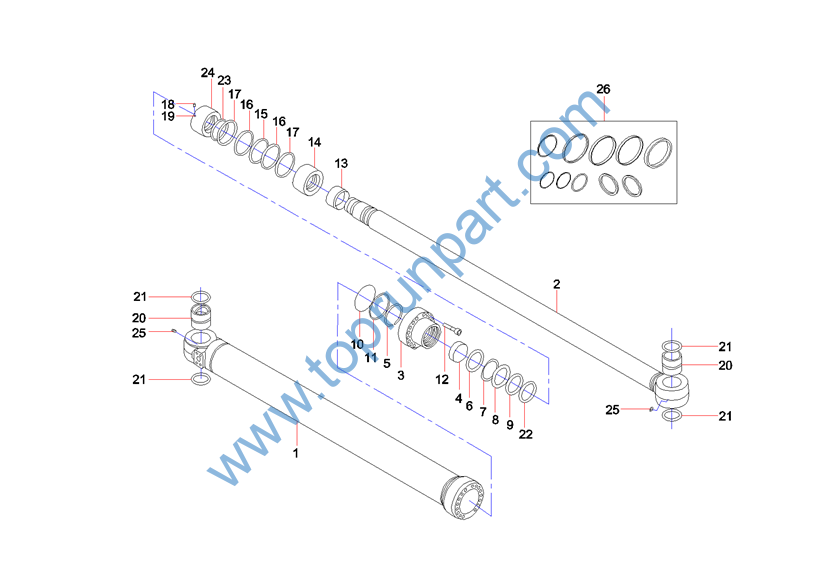

1 60154008 1 缸体 cylinder body
2 60154018 1 活塞杆 piston rod
3 60154000 1 端盖 end cover
4 60154009 1 滑动轴套 Sleeve, sliding
5 60153990 1 挡圈 Ring, retaining
6 60065204 1 缓冲圈 Buffer ring
7 60154049 1 轴用密封圈 Seal Ring
8 60154022 1 开口挡圈 Retaining Ring
9 60065342 1 防尘圈 Ring, dust
10 60154033 1 O形密封圈 O-ring
11 60153987 1 O形圈挡圈 O-ring
12 60022043 14 螺钉 Screw
13 60065206 1 缓冲套 Sleeve, buffer
14 60154014 1 活塞 piston rod
15 60154044 1 孔用密封圈 Seal
16 60154036 2 成型导向环 Guide ring
17 60153984 2 纳污环 RING
18 24000487 1 螺钉 Bolt
19 21010039 1 钢球 Ball, Steel
20 60044359 2 轴套 Sleeve, shaft

21 60044361 4 防尘圈 Ring, dust
22 60065242 1 挡圈 Ring, retaining
23 60153995 1 垫片 washer
24 60154028 1 螺母 Nut
25 A880899010003 2 直通式压注油杯 Oil cup, forced filling, straight-flow
26 60085580 1 铲斗油缸维修包 Kit,repair,oil cylinder

1 60306238 1 活塞杆 rod
2 60306237 1 端盖 end closure
3 60306236 1 缸体 cylinder body
4 61021245 1 缓冲套 Bumper Sleeve
5 60306235 1 活塞 piston
6 61021244 1 缓冲柱 Buffer device
7 60342893 1 阀芯 Valve core
8 60357943 1 弹簧 Spring
9 60342891 1 螺堵 Plug
10 60305766 1 防尘圈 Wiper scraper seal
11 60193819 1 防尘圈用挡圈 Ring, dust
12 60305764 1 杆用密封圈 obturating ring
13 60305765 1 开口挡圈 Closing ring
14 61021243 1 缓冲圈 Ring buffer
15 60348500 14 内六角圆柱头螺钉 Screw
16 61021242 1 滑动轴套 Sliding shaft sleeve
17 60305763 1 孔用钢丝挡圈 closing ring
18 60154035 1 O形圈 O-ring
19 60305762 1 O形圈挡圈 closing ring
20 60306233 1 缓冲环 Cushion ring

21 60305760 2 导向环 Guide ring
22 60305759 1 孔用密封圈 obturating ring
23 60305758 2 纳污环 dirt ring
24 60325552 1 圆柱销 Cylindrical Pin
25 60305774 11 钢球 Steel ball
26 60325553 1 内六角平端紧定螺钉 Screw
27 60305773 1 O形圈 O-ring
28 60325554 4 防尘圈 Dust Ring
29 60305756 2 直通式压注油杯 Oil cup
30 60342835 2 测压堵头 Plug
31 61021241 1 橡胶垫片 Rubber Washer
32 61021240 1 油口盖板 Cover Plate
33 61010221 8 内六角圆柱头螺钉 Inner Hexagon Screw
34 61021239 1 橡胶垫片 Rubber Washer
35 61021238 1 油口盖板 Cover Plate
36 60306229 4 C型轴套 steel jacket
