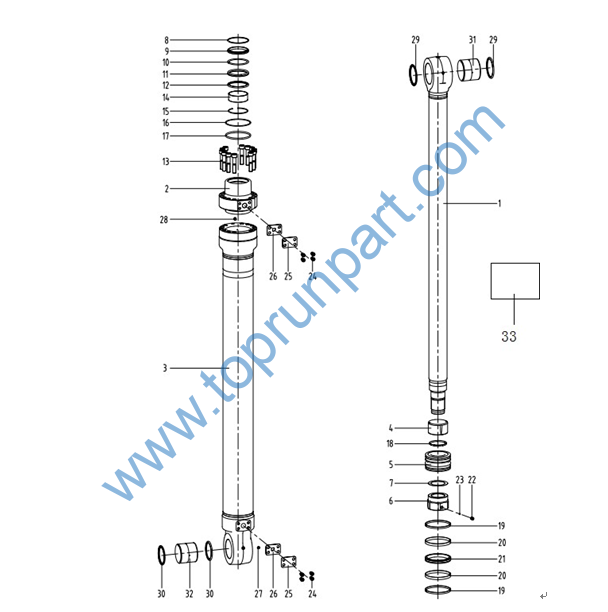

1 61010745 1 活塞杆 Piston rod
2 61010746 1 端盖 End cover
3 61010747 1 缸体 Oil cylinder body
4 61010748 1 缓冲套 Bumper sleeve
5 60306252 1 活塞 piston
6 60154028 1 螺母 Nut
7 60174451 1 垫片 Gasket
8 60306251 1 防尘圈 wiper scraper seal
9 61010211 1 防尘圈挡圈 Retainer Ring
10 60306250 1 开口挡圈 obturating ring
11 60306249 1 杆用密封圈 obturating ring
12 61010212 1 缓冲圈 Buffer Ring
13 61010749 12 内六角圆柱头螺钉 Nut
14 61010750 1 滑动轴套 Sliding shaft sleeve
15 60306248 1 孔用钢丝挡圈 closing ring
16 60306247 1 O形圈挡圈 closing ring
17 60306246 1 O形圈 O-ring
18 61010751 1 缓冲环d100/φ96(开口 Buffering ring
19 60306244 2 纳污环 dirt ring
20 60306243 2 导向环 guide ring

21 60306242 1 孔用密封圈 obturating ring
22 61010215 1 内六角平端紧定螺钉 Fastening Screw
23 21010039 1 钢球 Ball, Steel
24 61010221 8 内六角圆柱头螺钉 Inner Hexagon Screw
25 61010219 2 橡胶垫片 Rubber Washer
26 61010220 2 油口盖板 Cover Plate
27 60305756 1 直通式压注油杯 Oil cup
28 60342835 1 测压堵头 Plug
29 60305754 2 DLI耳轴防尘圈 wiper scraper seal
30 61010222 2 DLI耳轴防尘圈 Wiper Scraper Seal
31 61010752 1 石墨铜套 Copper sleeve
32 61010753 1 石墨铜套 Copper sleeve
33 61010744 1 30T动臂油缸维修包 30T Movable boom cylinder repair

13764870 1 左小腔钢管总成 Left locular steel tube assembly
13519358 1 管卡组合 pipe clip combination
13867815 1 左动臂钢管总成 Right large-lumen steel
B230101000456 2 O形圈 O-ring
A210204000462 8 螺钉M12×45GB70.1 10.9级 Bolt

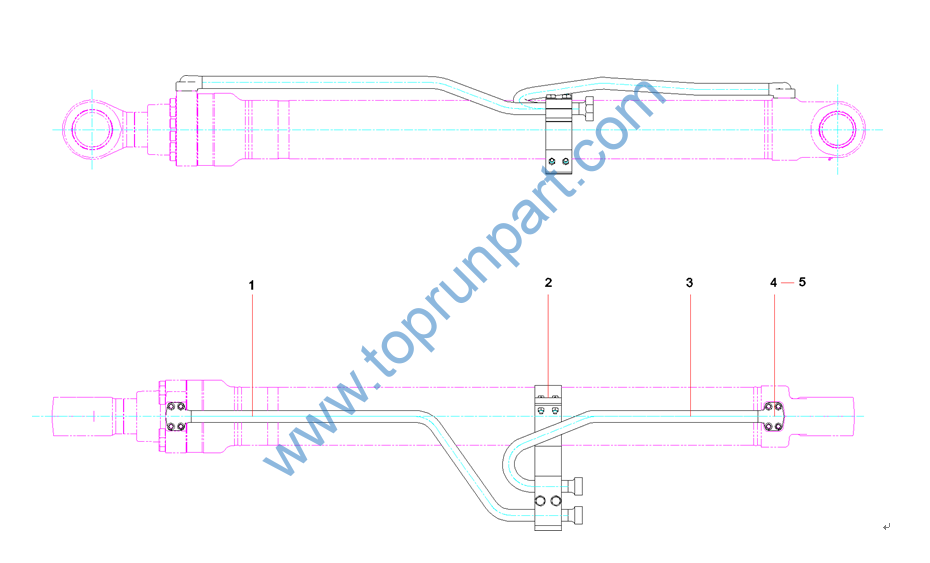

1 13764792 1 右小腔钢管总成 Left locular steel tube assembly
2 13519358 1 管卡组合 pipe clip combination
3 13867766 1 右动臂大腔钢管总成 Steel tube assembly
4 B230101000456 2 O形圈 O-ring
5 A210204000462 8 螺钉M12×45GB70.1 10.9级 Bolt

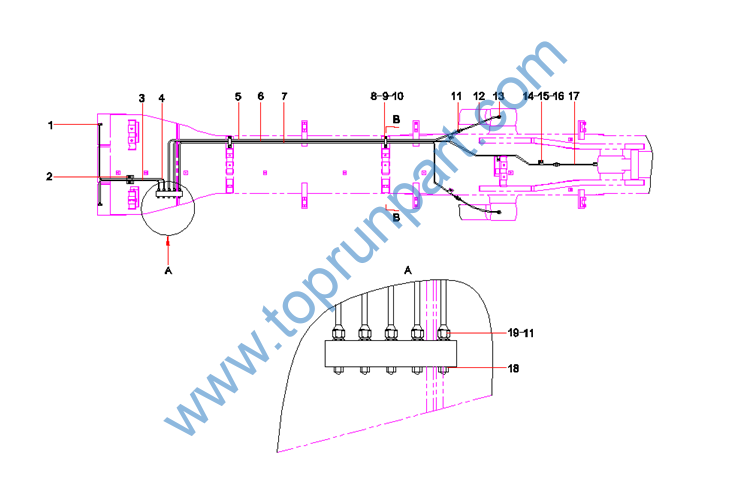

A229900006985 2 管接头 Pipe connector
11156457 1 压板 board
11766633 1 硬管 pipe
11766634 1 硬管 pipe
11940077 1 硬管 pipe
11940086 1 硬管 pipe
11940087 1 硬管 pipe
A820101211948 3 管夹 Pipe Clip
A210204000339 8 螺钉 bolt
24000633 8 垫圈8GB97.1 达克锈 Washer
A810201031035 8 过渡接头 Transitional Joint
B230103000811 2 胶管 Hose
A820205000858 3 管接头 Fitting
A820101211947 4 管夹 Pipe Clip
A210204000334 4 螺钉M10×16GB70.1 10.9级 Bolt, socket head
A210491000120 4 垫圈 Washer
B230103000815 1 胶管 Hose AS
A210804000002 5 黄油嘴 Fitting, Grease
A210434000007 5 垫圈 Washer

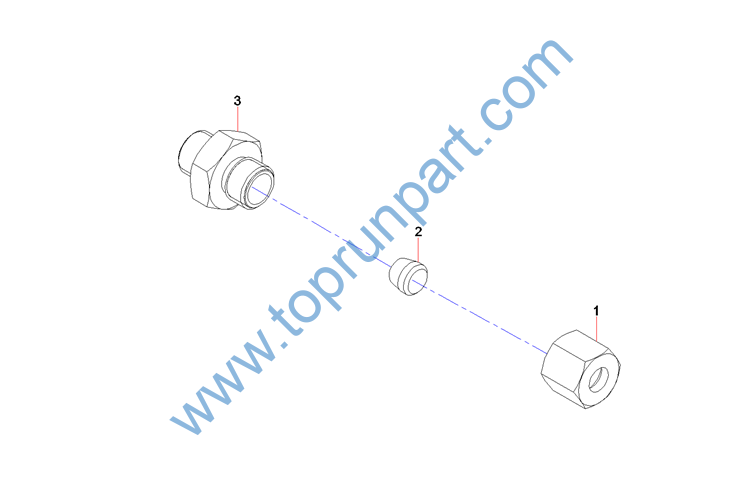

1 B210780000191 1 螺母 Pipe joint
2 B229900001092 1 特型卡套 Special cutting sleeve
3 A820205001235 1 管接头 Pipe joint

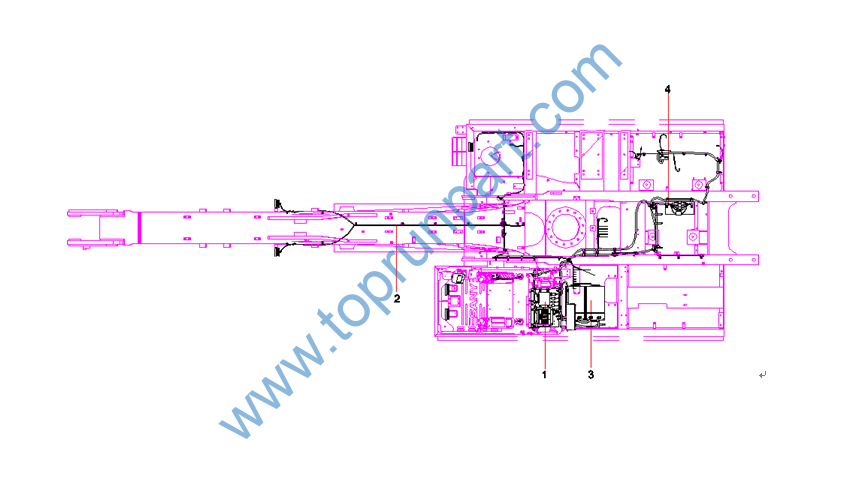

1 14185043 1 驾驶室电气装配 Cab Electrical Assembly
2 13560456 1 动臂电气装配 Boom Electrical Assembly
3 13560458 1 蓄电池装配 Accumulator Assembly
4 14185057 1 车身电气装配 Vehicle Body Electrical Assembly

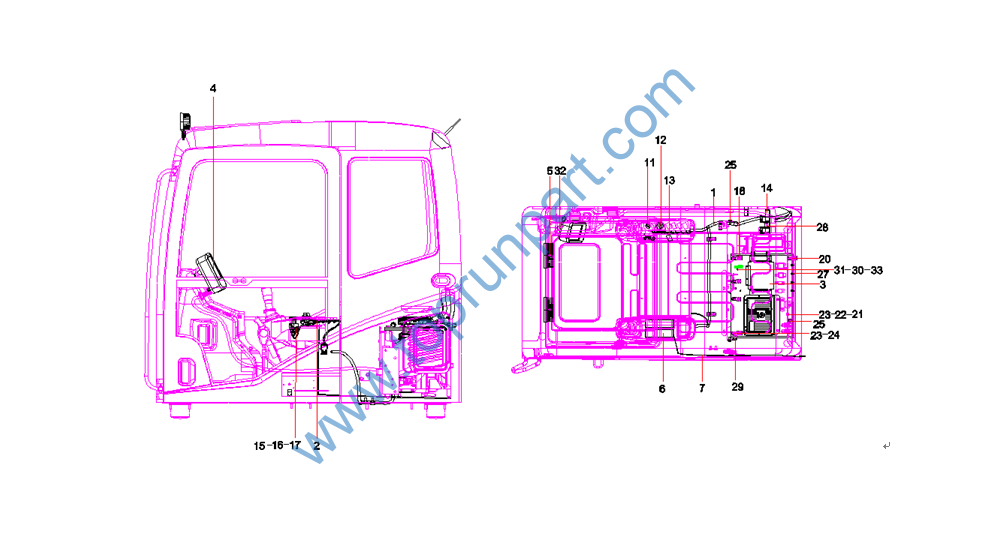

1 13534946 1 驾驶室线束 Driver’s Cab Harness
2 13534948 1 控制开关线束 control switch harness
3 14185021 1 电气底板装配 Electrical plate Assembly
4 13922836 1 三一显示屏密码匹配 Sany Encourage Control Display
5 60232826 2 车用工作灯 Working light
6 变更或见其他配置 1 收音机 Radio
7 60060300 1 天线延长线 Wire, antenna
11 A241200001217 1 启动开关 Switch, key
12 60117463 1 旋钮开关 Turn-Button Switch
13 变更或见其他配置 1 翘板开关 Rocker Switch
14 13266046 1 固定板 fixed plate
15 12025701 1 紧急停止开关 Emergency Stop Switch
16 60041443 1 开关保护罩 Switch Guard
17 11257436 1 摇头开关标志 Toggle switch Sign
18 60119587 2 线束固定夹 the fixity of line
20 60086355 6 线束固定夹 the fixity of line
21 A210111000343 3 螺栓M8×20GB5783 10.9级 Bolt
22 24000511 3 垫圈8GB93 达克锈 Washer
23 24000633 13 垫圈8GB97.1 达克锈 Washer
24 A210111000342 10 螺栓M8×16GB5783 10.9级 Bolt

25	A210111000195	3	螺栓	Bolt
27	A239900000065	10	尼龙扎带	Nylon belting
28	60041902	4	德弛插件90度固定金属附件	90 degree metal mounting bracket
29	A820606030056	1	护孔环	protecting ring
30	A210210000030	1	螺钉	Screw
31	60060562	1	垫圈4GB97.1 达克锈	Washer
32	24000514	1	垫圈16GB93 达克锈	Washer
33	A210491000120	2	垫圈	Washer

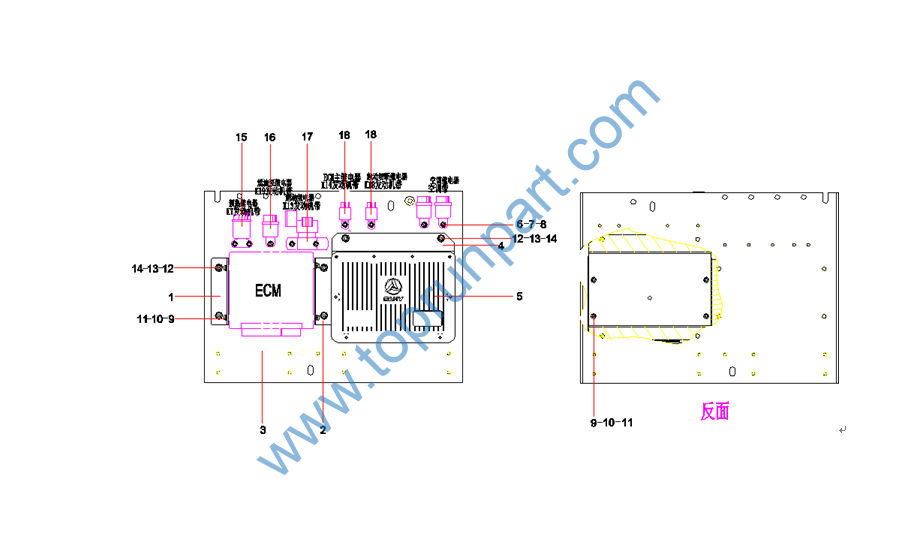

1	13537937	1	左固定板	Left Fixed Plate
2	13537936	1	右固定板	Right Fixed Plate
3	13538088	1	电气安装板	Installation plate for electrical
4	12791157	1	控制器转接板	Controller pinboardSY460R.5-17
5	14170930	1	三一可组态液压控制器SEHC-	Sany Encourage Hydraulic Control
6	A210210000030	9	螺钉	Screw
7	60060562	9	垫圈4GB97.1 达克锈	Washer
8	24000508	9	垫圈	Washer
9	A210204000130	8	螺钉	Screw
10	60060564	8	垫圈6GB93 达克锈	Washer
11	24000632	8	垫圈6GB97.1 达克锈	Washer
12	A210111000342	8	螺栓M8×16GB5783 10.9级	Bolt
13	24000633	8	垫圈8GB97.1 达克锈	Washer
14	24000511	8	垫圈8GB93 达克锈	Washer
