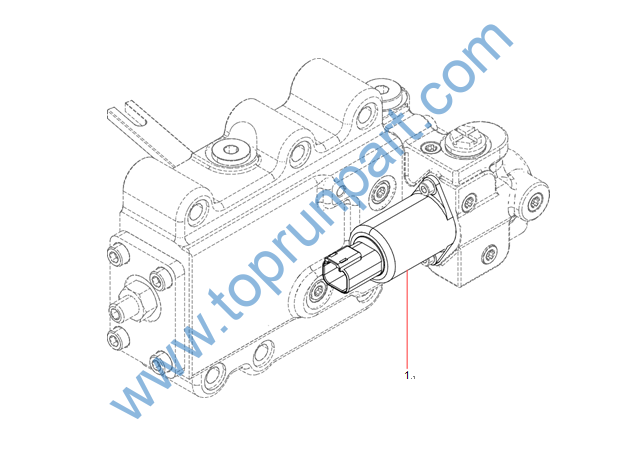

1 60329064 Electro-proportional Pressure Reducing Valve 1

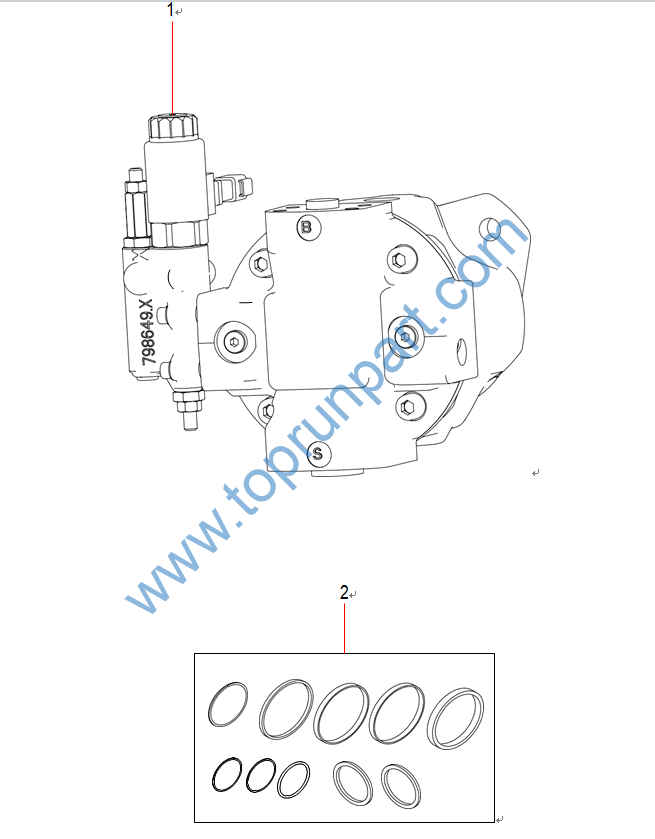

1 150188000196 Solenoid Valve – Plunger Pump 1
2 150188000195 service kit – plunger pump 1

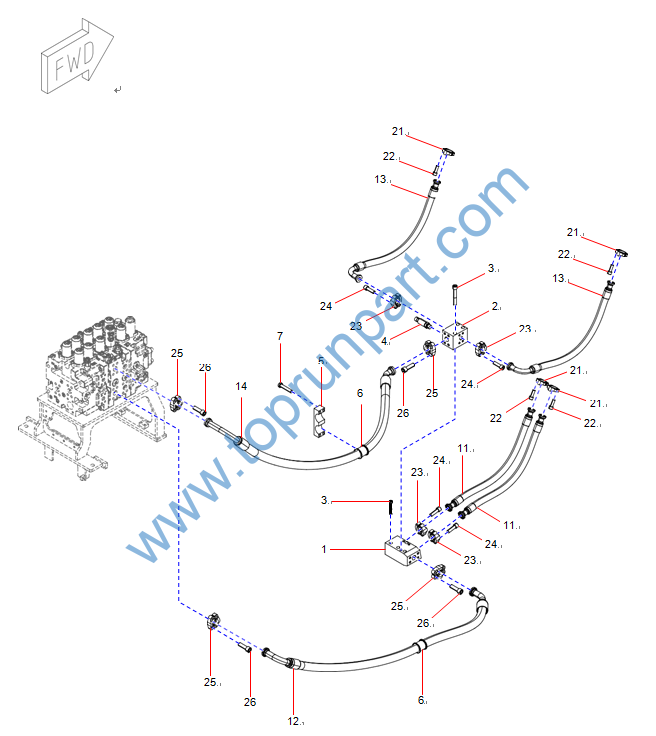

1 13304029 Block, Manifold 1
2 13304432 Transitional Block 1
3 A210204000360 Screw 7
4 60217140 Pressure Sensor 1
5 13306238 Latch Plate 1
6 13308536 Rubber Cushion 2
7 A210111000103 Bolt 4
11 60312024 Rubber Hose 2
12 60253567 Rubber Hose 1
13 60312023 Rubber Hose 2
14 60253566 Rubber Hose 1
21 B210780000244 Flange Joint 16
22 A210204000354 Screw 32
23 B210780000004 Flange Joint 24
24 A210204000338 Screw 48
25 B210780000693 Flange Joint 24
26 A210204000454 Screw 32

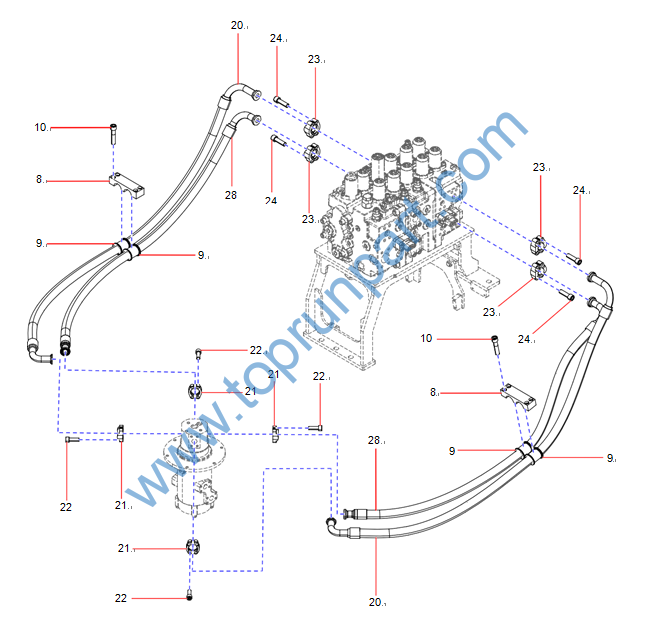

17 60253572 Rubber Hose 2
19 151009210046 Hose Assembly 1
25 B210780000693 Flange Joint 24
26 A210204000454 Screw 32
27 A210204000353 Screw 16
8 13307237 Pipe Clamp 2
9 11206203 Φ40 Rubber Cushion 4
10 21027533 Screw 8

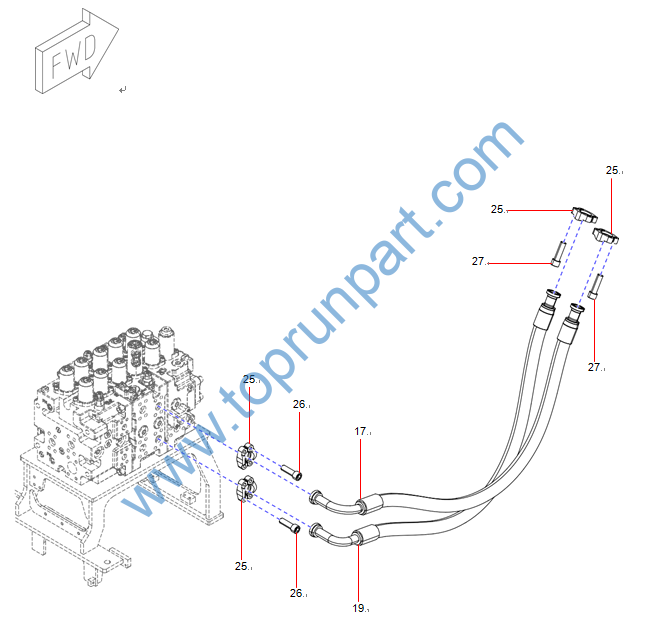

20 60253569 Rubber Hose 2
21 B210780000244 Flange Joint 16
22 A210204000354 Screw 32
23 B210780000004 Flange Joint 24
24 A210204000338 Screw 48
28 60253568 Rubber Hose 2

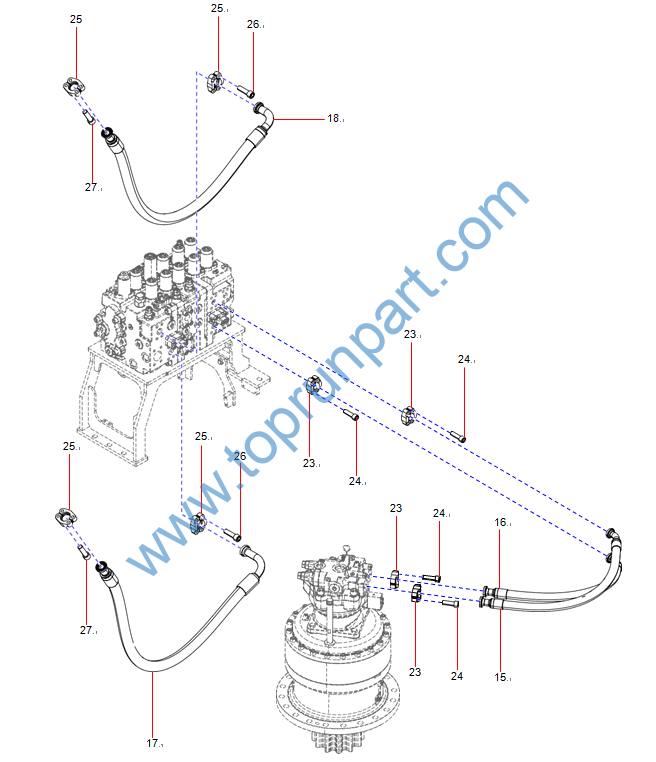

15 B230103007826 Rubber Hose 1
16 60278257 Rubber Hose 1
17 60253572 Rubber Hose 2
18 60171480 Rubber Hose 1
23 B210780000004 Flange Joint 24
24 A210204000338 Screw 48
25 B210780000693 Flange Joint 24
26 A210204000454 Screw 32
27 A210204000353 Screw 16
1 60253563 Rubber Hose Assembly 1
2 60253564 Rubber Hose 1
3 13303904 Tube, Oil Return 1
4 A210204000464 Screw 12
5 B230101000366 O-ring 4
6 13307360 Support, Tube 1
7 10106005 U-bolt 2
8 A210307000031 Nut 8
9 A210111000101 Bolt 3
10 13359718 Steel Pipe 1
11 13359605 Steel Pipe 1
12 60171840 Check Valve 1
13 A210204000462 Screw 8
14 A820205002389 G3/8-M18 Connector 1
15 B230101000049 O-ring 3
16 B210780000024 Elbow Combination Joint 1
17 A820205000942 Fitting 7
18 B230101000356 O-ring 9
19 60253577 Hose Assembly 1
20 B230103008148 Hose Assembly 1
21 B210780000028 Elbow Combination Joint 1
22 60253565 Hose Assembly 1
23 61029608 Hose Assembly 1
24 10165802 G3/4-M26-L45 Connector 1
26 B210780001310 Elbow Combination Joint 4
27 13544737 Main Oil Return Steel Pipe 1
28 A210110000197 Bolt 4
29 A210491000121 Washer 8
31 60335066 Hose Assembly 1
52 60273210 Check Valve 1
54 13307276 Bulkhead 1
55 B230101000578 O-ring 1
56 A210204000215 Screw 4
57 A820205000947 Plug 2
58 13422858 Rubber Protective Sleeve 2
60 13815985 Installation Plate 1
61 13422861 Transitional Installation Plate 1
62 21050781 Screw 4
63 A210608000098 O-ring 2
68 13631396 Bracket 1
