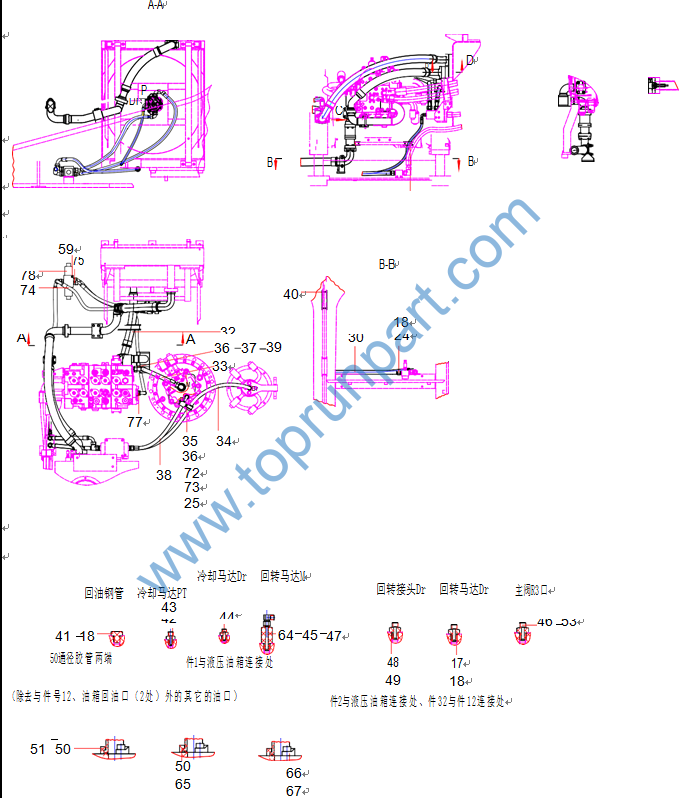

69 A210111000212 Bolt 2
70 A210491000118 Washer 2
76 60165875 Fitting 1
79 B230103004613 Rubber Hose 1
17 A820205000942 Fitting 7
18 B230101000356 O-ring 9
24 10165802 G3/4-M26-L45 Connector 1
25 A210111000343 Bolt 4
30 12753685 Hose 1
32 60163481 Rubber Hose Assembly 1
33 B230103006430 Hose 1
34 B230103004203 Hose Assembly 1
35 13307372 Clamp 2
36 11206238 Rubber Cushion 3
37 A210111000012 Bolt 2
38 B230103000304 Rubber Hose 1
39 13306471 Plate, Side 2
40 13307564 Rubber Sheath 1
41 10514225 Screw Plug 1
42 A230101000501 O-ring 2
43 B210780000235 Fitting Adapter 2
44 B210780000898 Fitting Adapter 1
45 13422859 G11/4-M36 Extended Connector 1
46 B230101000050 O-ring 1
47 B210780000838 Elbow Combination Joint 1
48 A820205002280 G1/2-M30 Adaptor 1
49 B230101000090 O-ring 1
50 B210780000741 Split Flange 12
51 A210204000454 Screw 20
53 A820205002468 End Straight Through Connector Geolg1-Lm36 1
59 21027532 Screw 2
64 B230101000404 O-ring 1
65 A210204000466 Screw 4
66 B210780000890 Flange Joint 4
67 A210204000206 Screw 8
72 A210307000055 Nut 4
73 24000633 Washer 4
74 B230103002916 Hose 1
75 B210780000141 Fitting Adapter 4
77 10467061 Joint 1
78 150401990010A Solenoid Valve 1

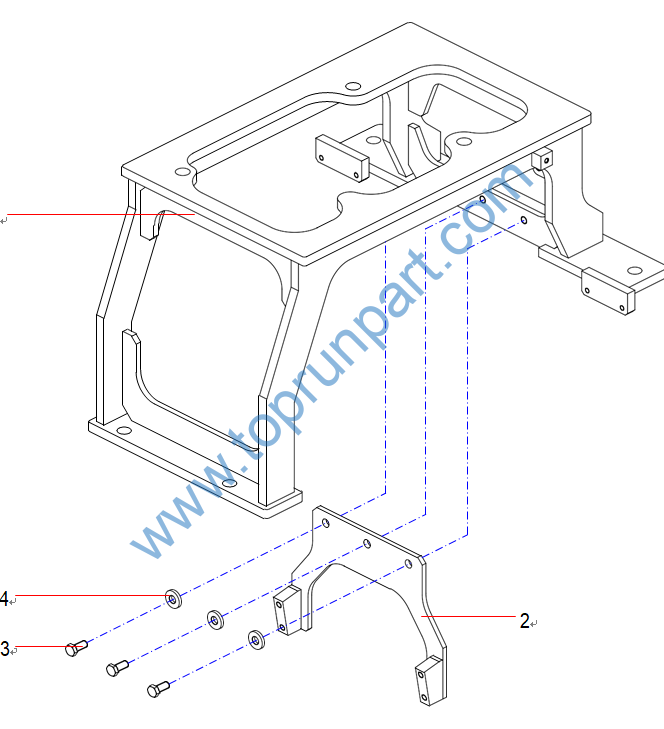

1 13503265 Main Valve Frame Body 1
2 13503267 Electromagnetic Valve Bracket 1
3 A210111000101 Bolt 3
4 13300896 Thickened Shim 3

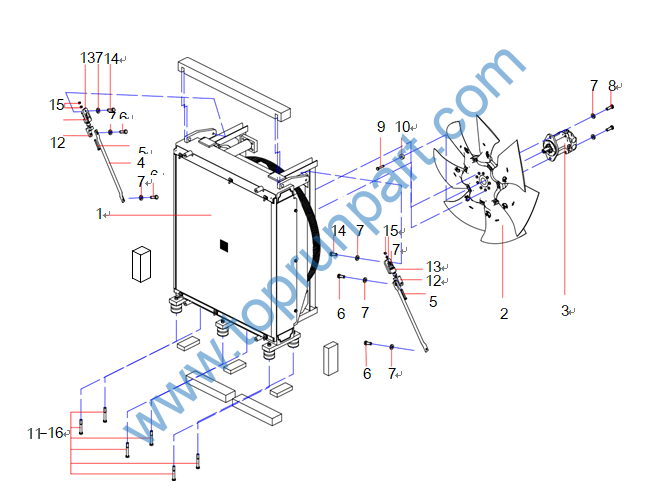

1 61002524 Air-cooled Radiator 1
2 60249010 Fan 1
3 150204010011A Gear Motor 1 2-164
4 14015401 Brace Rod 2
5 A210110000323 Bolt 2
6 A210111000442 Bolt 6
7 13411987 Thickening Washer 2
8 A210111000208 Bolt 2
9 A210111000120 Bolt 1
10 13300919 Sleeve 1
11 A210111000243 Bolt 6
12 14014497 Support 2
13 14014513 Support 2
14 A210111000209 Bolt 2
15 A210307000031 Nut 4
16 A210491000118 Washer 6

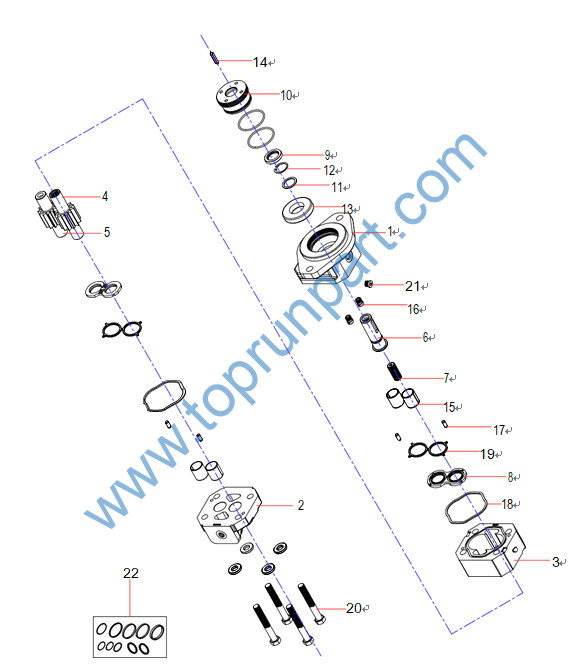

1 150204010011A001 front cover 1
2 150204010011A002 rear cover 1
3 150204010011A003 Motor Body 1
4 150204010011A004 2nd-stage main gear 1
5 150204010011A005 Driven Gear 1
6 150204010011A006 External Shaft 1
7 150204010011A007 Inscribed Shaft 1
8 150204010011A008 Side Plate 2
9 150204010011A009 Motor Oil Seal 1
10 150204010011A010 Cover 1
11 150204010011A011 bearing retaining ring 1
12 150204010011A012 Circlips for Shaft 1
13 150204010011A013 Double Row Angular Contact Ball Bearing 1
14 150204010011A022 flat key 1
15 150204010011A015 Sliding Bearing 4
16 150204010011A016 Check Valve 2
17 150204010011A017 Cylinderical Pin 4
18 150204010011A018 square seal ring 2
19 150204010011A019 motor seal ring 2
20 150204010011A020 hexagon bolt 4
21 150204010011A023 Metal Plug 1
22 150204010011A024 Service Kit 1

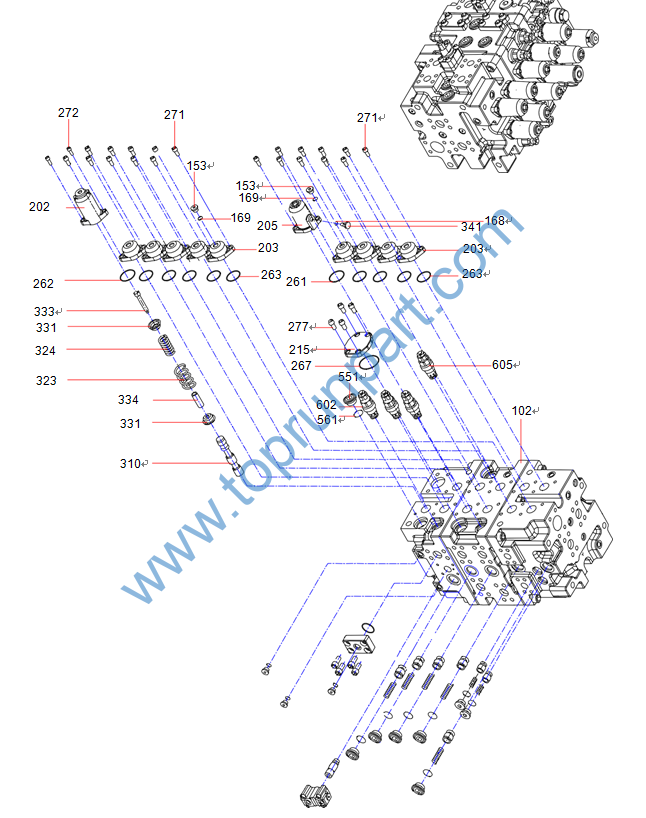

1 60186788 Breathing Valve Filter Element 1
102 60292565 housing B 1
153 60008713 Plug 10
168 60221658 O-ring 3
169 60312651 O-ring 10
202 60100506 Spring Cover 2
203 60075556 Valve Cover 9
205 60292568 Valve Cover 1
215 60075552 Valve Cover 1
261 60319529 O-ring 11
262 60100514 O-ring 2
263 60319530 O-ring 9
267 60319532 O-ring 1
271 60319533 Socket Head Cap Screw 40
272 60008721 Hexagon Screw 4
277 60100512 Hexagon Screw 4
310 60292581 Bypass Ypass Cut-off Valve Core 2
323 60237025 Spring 2
324 60292582 Spring 2
331 60008823 Seat 4
333 60008819 Screw Stud 2
334 60008818 Retaining Ring 2
341 60292586 Plug 1
551 60075542 Plug 17
561 60312647 O-ring 19
602 60075578 Bypass Overflow Valve 6
605 60335072 Bypass Overflow Valve 2

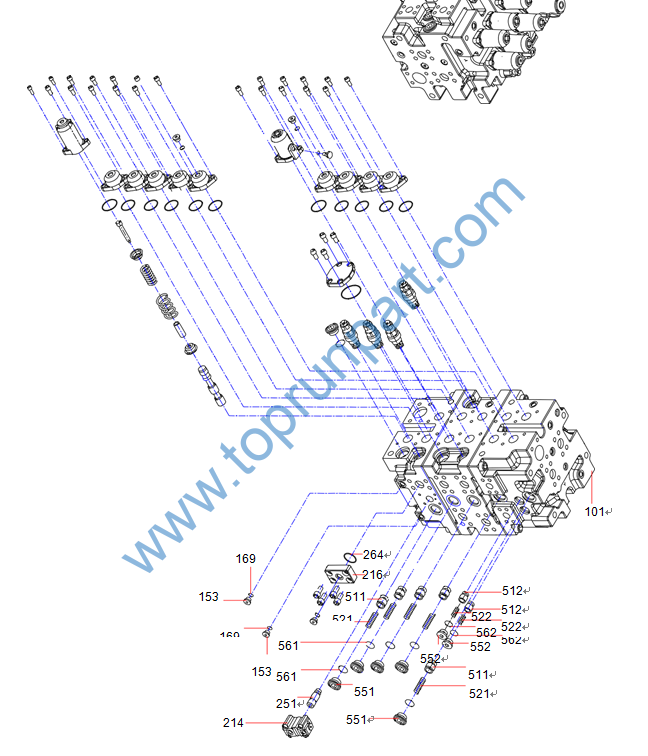

101 60292564 housing A 1
153 60008713 Plug 10
169 60312651 O-ring 10
214 60311472 BP Control Valve 1
216 60292570 Flange 1
251 60311473 BP Valve Cone Valve 1
264 60319531 O-ring 3
511 60075548 Check Valve 10
512 60292590 Throttle Valve 2
521 60075591 Spring 12
522 60008817 Spring 2
551 60075542 Plug 17
552 60008715 Plug 2
561 60312647 O-ring 19
562 60335071 O-ring 2
