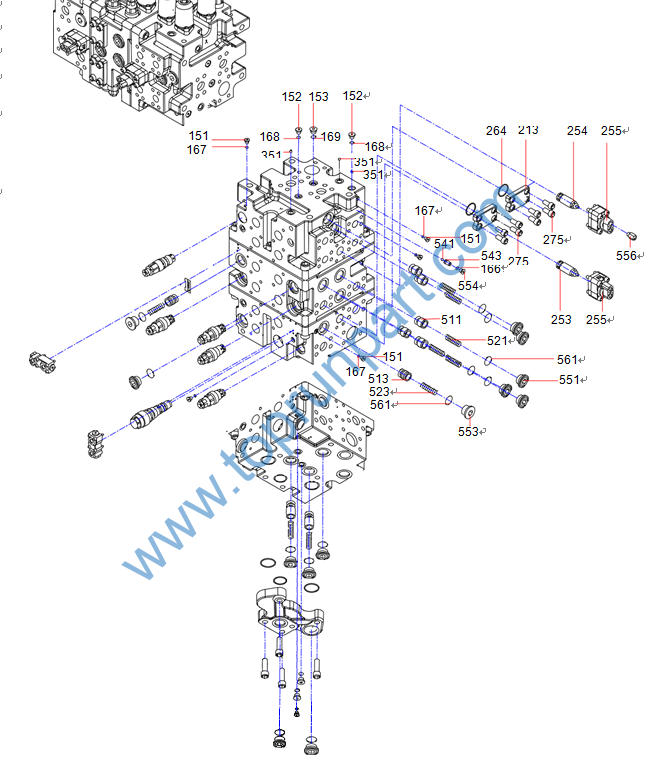

151 60100467 Plug 6
152 60008711 Plug 2
153 60008713 Plug 10
166 60314925 O-ring 1
167 60221657 O-ring 6
168 60221658 O-ring 3
169 60312651 O-ring 10
213 60075554 Valve Cover 2
253 60311474 Arm Logic Valve 1
254 60311471 Swing Logic Valve 1
255 60205667 Logic Control Valve 2
264 60319531 O-ring 3
275 60319535 Socket Head Cap Screw 12
351 60292587 Throttle Orifice 3
511 60075548 Check Valve 10
513 60075549 Check Valve 2
521 60075591 Spring 12
523 60075589 Spring 2
541 60075545 Ball 1
543 60075592 Spring 1
551 60075542 Plug 17
553 60075540 Plug 2
554 60008714 Plug 1
556 60242320 Throttle Connector 1
561 60312647 O-ring 19

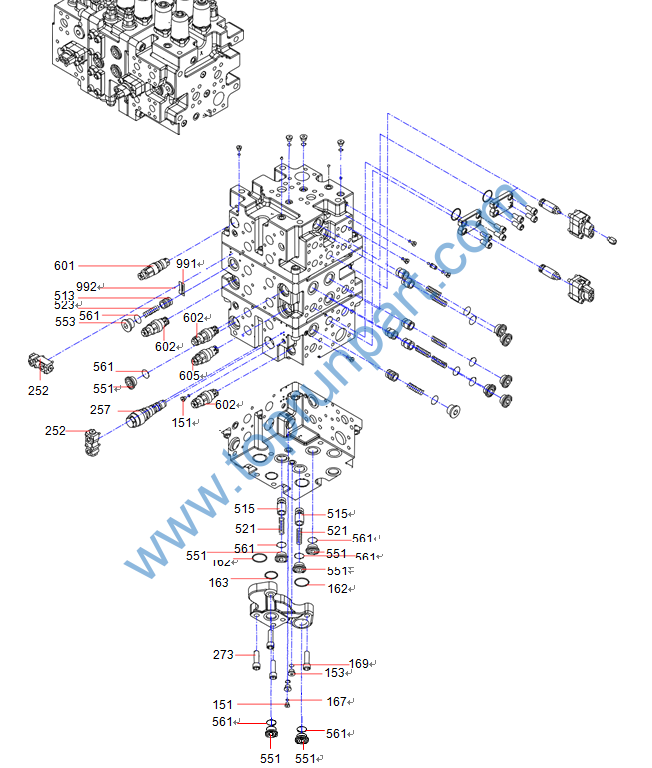

151 60100467 Plug 6
153 60008713 Plug 10
162 60319525 O-ring 2
163 60100517 O-ring 1
167 60221657 O-ring 6
169 60312651 O-ring 10
252 60292571 Lock Valve 2
257 60271306 Arm Regeneration Cutoff Valve 1
273 60319534 Socket Head Cap Screw 4
513 60075549 Check Valve 2
515 60292591 Throttle Valve 2
521 60075591 Spring 12
523 60075589 Spring 2
551 60075542 Plug 17
553 60075540 Plug 2
561 60312647 O-ring 19
601 60292593 Main Pressure Relief Valve 1
602 60075578 Bypass Overflow Valve 6
605 60335072 Bypass Overflow Valve 2
991 60100511 nameplate 1
992 60038620 Pin 2

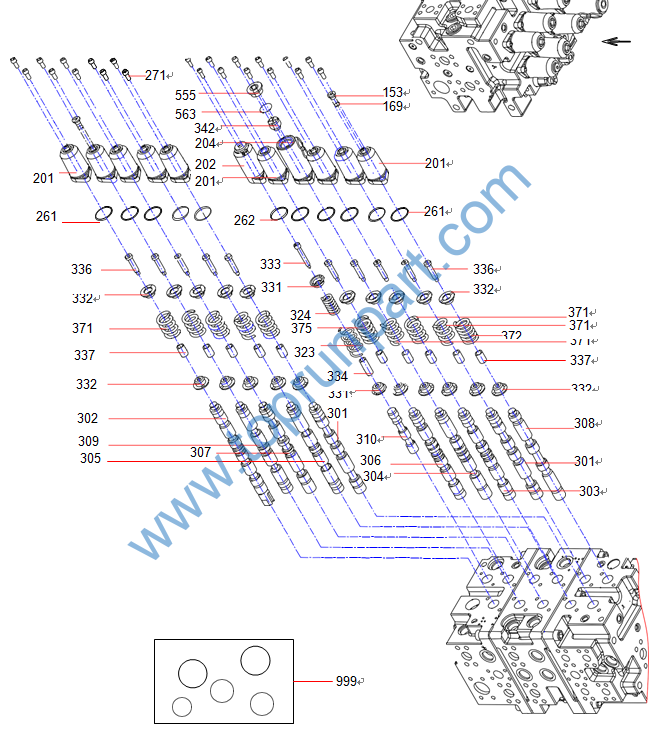

153 60008713 Plug 10
169 60312651 O-ring 10
201 60075555 Valve Cover 9
202 60100506 Spring Cover 2
204 60292567 Valve Cover 1
261 60319529 O-ring 11
262 60100514 O-ring 2
271 60319533 Socket Head Cap Screw 40
301 60319536 Travel Valve Element 2
302 60335068 Arm 1 Spool 1
303 60292574 Boom 1 Spool 1
304 60335069 Bucket Valve Core 1
305 60292576 Slewing Valve Element 1
306 60292577 Arm 2 Spool 1
307 60335070 Boom 2 Spool 1
308 60292579 Straight Travel Valve Element 1
309 60292580 Spare Valve Element 1
310 60292581 Bypass Ypass Cut-off Valve Core 2
323 60237025 Spring 2
324 60292582 Spring 2
331 60008823 Seat 4
332 60292583 Spring 20
333 60008819 Screw Stud 2
334 60008818 Retaining Ring 2
336 60292584 Threaded Bolt 10
337 60292585 Retainer Ring 10
342 60271305 Bucket Limit Valve Core 1
371 60292588 Spring 8
372 60075586 Spring 1
375 60292589 Spring 1
555 60039401 Oil Plug 1
563 60100516 O-ring 1
999 60210758 Main Valve Service Kit 1

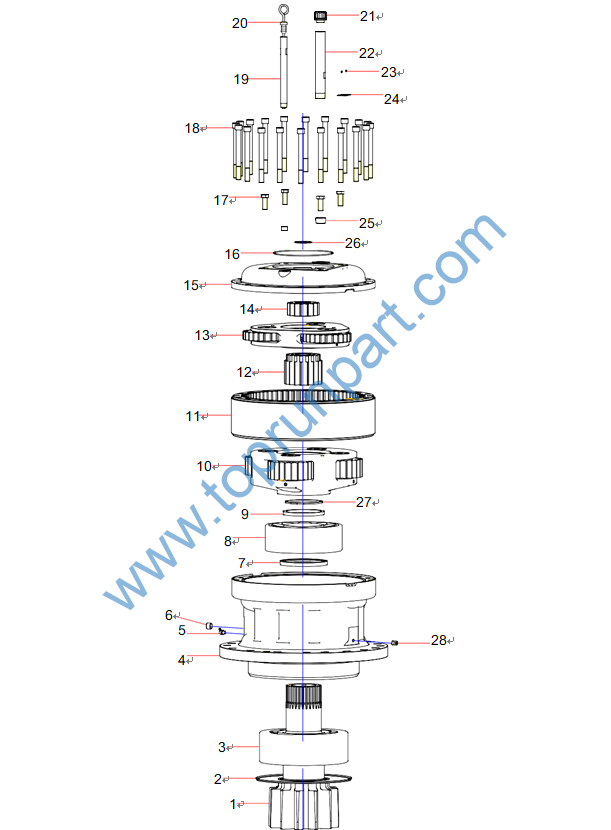

1 JSJ004674593 Drive Shaft 1
2 JSJ004674572 Retainer Ring, Dust 1
3 120301140260B Rolling Bearing 1
4 JSJ004674589 Output Casing 1
5 60008610 Oil Cup 1
6 A210342000009 Plug Screw 2
7 60196731 TC framework oil seal 1
8 120301140261B Rolling Bearing 1
9 JSJ004674578 Spacer Sleeve Ii 1
10 14194158 Planet Carrier Ii Assembly 1 2-180
11 14185644 Internal Ring Gear 1
12 14185664 Sun Gear Ii 1
13 14193897 Planetary carrier assemblyⅠ 1 2-184
14 14185513 Sun Gear I 1
15 14185246 cover 1
16 61021631 O-ring 1
17 A210111000053 Bolt 4
18 A229900007362 Screw 20
19 14185354 oil pipe Ⅱ 1
20 14185353 Oil Scale 1
21 14185352 Vent 1
22 14185351 Oil Pipe 1
23 12498088 Rivet 2
24 13815749 Name Plate 1
25 24001173 Screw 1
26 24000579 Retainer Ring 1
27 120108030058B Retaining Ring 1
28 60052005 Safety Valve 1

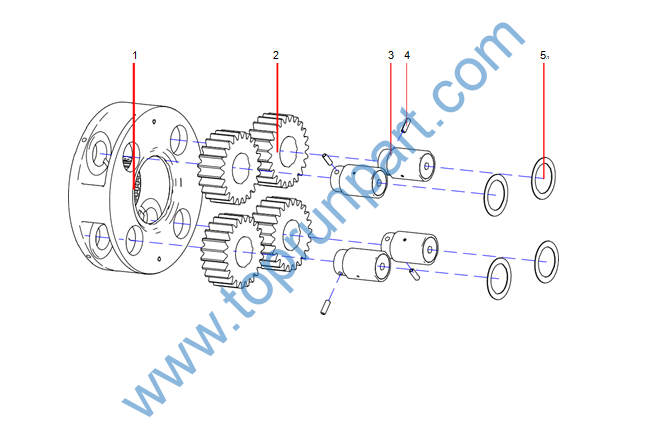

1 14185511 Planet Carrier 1
2 14185665 Gear 4
3 14190471 planetary shaft component 4 2-182
4 14185689 Pin 4
5 14185690 Wear Pad Ii 4

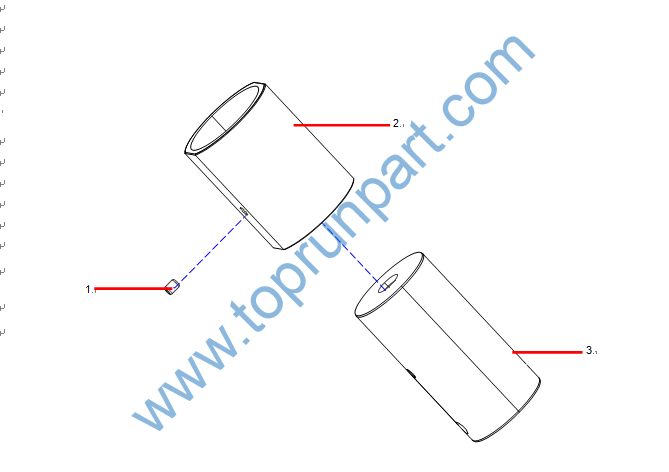

1 14185679 Pin 1
2 14185678 Sliding Bearing 1
3 14185667 Shaft 1
