SY550C1I3KH Hydraulic Excavator y

1 A210111000024 Bolt 2
2 A210491000120 Washer 2
3 A210111000203 Bolt 4
4 13306843 Assembly of Bumper Block 2 2-200

5 13867139 Radiator Compartment Framework 1
6 13306922 Partition Plate 1
7 A210111000101 Bolt 10
8 13300896 Thickened Shim 14
9 13306818 Door-shaft Seal 1
10 A210307000036 Nut 2
11 A810502019056 Positioning Screw 2

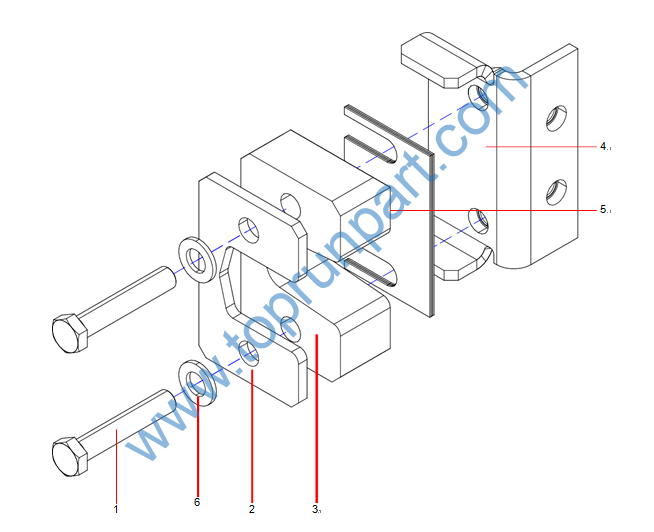

1 24003401 Bolt 2
2 13306839 Clamp Plate 1
3 13306840 Fixed Block 1
4 13489421 Mounting Plate 1
5 13306841 Spacer, Adjusting 3
6 A210405000001 Washer 2

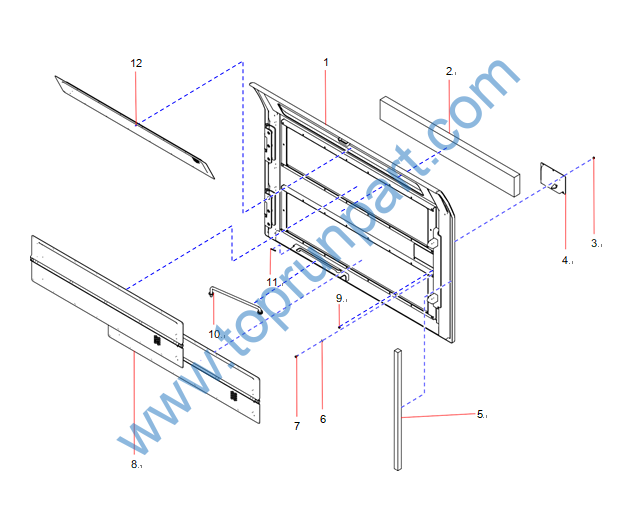

1 13866877 Left Rear Door Panel Assembly 1
2 13505792 Noise Reduction Sponge 1
3 11817247 Clamp Holder 4
4 A222200000012 Door Lock 1
5 13285732 Buffer Sponge 1
6 A210405000005 Washer 52
7 A210111000238 Bolt 52
8 13368279 Lower Dust Screen Subassembly 2
9 A210307000015 Nut 4
10 13285742 Wind Hook 1
11 A210491000014 Pin 1
12 13368264 Net 1

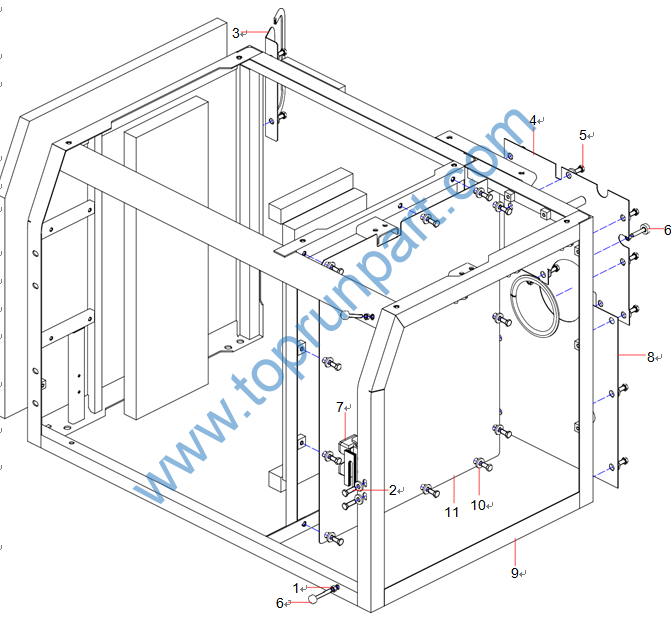

1 A210307000036 Nut 3
2 A210111000203 Bolt 2
3 13512320 Baffle 1
4 13422177 Partition Plate 1
5 A210111000202 Bolt 26
6 A810502019056 Positioning Screw 3
7 13306843 Assembly of Bumper Block 1 2-206

8 13422184 Air Filter Partition 1
9 13902229 Air Filter Cabin Framework 1
10 13300896 Thickened Shim 28
11 13306885 Partition Plate 1

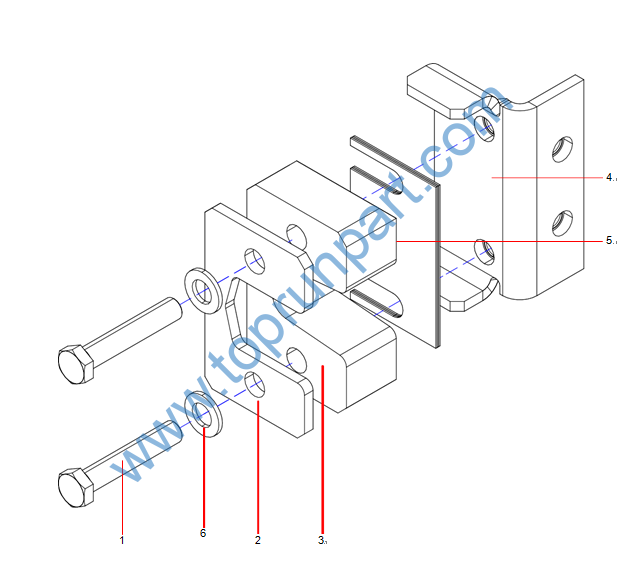

1 24003401 Bolt 2
2 13306839 Clamp Plate 1
3 13306840 Fixed Block 1
4 13489421 Mounting Plate 1
5 13306841 Spacer, Adjusting 3
6 A210405000001 Washer 2

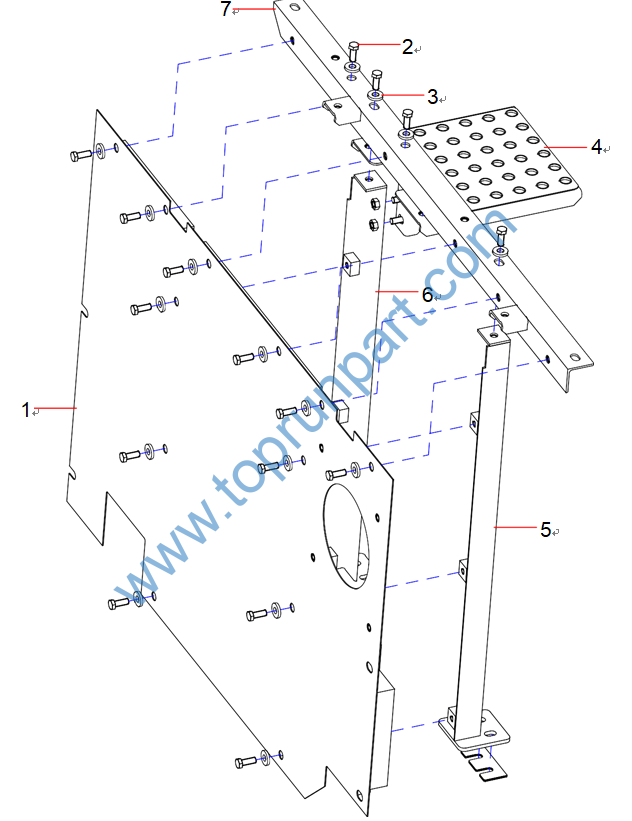

1 Clapboard Assembly 1 2-210

2 A210111000202 Bolt 18
3 13300896 Thickened Shim 18
4 13420583 Footplate Assembly 1
5 13306266 Left Upright Column 1
6 13306264 Right Upright Column 1
7 13306260 Front Cross Member 1

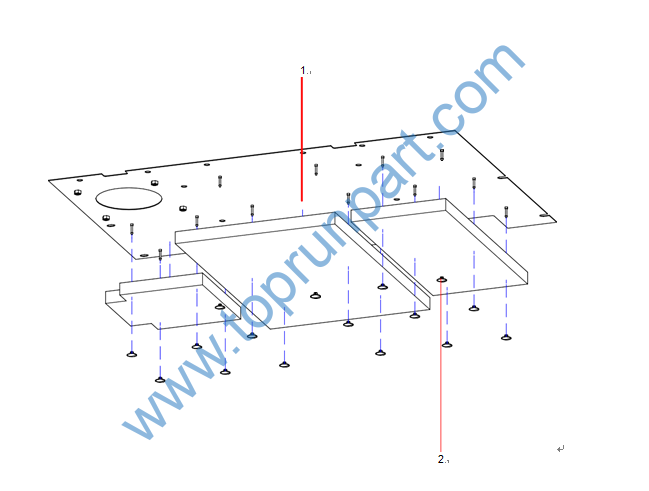

1 13306268 Clapboard 1
2 13282154 Cramp 16

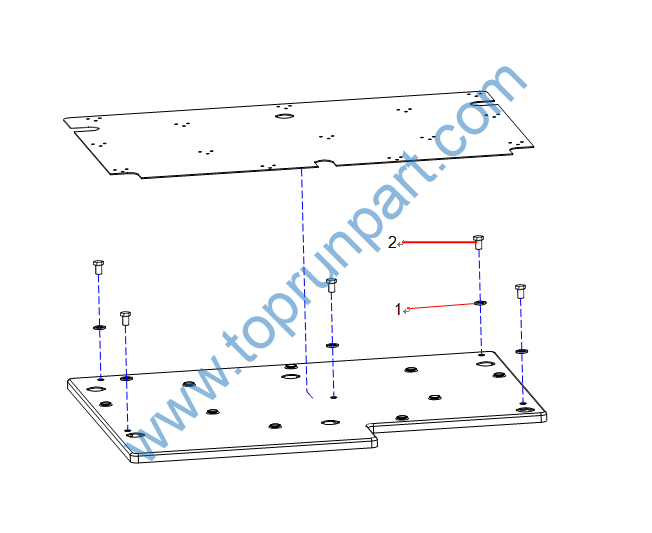

1 A210491000121 Washer 5
2 A210111000199 Bolt 5

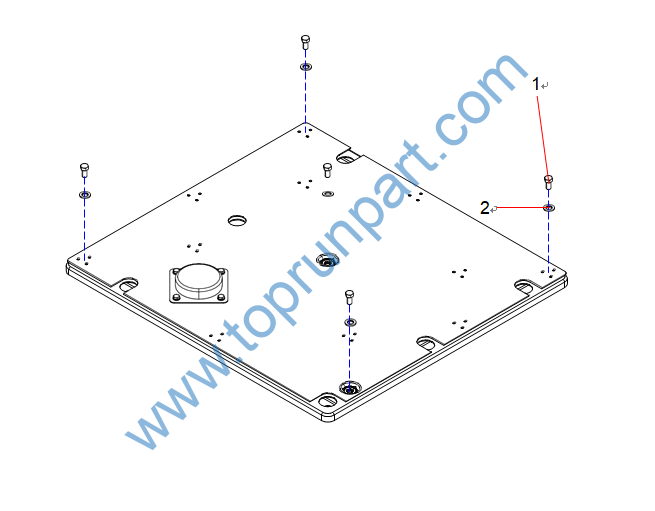

1 A210111000199 Bolt 5
2 A210491000121 Washer 5
