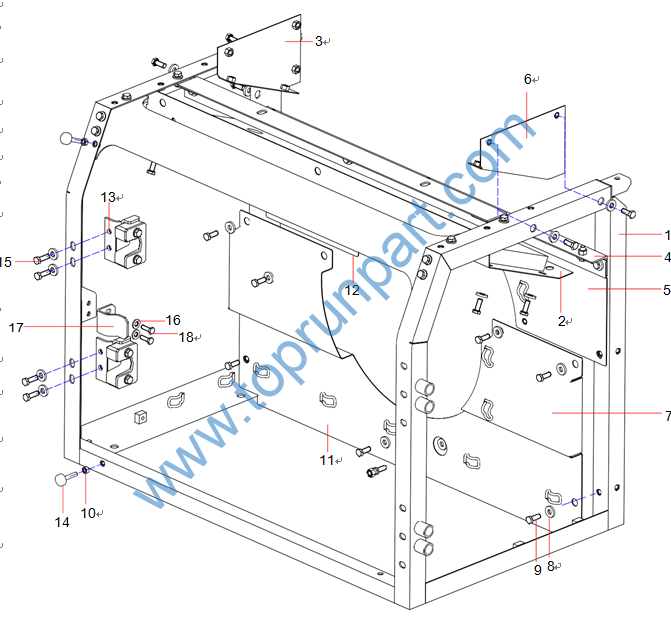

1 Main Pump Cabin Framework 1 2-218

2 Main Pump Upper Partition Plate 1 2-220

3 13385522 Left Upper Corner Partition 1
4 14057213 Crossbeam 1
5 14020461 Main Pump Right Partition Plate 1
6 13306849 Angle Component Partition 1
7 14020466 Main Pump Lower Partition Plate 1
8 13300896 Thickened Shim 31
9 A210111000202 Bolt 27
10 A210307000036 Nut 2
11 14020464 Main Pump Lower Partition Plate 1
12 14020458 Main Pump Left Partition Plate 1
13 13306843 Assembly of Bumper Block 2 2-222

14 A810502019056 Positioning Screw 2
15 A210111000203 Bolt 4
16 A210491000120 Washer 2
17 13506808 Door-shaft Seal 1
18 A210111000024 Bolt 2

1 A210111000202 Bolt 8
2 A210491000121 Washer 8

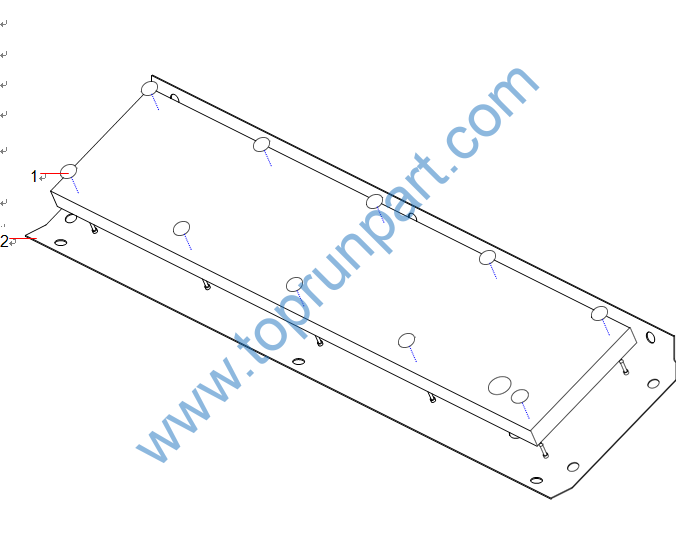

1 13282154 Cramp 10
2 13306851 Main Pump Upper Partition Plate 1

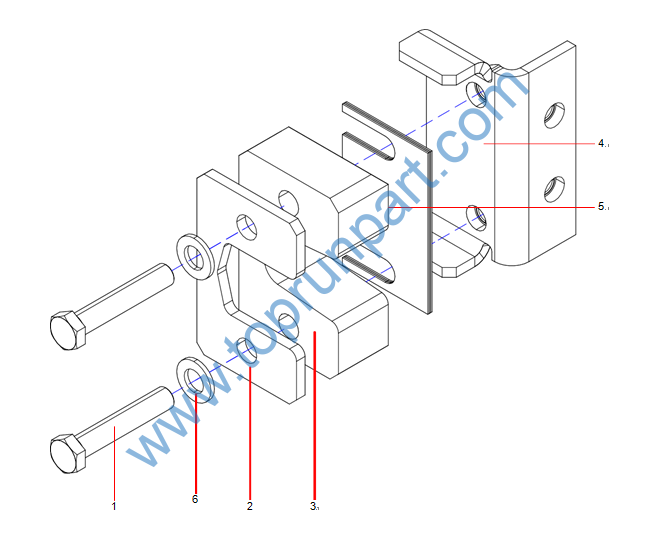

1 24003401 Bolt 2
2 13306839 Clamp Plate 1
3 13306840 Fixed Block 1
4 13489421 Mounting Plate 1
5 13306841 Spacer, Adjusting 3
6 A210405000001 Washer 2

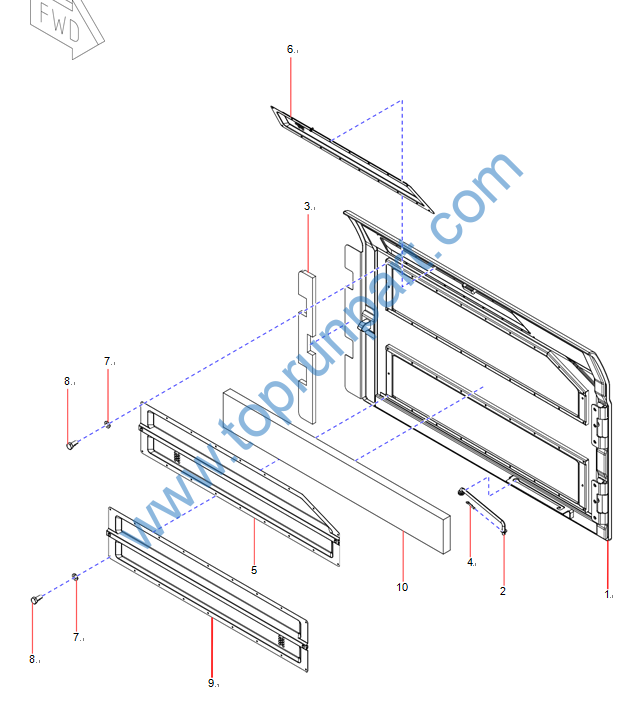

1 13901207 Left Front Door Panel Assembly 1
2 13285742 Wind Hook 1
3 13368179 Buffer Sponge 1
4 A210491000014 Pin 1
5 13368200 Lower Dust Screen 1
6 13368180 Net 1
7 A210405000005 Washer 58
8 A210111000238 Bolt 57
9 13414536 Lower Dust Screen 1
10 13505791 Noise Reduction Sponge 1

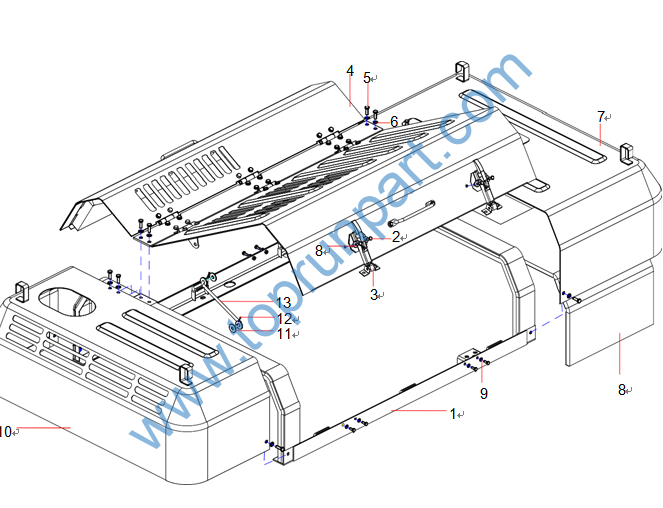

1 13306105 Mounting Rack Assembly 1 2-228

2 A210111000343 Bolt 16
3 A222200000065 Hood Lock 4
4 13306189 Engine Cover 1 2-230

5 A210111000203 Bolt 18
6 13300896 Thickened Shim 18
7 13306069 Radiator Hood Assembly 1 2-232

8 A210404000005 Washer 8
9 A210405000007 Washer 8
10 13305974 Muffler Cover 1
11 A210404000004 Washer 2
12 A210491000007 Pin 2
13 10817654 Stay Rod Ⅱ 1

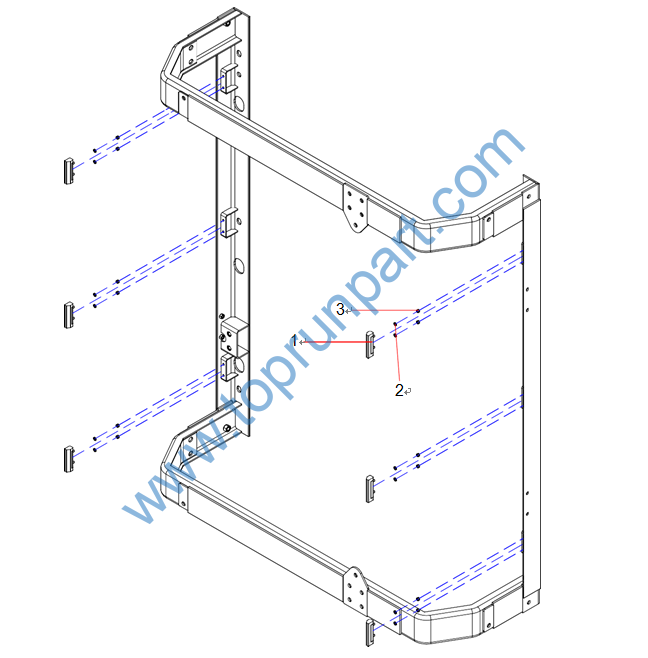

1 13305174 Buffer Block 6
2 A210405000005 Washer 12
3 A210307000015 Nut 12

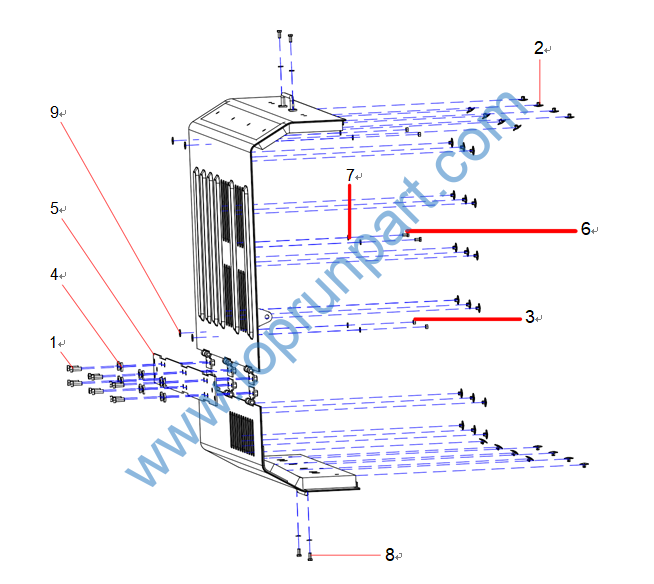

1 A210111000202 Bolt 12
2 13282154 Cramp 34
3 A210307000055 Nut 4
4 13300896 Thickened Shim 12
5 13306190 Installation Beam 1
6 A210111000342 Bolt 2
7 A210405000007 Washer 10
8 A210111000343 Bolt 4
9 A210404000005 Washer 4

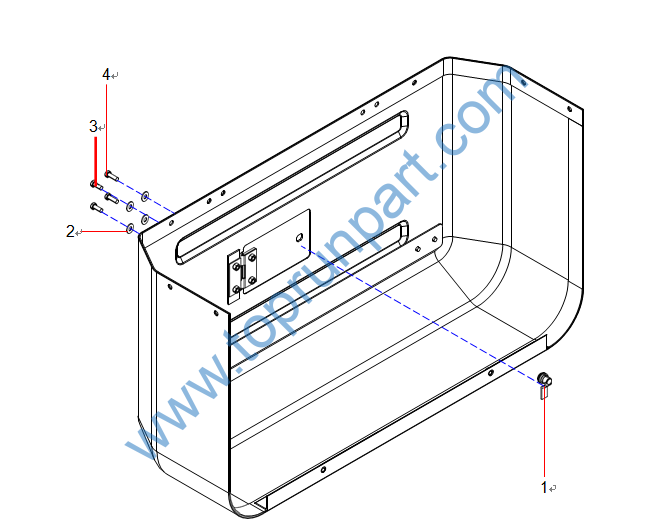

1 A222200000122 Door Lock 1
2 A210491000120 Washer 4
3 A210111000197 Bolt 2
4 A210111000024 Bolt 2

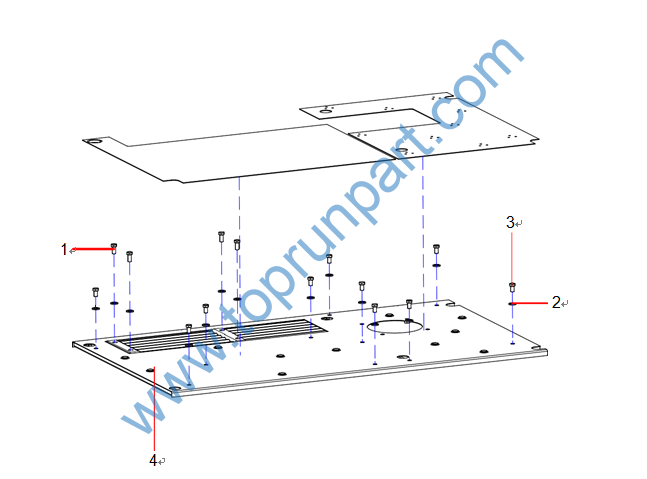

1 A210111000101 Bolt 4
2 A210491000121 Washer 14
3 A210111000199 Bolt 10
4 13304828 Air Filter Plate 1
